SHOTGUN SPLIT BAND QD SWIVEL BASES
Please enable Javascript to view this notice.
An alternative non-Javascript notice is available on the Gun Sling Fittings main page.
SHOTGUN SLING FITTINGS
12g SINGLE BARRELMin diameter ~ 21.0mm
Manufacturer states:
21.6mm - 22.9mm
(.850" - .900")
£12.60p per set
£9.00p per set
'SOME' 12g OVER AND UNDER BARRELSMin diameter ~ 19.1mm
Manufacturer states:
19.9mm - 21.0mm
(.775" - .825")
£12.60p per set
£9.00p per set
'MOST' 12g OVER AND UNDER BARRELSMin diameter ~ 19.5mm
Manufacturer states:
20.3mm - 21.6mm
(.800" - .850")
£12.60p per set
£9.00p per set
16g SINGLE BARRELMin diameter ~ 18.5mm
Manufacturer states:
19.0mm - 20.3mm
(.750" - .800")
£14.40p per set
£9.00p per set
20g SINGLE BARRELMin diameter ~ 17.5mm
Manufacturer states:
17.8mm - 19.0mm
(.700" - .750")
£14.40p per set
£9.00p per set
Need QD stud swivels at the same time?
Use Promo Code ~ QDSSADDONHP ~ to add a pair at half price:
Link ~ QD Gun Sling Swivels Condition: New
WE HAVE A COUPLE THAT HAVE A FLAW IN THE THREADING,
AVAILABLE FREE OF CHARGE IF ADDED TO AN ORDER

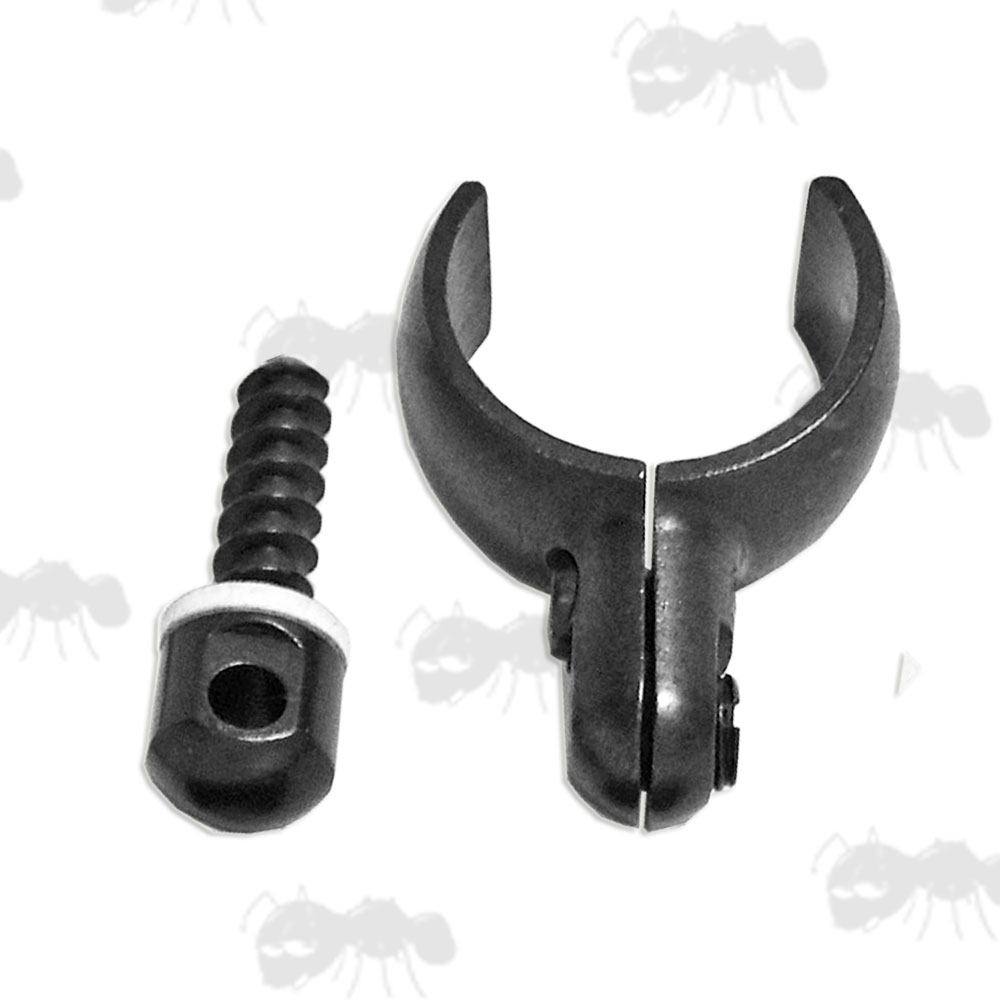

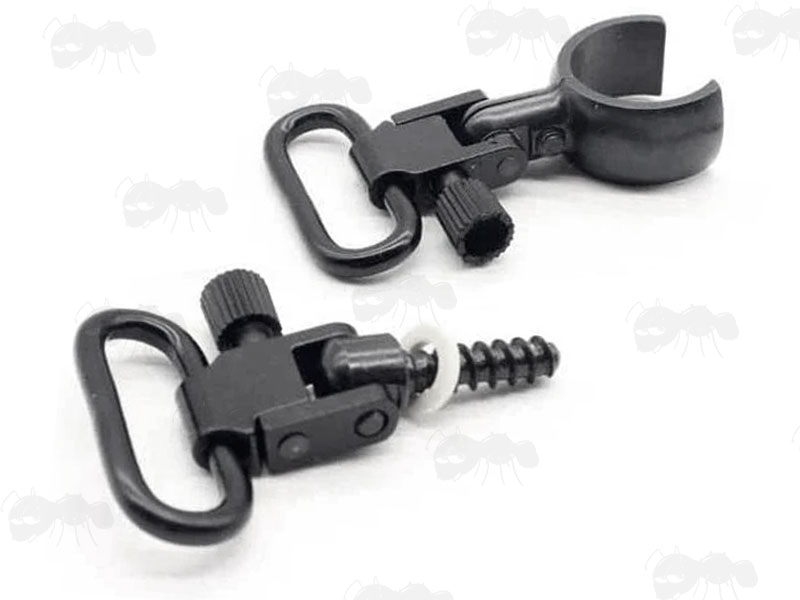

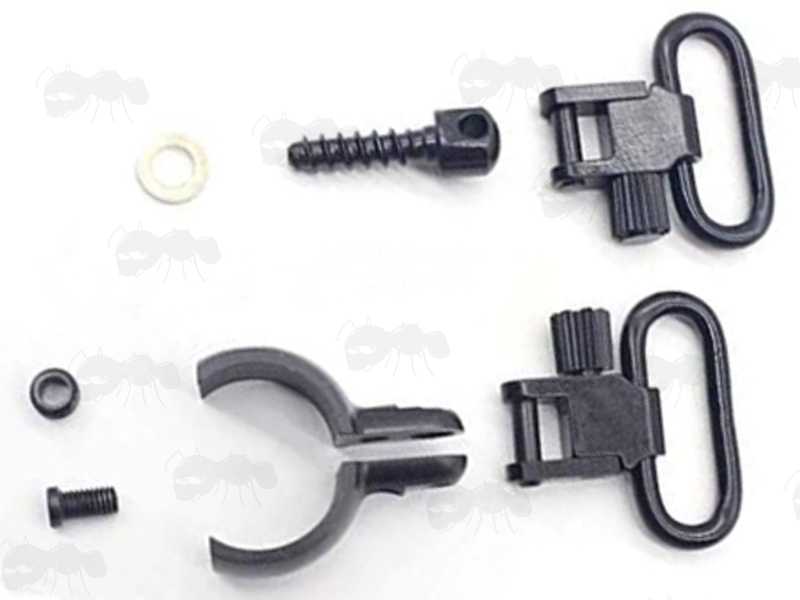

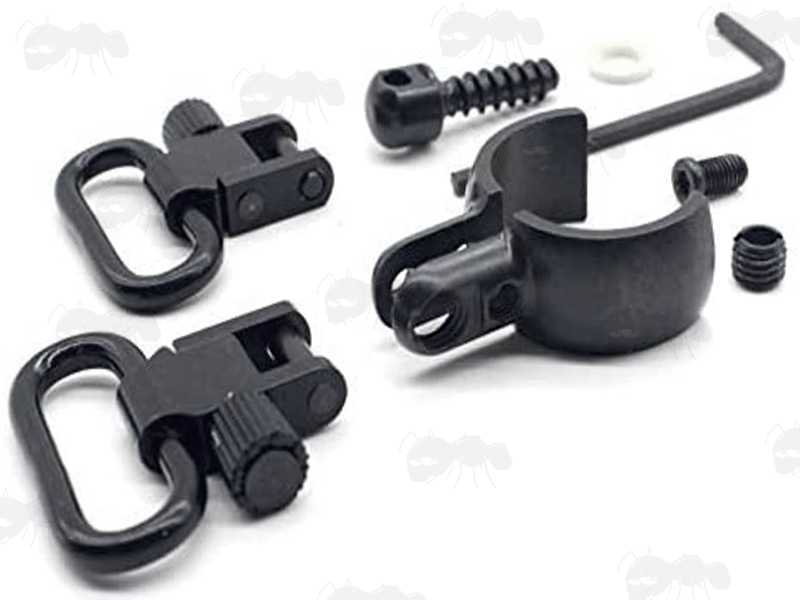

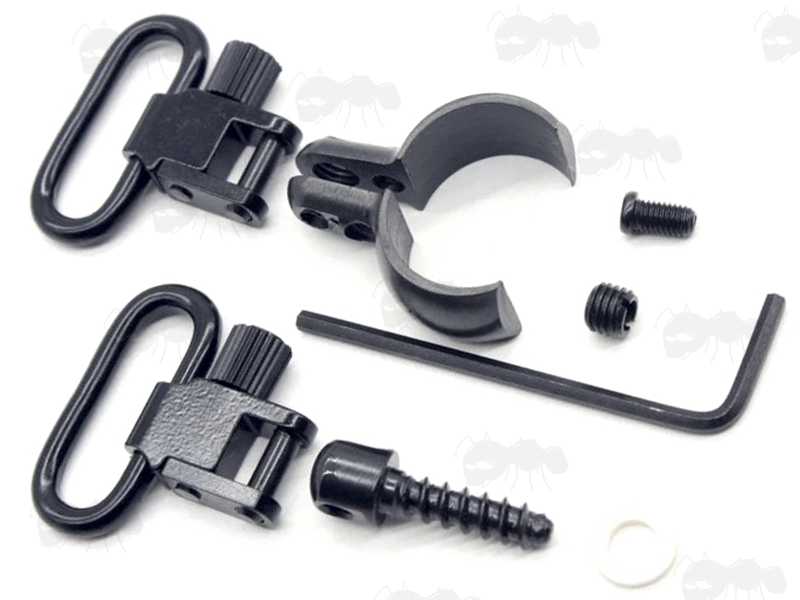

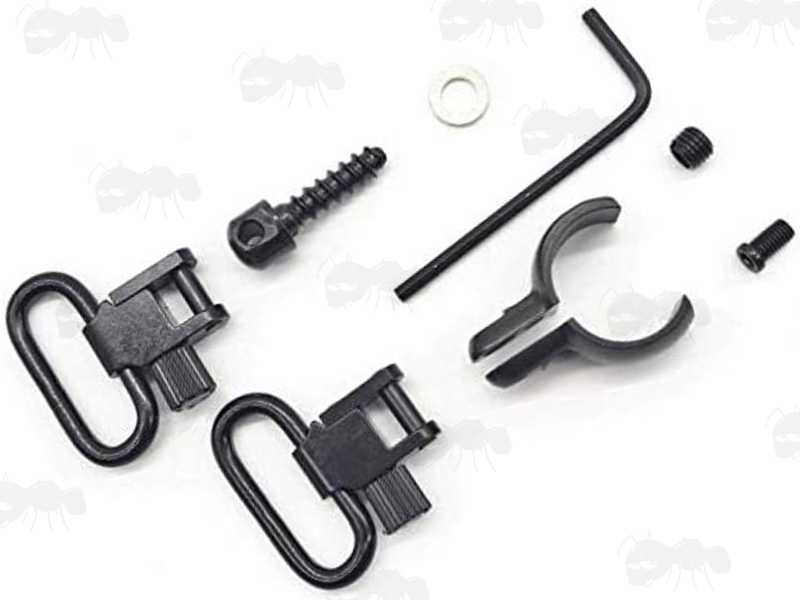

Quick-detach swivel bases for shotgun barrels or magazine tubes.
They accept QD sling swivels with pins of a 3.5mm diameter.
The split barrel band should ideally be fitted from 13 to 17 inches forward from the trigger.
Please Note: the stated sized are approximate, and it's usual to fit a slightly larger band and add padding.
Please let use know your findings on the questionnaire below.
To install, firstly degrease the barrel band and the location it will be fitted to.
Then screw-in the slotted-head, hollow grub screw, into the hole at the end of the band,
until one or two threads show on the inside.
It is hollow as your QD sling swivel fits through it.
Place both halves of the band on where they are to be fitted and now screw-in the Allen head screw.
Make sure that if there is a gap between the halves, that it is evenly spaced.
When secure, the band may be able to rotate if force is applied, for a permanent fixing, adhesive can be used.
Please Note:
We can not guarantee which / if any will fit your shotgun.
We add information provided from previous customers below, as a guide.
However sometimes this information conflicts with previous customers.
Please enable Javascript to view this notice.
An alternative non-Javascript notice is available on the Rifle Split Band Barrel Fitting Swivels main page.

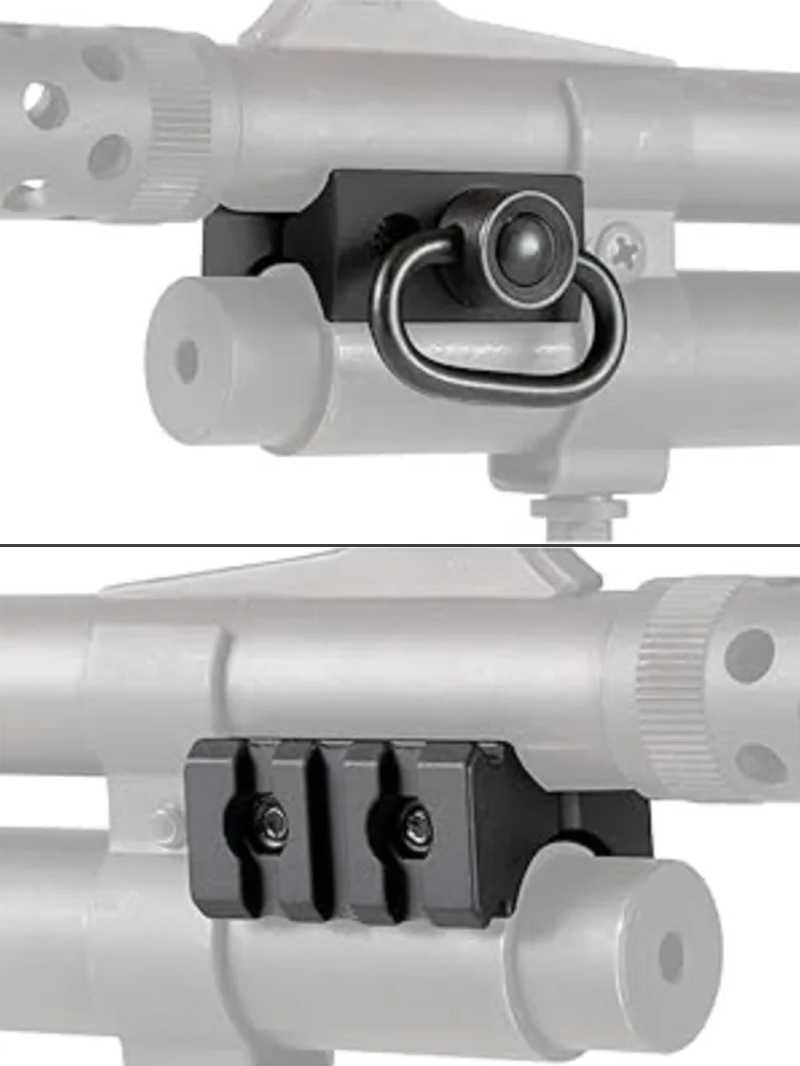

UPDATE: We now have a replacement / upgrade fitting available here.
- 12g Single Barrel should fit (SSB-1):
- Baikal 12 Gauge IJ-18e (barrel o/s diam. 22.28mm).
- Berreta
- Browning A-5, Magnum and Double Auto.
- Hatsan Pump Action Field Hunter.
- J.C. Higgens model 60 12 gauge auto.
- Remington 31.
- Remington 1100 semi-automatic (Fitted with a thin leather padding strip to protect the barrel).
- Sears
- Weirauch HW98 (Can fit fine but you could put some thin rubber strip in the shape of the band for a tight fit, e.g bicycle inner tube).
- Winchester 1200, Model 1897 (For attachment to the under barrel magazine tube, can modify if needed).
- Some 12g Over and Under Barrel should fit (SSB-2):
- Air Arms HC, Pro Sport air rifles.
- AYA Yeoman O/U Magnum
- Benelli 828U
- Brno ZH 303
- Browning Citori 12 gauge, Cynergy
- Lincoln No 2 Game
- Norinco 1893/97 riot.
- Verney Carron
- Winchester 101, 201.
- Most 12g Over and Under Barrel should fit (SSB-3):
- Browning 525 12g, Superposed 12s, B80 Auto.
- Bettinsoli Diamond 12g.
- Crosman Phantom II Air rifle.
- CZ-USA Woodcock.
- H&R 162, 1212.
- Ithaca Deerslayer II (pre-1993), Model 37 (M37), XL 900.
- Laurona
- Mossberg Abilene .44 Pistol.
- Remington 48, 870, 1100.
- Ruger Over/Under 12s.
- Savage Semi-Automatic Shotguns.
- Stoeger Longfowler (over under 30 inch barrel).
- Winchester 12, 1200, 1300, 1400, 1500.
- 16g Single Barrel should fit (SSB-5):
- Beretta 12 gauge shotguns.
- Browning Model 1895 Rifle.
- Colt Trooper .357.
- Ruger Redhawk, Super Blackhawk.
- Savage 24 Series with 20 gauge under-barrel.
- Smith & Wesson 25, 29, 57, 629 pistols.
- Virginian Dragon .357, .44.
- Winchester 528, 1895 Rifles.
- 20g Single Barrel should fit (SSB-7):
- Browning Citori 20 gauge over/under, Model 1886, Model 17 Rifles.
- Cooey model 840 ("Hi, Some 20 gauge shotguns have a larger diameter, and require the 16g single barrel.").
- Remington Model 17
- Ruger Over/Under 20 gauge.
- Savage 24v Over/Under 20 gauge, 24c 20 gauge.
- Sears
- Stoeger
Also available ~ Shotgun Magazine Tube Cap Swivel Bases.
