DOVETAIL TO WEAVER / PICATINNY RAIL COMPRESSION ADAPTERS

Precision machined high quality aluminium alloy construction.

Less universal fitting than our other adapters.

LOW-PROFILE COMPRESSION TYPE ADAPTER RAILS

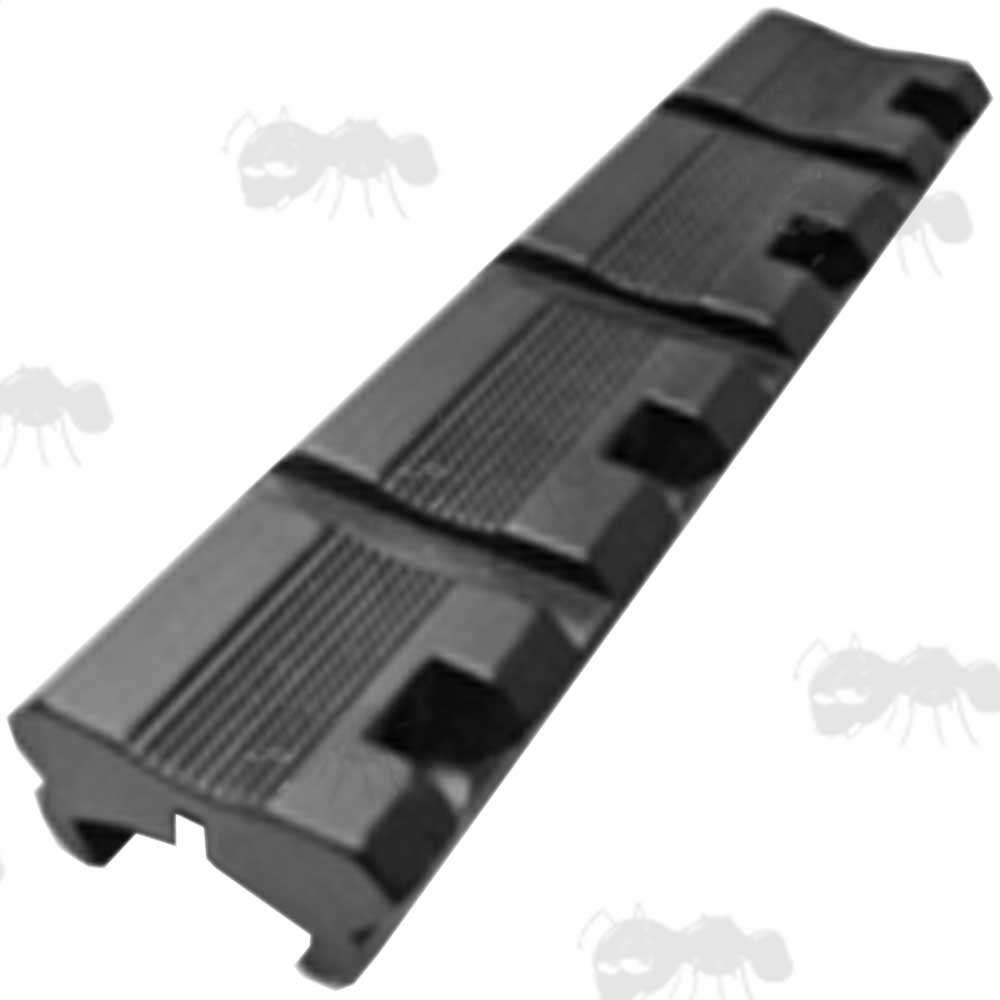

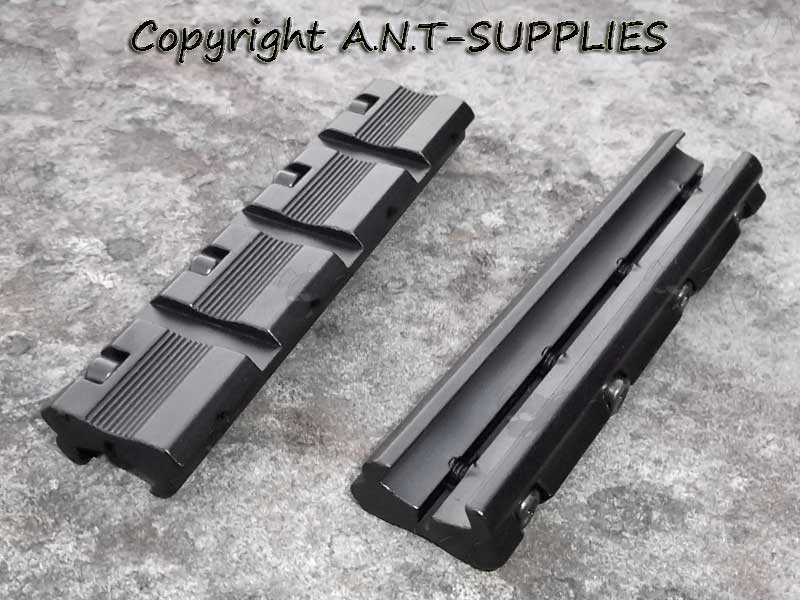

Slotted Dovetail to Weaver Adapter RailONE PIECE COMPRESSION

£10.00p each

One piece low profile design.


131mm long overall.
15mm high overall.

Weighs approx 55 grams.

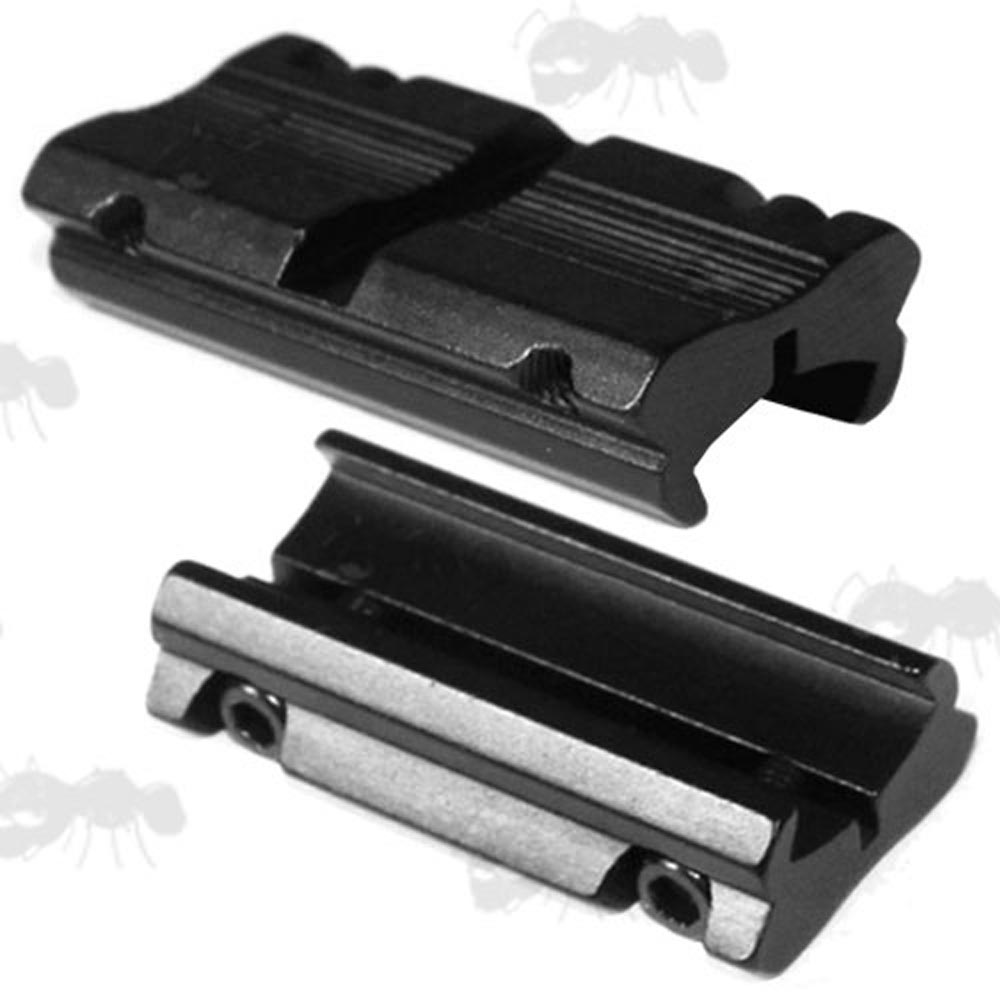

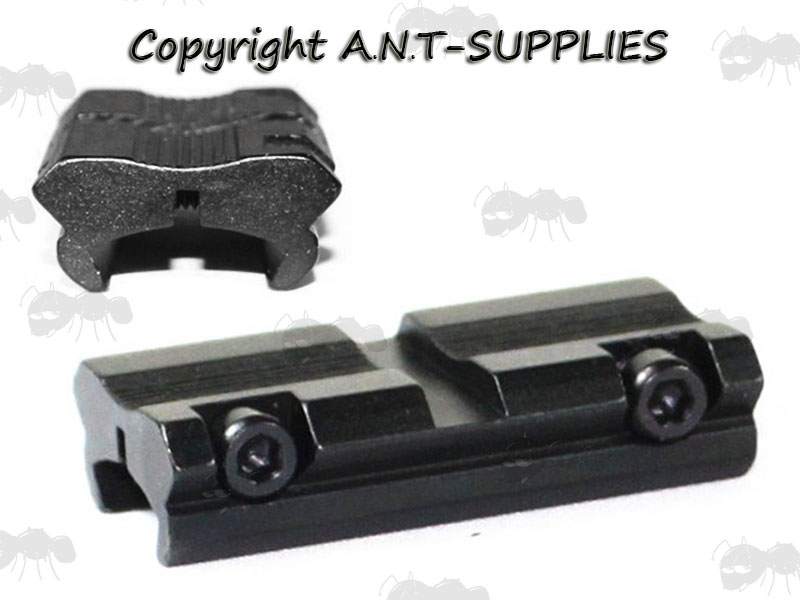

Two Piece Airgun / .22 Rifle 3/8 inch Dovetail Rail to Weaver Adapter RailsTWO PIECE COMPRESSION

£7.00p per pair

Two piece ultra-low profile design.


Each rail is 38mm long.
5mm elevation.

The pair weighs 24 grams.
Condition: New

Compression type fitting.

Dovetail to weaver / picatinny adapter.

Aluminium with a matte black anodised finish.

Converts 3/8" dovetail rail bases to standard Weaver bases, but will not fit all dovetail railed guns.


The one piece option;

Wont fit many standard dovetail rails as the clamping bolt shafts need slots to fit into which standard dovetail rails don't have.


The two piece compression pair option should fit;

Fits some airguns and .22 rifles such as Air Arms S410 TDR, Benjamin Marauder, Mauser 201, Marlin 795/60, Kimber 82G, Winchester 190, Beeman / Webley, Anschutz Pistol, CZ 452, Winchester Wildcat-22 and more.

Wont fit Remington 580 and others.
Reported as not fitting Weihrauch HW100.

Will accept a Nightforce ADI & 1913 MIL Spec Mount.

CZ models have either 11mm or 12.7mm wide rails at the top point, depending on the model and/ or calibre.
All CZ 452 'American' models 22lr/22wmr/17hmr are 12.7mm, so these adapters will not fit.
There is a similar adapter by Hawke, that is more adjustable and should fit.

PLEASE NOTE;
These adapters are far less universal fitting than the other adapters.
Due to the compression type fitting rather than a moving clamp type.
There is very little adjustment so avoid trying to over tightening them.

Slotted Dovetail to Weaver Adapter Rail
Two Piece Airgun / .22 Rifle 3/8 inch Dovetail Rail to Weaver Adapter Rails
