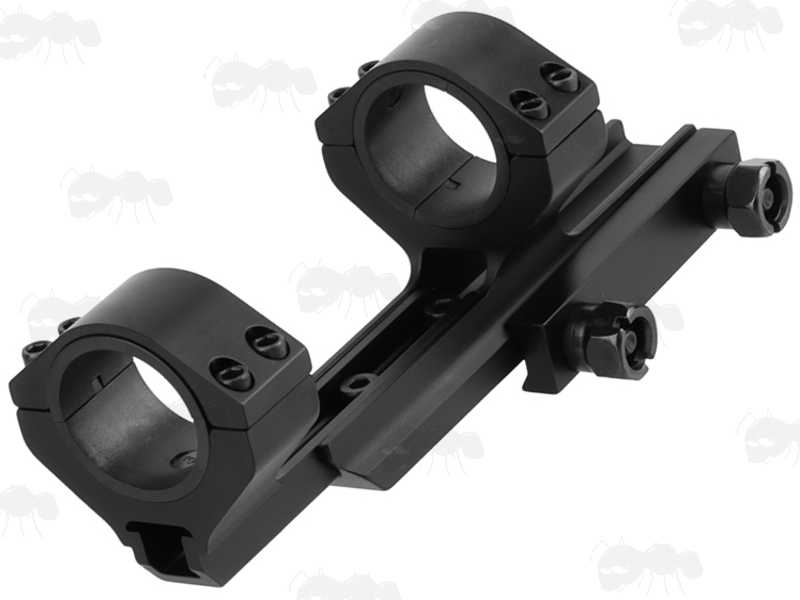

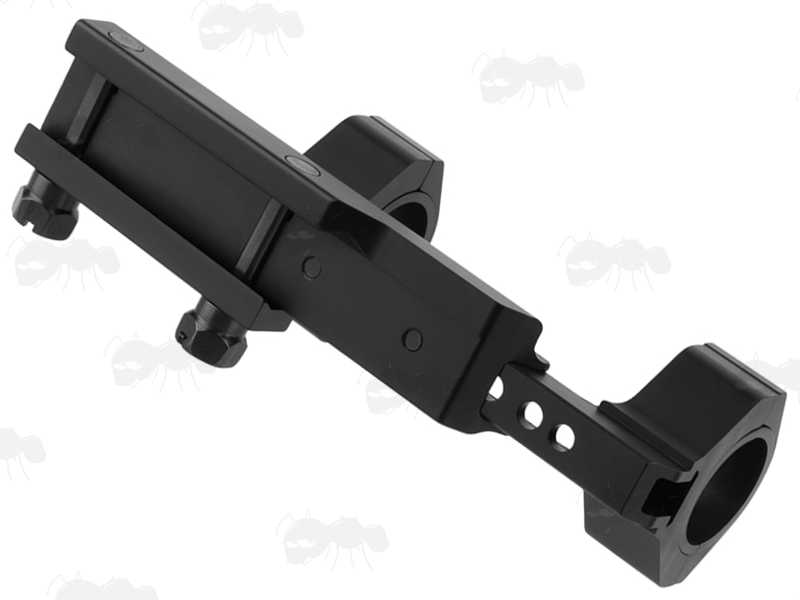

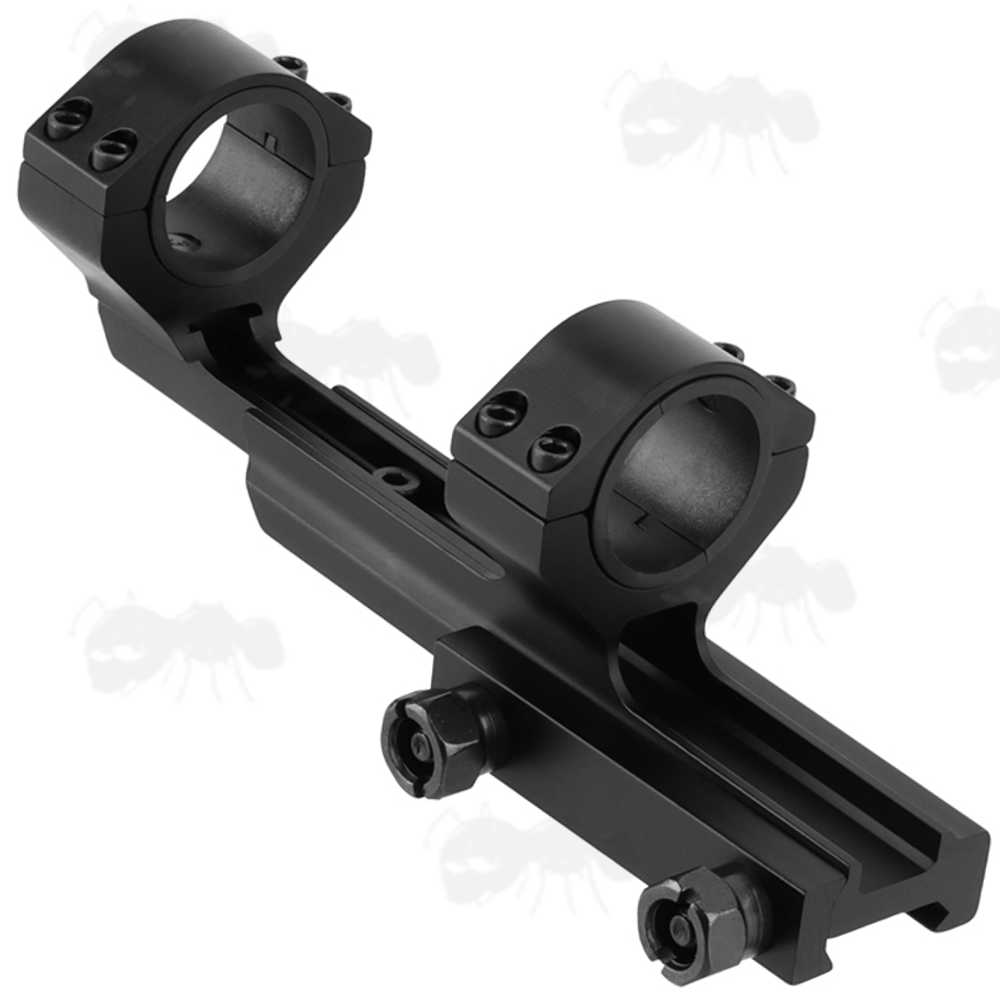

ADJUSTABLE LENGTH CANTILEVER SCOPE MOUNT
Weaver / Picatinny rail scope ring mounts.
FORWARD REACH ADJUSTABLE SCOPE MOUNT
£18.00p eachDouble clamp adjustable length cantilever scope mount with see-thru channel.
Unique two-piece high-profile design.
For 20mm wide Weaver / Picatinny rails.
For scopes up to 72mm diameter objective lens.
Large twin hex head mounting bolts for secure clamping.
Minimum length ~ 122mm.
Maximum length ~ 157mm.
Rail footprint ~ 69mm long.
Distance flattened-integral recoil stops (centre to centre) ~ 49.5mm.
Min gap between the rings ~ 38mm.
Max gap between the rings ~ 73mm.
Thickness of the rings ~ 19mm.
Ring width ~ 45mm.
Height ~ 59mm.
Elevation ~ 21mm.
Weight ~ 188 grams.

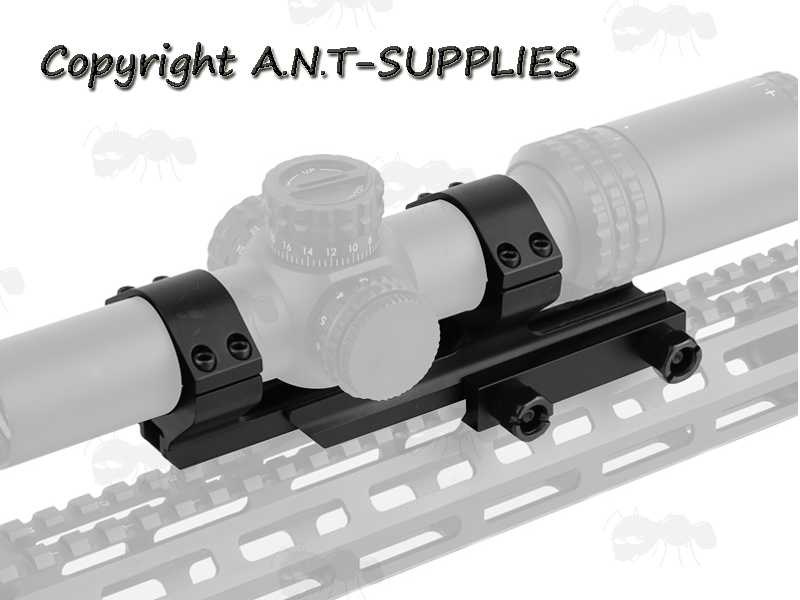

The cantilever design throws the scope out front, allowing you to get the correct eye relief.

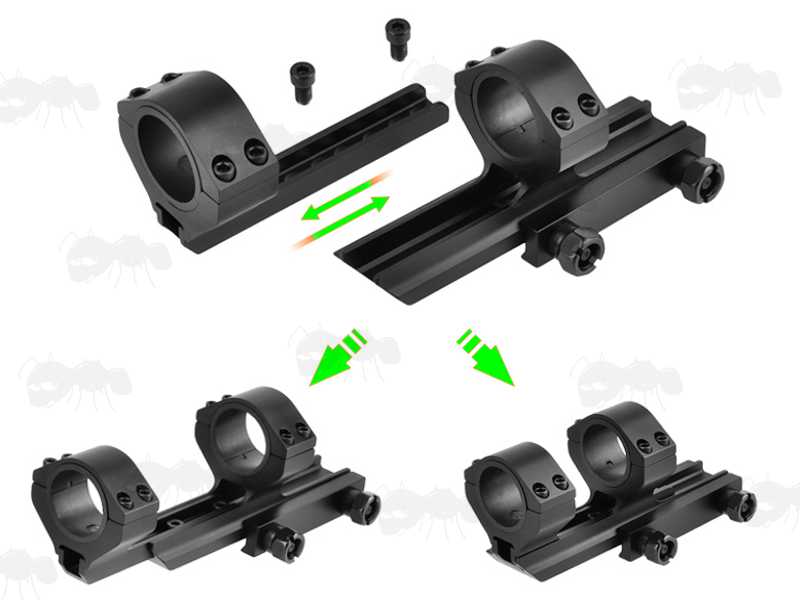

Can also be mounted rear facing, with a total of five length position options.
Ideal for shorter rails and allows you to leave the iron sights fitted.
Precision machined 6063 aluminium alloy construction with a matte black finish.
PACKAGE CONTENTS:
x1 Base rail mount.
x2 Scope ring top.
x2 M3 x 8mm screw.
x8 M3 x 10mm screw.
x1 3mm allen key.
x2 Scope 30mm to 25mm ring reducer split rings.
Also available ~ Dovetail Rail Forward Reach Cantilever Scope Mounts.

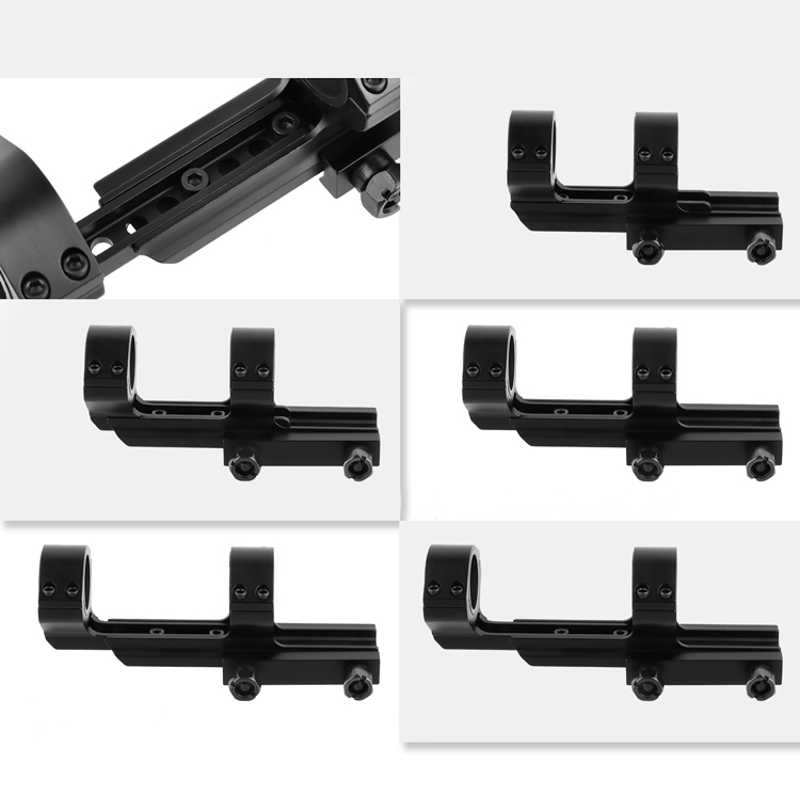

FIVE LENGTH POSITION SETTINGS:
