FORWARD REACH CANTILEVER MOUNTS
The cantilever throws the scope out front, allowing you to get the correct eye relief.
Ideal for shorter rails and allows you to leave the iron sights fitted.
For standard UK 9.5mm-11.5mm wide dovetail rails.
FORWARD REACH SCOPE MOUNTS
For 1 inch / 25mm tubes£13.80p each
£12.00p each
Ring width ~ 41mm.
Gap between the rings ~ 39mm.
Weight ~ 122 grams.
For 1 3/16 inch / 30mm tubes£13.80p each
£13.20p each
Ring width ~ 46mm.
Gap between the rings ~ 39mm.
Weight ~ 126 grams.
Our most popular one piece extended reach dovetail rail fitting scope mount.

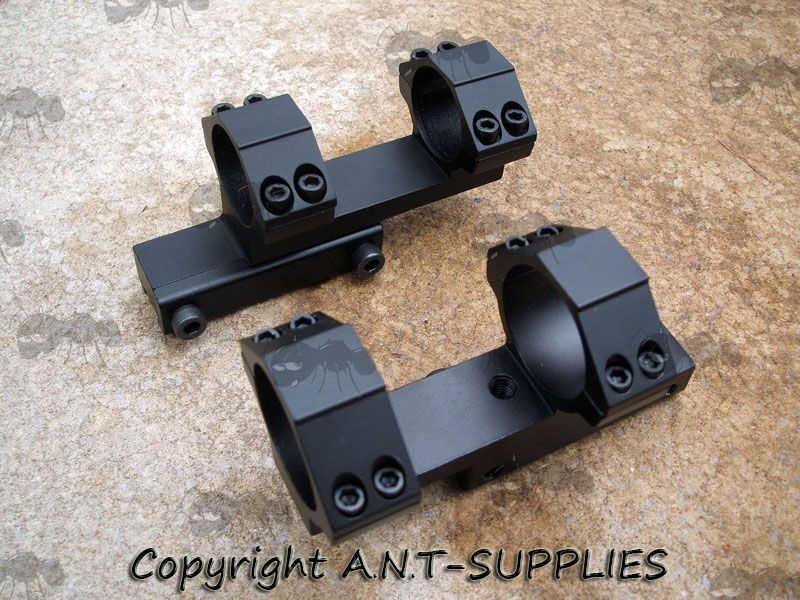

Choice of 1 inch (25mm) rings or 1 3/16 inch (30mm) rings.
Double clamp high mount.
Rail footprint ~ 62mm long.
9.5 - 11mm dovetail fittings.
For scopes up to 56mm objective lens.
Thickness of the rings ~ 18mm.
Overall length 100mm, height 52mm, width 40mm.
Elevation of 21mm.
Two allen keys included.
Solid one-piece design.
With large removable arrestor pin to prevent scope creep.
Twin mounting screws for secure clamping.
Precision machined high grade aluminium alloy construction with a matte black finish.
Also available ~ Weaver / Picatinny Rail Forward Reach Cantilever Scope Mounts.

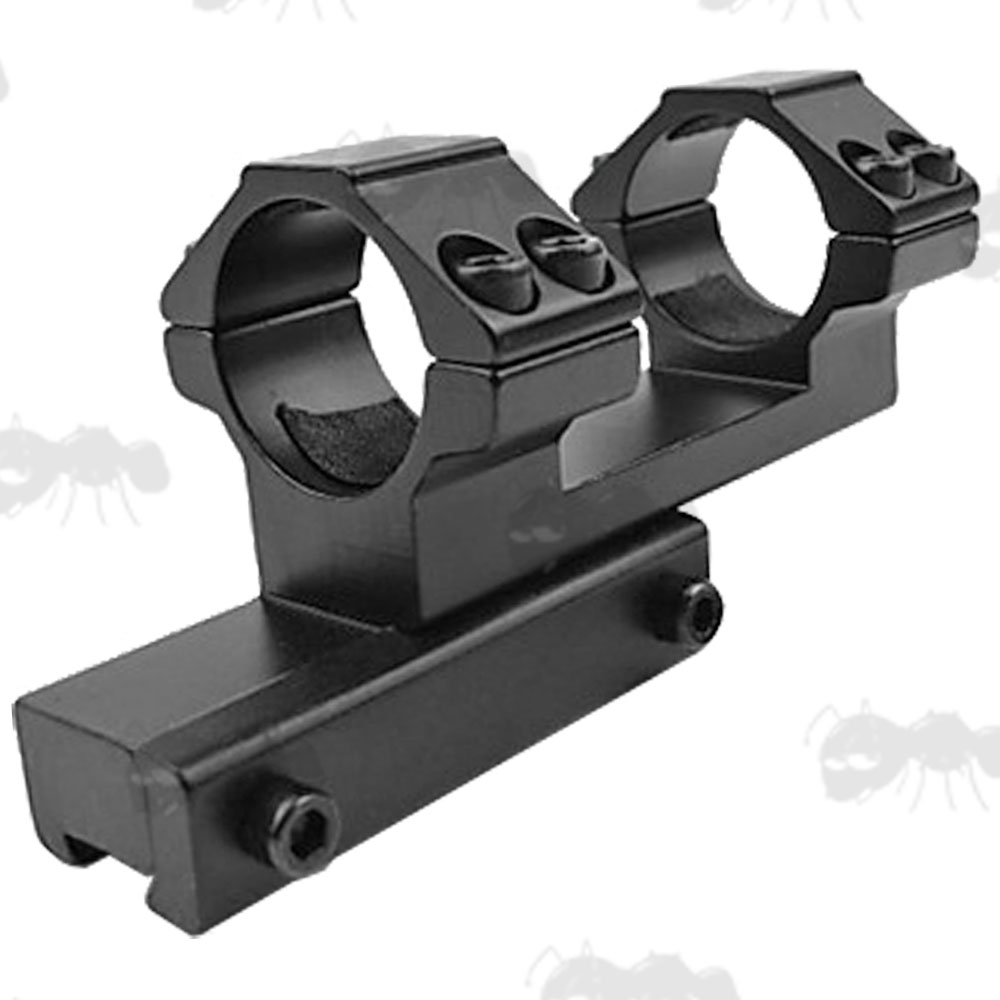

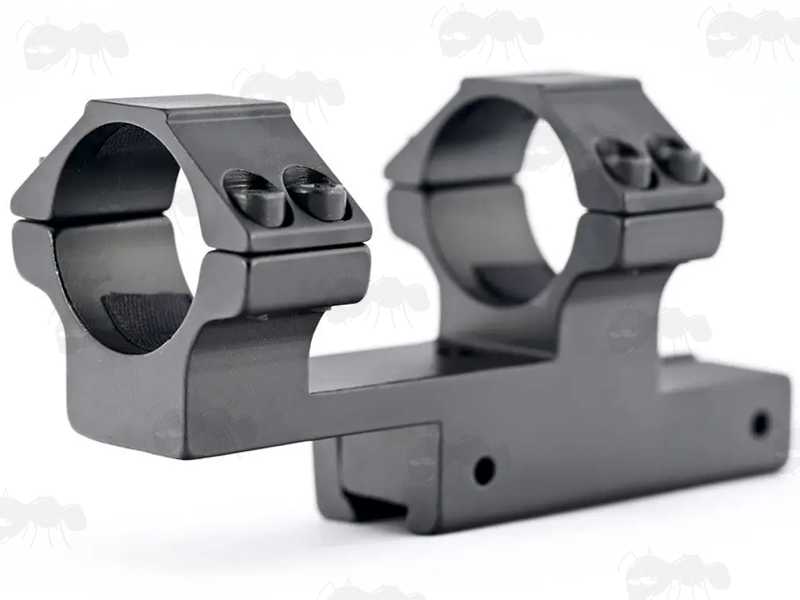

25mm RINGS:

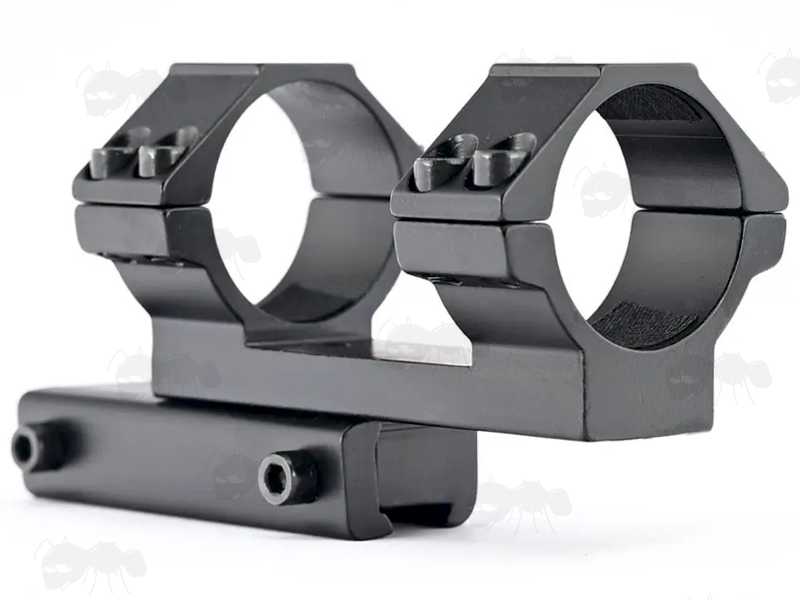

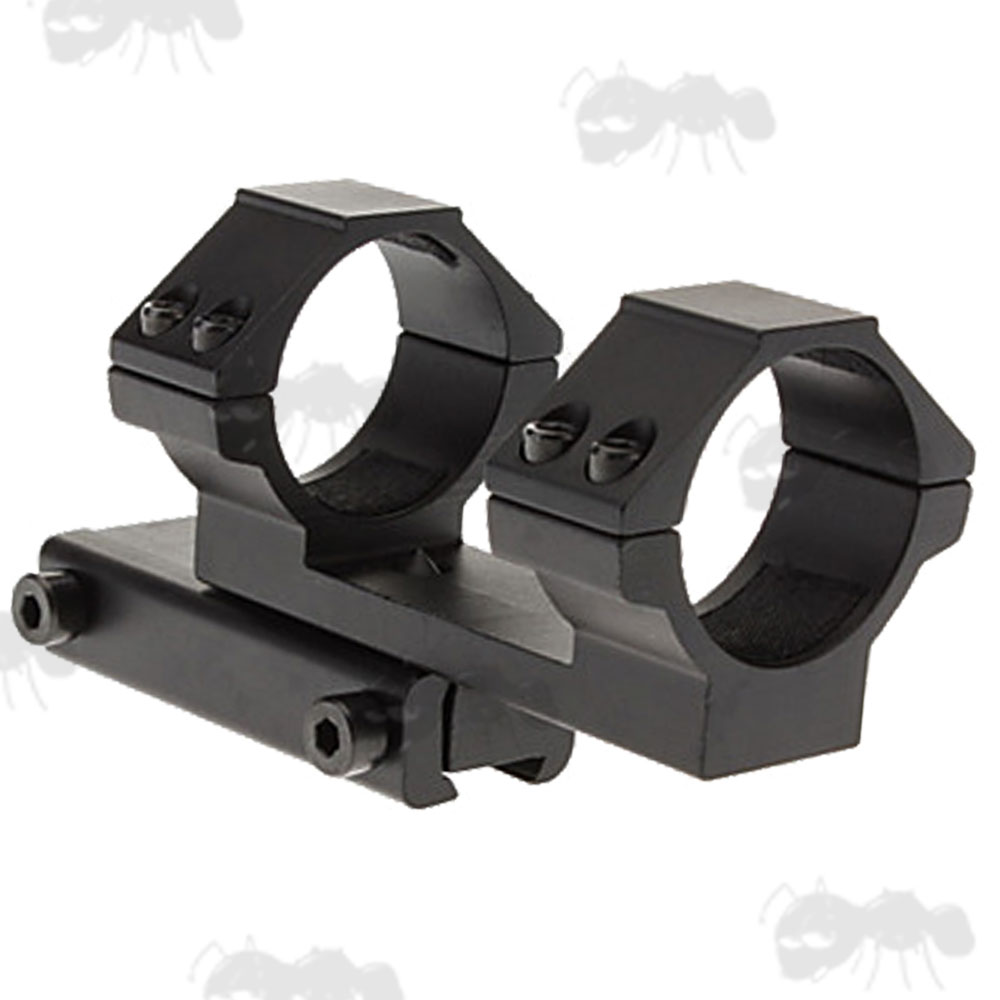

30mm RINGS:
