THREADING ALIGNMENT TOOLS

Gunsmiths barrel thread die starters guides.

BARREL THREADING ALIGNMENT TOOL

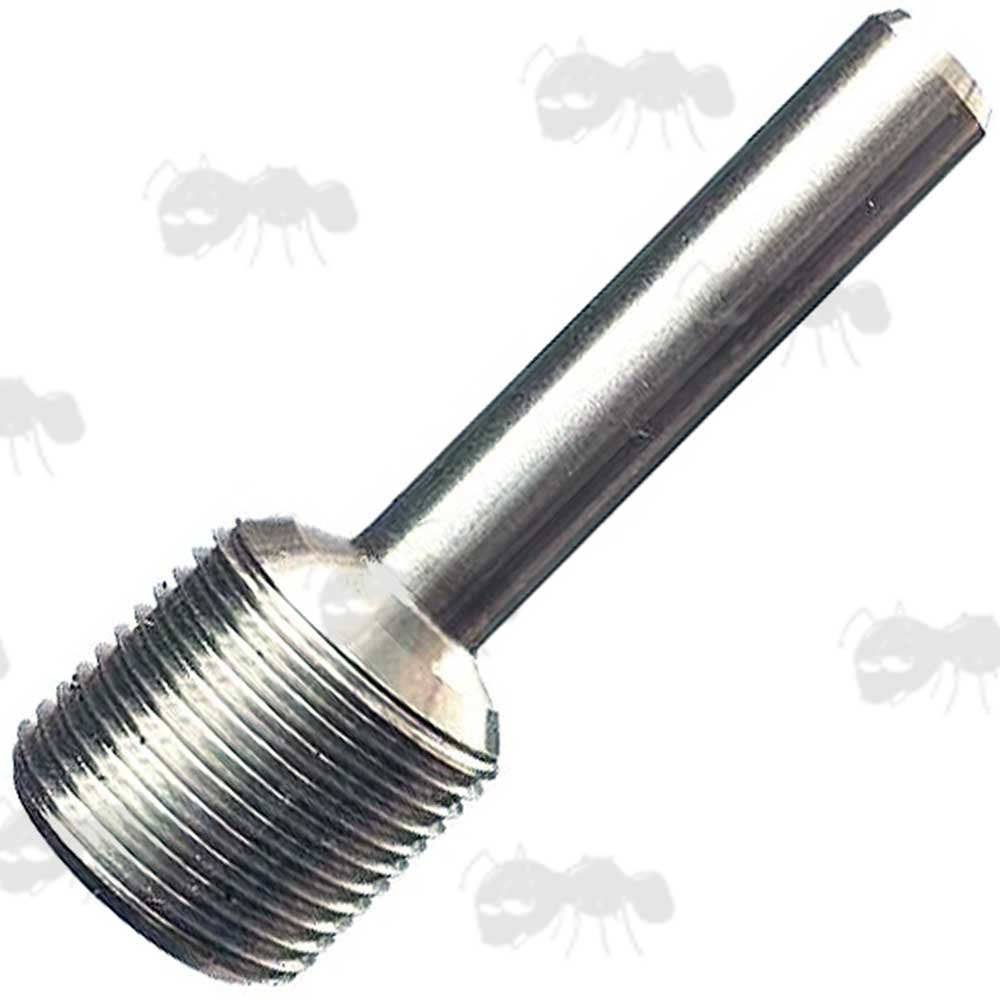

1/2x28 Muzzle Thread Die Starter Alignment Guide for .17 Barrels.17

£14.40p each
AVAILABLE TO PRE-ORDER

1/2"x28 TPI.

Weight ~ 14 grams.

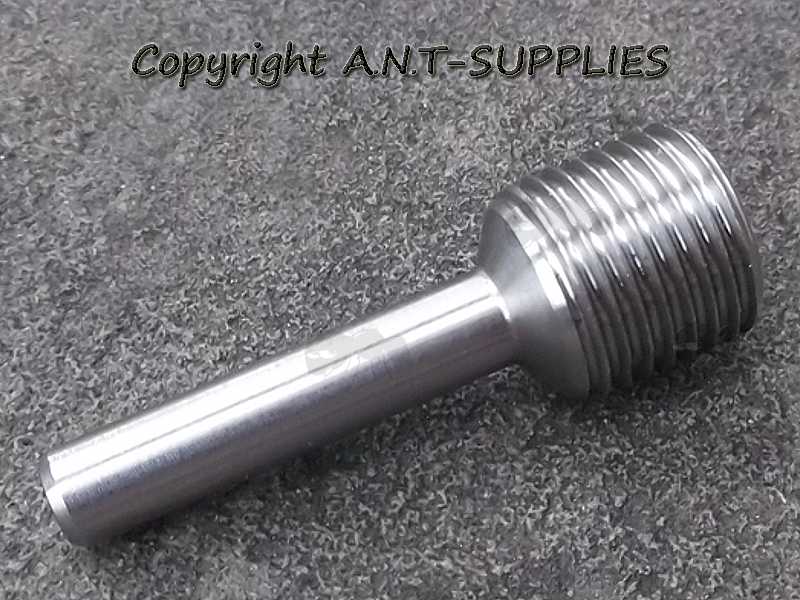

1/2x20 Muzzle Thread Die Starter Alignment Guide for .22-.233 Barrels.22 ~ .223

£12.00p each
AVAILABLE TO PRE-ORDER

1/2"x20 TPI.

Weight ~ 14 grams.

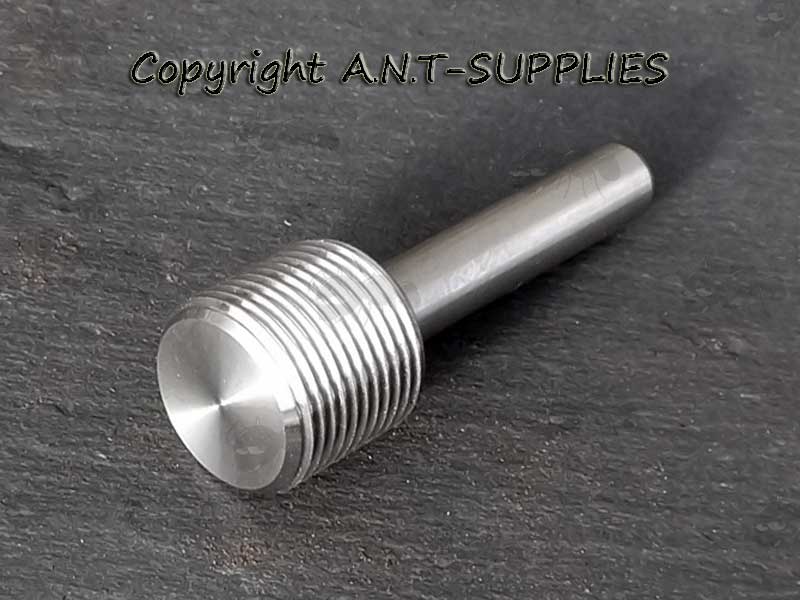

1/2x28 Muzzle Thread Die Starter Alignment Guide for .22-.233 Barrels.22 ~ .223

£12.00p each
AVAILABLE TO PRE-ORDER

1/2"x28 TPI.

Weight ~ 15 grams.

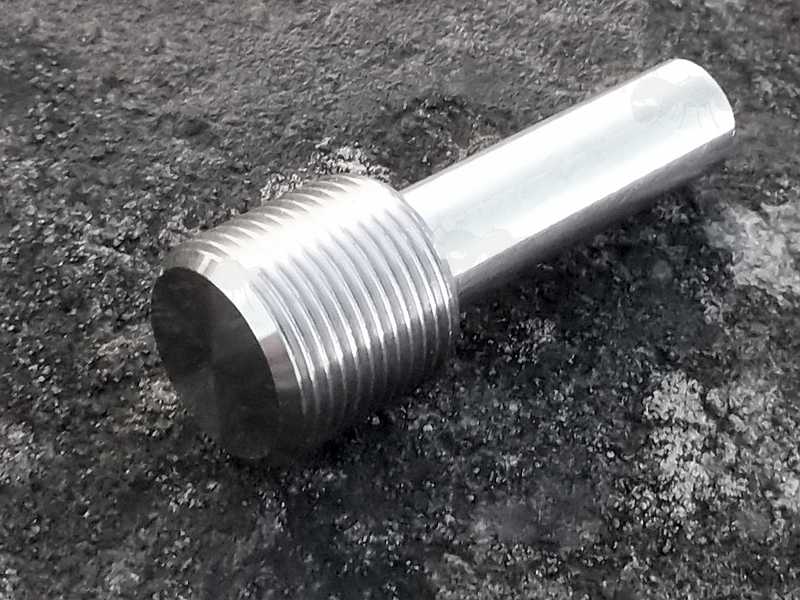

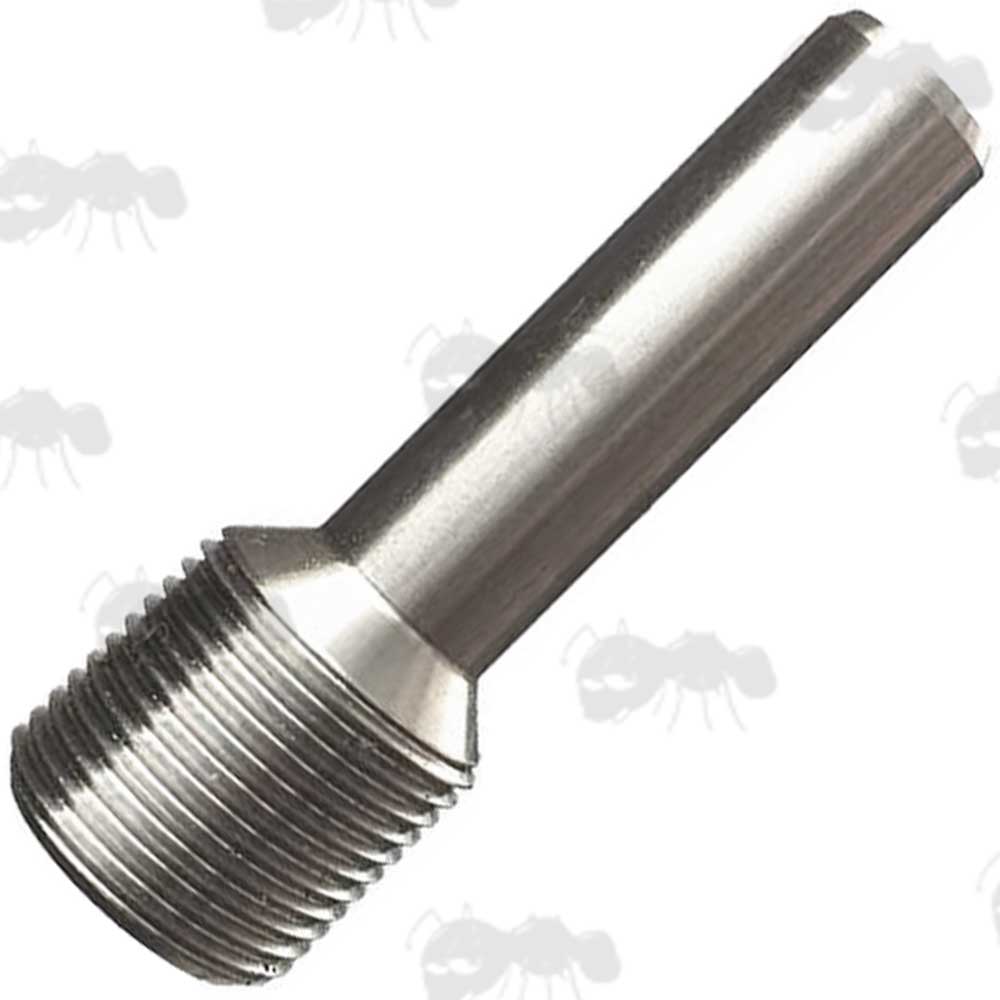

1/2x28 Muzzle Thread Die Starter Alignment Guide for 7.62mm Barrels7.62mm

£12.00p each
AVAILABLE TO PRE-ORDER

1/2"x28 TPI.

Weight ~ ** grams.

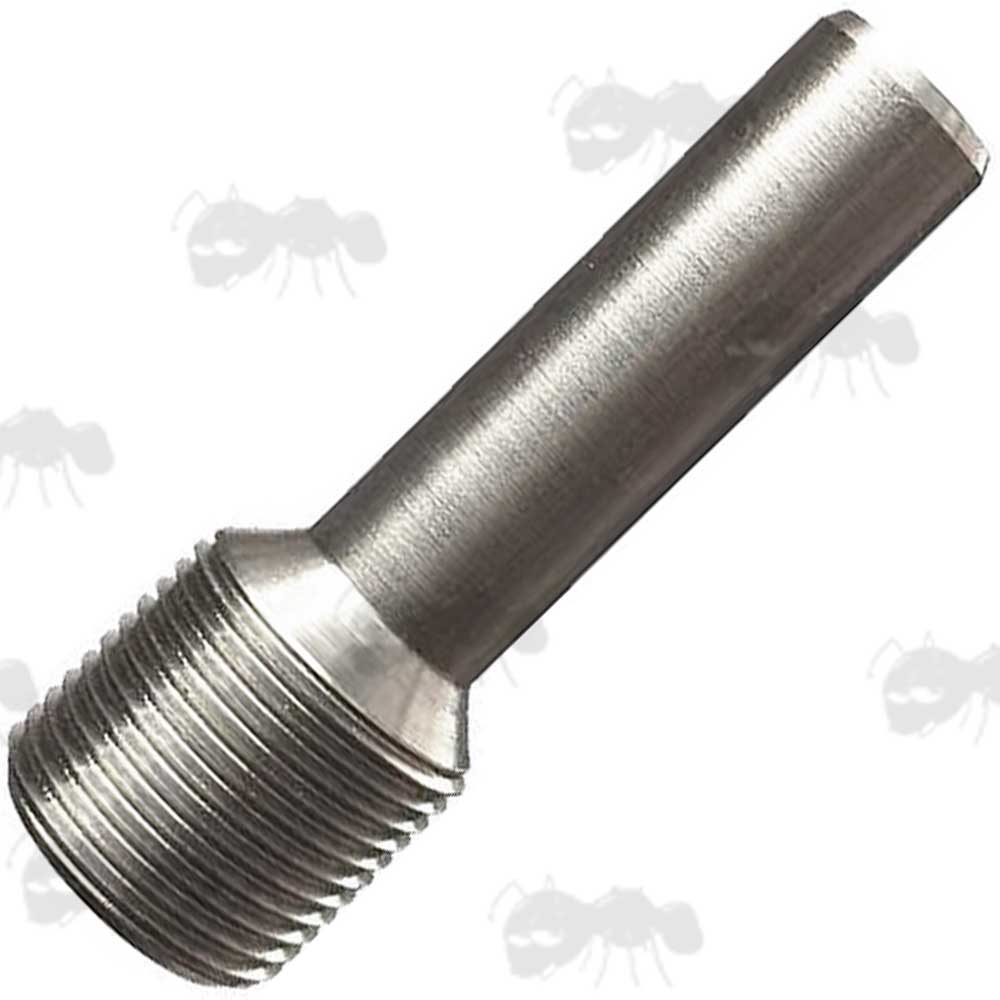

1/2x28 Muzzle Thread Die Starter Alignment Guide for .308 Barrels.308

£12.00p each
AVAILABLE TO PRE-ORDER

1/2"x28 TPI.

Weight ~ ** grams.

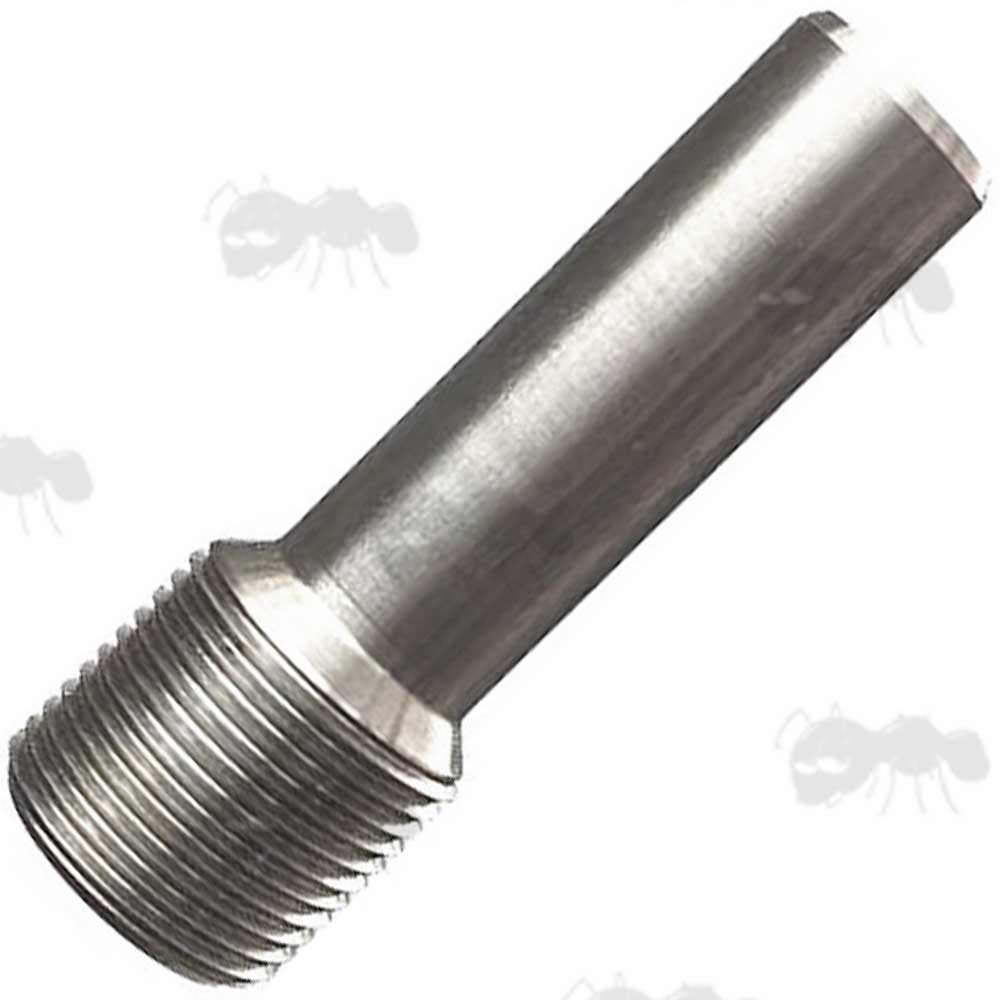

1/2x28 Muzzle Thread Die Starter Alignment Guide for 9mm Barrels9mm

£12.00p each
AVAILABLE TO PRE-ORDER

1/2"x28 TPI.

Weight ~ ** grams.
SOME ARE STILL AVAILABLE AT £12, SOME WOULD NOW BE £20, PLEASE CONTACT US FOR A QUOTE
Condition: New

Gunsmiths barrel threading alignment tool / die starter guide.

Designed to squarely guide the suitable die onto your guns barrel, to avoid the chance of then installing a crooked muzzle brake, flash hider or silencer.

Overall length 1.5 inches with a 1/2" long threaded section.

Each is designed to be slightly under the stated caliber, if slightly too small you can wrap the guide in a barrel patch for a snug fit.

Please note: these alignment tools are only designed to align your die at 90 degrees to the gun barrel.

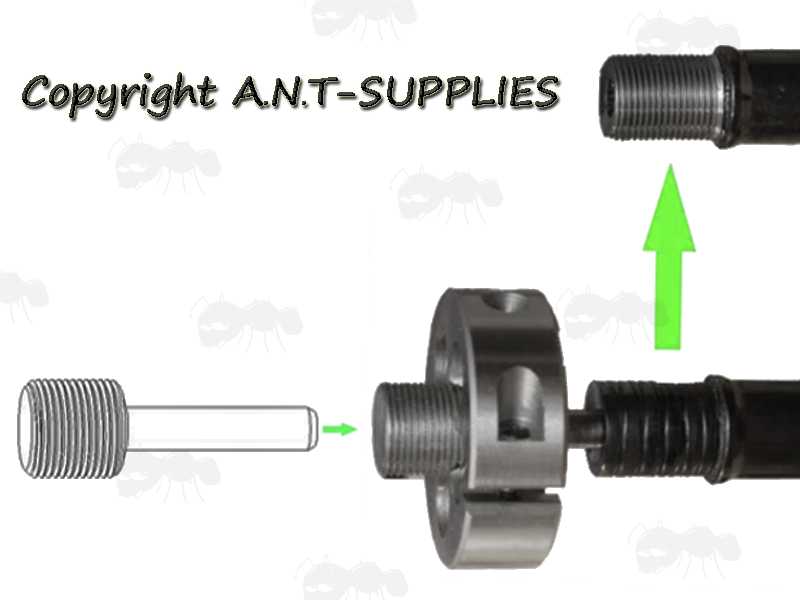

The guide is to be threaded to the start side of your die, leaving a gap between the alignment tool and the cutting threads.


Please note: the shaft diameter on the .22 - .223 is approx 5.51mm and maybe too big for
some .22 rifles depending on the barrel rifling.

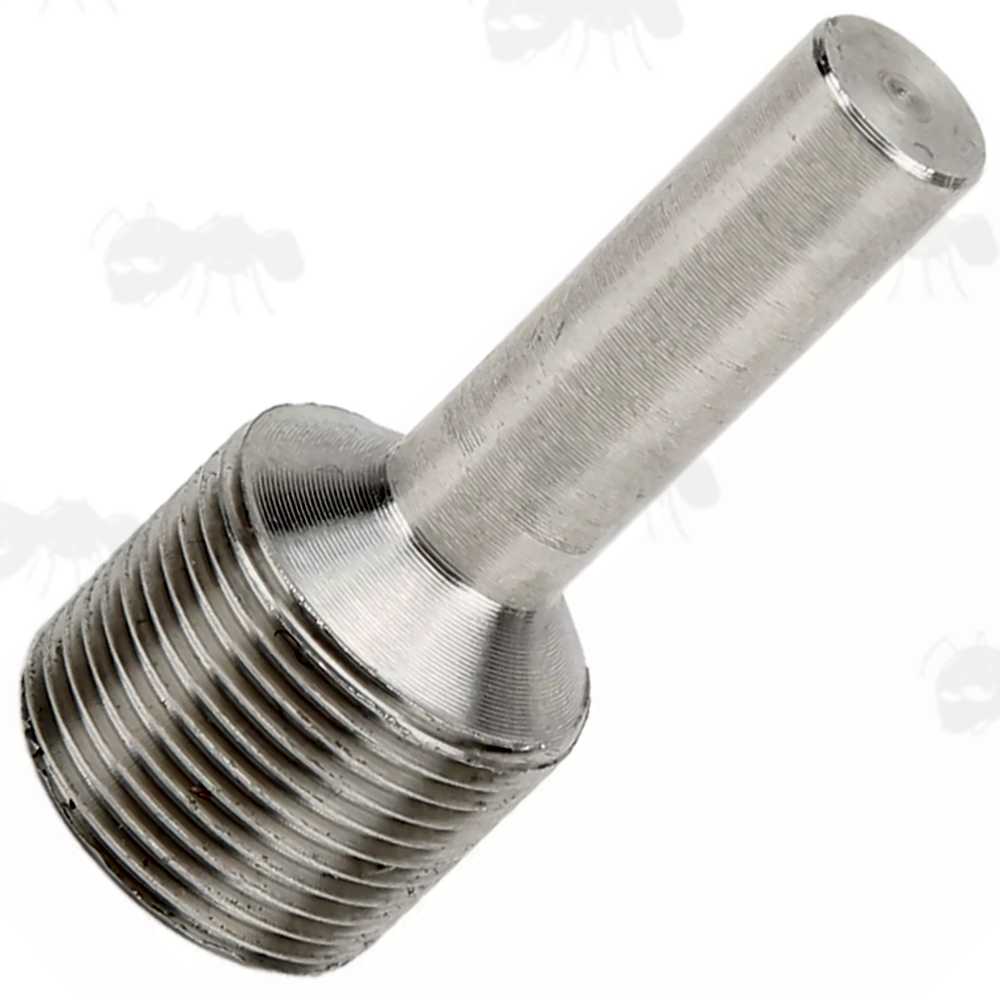

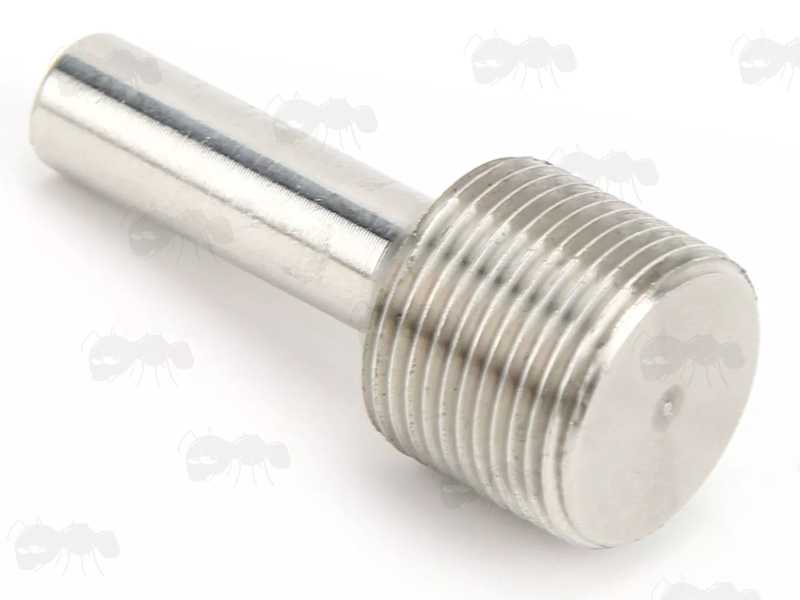

5/8 x 24 for .308 also available.

Full list of possible options, some available by request:

1/2″-28 UNEF for .17
1/2″-20 UNF for .17

1/2″-28 UNEF for .22/.223
1/2″-20 UNF for .22/.223

1/2″-28 UNEF for 7.62mm
1/2″-20 UNF for 7.62mm

M14x1CCW for 7.62mm
M14x1CW for 7.62mm

M15x1 for 7.62mm

5/8″-24 for .22/.223
5/8″-24 for 7.62mm
5/8″-24 for .308
9/16″-24 for .308

1/2″-28 for 9mm

5/8″-24 for 6.5mm
5/8″-24 for .243
5/8″-24 for .338

0.578″-28 for 0.45cal

Also available ~ Rifle Pin Punches.
