TWO PIECE EXTENSION RING MOUNTS
For Hawke scopes and sights to Dovetail rails.
HAWKE DOVETAIL EXTENSION RING MOUNTS

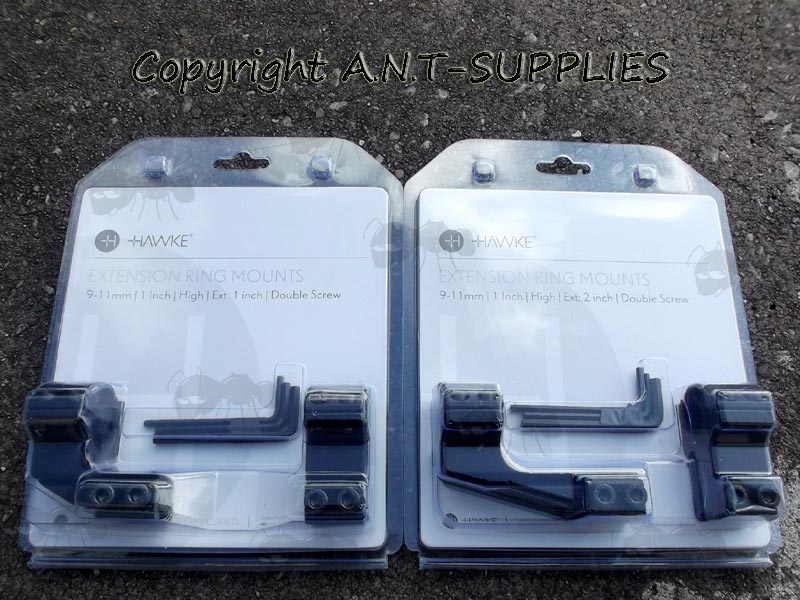

1" EXTENSION ~ 25mm£40.00p per pair
AVAILABLE BY REQUEST
For 1" / 25mm diameter body tube rifle scopes.
1 inch extension configuration.
Height ~ 51mm / 2.0″.
Weight ~ 85 grams / 3.0oz.

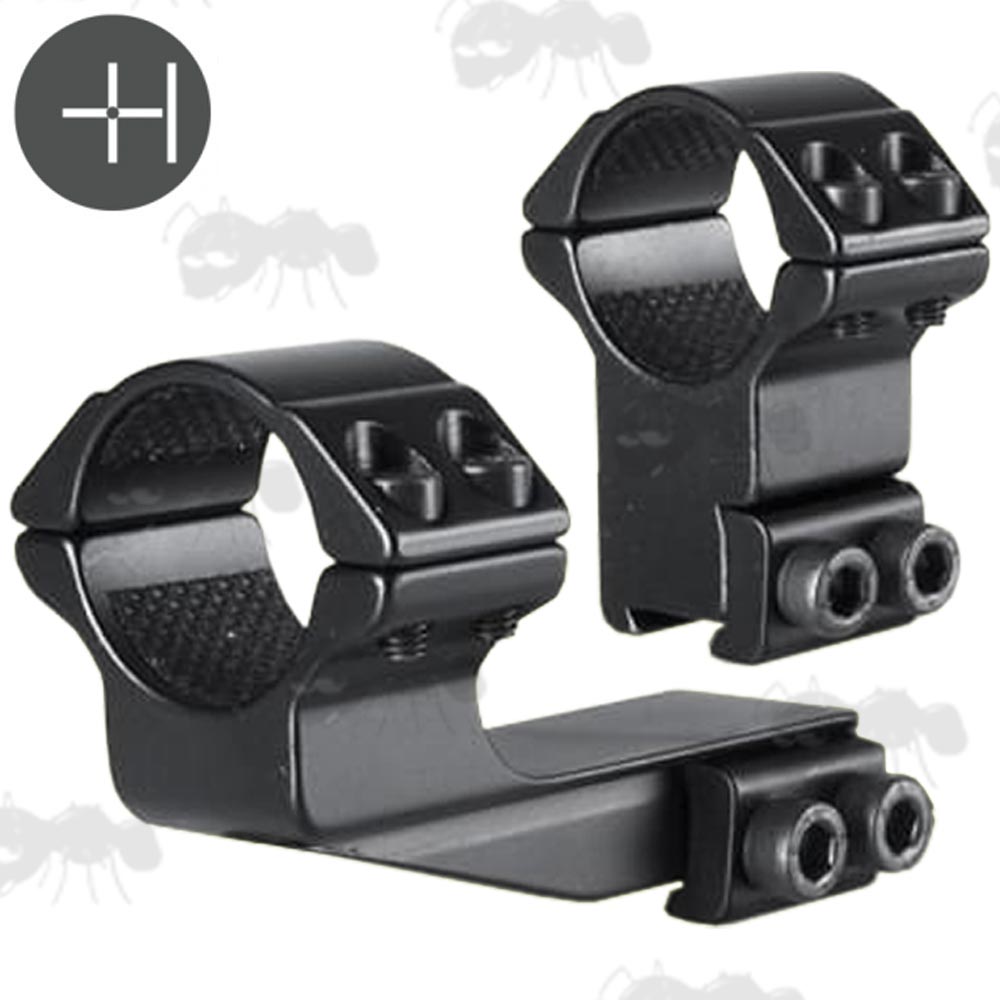

2" EXTENSION ~ 25mm£44.00p per pair
AVAILABLE BY REQUEST
For 1" / 25mm diameter body tube rifle scopes.
2 inch extension configuration.
Height ~ 51mm / 2.0″.
Weight ~ 92 grams / 3.2oz.

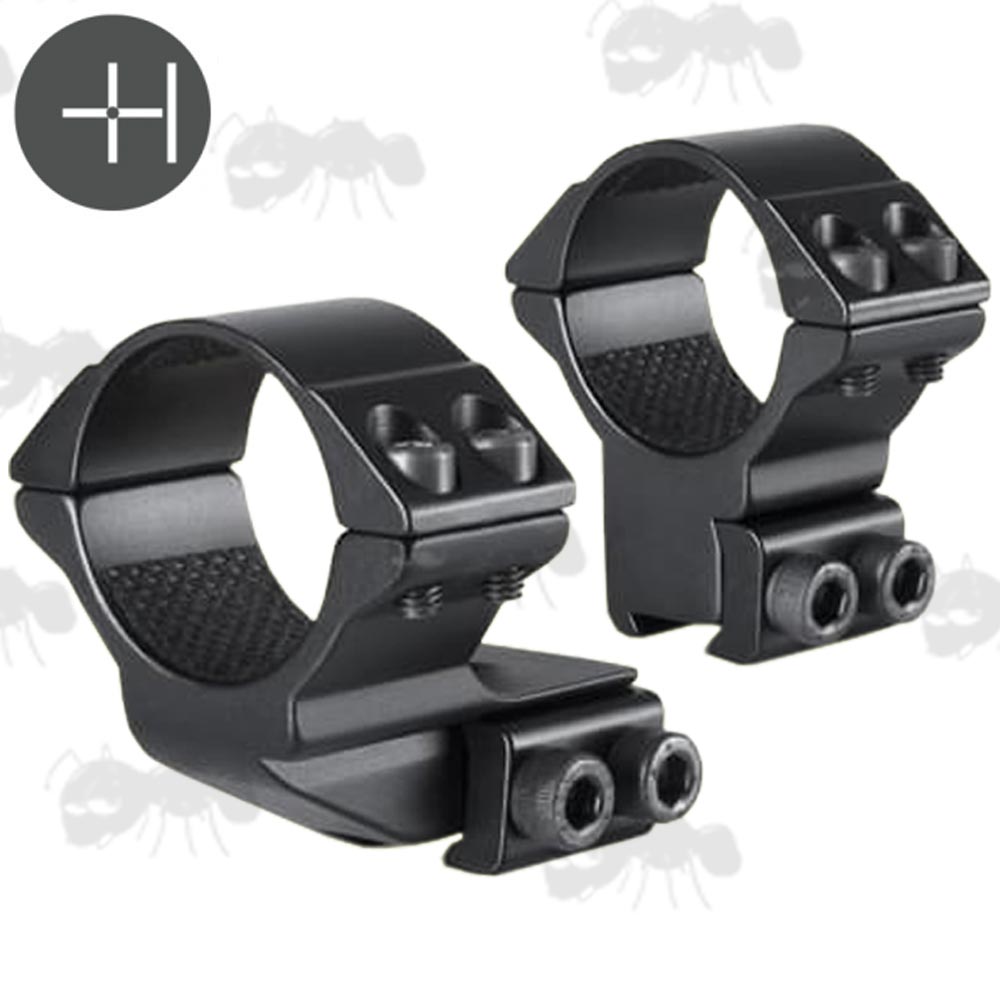

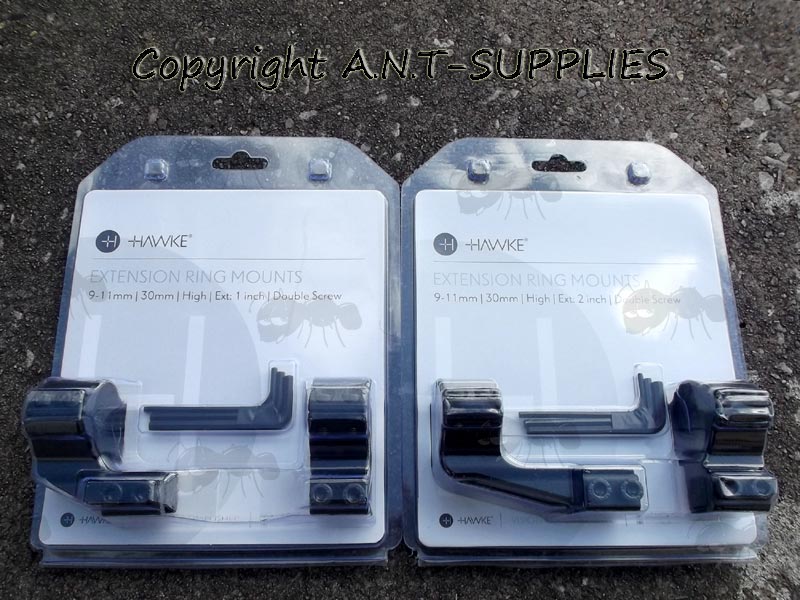

1" EXTENSION ~ 30mm£40.00p per pair
AVAILABLE BY REQUEST
For 1 3/16" / 30mm diameter body tube rifle scopes.
1 inch extension configuration.
Height ~ 50mm / 1.9″.
Weight ~ 113 grams / 4.0oz.

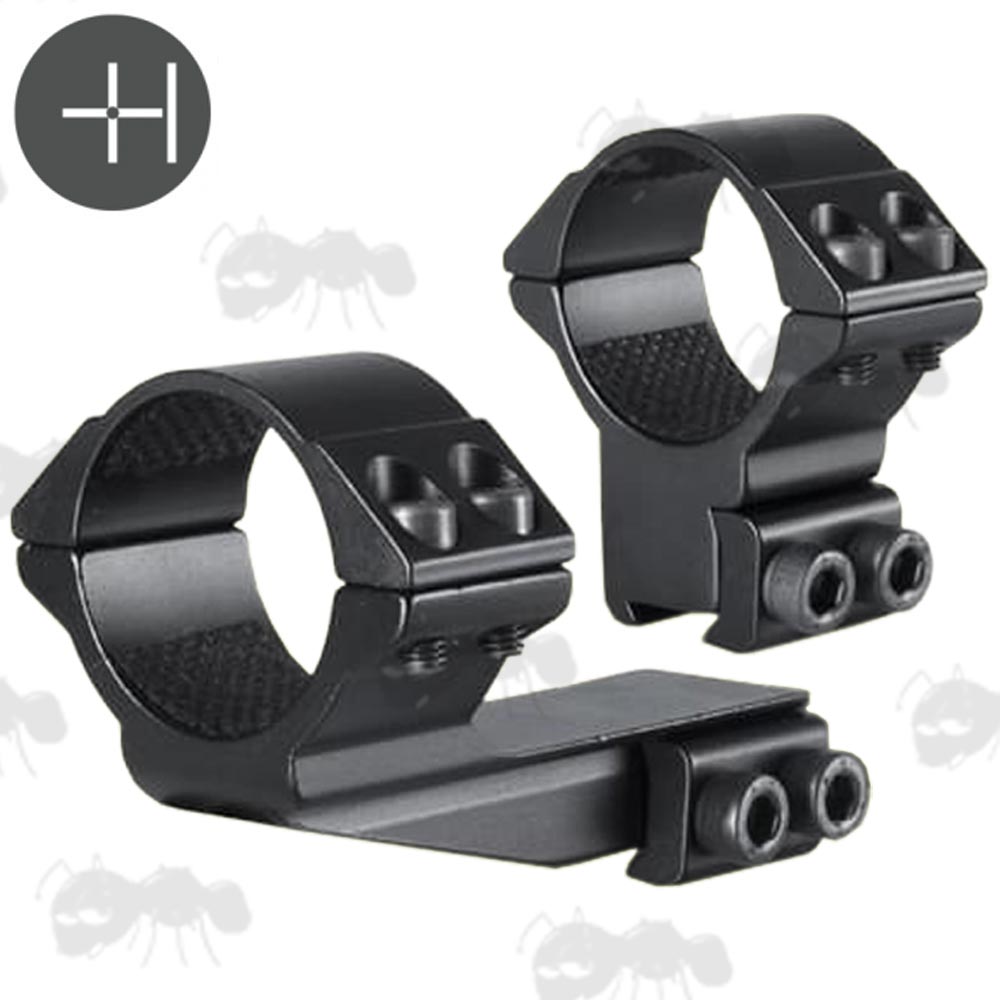

2" EXTENSION ~ 30mm£44.00p per pair
AVAILABLE BY REQUEST
For 1 3/16" / 30mm diameter body tube rifle scopes.
2 inch extension configuration.
Height ~ 50mm / 1.9″.
Weight ~ 122 grams / 4.3oz.
FLAT RATE OF £9 TRACKED DELIVERY FOR
ANY MIX OF HAWKE BRANDED PRODUCTS
FREE DELIVERY ON £300+ ORDERS
High profile design - to accommodate larger objective scopes.
Double hex screws for rail clamp and top caps to hold your scope firmly in place.
Fitted with a retractable recoil stop pin.
Reversible Dovetail clamp that fits both 9-11mm and 3/8 inch.
Internal cushion tape prevents marking and damage.
High grade aluminium anodized in matte black.
Precision engineered from high grade aluminium with rounded edges prevent scope damage.
CAUTION: Ensure your gun is not loaded and the action is open.
Always practice safe handling procedures.
- If necessary attach a base to your rifle/pistol according to the manufacturer’s instructions.
- Reverse the rail clamp accordingly, for either 9-11mm (airgun) or 3/8" (rimfire).
- Place the Hawke rings onto your base or rail.
Locate the recoil pin into the hole if present.
Using the enclosed hex key, tighten the screws on the side clamp. - Remove the top clamps and place the scope onto the rings.
Replace the top clamps but do not tighten. - With the gun unloaded and the action open, hold the gun in a normal shooting position and move the scope forward or backward to obtain the best eye relief (3-4 inches approx).
- When correct eye relief is obtained, rotate the scope until the reticle is vertically aligned with the gun.
- Alternately tighten the screws that hold the top clamps to the rings.
Do not over tighten.
16 in/lbs (1.33 ft/lbs, 1/8 Nm) for the top screws and 30 in/lbs (2.5 ft/lbs, 3.4Nm) for the side clamp screws. - Your gun and scope are now ready to be zeroed.
Also available ~ Hawke 20mm Weaver / Picatinny Rail Extension Ring Mounts.
MODEL 22 120 1" EXTENSION ~ 25mm
MODEL 22 121 2" EXTENSION ~ 25mm
MODEL 22 122 1" EXTENSION ~ 30mm
MODEL 22 123 2" EXTENSION ~ 30mm
