TWO PIECE MATCH MOUNTS
For Hawke scopes and sights.
HAWKE TWO PIECE DOVETAIL MATCH MOUNTS

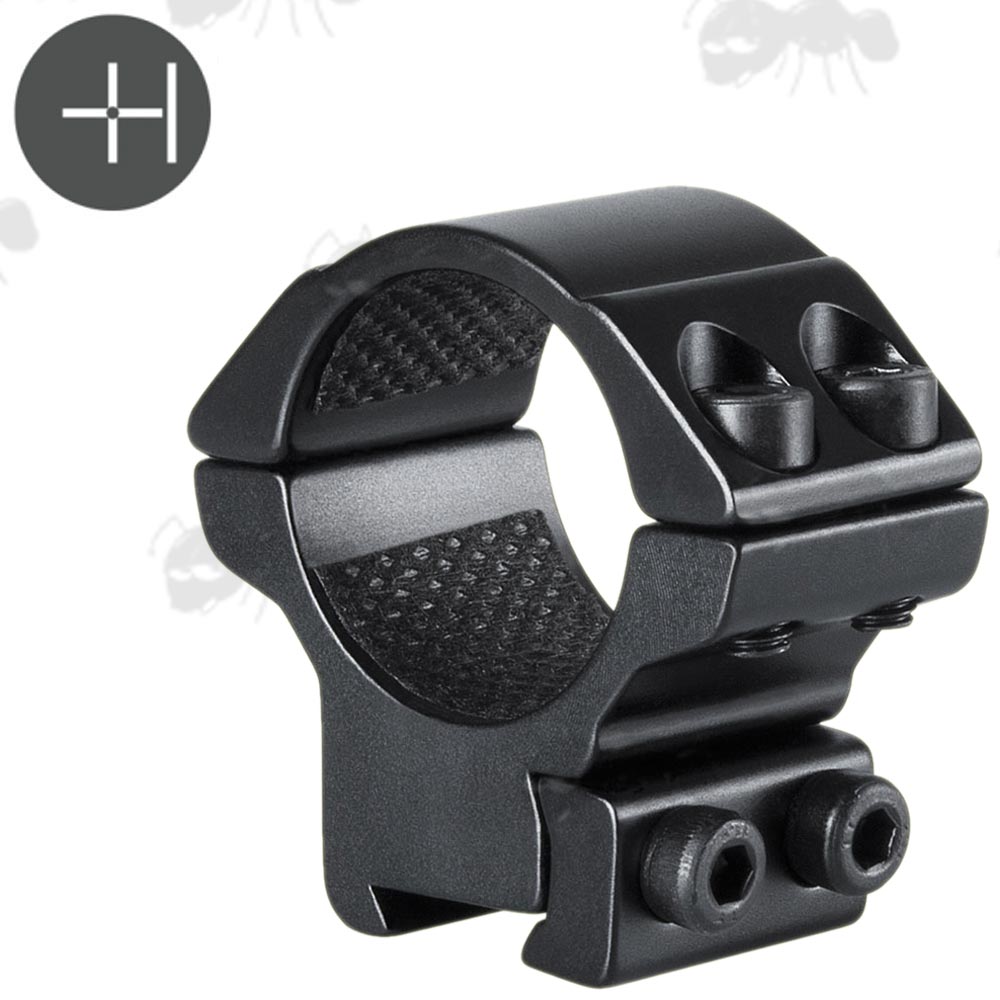

LOW PROFILE ~ 25mm£27.00p per pair
AVAILABLE BY REQUEST
For 1" / 25mm diameter body tube rifle scopes.
Height ~ 40mm / 1.6″.
Weight ~ 71 grams / 2.5oz.

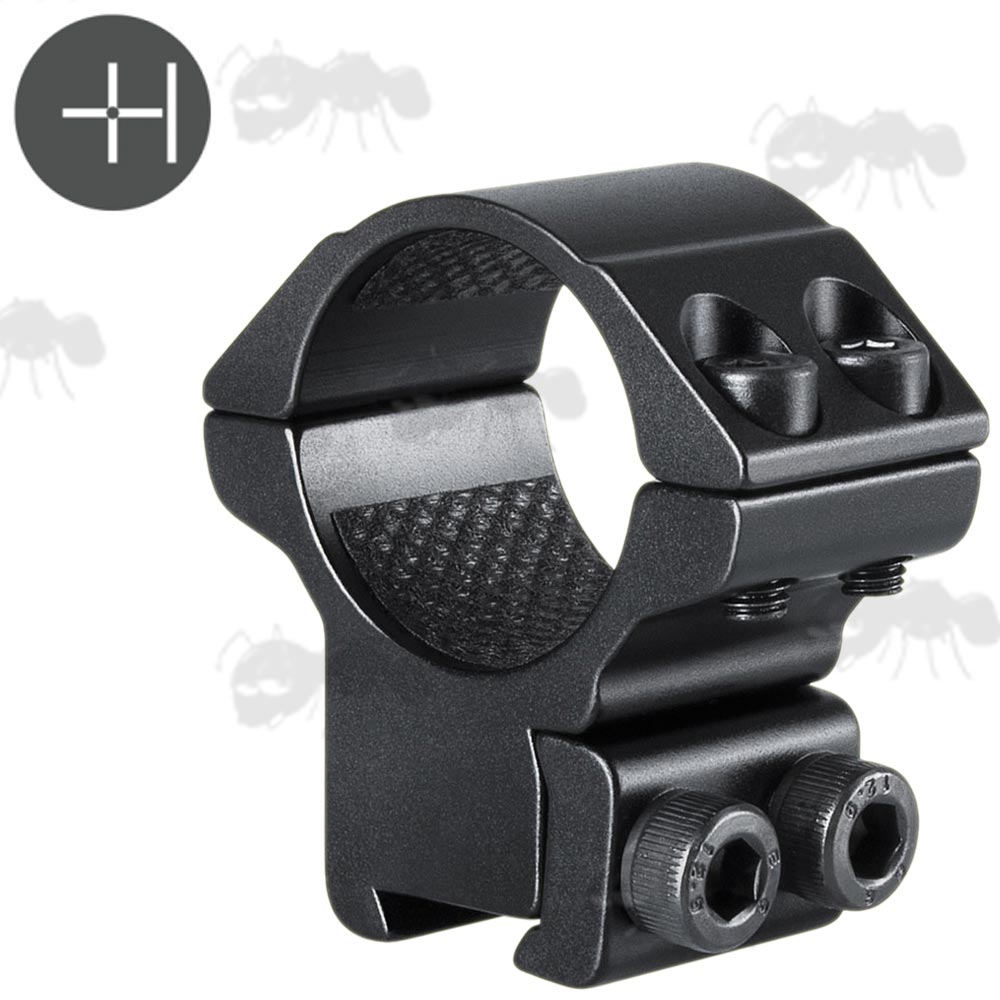

MEDIUM PROFILE ~ 25mm£28.20p per pair
AVAILABLE BY REQUEST
For 1" / 25mm diameter body tube rifle scopes.
Height ~ 43mm / 1.7″.
Weight ~ 91 grams / 3.2oz.

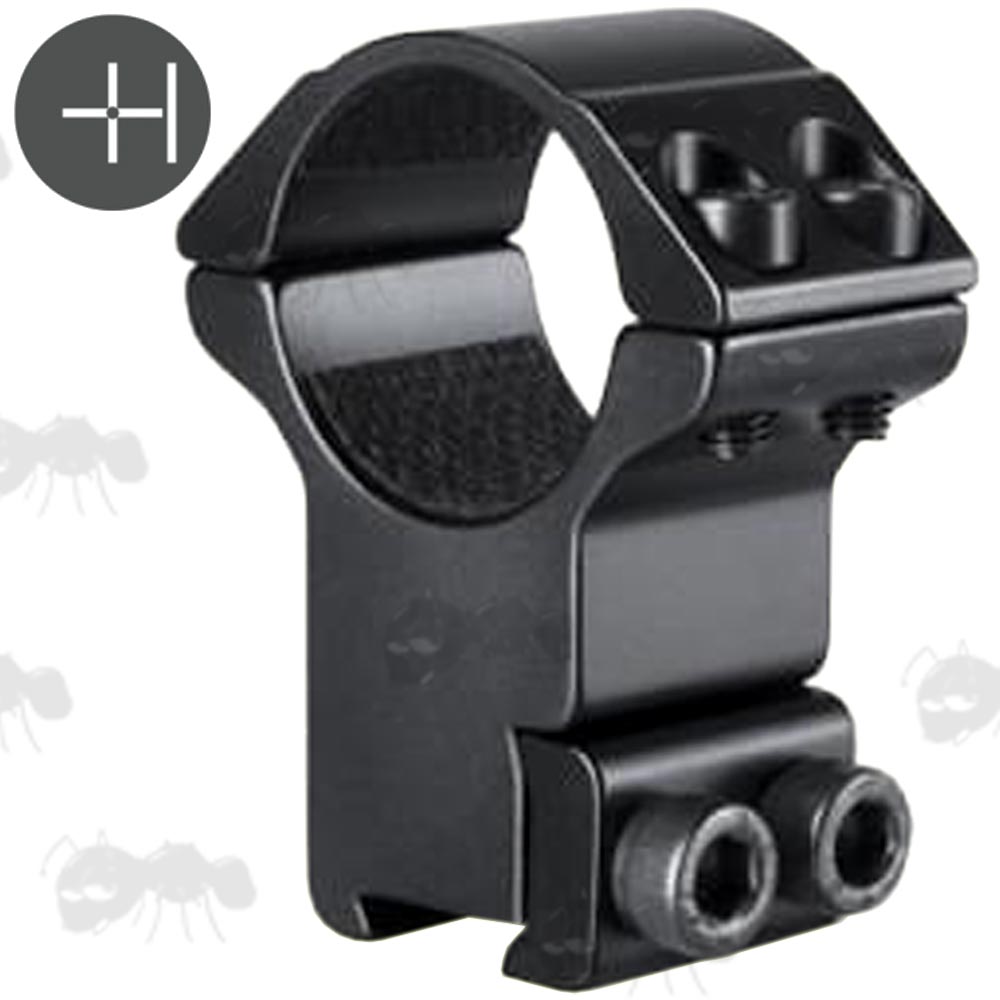

HIGH PROFILE ~ 25mm£29.40p per pair
AVAILABLE BY REQUEST
For 1" / 25mm diameter body tube rifle scopes.
Height ~ 51mm / 2″.
Weight ~ 102 grams / 3.6oz.

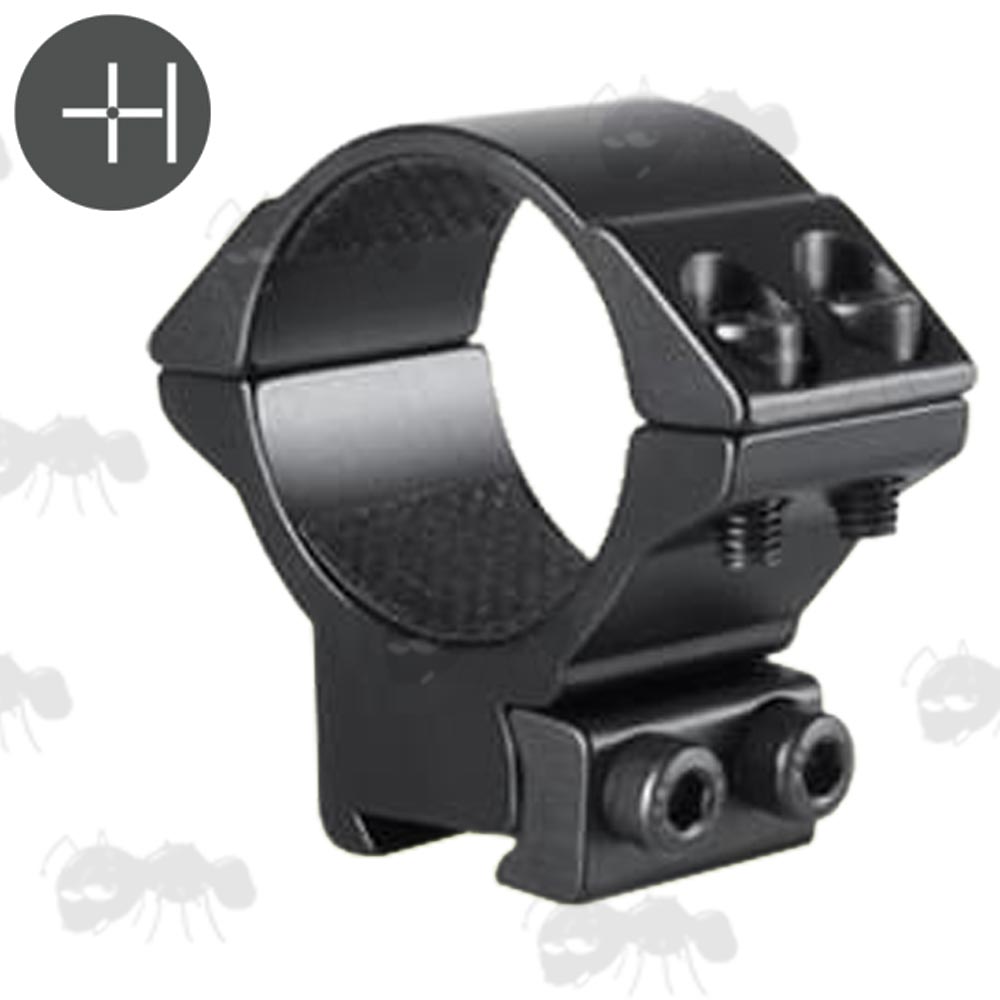

MEDIUM PROFILE ~ 30mm£34.20p per pair
AVAILABLE BY REQUEST
For 1 3/16" / 30mm diameter body tube rifle scopes.
Height ~ 45mm / 1.7″.
Weight ~ 88 grams / 3.1oz.

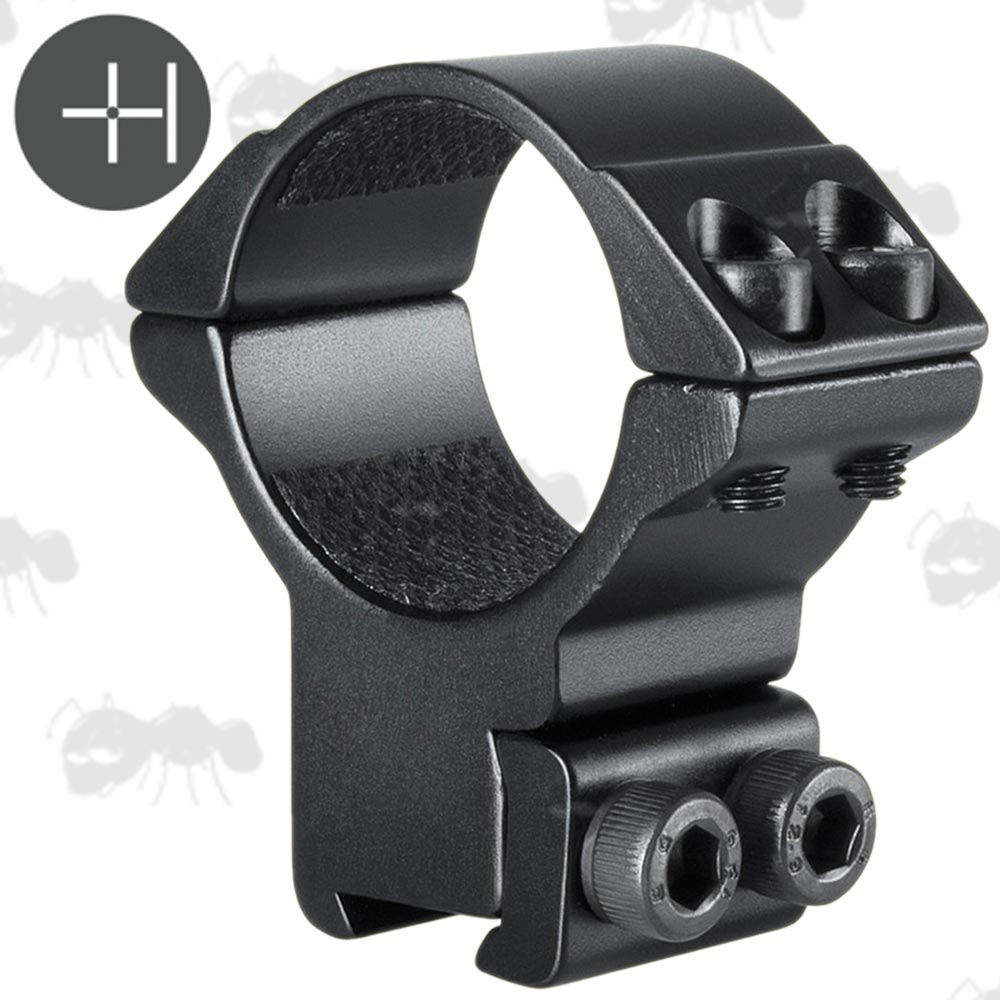

HIGH PROFILE ~ 30mm£35.40p per pair
AVAILABLE BY REQUEST
For 1 3/16" / 30mm diameter body tube rifle scopes.
Height ~ 50mm / 1.9″.
Weight ~ 102 grams / 3.6oz.
FLAT RATE OF £9 TRACKED DELIVERY FOR
ANY MIX OF HAWKE BRANDED PRODUCTS
FREE DELIVERY ON £300+ ORDERS
Double hex screws for top cap and clamp plate to hold your scope firmly in place.
Two piece design.
Fitted with a recoil stop pin.
Reversible dovetail clamp that fits 9-11mm and 3/8 inch.
Internal cushion tape prevents marking and damage.
High grade aluminium anodized in matte black.
Precision engineered from high grade aluminium with rounded edges prevent scope damage.
CAUTION: Ensure your gun is not loaded and the action is open.
Always practice safe handling procedures.
- If necessary attach a base to your rifle/pistol according to the manufacturer’s instructions.
- Reverse the rail clamp accordingly, for either 9-11mm (airgun) or 3/8" (rimfire).
- Place the Hawke rings onto your base or rail.
Locate the recoil pin into the hole if present.
Using the enclosed hex key, tighten the screws on the side clamp. - Remove the top clamps and place the scope onto the rings.
Replace the top clamps but do not tighten. - With the gun unloaded and the action open, hold the gun in a normal shooting position and move the scope forward or backward to obtain the best eye relief (3-4 inches approx).
- When correct eye relief is obtained, rotate the scope until the reticle is vertically aligned with the gun.
- Alternately tighten the screws that hold the top clamps to the rings.
Do not over tighten.
16 in/lbs (1.33 ft/lbs, 1/8 Nm) for the top screws and 30 in/lbs (2.5 ft/lbs, 3.4Nm) for the side clamp screws. - Your gun and scope are now ready to be zeroed.
Also available ~ Hawke Dovetail 34mm Ring Mounts and Hawke One Piece Dovetail Match Mounts.
MODEL 22 100 LOW PROFILE ~ 25mm
MODEL 22 101 MEDIUM PROFILE ~ 25mm
MODEL 22 102 HIGH PROFILE ~ 25mm
MODEL 22 107 MEDIUM PROFILE ~ 30mm
MODEL 22 108 HIGH PROFILE ~ 30mm
