Co2 CAPSULE AIR SAVER ADAPTORS
For CO2 rifles, pistols and paintball markers.
CO2 CAPSULE AIR SAVER VALVES
Co2 air saver adapter valves.
They can also be fitted to Co2 thread adapters to create a quick change / removable adapter.
For other thread adapters, please feel free to contact us for availability and requests.
THREAD GUIDE:
US spec threaded paintball tank to the regulator: 5/8-18UNF / 5/8-18UNF-2B.
Regulator ASA valve thread (Air Source Adapter): G1/2-14 / .825 - 14 NGO.
Prefilled 88g / 90g / 3.1oz disposable Co2 cylinders: M16 x 1.5mm thread (Crosman AirSource, Cybergun, Liss, Milbro, Umarex, Zen, etc).
Co2 airguns using 88g / 90g / 3.1oz capsule ~ SIG SAUER MPX / MCX, Crosman 2250: M16 x 1.5mm.
(With suitable length thread).
G1/2-14 = 1/2 inch x 14 BSP.
HPA tank: CGA-320 / 13/16" (.825") outer diameter x 14 TPI.
12g, 16g, 25g threaded Co2 capsules: 3/8-24 UNF.
The current standard 425g / 60 litre Sodastream CO2 cylinder : TR21x4 (Not Australia and New Zealand).
Note: No CO2 capsules are included.
Warning: Don't unscrew Co2 capsules from the air saver until you are certain they are empty.

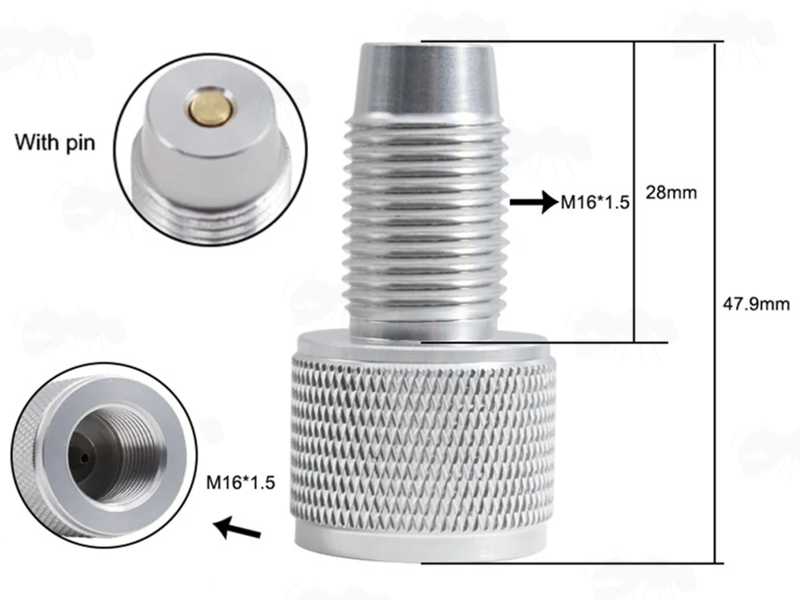

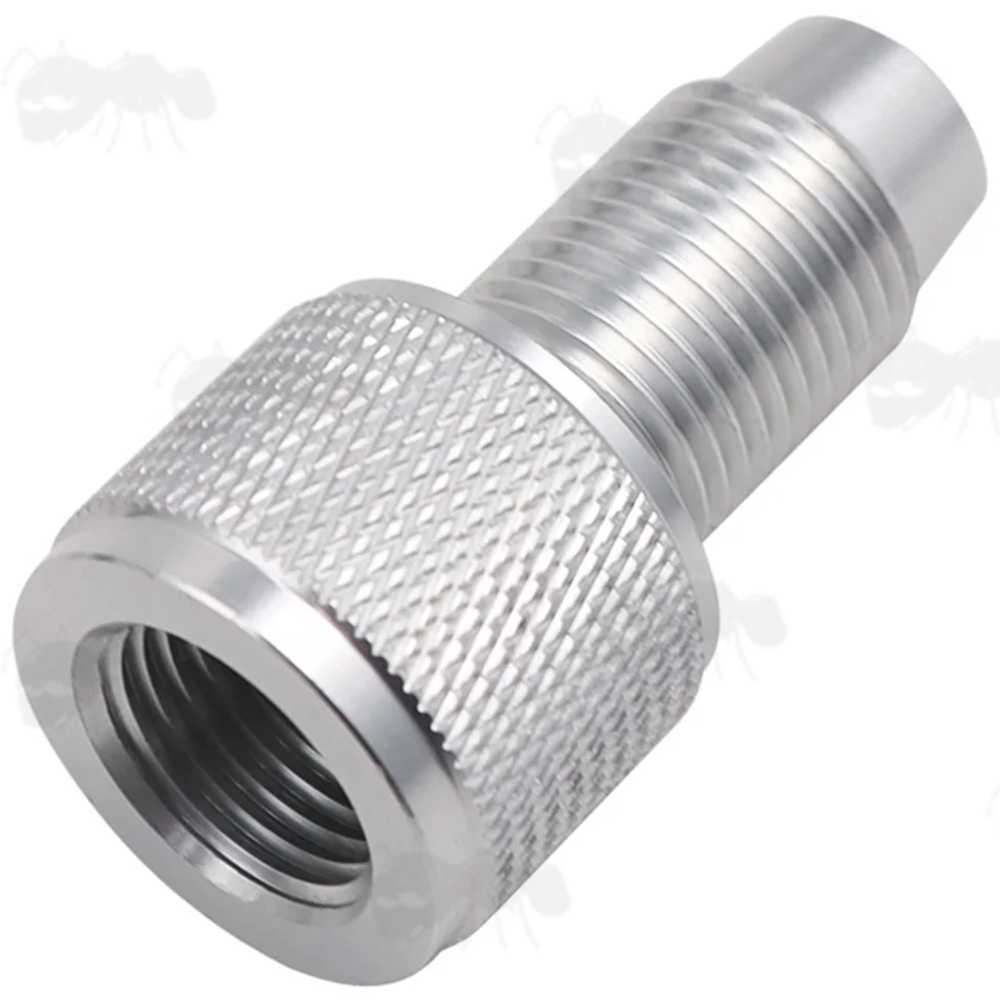

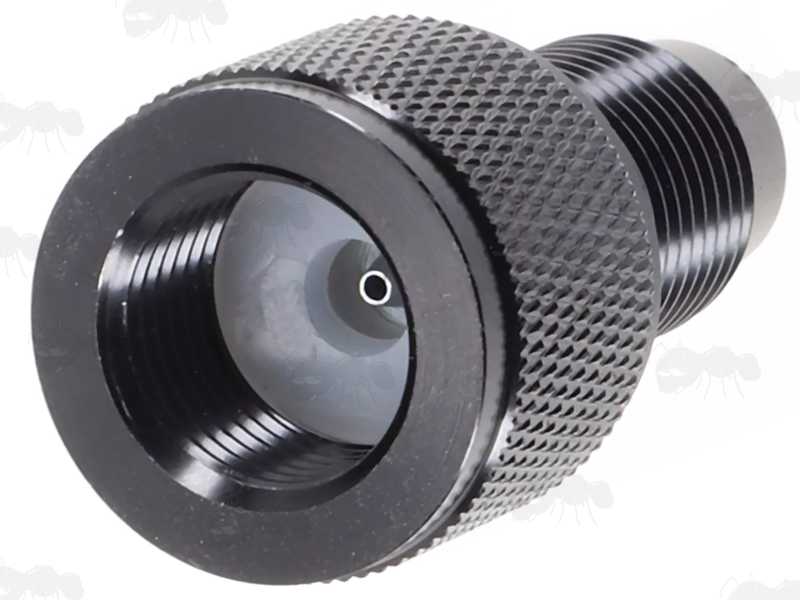

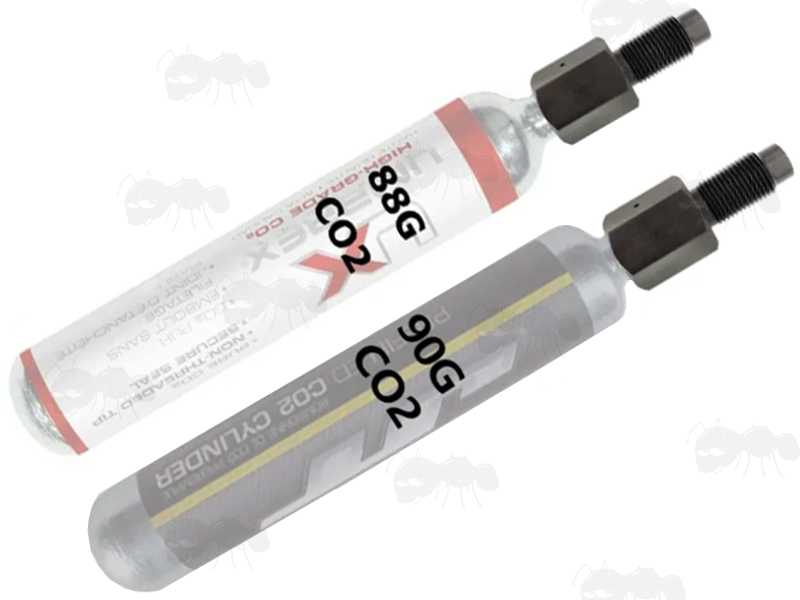

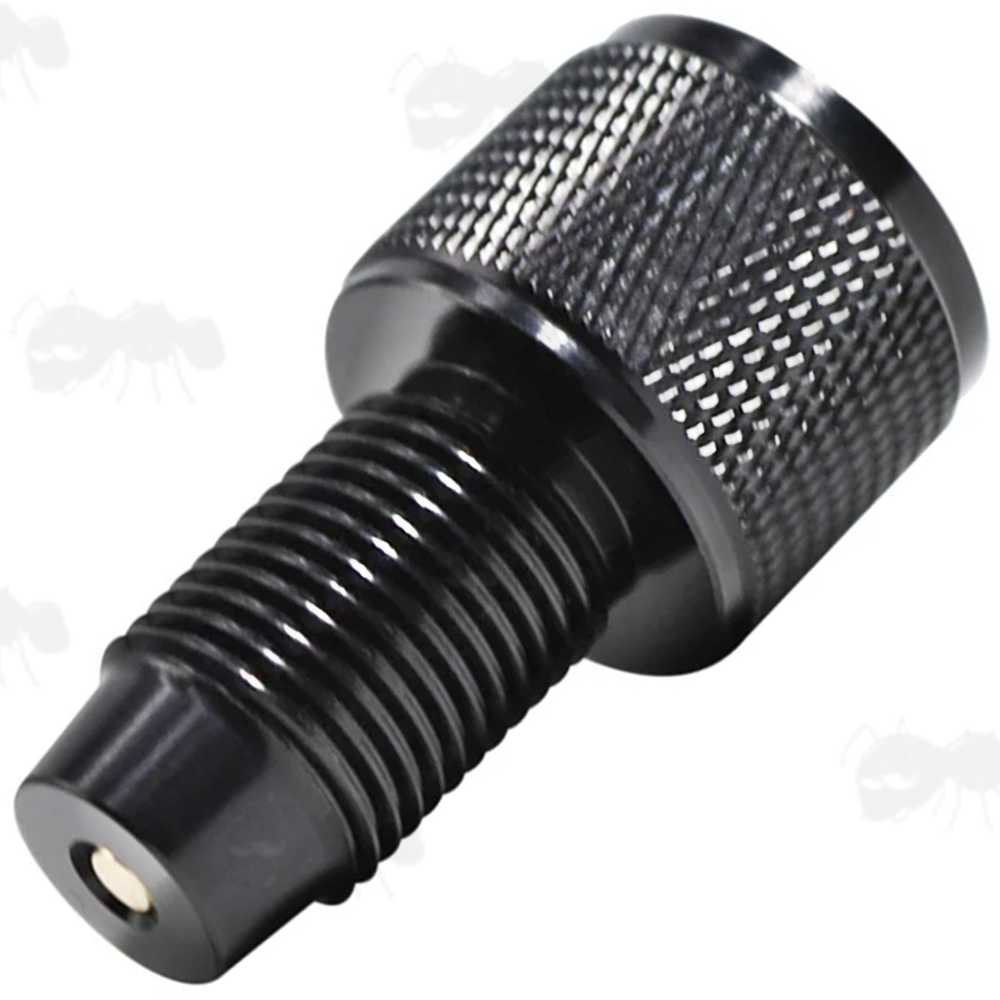

- 88g / 90g ONE WAY AIR SAVER VALVE:
The one way valve allows for removal of the disposable capsule without losing Co2.
88g / 90g cylinder attachment.
Aluminium construction with brass valve pin.
Internal thread ~ M16 x 1.5.
External thread ~ M16 x 1.5.
Female end overall diameter ~ 25mm.
Overall length ~ 48mm.

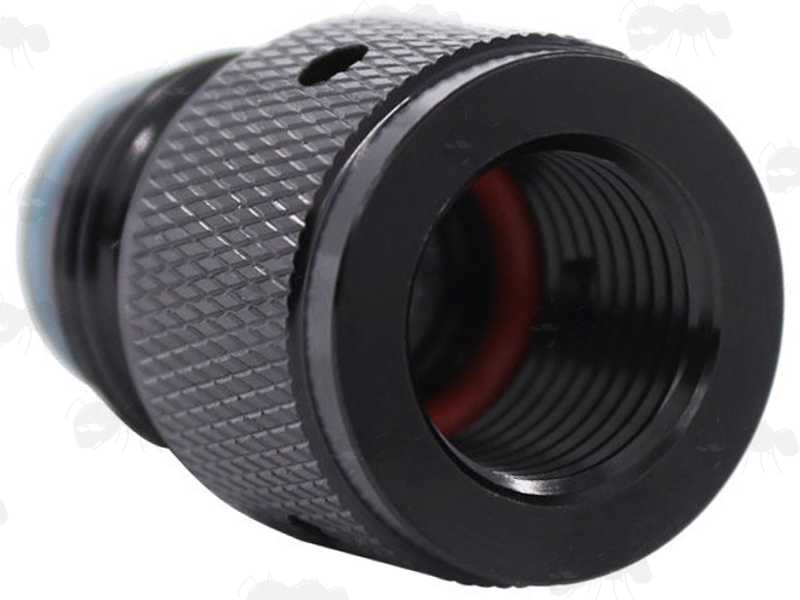

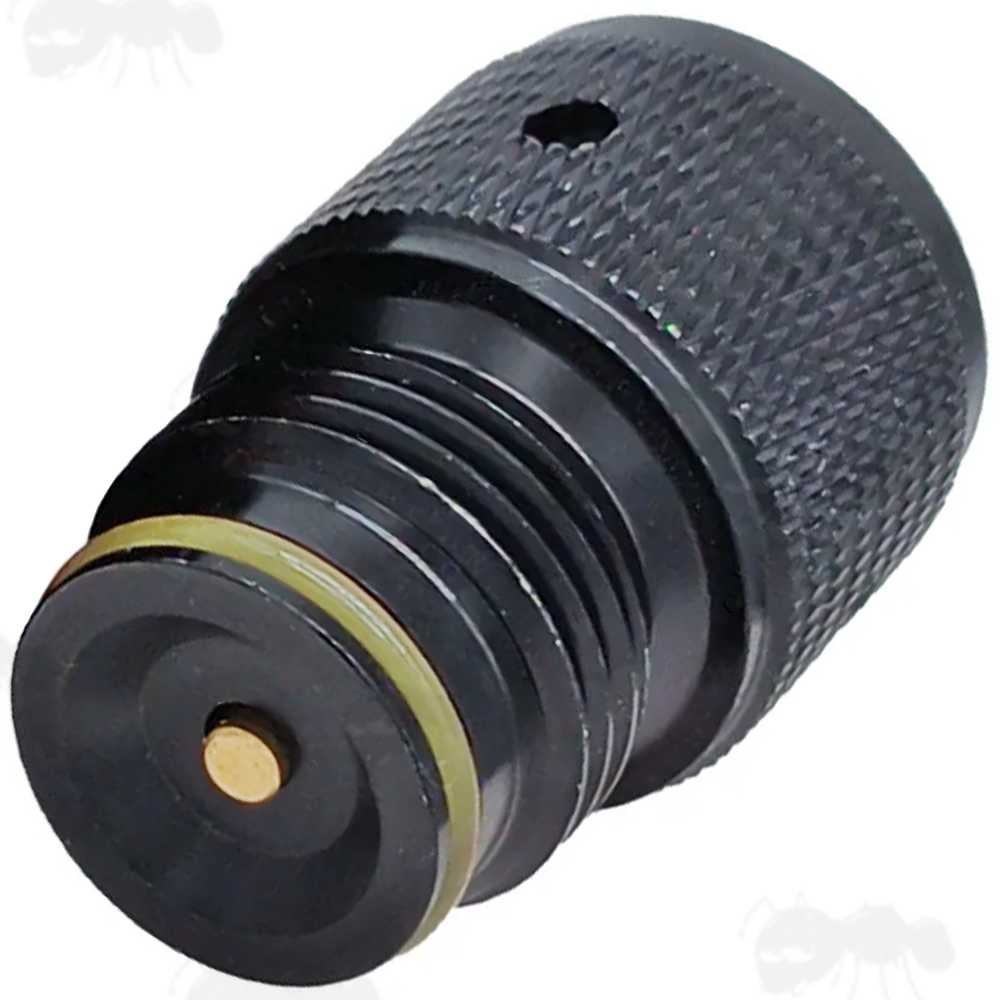

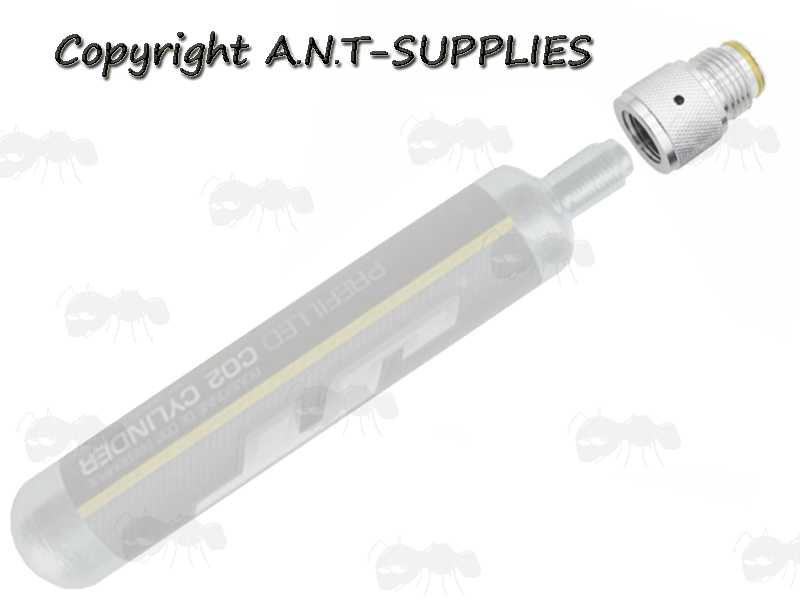

Will add approx 34mm in length when fitted.- 88g TO ASA PAINTBALL ADAPTER / AIR SAVER:
88g / 90g cylinder attachment.
Heavy-duty steel construction.
Precision made knurled grip.

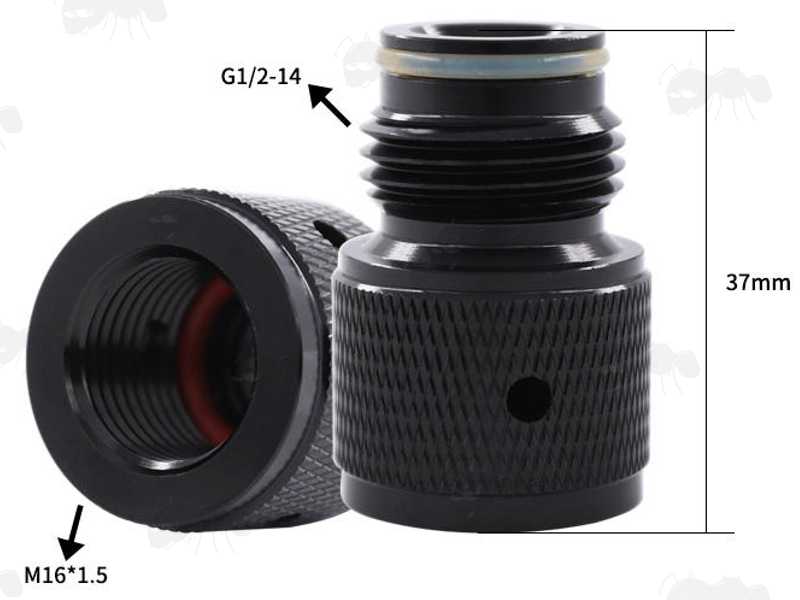

37.5mm long.
24.5mm diameter.
CGA 320 paintball marker tank thread.

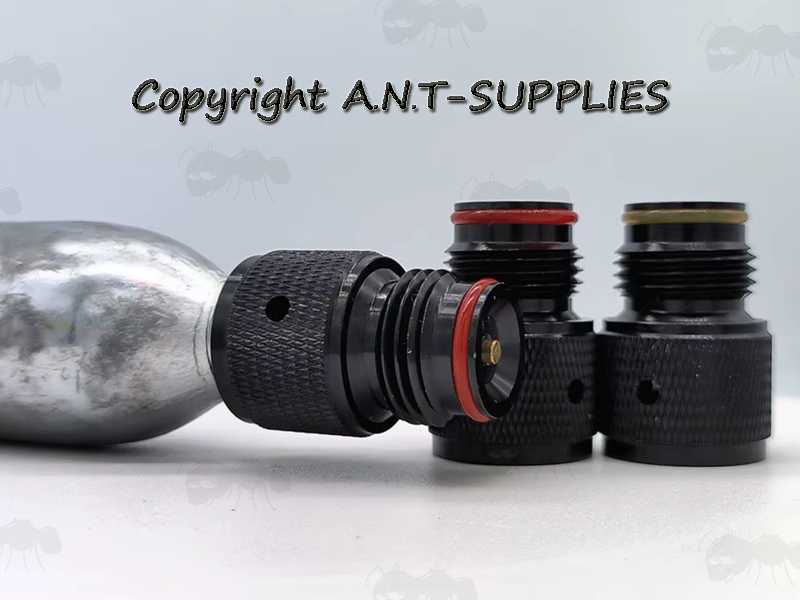

Allows the fitting of pre-filled 88g / 90g / 3oz disposable CO2 capsules to paintball markers, instead of a paintball tank (and some CO2 rifles).
Fits Crosman AirSource capsules and others.
With a needle valve so the adapter can stay attached to the canister, to avoid wasting Co2.
With O-ring seal ready fitted.
Always attach adaptor first before attaching the CO2 cylinder.
Fits most paintball markers and SMK XS79 Co2 rifles.

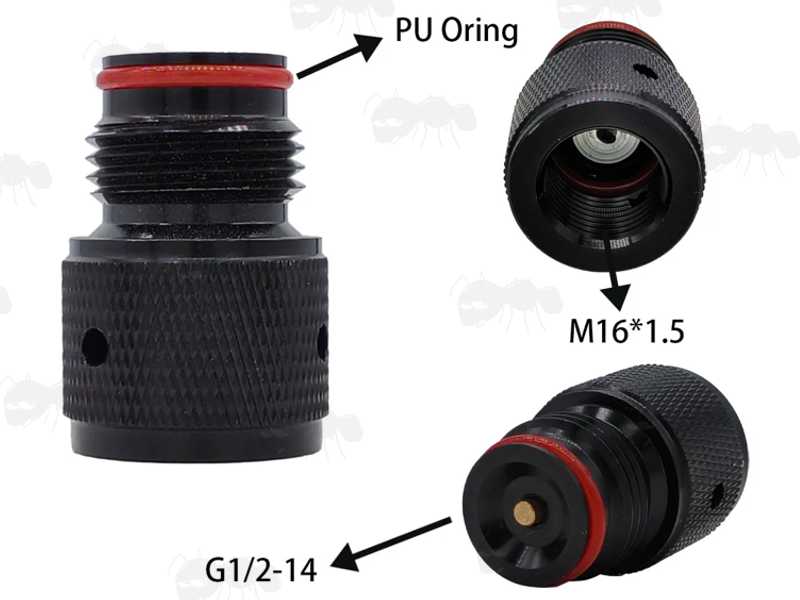

Internal thread ~ M16 x 1.5.
External thread ~ G1/2-14 TPI / 0.825"-14NGO.
Also available:
Co2 Capsule Thread Adapters,

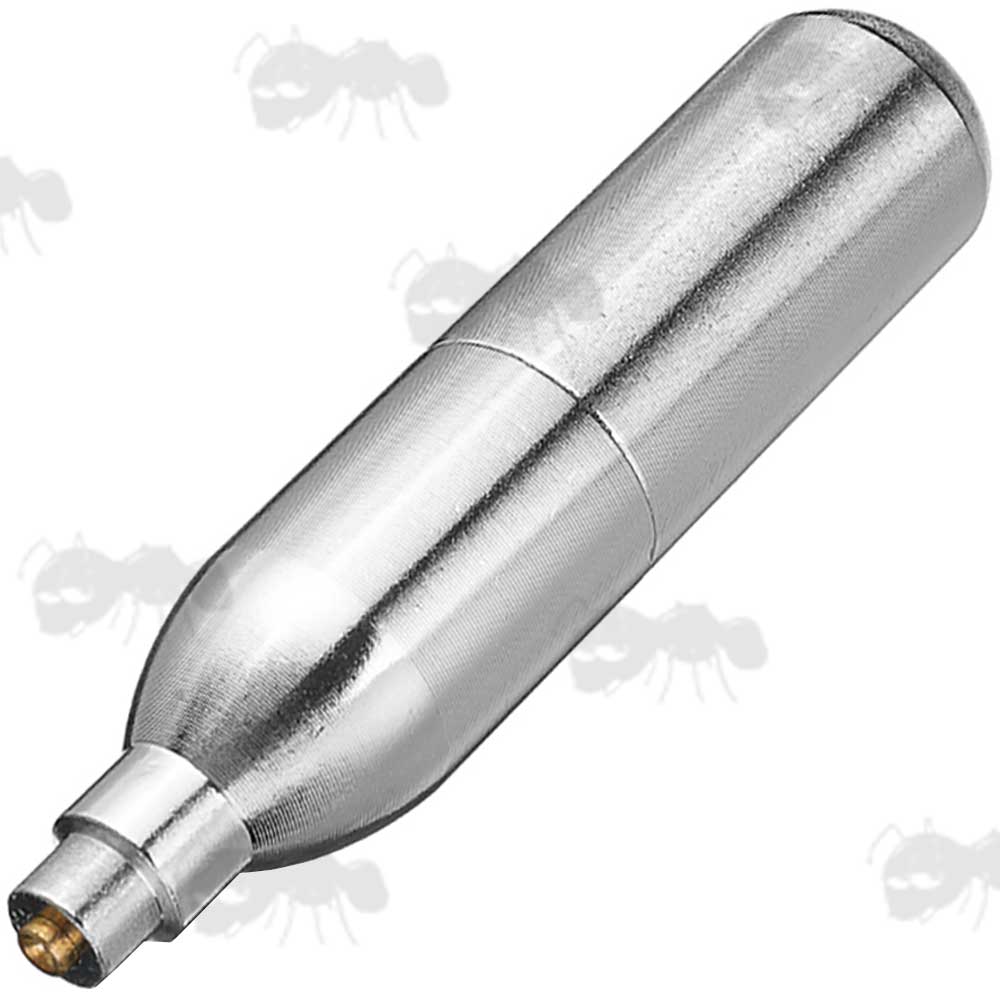

Umarex 12g Co2 / Valve Maintenance Capsules,
Umarex 12g Co2 Capsules,
Umarex 88g Co2 Capsules,
Umarex Co2 Capsule Adapters.

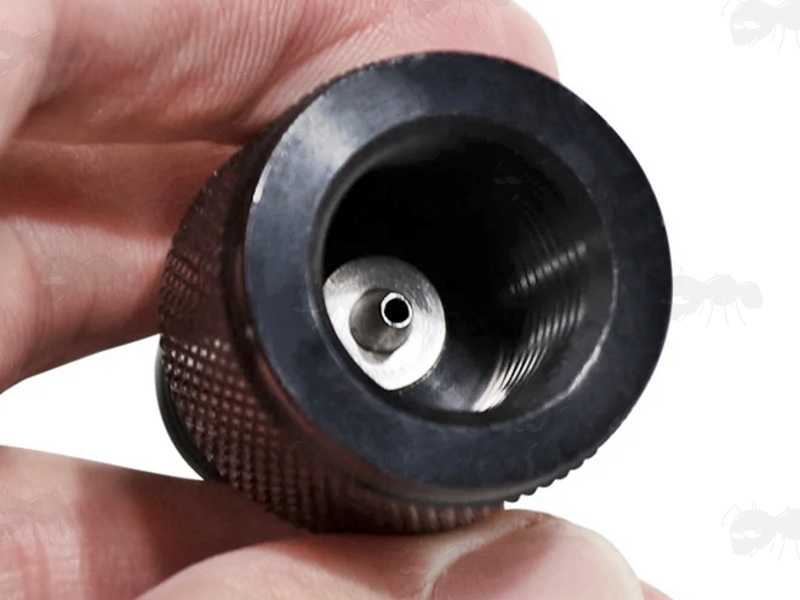

ONE WAY VALVE ADAPTER FOR 88g TO M16x1.5mm AIR RIFLE ADAPTER (BLACK):

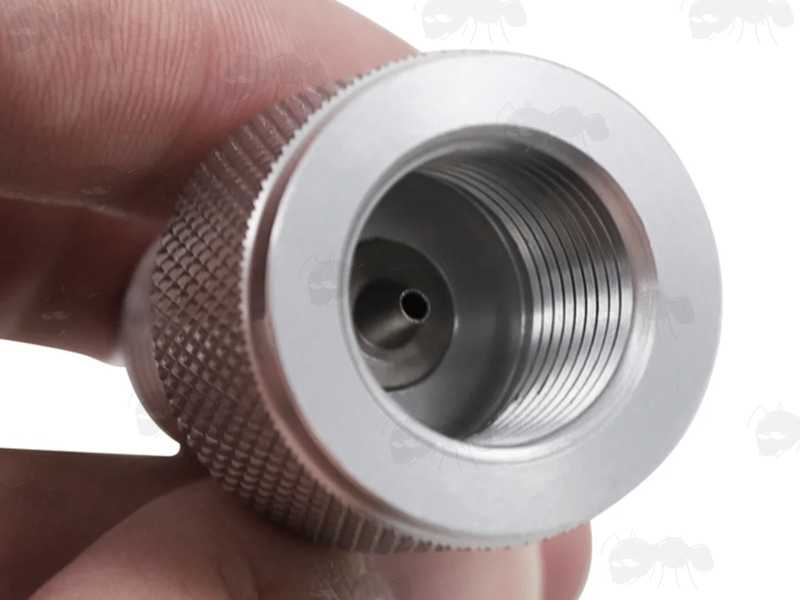

ONE WAY VALVE ADAPTER FOR 88g TO M16x1.5mm AIR RIFLE ADAPTER (SILVER):
AIR SAVERS CAN BE COMBINED WITH OUR THREAD ADAPTERS FOR OTHER SETUPS:

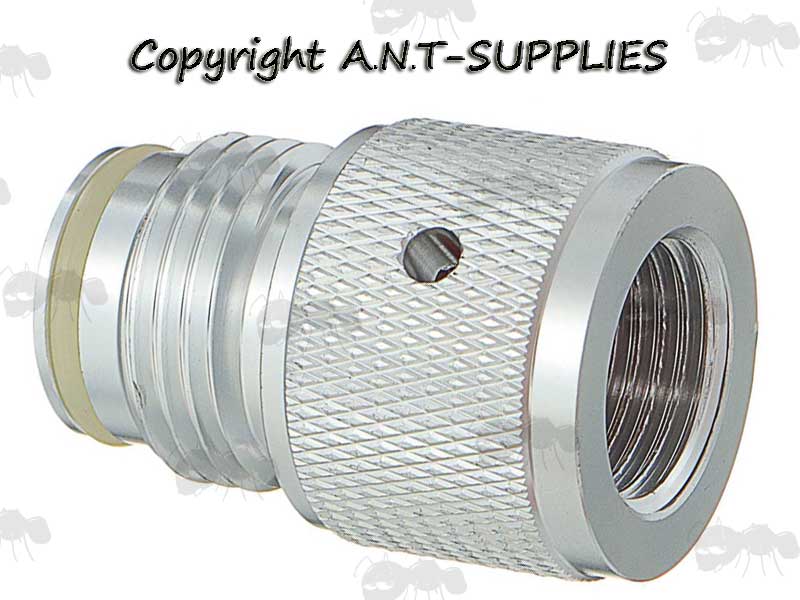

88g / 90g TO ASA PAINTBALL ADAPTER / AIR SAVER:
88g TO ASA PAINTBALL ADAPTER£10.80p each
AVAILABLE TO SPECIAL ORDER
Colour ~ Silver.
Weight ~ 30 grams.

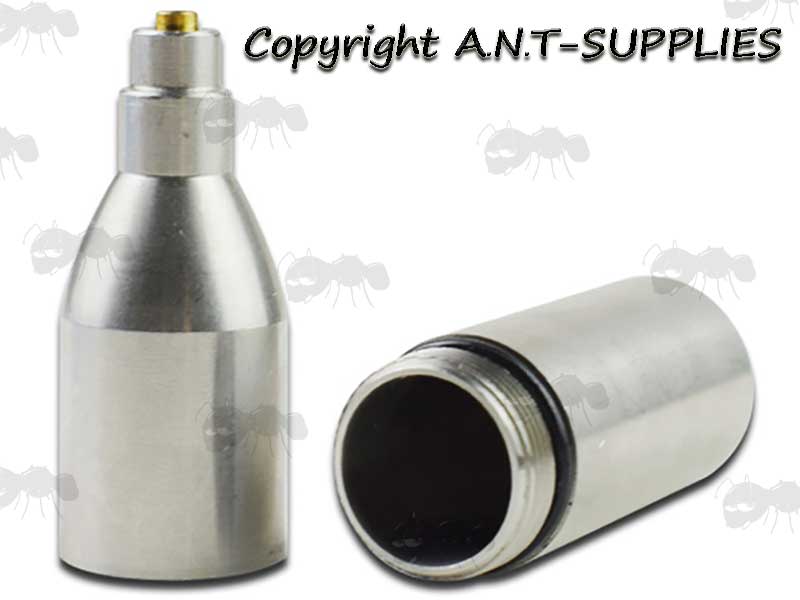

ALSO AVAILABLE BY REQUEST @ £15, AS WELL AS A SIMILAR 3/8-24 UNF THREADED OPTION:
