Co2 CAPSULE ADAPTERS
For CO2 rifles, pistols and paintball markers.
CO2 CAPSULE ADAPTER
Choice of Co2 thread adapter / air saver valves.
Options for 88g / 90g prefilled disposable capsules, paintball Co2 / HPA tanks, threaded 12g capsules, air saver valves and quick-change adapters.
For other thread adapters, please feel free to contact us for availability and requests.
THREAD GUIDE:
US spec threaded paintball tank to the regulator: 5/8-18UNF / 5/8-18UNF-2B.
Regulator ASA valve thread (Air Source Adapter): G1/2-14 / .825 - 14 NGO.
Prefilled 88g / 90g / 3.1oz disposable Co2 cylinders: M16 x 1.5mm thread (Crosman AirSource, Cybergun, Liss, Milbro, Umarex, Zen, etc).
Co2 airguns using 88g / 90g / 3.1oz capsule ~ SIG SAUER MPX / MCX, Crosman 2250: M16 x 1.5mm.
(With suitable length thread).
G1/2-14 = 1/2 inch x 14 BSP.
HPA tank: CGA-320 / 13/16" (.825") outer diameter x 14 TPI.
12g, 16g, 25g threaded Co2 capsules: 3/8-24 UNF.

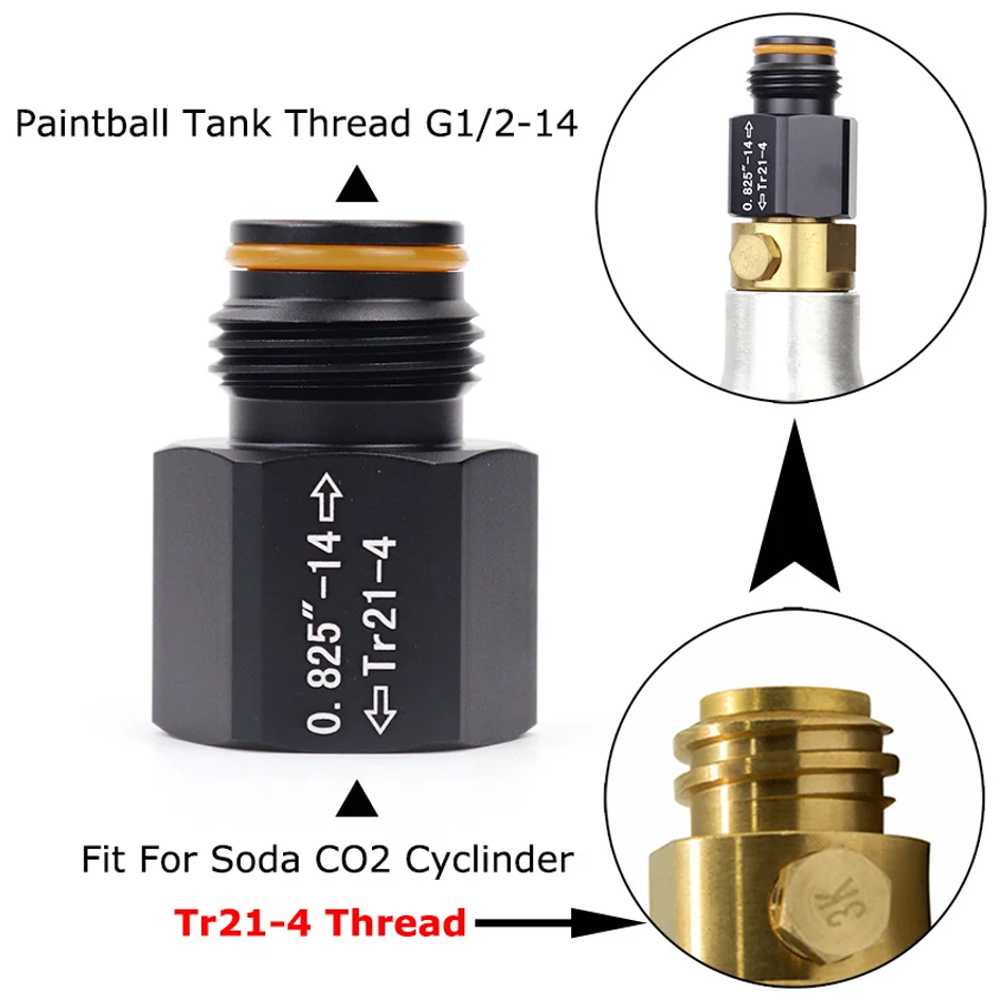

The current standard 425g / 60 litre Sodastream CO2 cylinder : TR21x4 (Not Australia and New Zealand).
Note: No CO2 capsules are included.
Warning: Don't unscrew Co2 capsules until you are certain they are empty.
- 88g TO PAINTBALL ADAPTER:
88g / 90g cylinder attachment.
Heavy-duty steel construction.
Precision made knurled grip.
37.5mm long.
24.5mm diameter.
CGA 320 paintball marker tank thread.
Allows the fitting of pre-filled 88g / 90g / 3oz disposable CO2 capsules to paintball markers, instead of a paintball tank (and some CO2 rifles).
Fits Crosman AirSource capsules and others.
With a needle valve so the adapter can stay attached to the canister, to avoid wasting Co2.
With O-ring seal ready fitted.
Always attach adaptor first before attaching the CO2 cylinder.
Fits most paintball markers and SMK XS79 Co2 rifles.
Internal thread ~ M16 x 1.5.

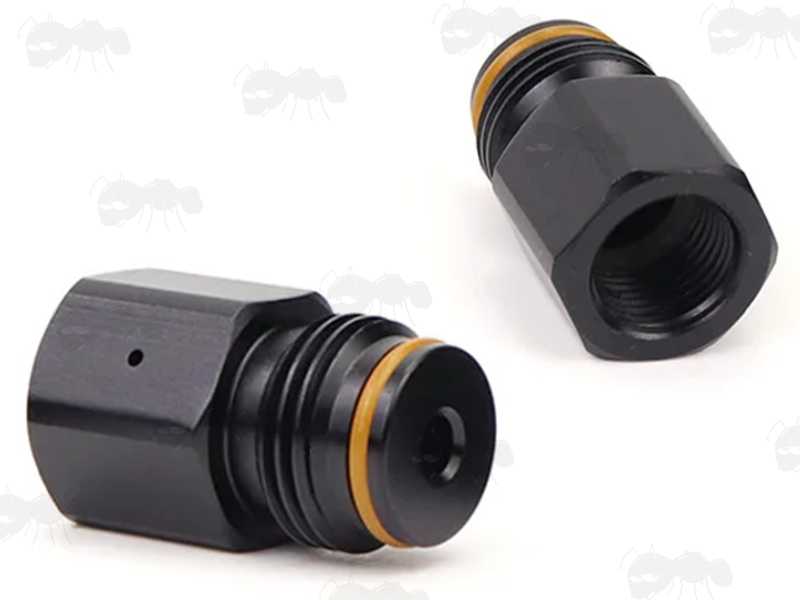

External thread ~ G1/2-14 TPI / 0.825"-14NGO.- PAINTBALL ADAPTER TO 88g:
88g / 90g cylinder attachment.
Heavy-duty steel construction.
Internal thread ~ G1/2-14 TPI / 0.825"-14NGO.
External thread ~ M16 x 1.5.- 88g / 90g ONE WAY AIR SAVER VALVE:
The one way valve allows for removal of the disposable capsule without losing Co2.
88g / 90g cylinder attachment.
Aluminium construction with brass valve pin.
Internal thread ~ M16 x 1.5.

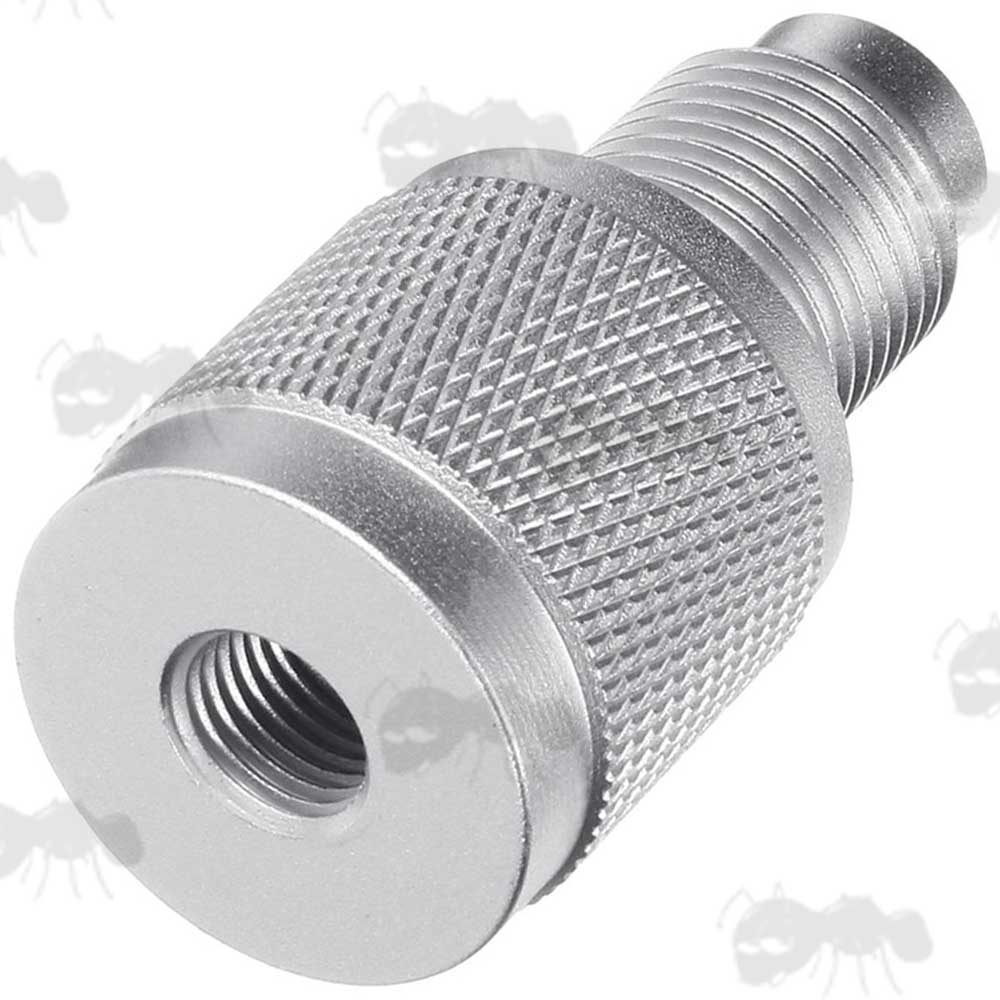

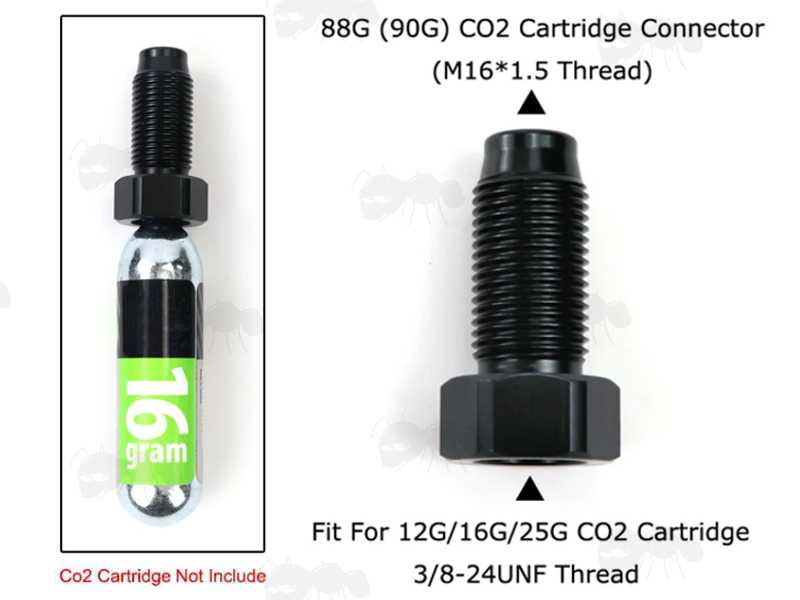

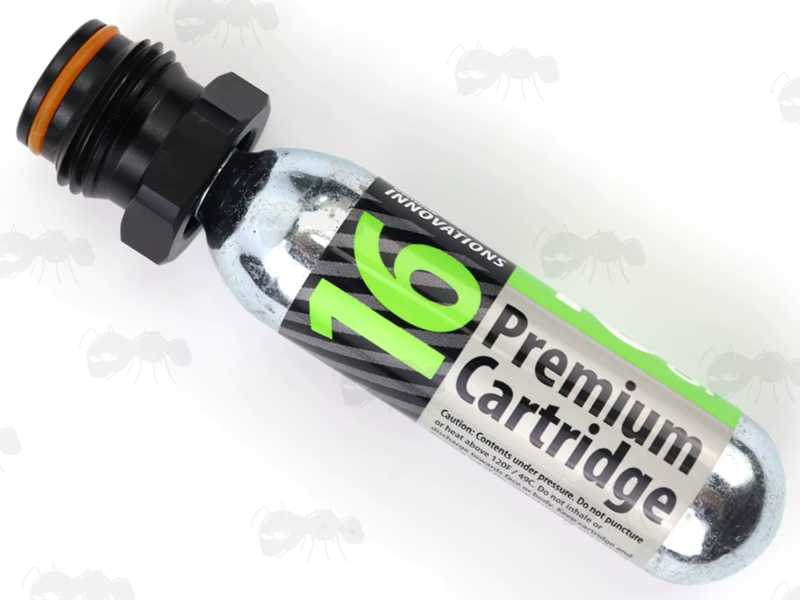

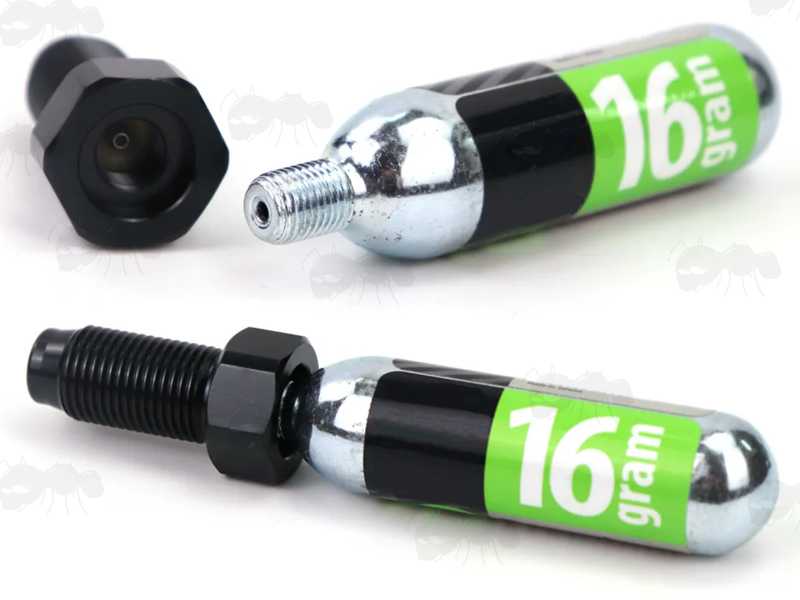

External thread ~ M16 x 1.5.- 12g TO 88g ADAPTER:
Please Note: These only work with threaded 12g capsules, not the standard capsules.
Converts your Co2 rifle, pistol or paintball marker to run on threaded 12g CO2 capsules, instead of the more expensive 88g capsules.
Full metal construction.
Ideal suited to short shooting sessions and gun testing.
Lowers the overall weight.
With 3/8-24 UNF internal thread.
M16 x 1.5mm external thread.- 12g TO PAINTBALL QUICK CHANGE TUBE ADAPTER:
Should fit all standard paintball guns and markers.
Also fits the AG1 thunder grenade charger, that is used to fill airsoft / paintball grenade launcher grenades and landmines.
A 12g Co2 capsule provides approx 20-30 charges (about 15-20 shots) for paintball guns.
External thread ~ G1/2-14 TPI / 0.825"-14NGO.
Internal thread ~ G1/2-14 TPI / 0.825"-14NGO.
Length ~ 119mm.
Internal diameter ~ 19mm.
External diameter ~ 25mm.

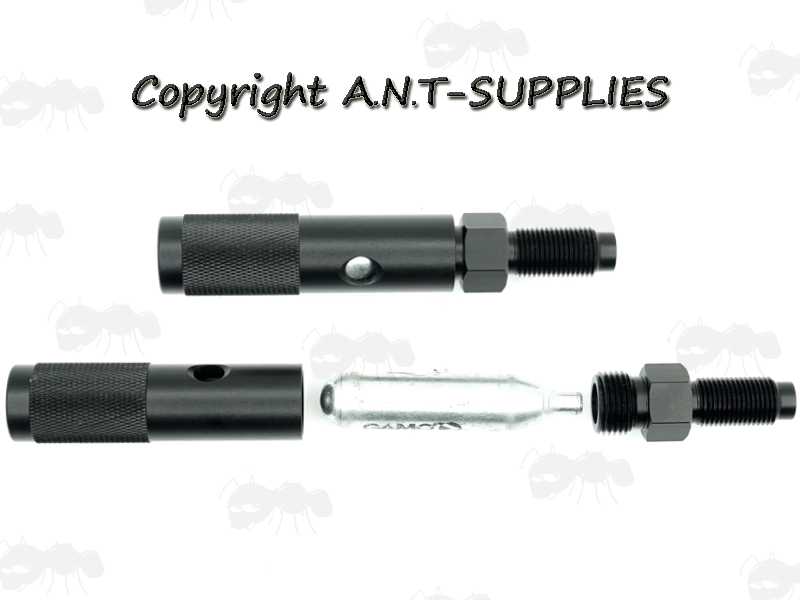

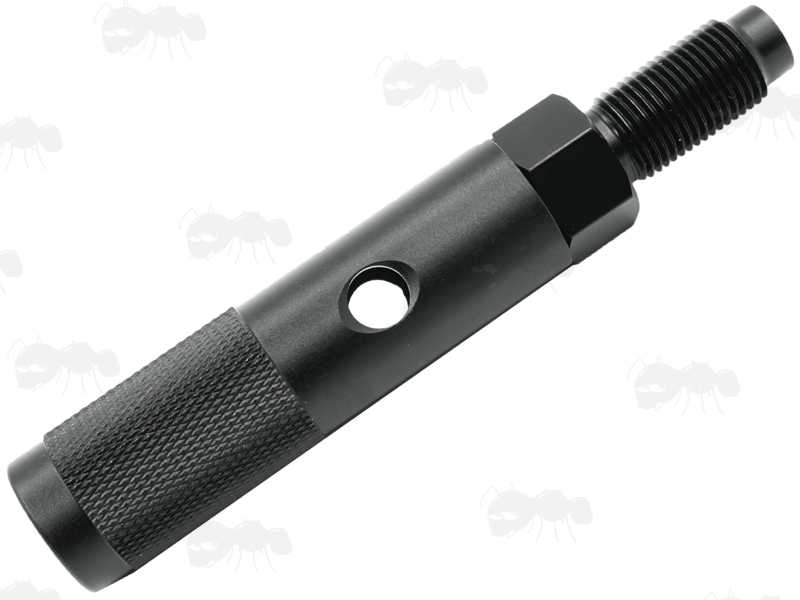

External thread ~ 16mm x 1.5mm.- 12g TO 88g QUICK CHANGE TUBE ADAPTER:
Designed for the Sig Sauer MPX / MCX and Umarex AirJavelin, Fusion II and similar rifles.
Allows the use of standard non-threaded 12g Co2 capsules instead of the larger, more expensive 88g capsules (Airsource, Umarex etc).
This version has a longer end thread compared to the standard quick-change adapter (not currently in stock).
Offers approx 1/7th the amount of shots compared to the 88g capsules.
Length ~ 136mm.
Internal diameter ~ 19mm.
External diameter ~ 25mm.
External thread ~ 16mm x 1.5mm.
Also available ~ Umarex Co2 Capsule Adapters, Umarex 12g Co2 Capsules and Umarex 88g Co2 Capsules.

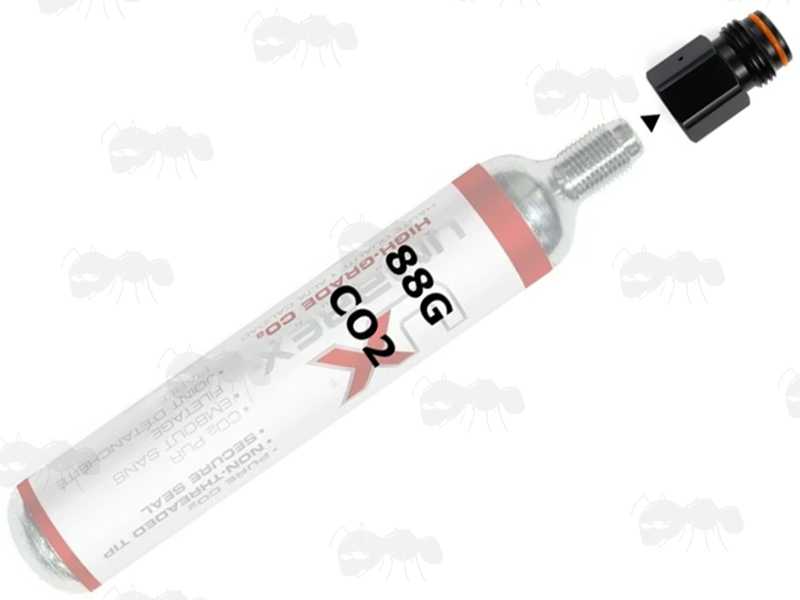

88g TO PAINTBALL ADAPTER:
![88g Co2 Capsule to Paintball Marker Adapter](images/CO2-88G-90G-THREADED-CAPSULE-TO-PAINTBALL-THREAD-ADAPTER-MAIN.jpg)
![88g Co2 Capsule to Paintball Marker Adapter Shown with Prefilled 88g Co2 Capsule](images/CO2-88G-90G-THREADED-CAPSULE-TO-PAINTBALL-THREAD-ADAPTER-2nd.jpg)

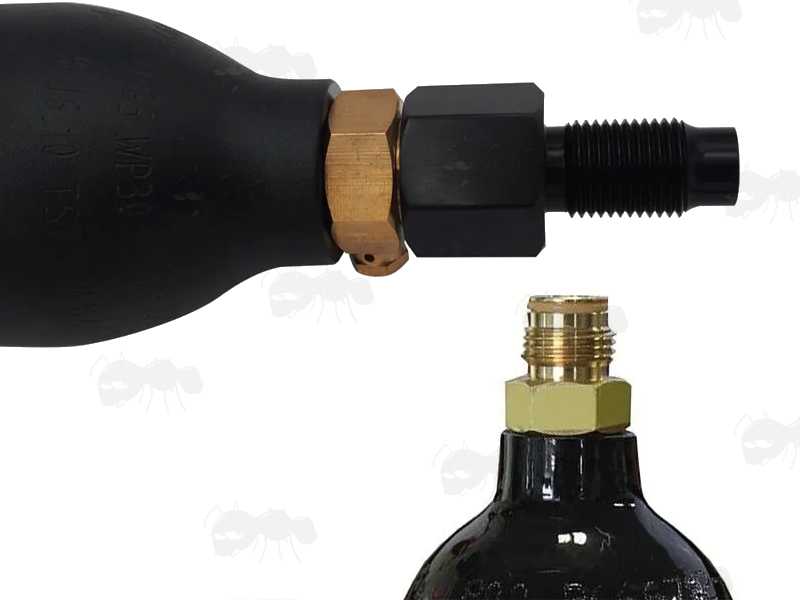

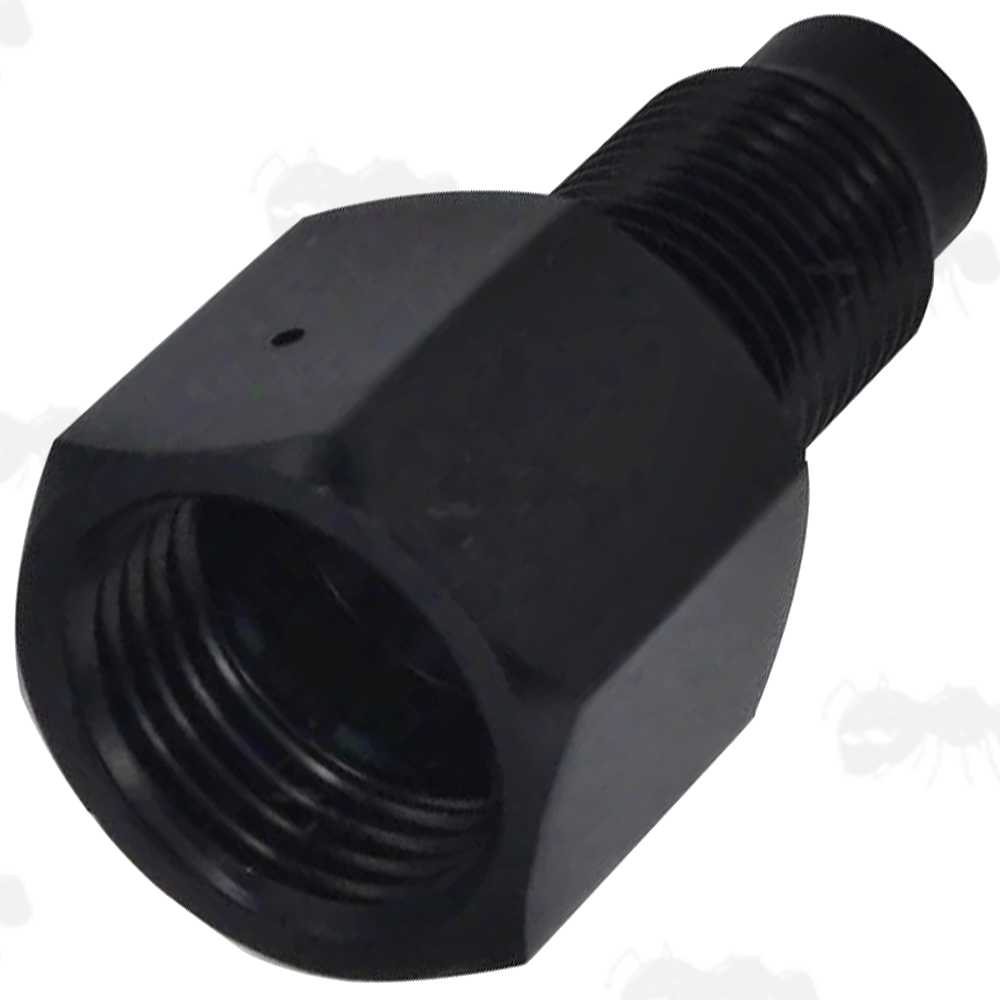

PAINTBALL Co2 / HPA TANK TO M16x1.5mm AIR RIFLE ADAPTER:

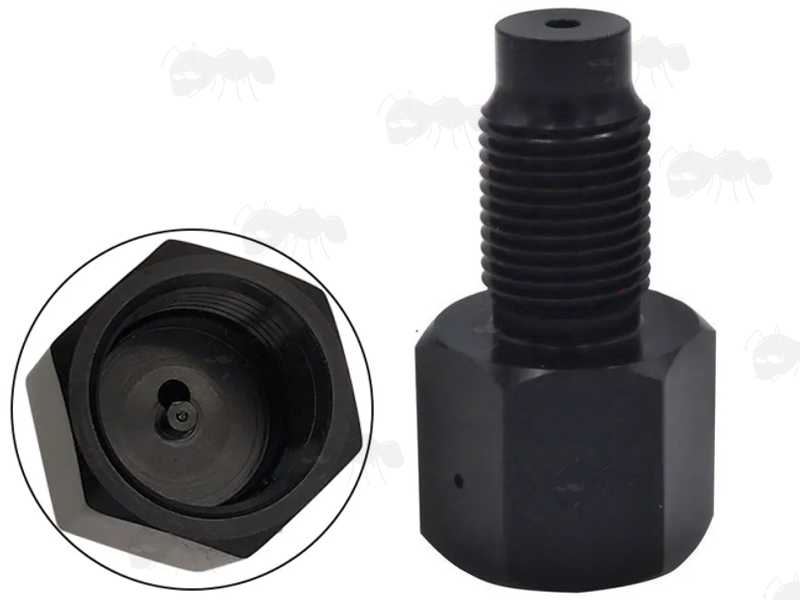

![Paintball Co2 Tank to M16x1.5mm Thread Adapter for AirSource Airguns, with Internal View](images/PAINTBALL-TO-CO2-88G-90G-THREADED-CAPSULE-THREAD-ADAPTER-MAIN.jpg)
![Paintball Co2 Tank to M16x1.5mm Thread Adapter for AirSource Airguns, Shown Fitted to HPA Tanks](images/PAINTBALL-TO-CO2-88G-90G-THREADED-CAPSULE-THREAD-ADAPTER-2nd.jpg)
ONE WAY VALVE ADAPTER FOR 88g TO M16x1.5mm AIR RIFLE ADAPTER:
![88g Co2 Capsule to M16x1.5mm Thread Adapter for AirSource Airguns, External Thread View](images/M16-THREAD-ONE-WAY-CO2-88G-90G-THREADED-CAPSULE-VALVE-ADAPTER-KNURLED-MAIN.jpg)
![Inner Thread View of The 88g Co2 Capsule to M16x1.5mm Thread Adapters for AirSource Airguns](images/M16-THREAD-ONE-WAY-CO2-88G-90G-THREADED-CAPSULE-VALVE-ADAPTER-KNURLED-2nd.jpg)
![Inner Seal and Thread View of The 88g Co2 Capsule to M16x1.5mm Thread Adapters for AirSource Airguns](images/M16-THREAD-ONE-WAY-CO2-88G-90G-THREADED-CAPSULE-VALVE-ADAPTER-KNURLED-2nd2.jpg)
![88g Co2 Capsule to M16x1.5mm Thread Adapters for AirSource Airguns, Shown Fitted to a 88g and 90g Prefilled Disposable Capsules](images/M16-THREAD-ONE-WAY-CO2-88G-90G-THREADED-CAPSULE-VALVE-ADAPTER-2nd.jpg)

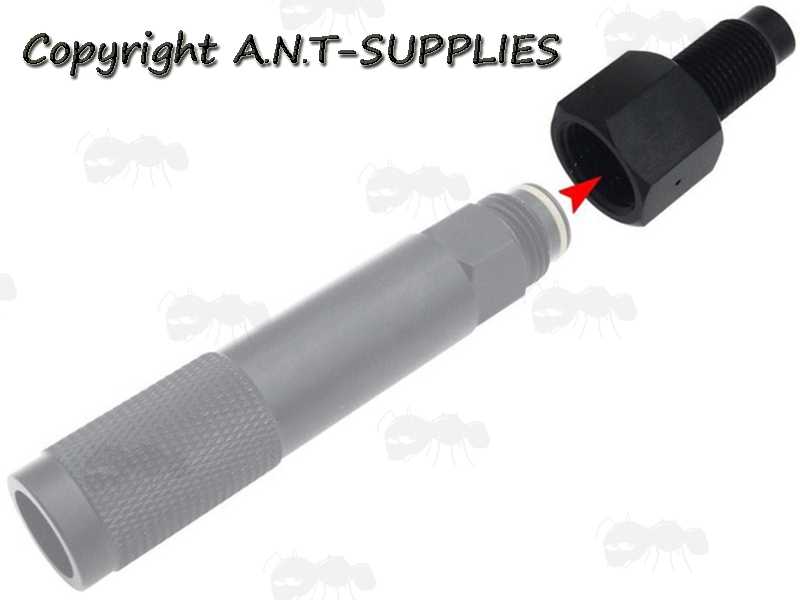

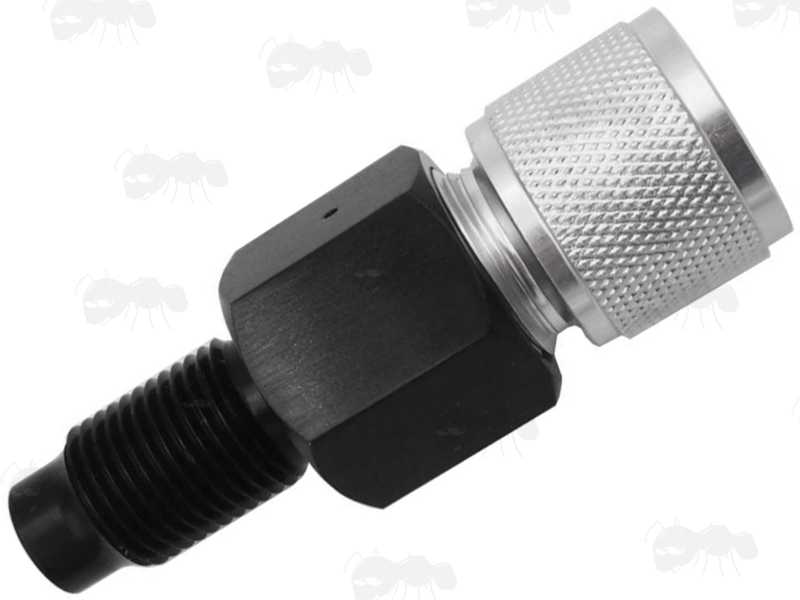

SOME OF THE ADAPTERS CAN BE COMBINED FOR OTHER SETUPS
ALSO FOR INCLUDING A ONE WAY VALUE FOR AIR SAVING WHEN REMOVING SINGLE USE DISPOSABLE Co2 CARTRIDGES / CAPSULES:
![88g Co2 Capsule to Paintball Tank Adapter and M16x1.5mm Thread Adapter for AirSource Airguns Adapter Fitted Together](images/PAINTBALL-CO2-88G-90G-THREADED-CAPSULE-THREAD-ADAPTERS-MAIN.jpg)
THREADED 12g TO 88g ADAPTER:

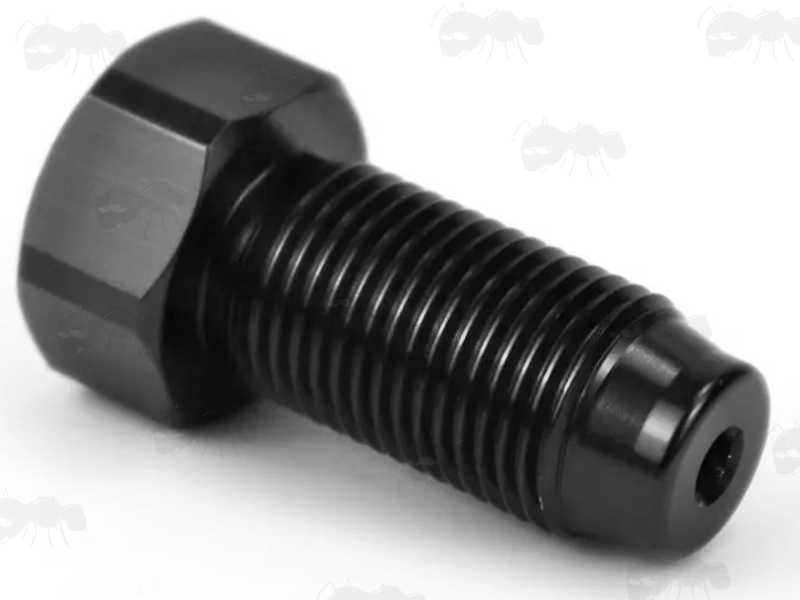

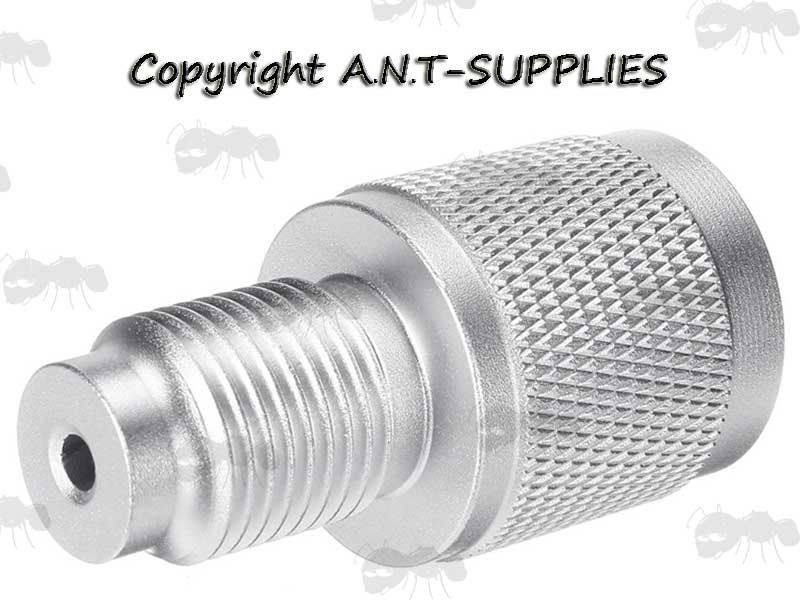

![12g Co2 Capsule to 88g Adapter](images/CO2-12G-TO-88G-THREADED-CAPSULE-ADAPTER-MAIN.jpg)

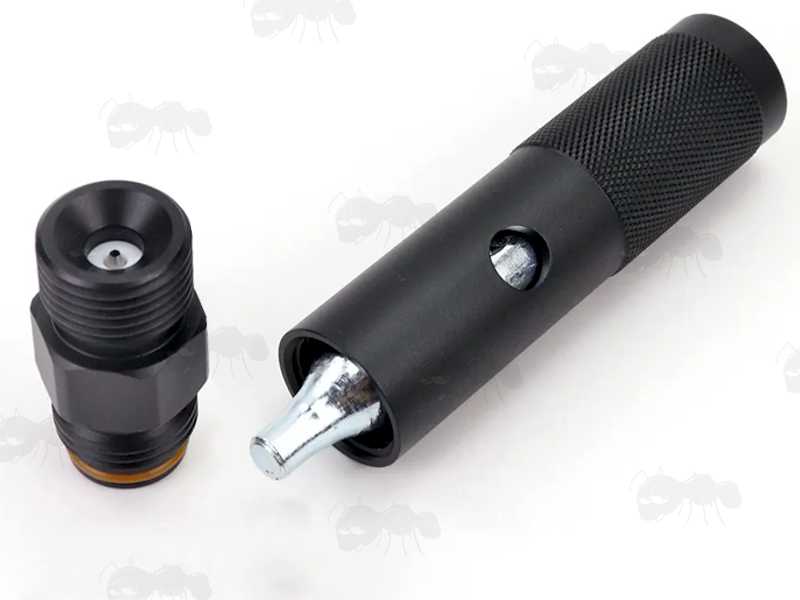

12g TO PAINTBALL TANK ADAPTER:

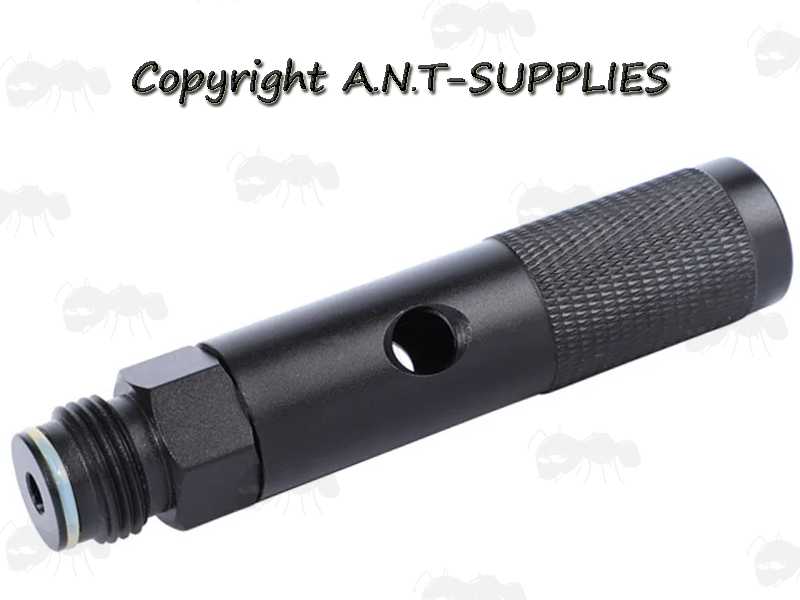

![12g Co2 Capsule to Paintball Tank Adapter](images/CO2-12G-CAPSULE-TO-PAINTBALL-THREAD-ADAPTER-BLACK-MAIN.jpg)
![12g Co2 Capsule to Paintball Tank Adapter, Shown with a 12g Capsule](images/CO2-12G-CAPSULE-TO-PAINTBALL-THREAD-ADAPTER-BLACK-2nd.jpg)

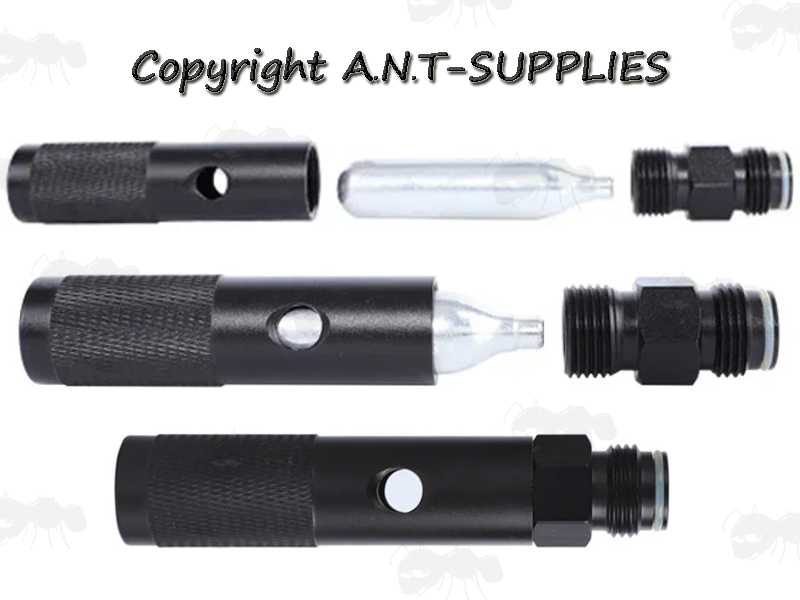

![12g Co2 Capsule to Paintball Tank Adapters, Shown with 12g Co2 Capsule Being Fitted](images/CO2-12G-CAPSULE-TO-PAINTBALL-THREAD-ADAPTER-BLACK-3rd.jpg)

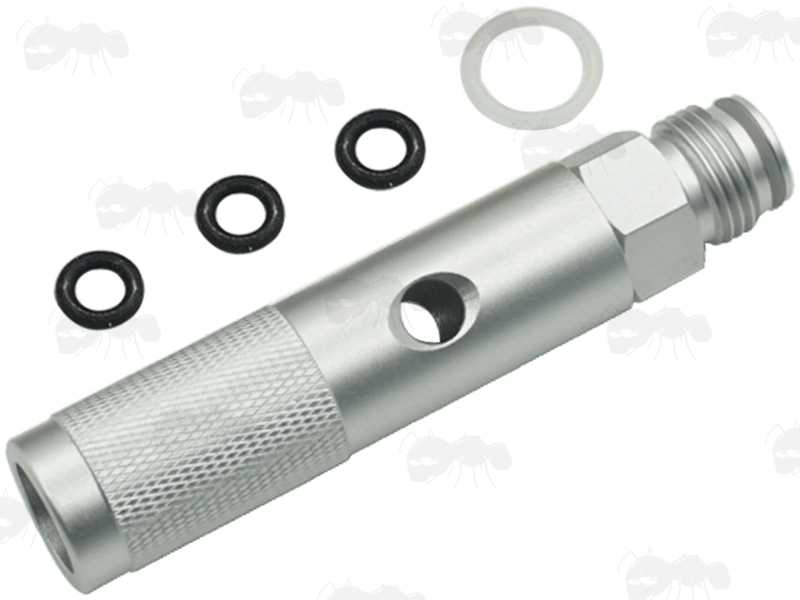

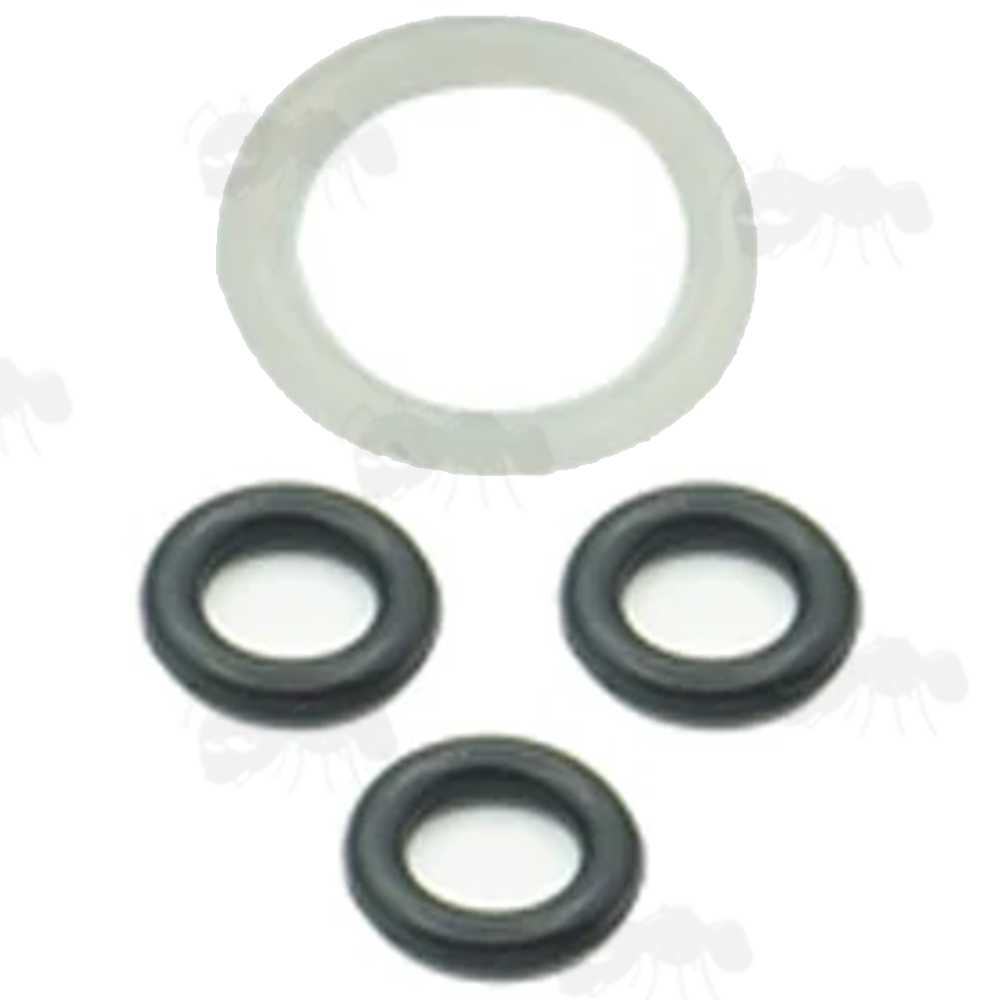

O-RING SEALS INCLUDED:
![Pack of Four O-Ring Seals for the 12g Co2 Capsule to Paintball Tank Adapters](images/CO2-12G-CAPSULE-TO-PAINTBALL-THREAD-ADAPTER-O-RING-SEALS-PRO.jpg)

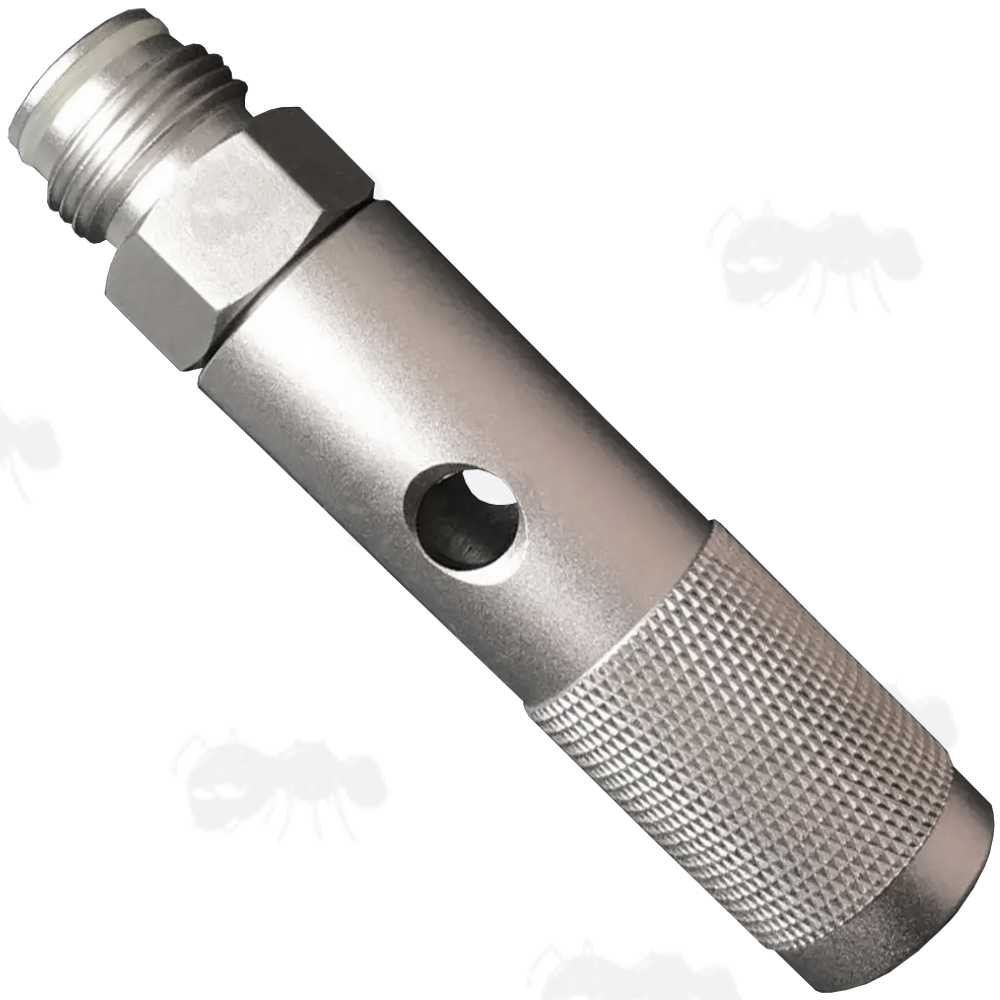

ALSO AVAILABLE IN SILVER FINISH BY SPECIAL REQUEST:
![12g Co2 Capsule to Paintball Tank Adapter](images/CO2-12G-CAPSULE-TO-PAINTBALL-THREAD-ADAPTER-SILVER-MAIN.jpg)

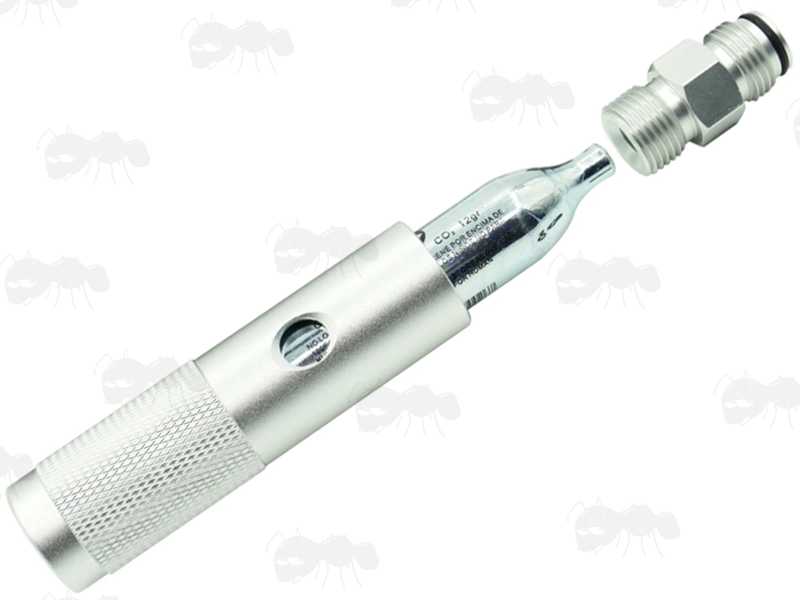

![12g Co2 Capsule to Paintball Tank Adapter, Shown with 12g Co2 Capsule Being Fitted](images/CO2-12G-CAPSULE-TO-PAINTBALL-THREAD-ADAPTER-SILVER-2nd.jpg)

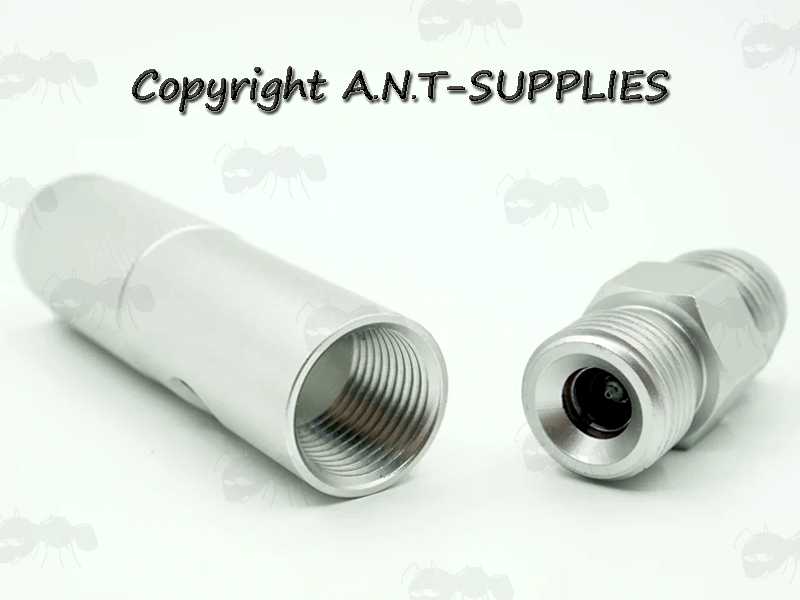

![Unscrewed View of The 12g Co2 Capsule to Paintball Tank Adapter](images/CO2-12G-CAPSULE-TO-PAINTBALL-THREAD-ADAPTER-SILVER-3rd.jpg)
12g TO 88g QUICK CHANGE TUBE ADAPTER:
![12g Co2 Capsule to 88g Quick Change Adapter Tube](images/CO2-12G-TO-88G-QUICK-CHANGE-THREADED-CAPSULE-ADAPTER-BLACK-MAIN.jpg)
ALSO AVAILABLE BY REQUEST @ £15, AS WELL AS A SIMILAR 3/8-24 UNF THREADED OPTION:
![Refillable 12g Co2 Capsule](images/REFILLABLE-CO2-GAS-CAPSULE-12g-PRO.jpg)
![Refillable 12g Co2 Capsule](images/REFILLABLE-CO2-GAS-CAPSULE-12g-MAIN.jpg)
