SHOTGUN SIDE SADDLE CARTRIDGE HOLDERS
Shotgun side saddle shell carrier kits.

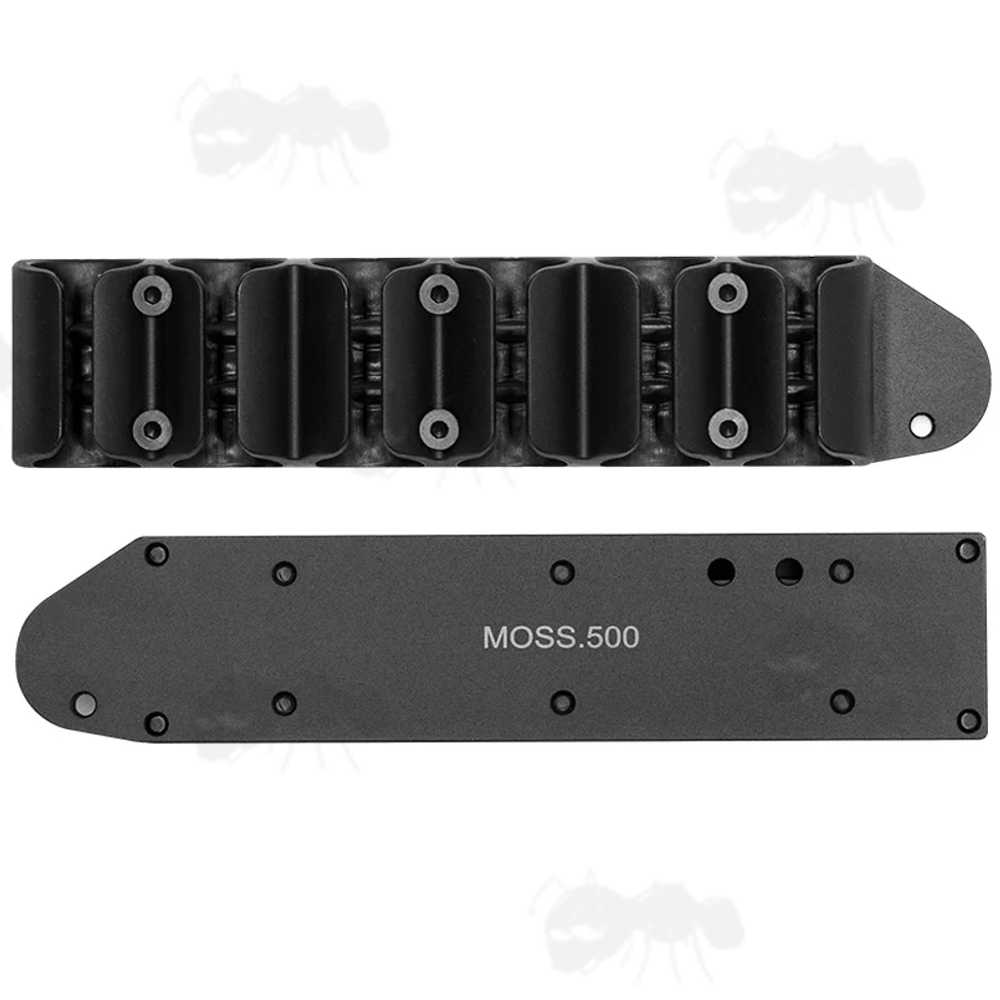

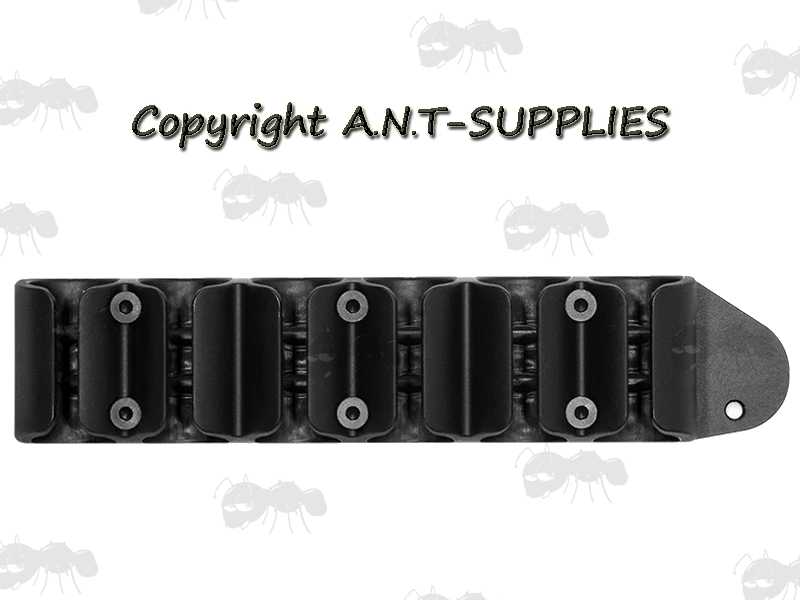

SIDE SADDLE SHELL CARRIER KIT
MOSSBERG£30.00p each
PREORDER AVAILABLE
For Mossberg 500 / 590.
Length ~ 7.0".
Width ~ 1.5".
Weight ~ 140 grams.

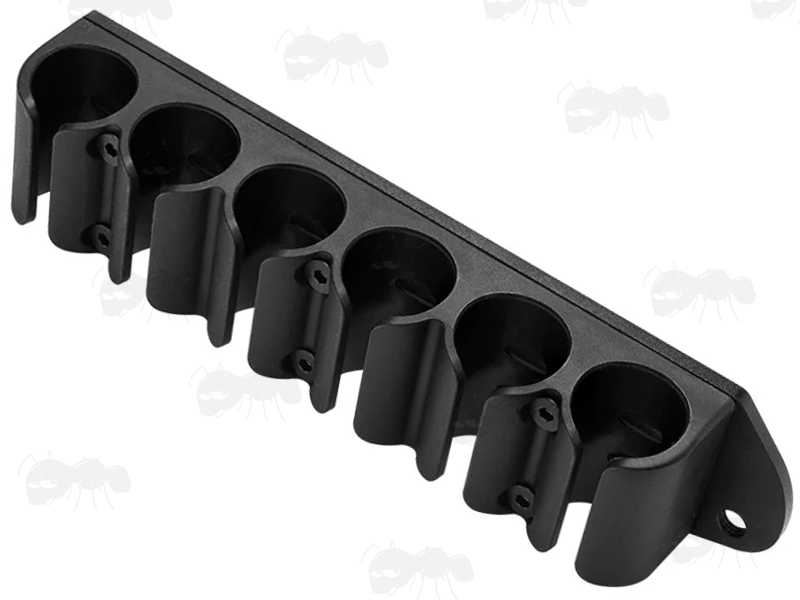

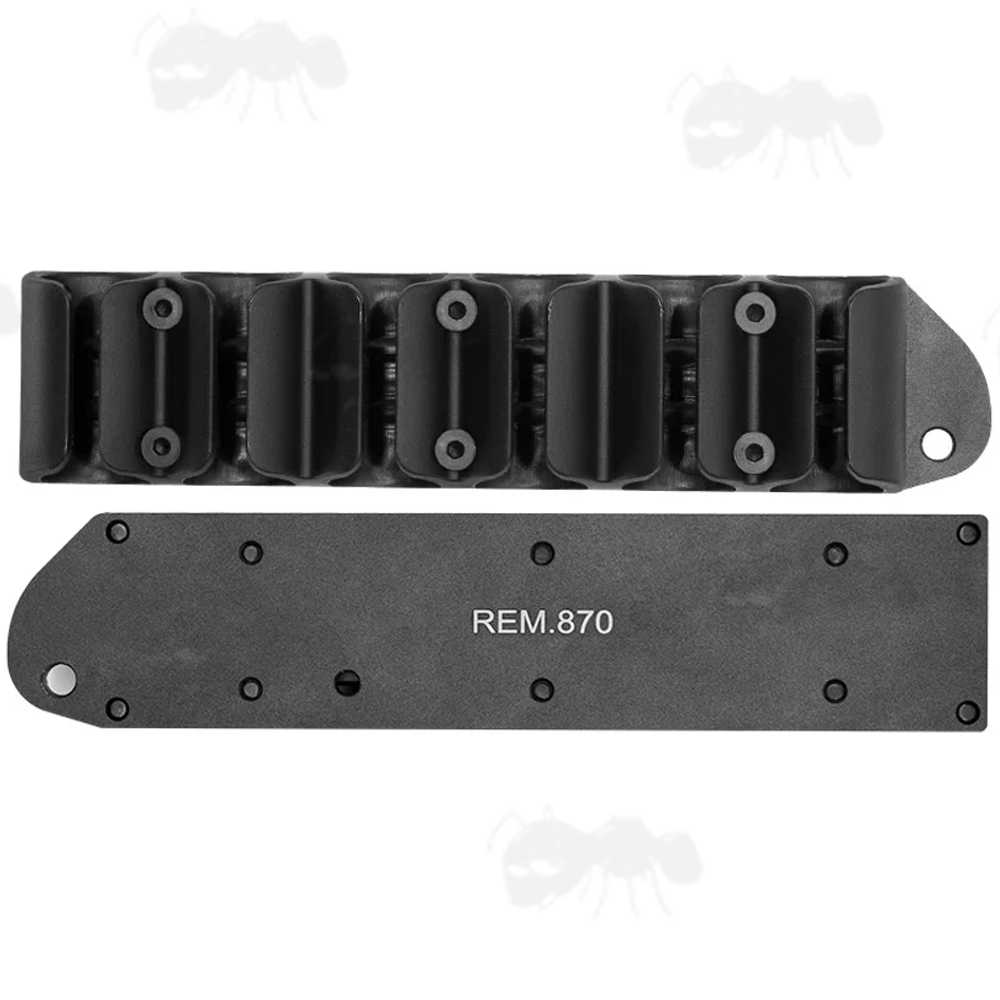

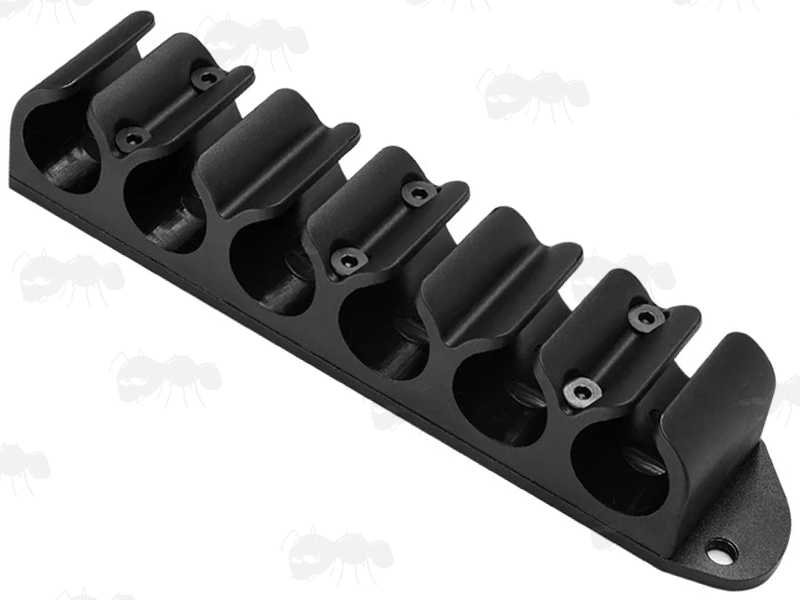

REMINGTON£30.00p each
PREORDER AVAILABLE
For Remington models 870, 1100 & 1187.
Length ~ 6.75".
Width ~ 1.5".
Weight ~ 136 grams.
Holds six 12 gauge shotgun shells.
The shells loop clips are black polymer.
The mounting plate is black anodized aluminium.
Fits the left hand side.
Please Note: that although fittings are included, we can not guarantee the correct fittings will be included by the factory, fitting lengths and diameters may not match your shotgun model.
Also available ~ Mossberg Sight Rails and Cheek Rest Pouches with Ammo Holders.
MOSSBERG:
500 / 590 / 590DA INSTALLATION GUIDE:
1. Ensure the shotgun is unloaded and always pointed in a safe direction.
2. Open the action and place the shotgun on its side with the ejection port facing upwards.
3. Remove the #8-32 thread screw on the opposite side of the ejection port.
4. Then replace the removed screw with the longer #8-32 screw.
5. Now use the supplied #10-32 screw with washer to push out the pin (located just above the trigger).
Leave the screw in the hole and turn the shotgun over.

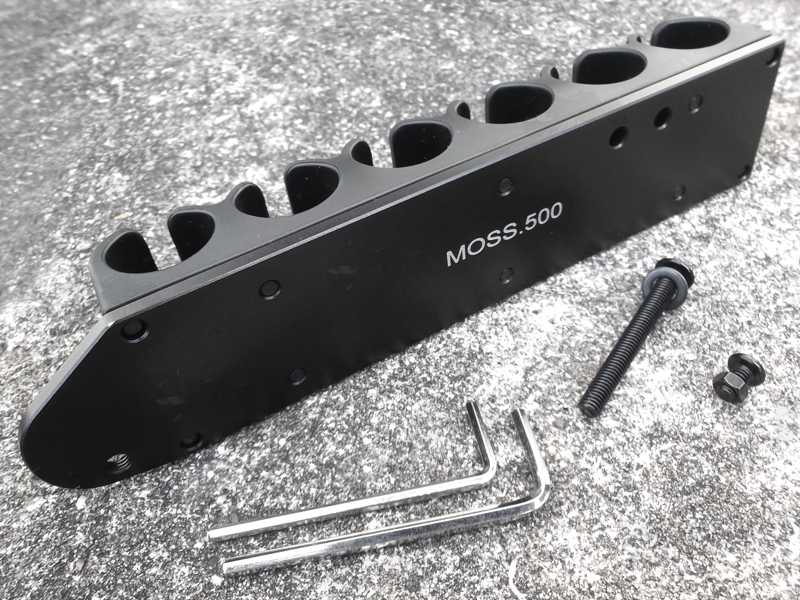

6. Remove the six flat head screws from the side saddle to expose the counter-bored holes in the mounting plate.
7. Place the mounting plate onto the receiver with the counter-bored hole on the #8-32 screw and the tapped hole on the #10-32 screw.
Note: there are two counter-bored holes, the closest to the muzzle is for the 590DA, and the closest to the buttstock would be for the 500 and standard 590.
Lightly tighten the #10-32 screw but do not overtighten, as overtightening may lock up the shotguns action, if so then simply loosen the screws slightly.
Place the supplied nut on the #8-32 screw and tighten.
8. Replace the ammo holder onto the mounting plate and tighten the six fixing screws.
Please Note: some field grade shotguns may require modification to the forend.

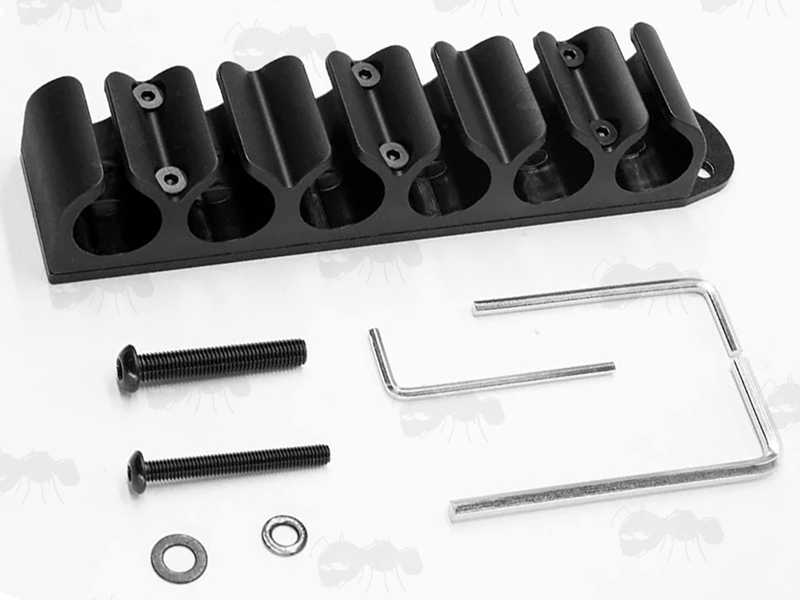

REMINGTON:

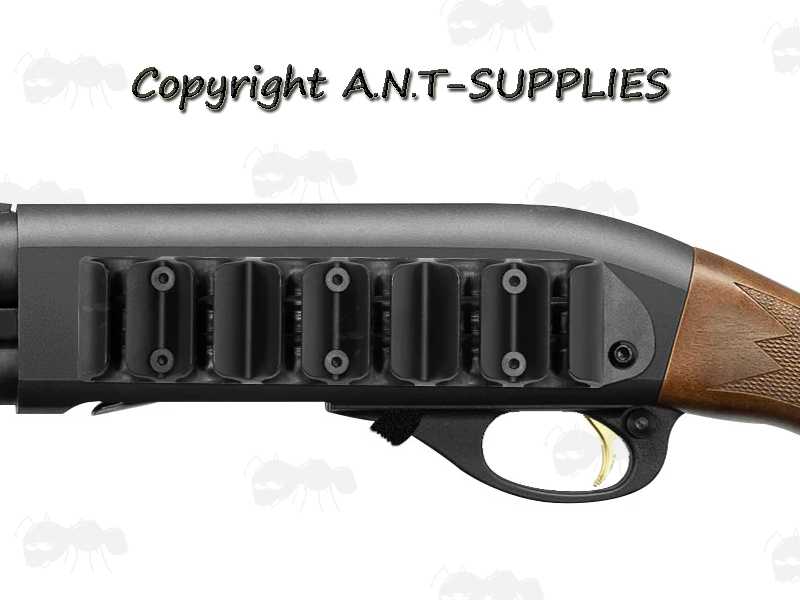

870 / 1100 / 1187 INSTALLATION GUIDE:
1. Ensure the shotgun is unloaded and always pointed in a safe direction.
2. Place the shotgun on its side with the ejection port facing upwards.
3. Use the 1/4x28 x 1.5" thread screw with the supplied washer to push out the pin.
The pin is the one located above and to the rear of the trigger guard.
Leave the screw in the hole.
4. Then use the 10/32 x 1.5" thread screw with the supplied washer to push out the pin.
This pin is the one located above and to the front of the trigger guard.
Again leave the screw in the hole.
5. Remove the six flat head screws from the side saddle to expose the counter-bored holes in the mounting plate.
6. Turn the shotgun over and place the mounting plate on the receiver, so that the holes align with the screws and carefully thread in the screws.
7. Lightly tighten the screws into the mounting plate, do not overtighten, as if too tight it will lock up the shotguns action, if so, then to remedy, simply slightly loosen the screws.
8. Now just replace the ammo holder onto the mounting plate and tighten the six fixing screws.

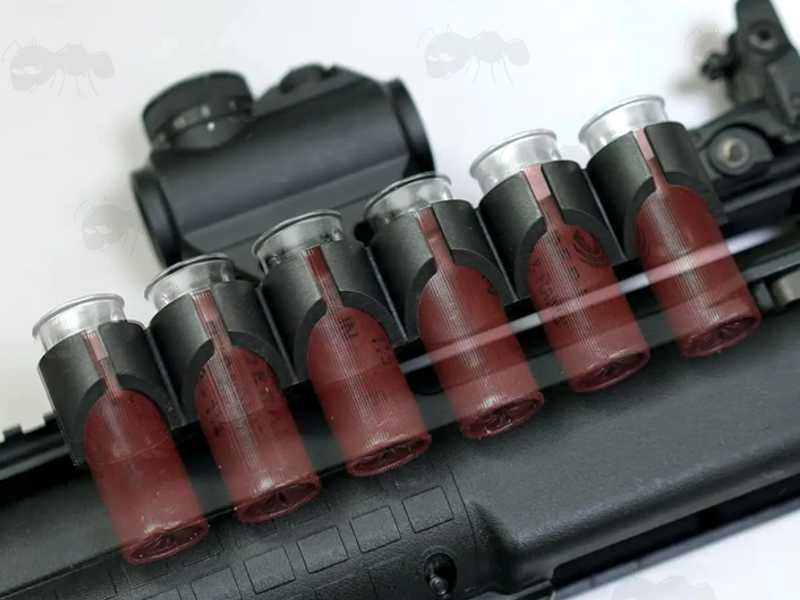

SIGHT RAIL FITTING - DUAL MOUNTS£36.00p each
AVAILABLE BY REQUEST
For Picatinny sight rails.
Length ~ 6.25".
Width ~ 1.0".
Weight ~ 90 grams.

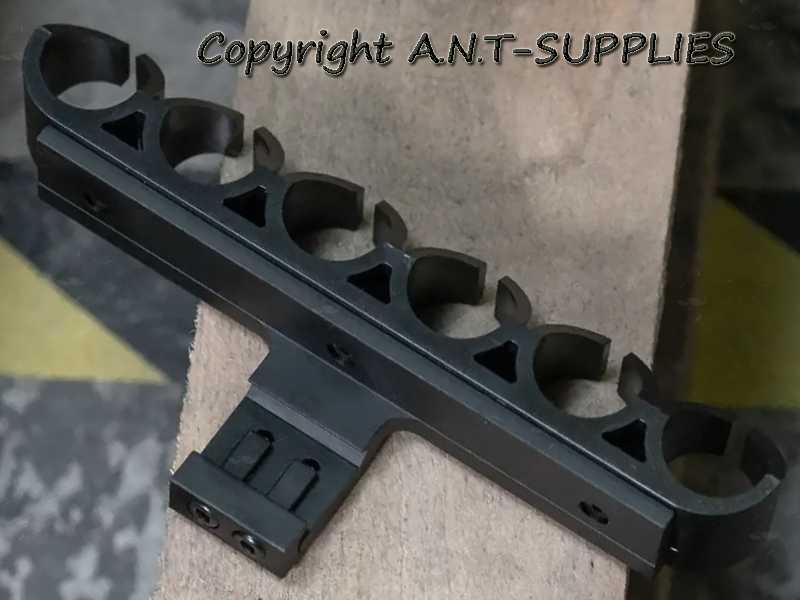

SIGHT RAIL FITTING ~ SINGLE MOUNT£48.00p each
AVAILABLE BY REQUEST
For Picatinny sight rails.
Length ~ *".
Width ~ *".
Weight ~ ** grams.

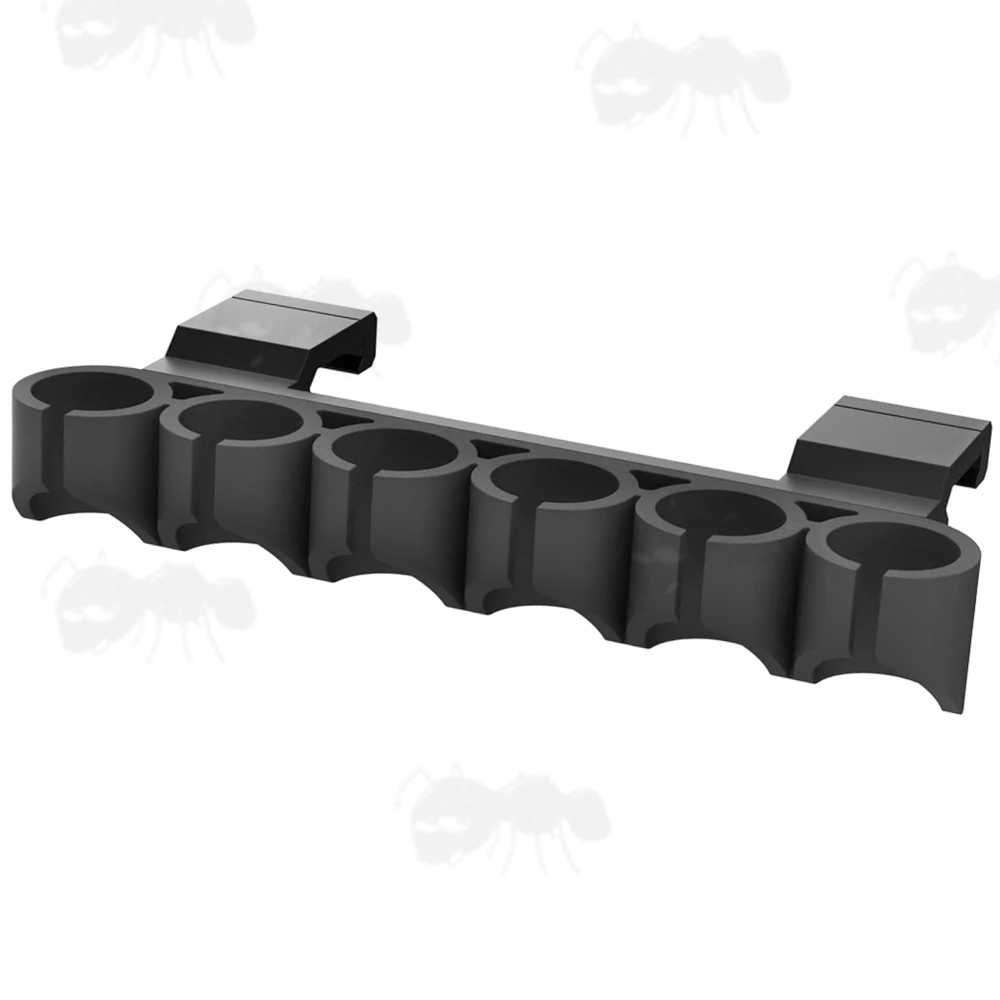

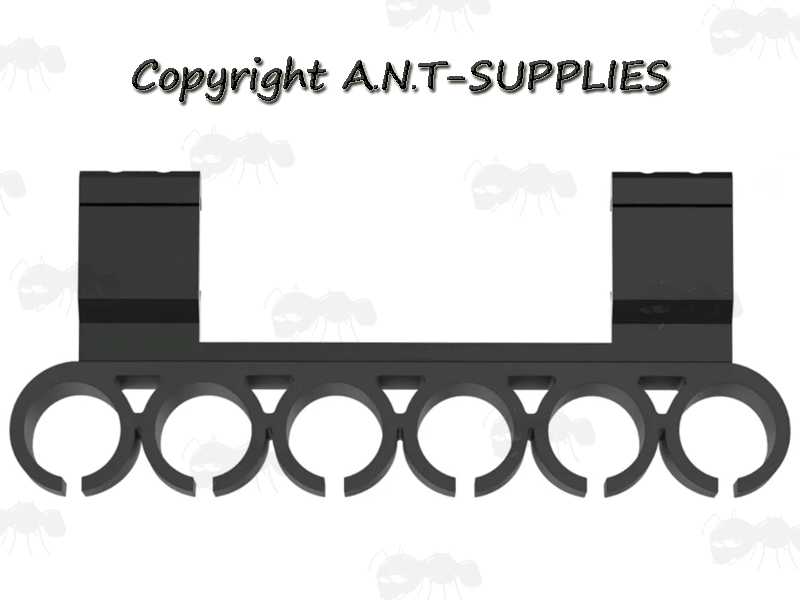

SIGHT RAIL FITTING ~ DUAL MOUNTING POINTS:
The length from the ends of the mounting clamps is 136mm / 5.35 inches.
The distance from the centres of the rail clamping location lugs for the rail slots is 120mm / 4.72 inches.

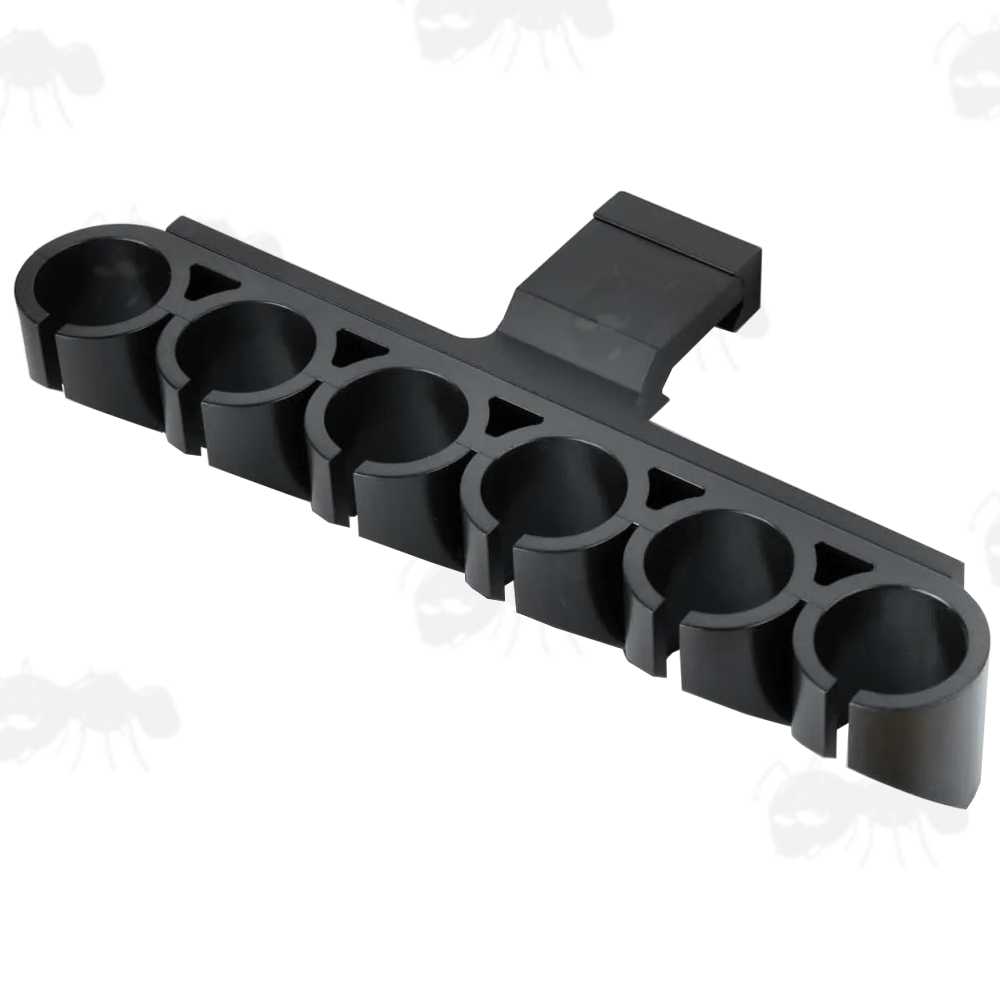

SIGHT RAIL FITTING ~ SINGLE MOUNTING POINT:
