Weihrauch HW80, HW95, HW95K QD Sling Swivel Base Set

Ant Hill > Gun Slings > Gun Sling Fittings > Weihrauch QD Bases

WEIHRAUCH HW80 / HW95 / HW95K SWIVEL SETS

Please enable Javascript to view this notice.

An alternative non-Javascript notice is available on the Gun Sling Fittings main page.

WEIHRAUCH RIFLE BARREL SLING FITTINGS

RSB-7+

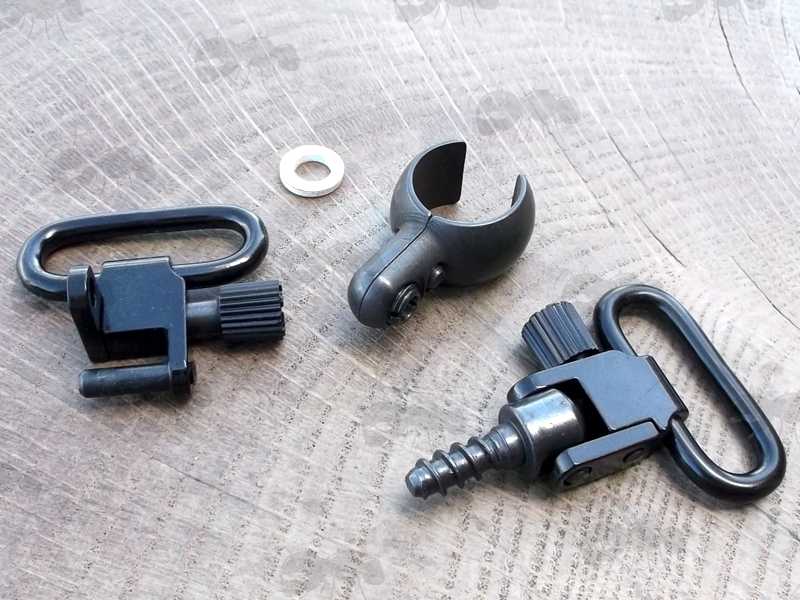

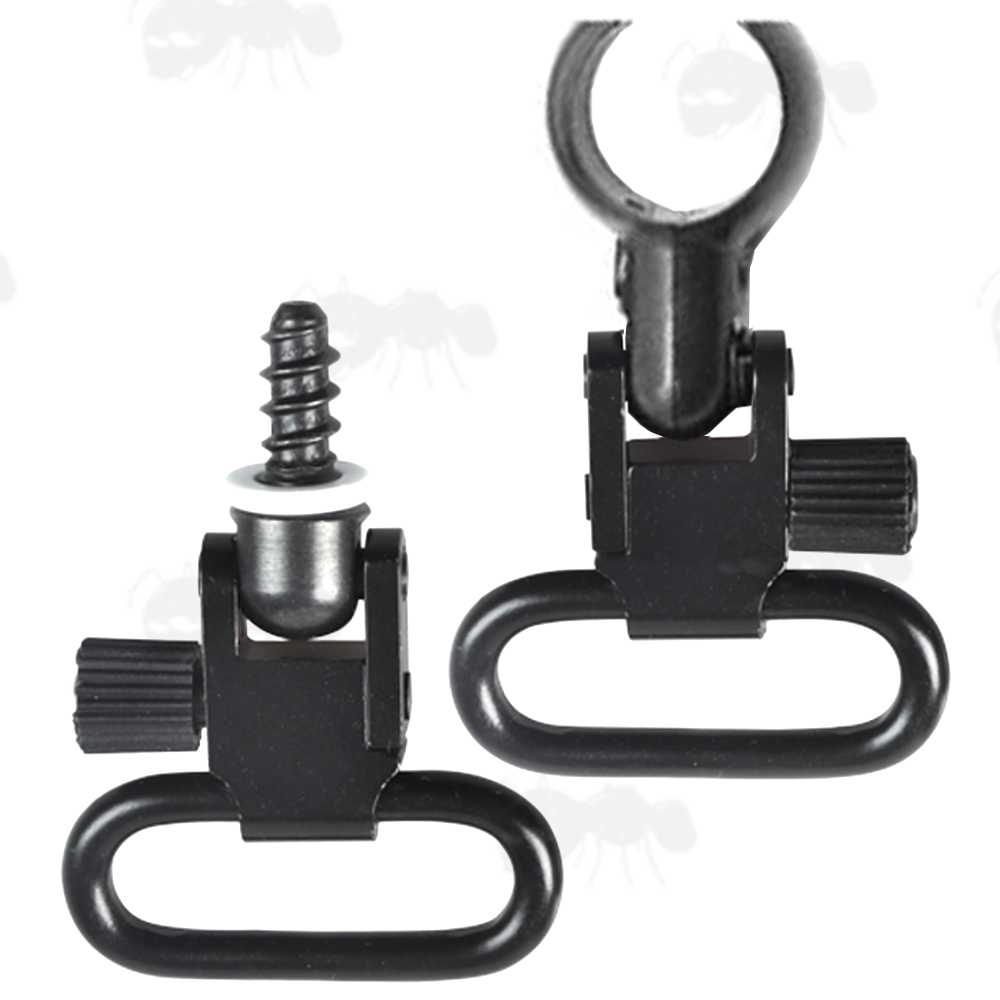

Black Anodised QD Sling Swivel Set with QD Wood Screw Stud and Barrel Split Band for Weihrauch HW80K Airguns and Other Rifles

HW80K

Min diameter ~ 10.5mm

Manufacturer states:
10.7mm - 11.9mm
(.420" - .470")

£19.80p per set

RSB-1+

Black Anodised QD Sling Swivel Set with QD Wood Screw Stud and Barrel Split Band for Weihrauch HW80, HW95, HW95K Airguns and Other Rifles

HW77 / HW77K, HW97 / HW97K, HW977, HW99S, HW97KT

Min diameter ~ 13.0mm

Manufacturer states:
13.7mm - 15.0mm
(.540" - .590")

£19.80p per set

RSB-9+

HW80, HW95, HW95K

Min diameter ~ 15.5mm

Manufacturer states:
16.0mm - 17.1mm
(.630" - .675")

£19.80p per set

Condition: New

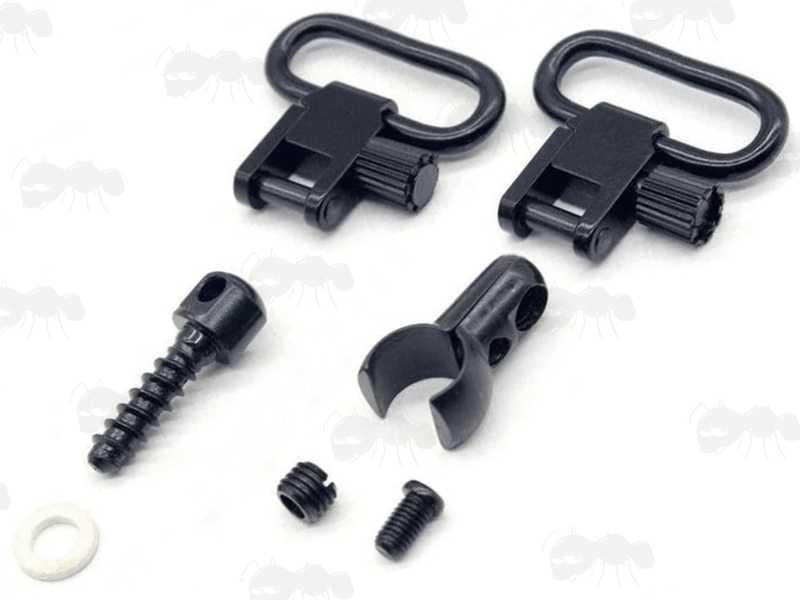

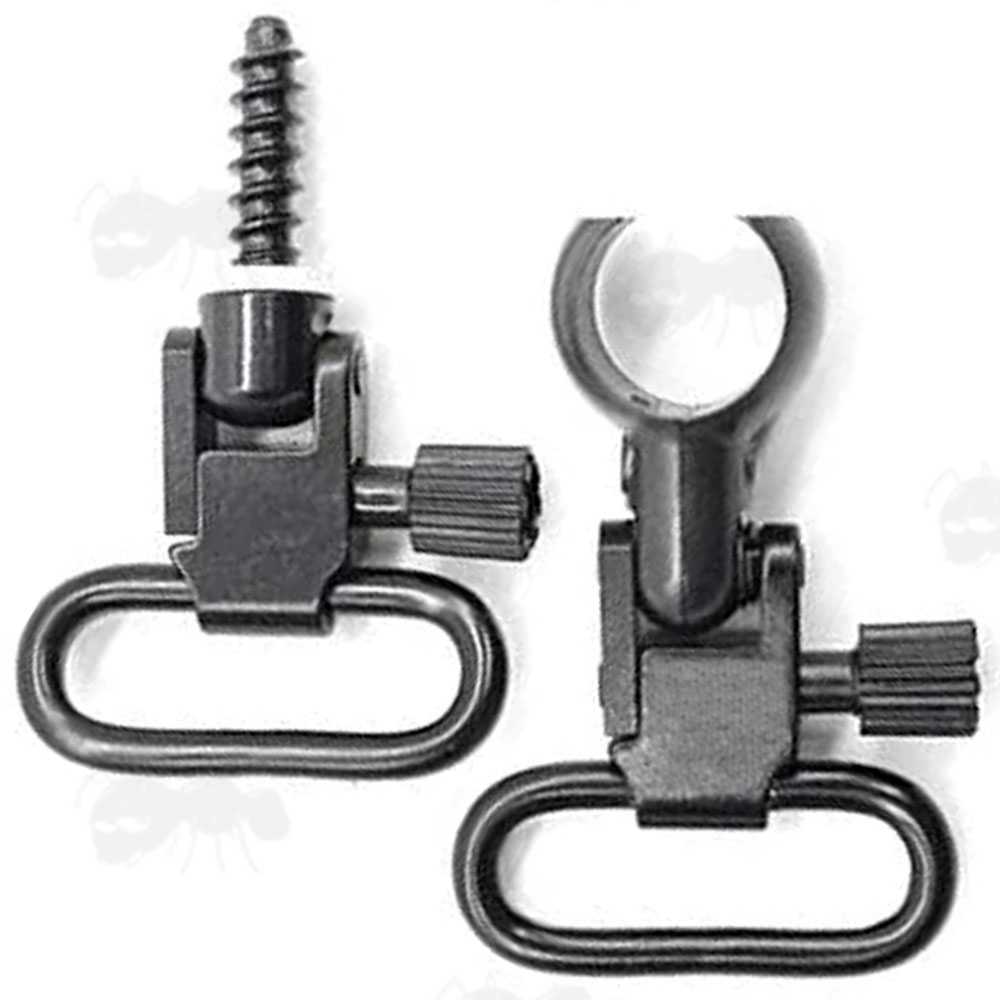

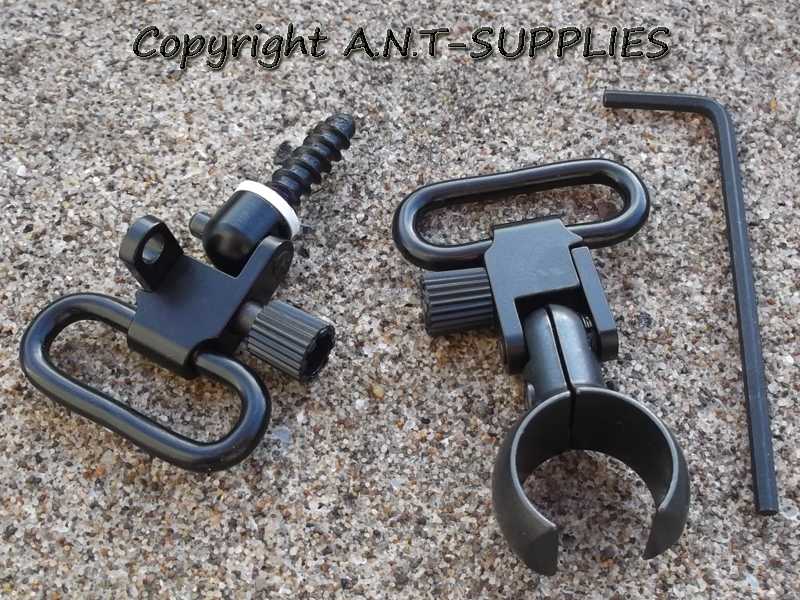

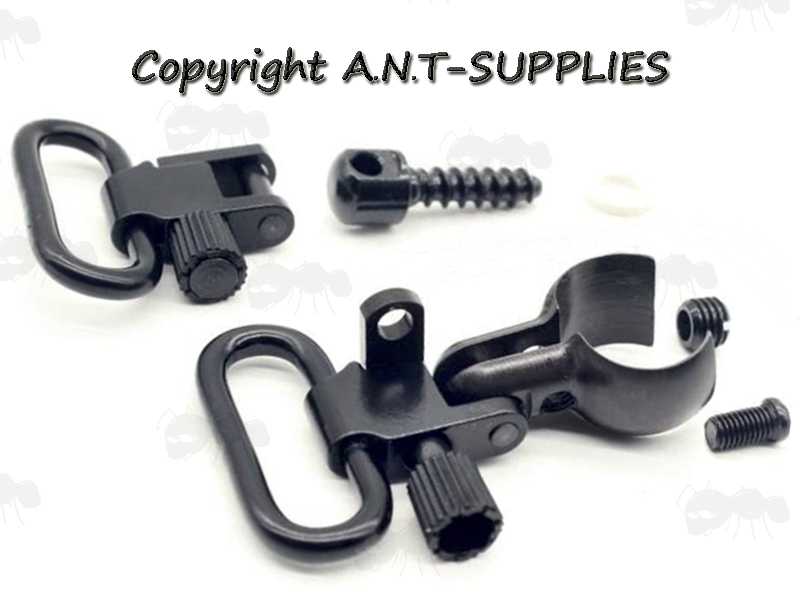

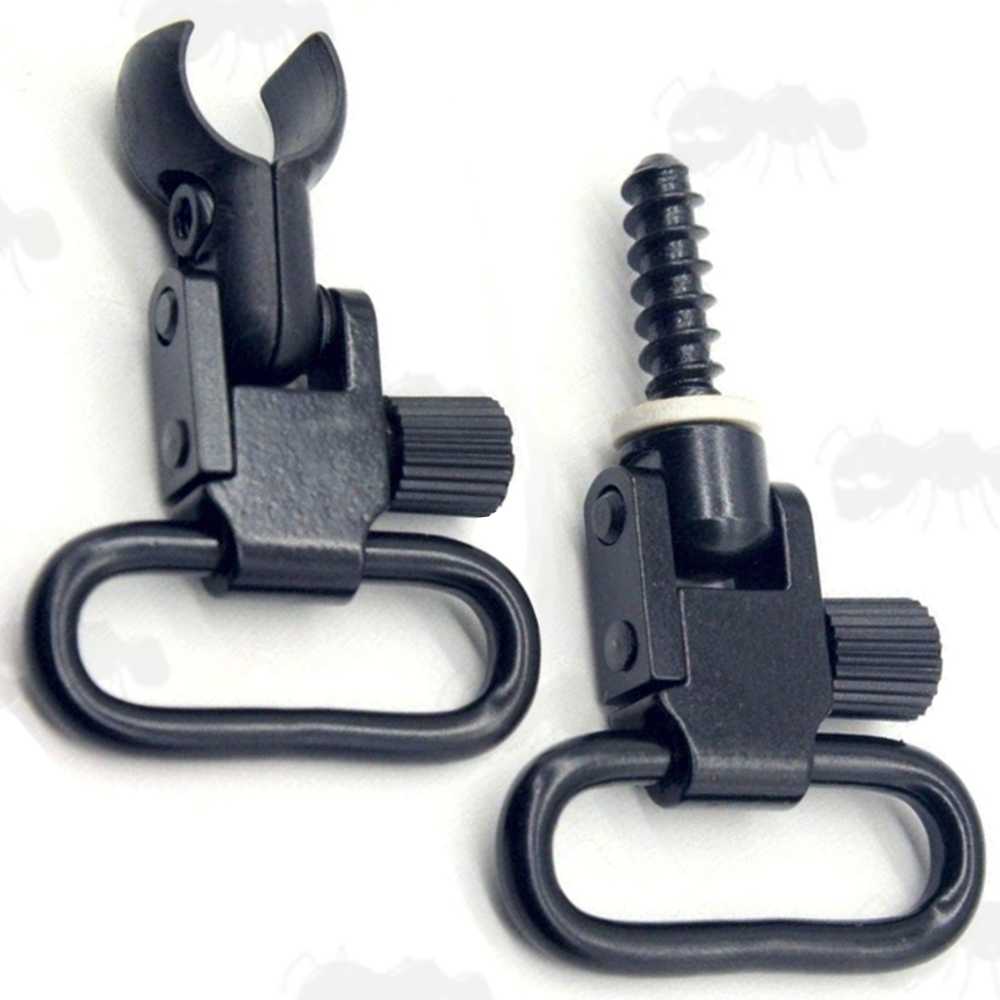

Quick-detach swivel base fitting sets for some Weihrauch air rifles, as well as fitting other rifles within the size ranges.

Black anodised fittings with matching swivels.

Split band QD stud designed for barrels, magazine tubes and under levers.

Wood thread QD stud for wooden buttstocks.

Pair of 25mm gun sling QD swivels included.

The split barrel band should ideally be fitted from 13 to 17 inches forward from the trigger.

Please Note: the stated sized are approximate, and it's usual to fit a slightly larger band and add padding.

To install, firstly degrease the barrel band and the location it will be fitted to.

Then screw-in the slotted-head, hollow grub screw, into the hole at the end of the band, until one or two threads show on the inside.

It is hollow as your QD sling swivel fits through it.

Place both halves of the band on where they are to be fitted and now screw-in the Allen head screw.

Make sure that if there is a gap between the halves, that it is evenly spaced.

When secure, the band may be able to rotate if force is applied, for a permanent fixing, adhesive can be used.

Please Note:

We can not guarantee which / if any will fit your rifle.

We add information provided from previous customers below, as a guide.

However sometimes this information conflicts with previous customers.

UPDATE: We now also have a replacement / upgrade fitting available here.

RSB-7+ Should fit the following Weihrauch rifles:: Weihrauch HW80K.
RSB-1+ Should fit the following Weihrauch rifles:: Weihrauch HW77, (HW90K = Needs Confirming), HW97 / HW97K, HW977, HW99S.
Fitting the underlever on Weihrauch HW77K.

HW97KT .22 - The exact set needed to carry your rifle in the field! For the price of Weihrauch air rifles, they should come equipped with a set installed when you buy. This set will be what you're looking for if you own a Weihrauch.
RSB-9+ Should fit the following Weihrauch rifles:: Weihrauch HW80, HW95, HW95K.
Options for other Weihrauch rifles:: For HW80 also try the 'RSB-9+' set or Bisley 16mm full band fixed gun sling swivels.

The '12g SINGLE BARREL' SSB-1 set should fit the 22mm diameter HW98 barrel shroud.
