MOA DOVETAIL SCOPE MOUNTS
For 9.5mm - 11mm wide dovetail rails.
DOVETAIL ANGLE COMPENSATION SCOPE MOUNT
20MOA£24.00p each

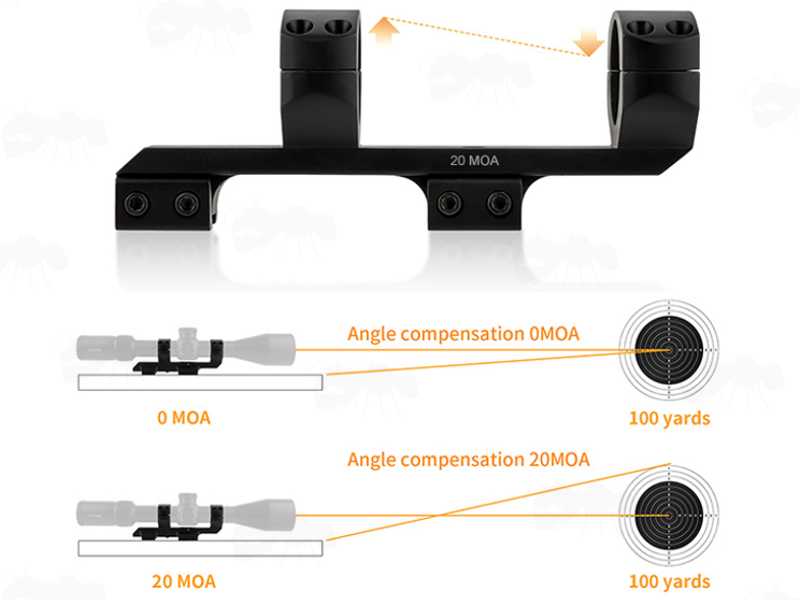

20MOA angle compensation mount to solve problems for long range shooters, whom often run out of elevation adjustment clicks on their scope turrets.
The mount slopes down to the front, therefore elevating the rear end allowing you to zero in your gun far beyond what standard 0MOA mounts would allow.
Without going to the extreme range of you scopes elevation turret, so keeping the optical centre of your scope.
Double clamped ring mounts.
For 30mm diameter scope, 1 inch / 25.4mm adapters are available to order separately.
9.5-11mm Dovetail rail fitting.
6061 aviation aluminium with matte black anodised finish.
Please Note: this mount has a chunkier style clamping plates, with that and the wide variations in designs of Dovetail rails, these will likely be less compatibly than other styles of Dovetail mounts.
We will add customer feedback on which rifle manufacturers rails they will or wont fit.
Not a good match for Ruger 10/22 dovetail rails.

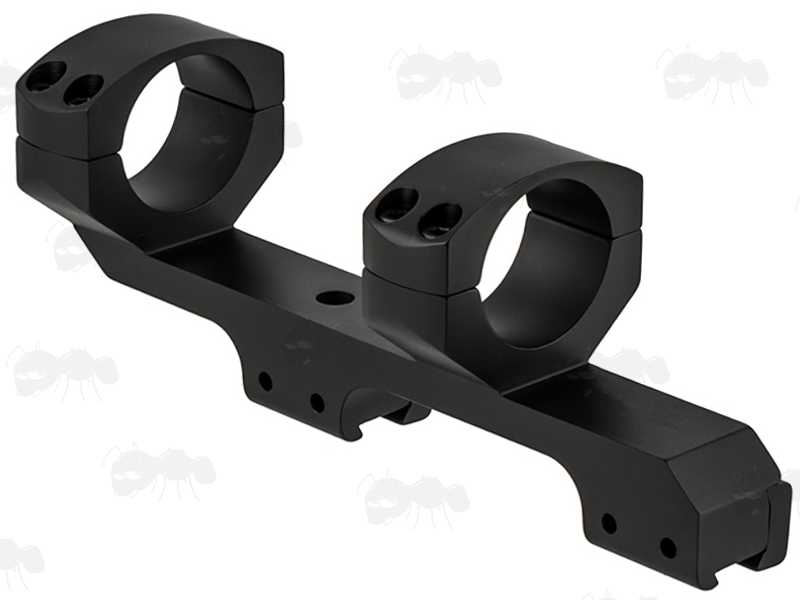

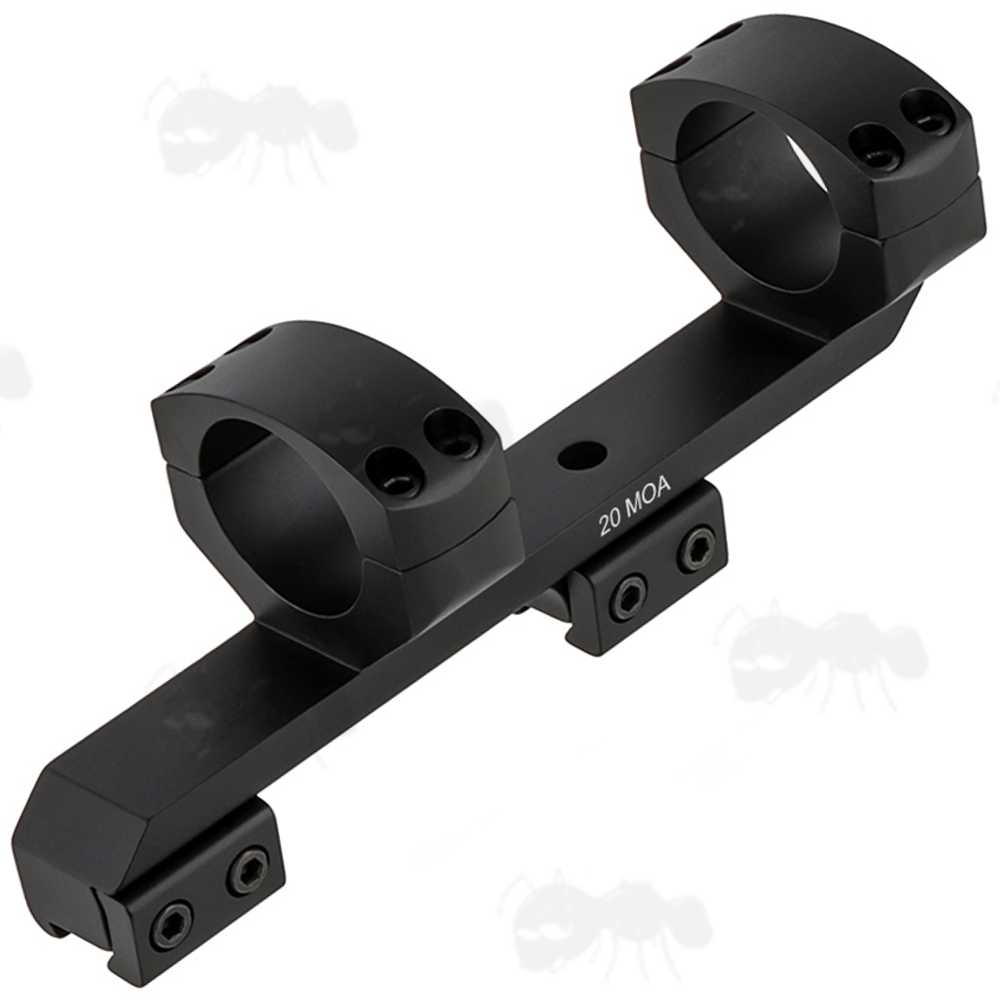

One piece dovetail 20MOA scope mount.

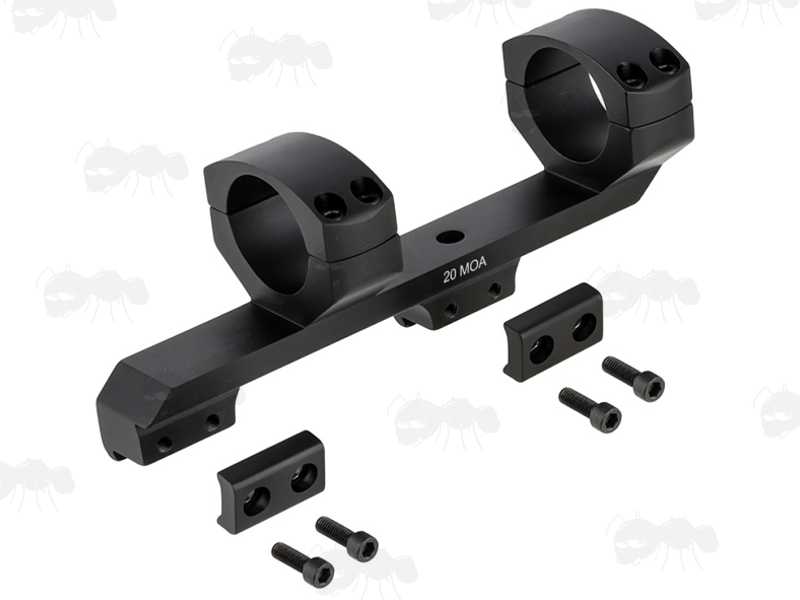

With adjustable / removable anti-recoil threaded pin.

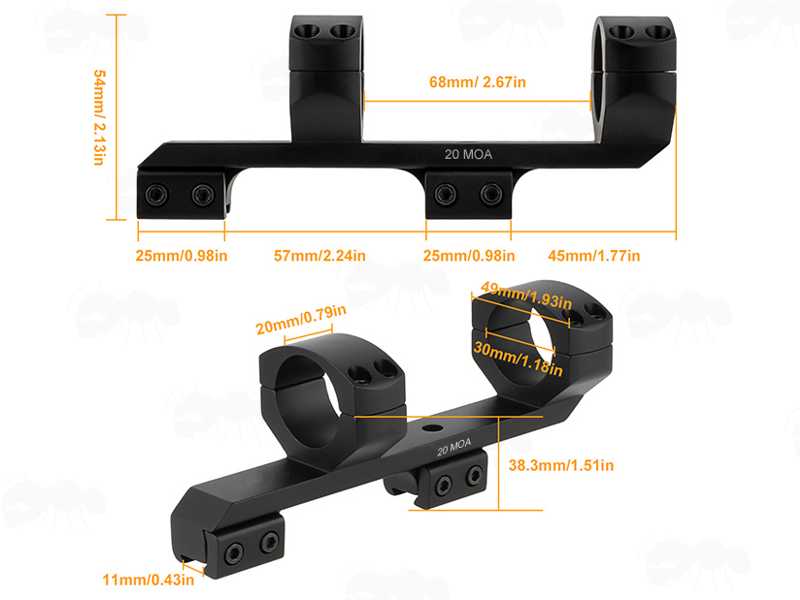

Footprint lengths ~ 25mm.
Distance between footprints ~ 57mm.
Overall length ~ 152mm.
Gap distance between two rings ~ 68mm.
Overall height ~ 57mm.
Elevation ~ 24mm.
Ring thickness ~ 20mm.
Ring overall width ~ 49mm.
Weighs approx ~ 192 grams.
Also available ~ SportsMatch MOA One Piece Mounts and Weaver / Picatinny MOA Scope Mounts.

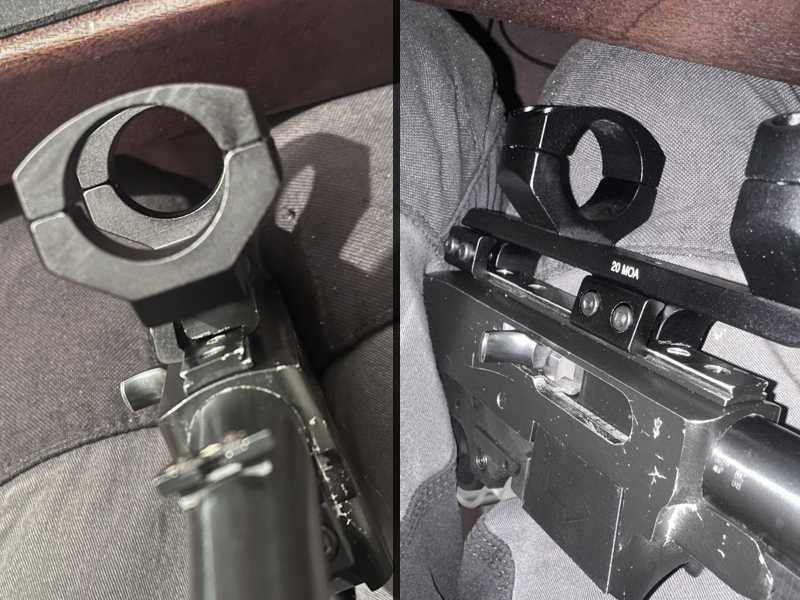

SHOWN BELOW NOT TO BE COMPATIBLE, AS IS, WITH A RUGER 10/22 DOVETAIL RAIL:
