FORWARD EXTENDED MOUNTS

The cantilever design throws the scope out front, allowing you to get the correct eye relief.

Ideal for shorter rails and allows you to leave the iron sights fitted.

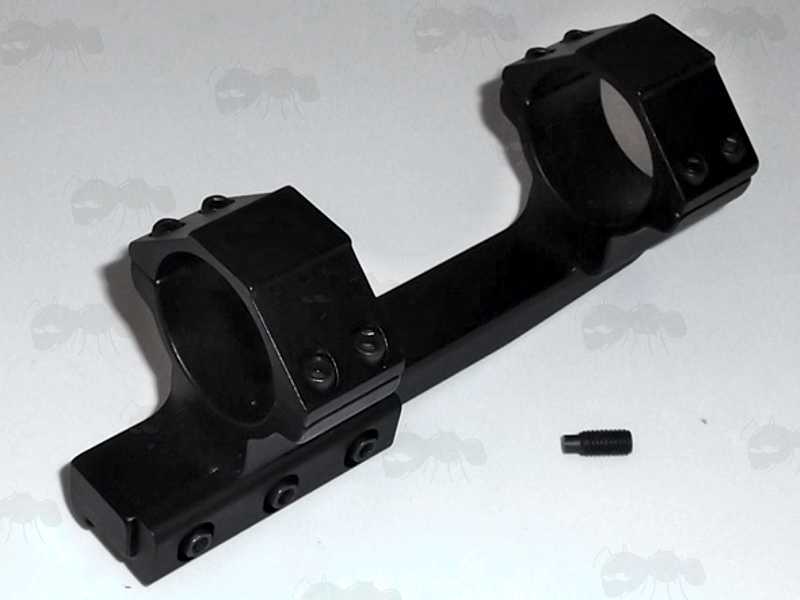

EXTENDED REACH ONE PIECE DOVETAIL MOUNT

£28.80p each

Condition: New

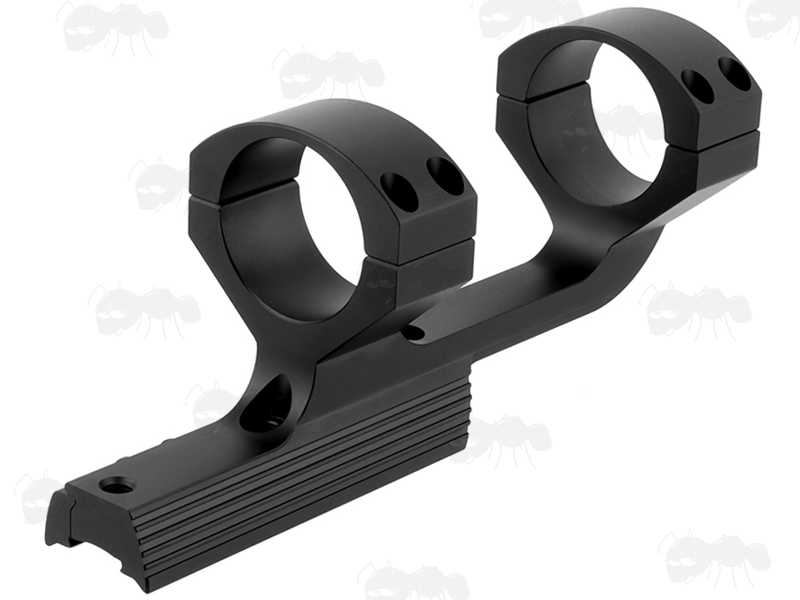

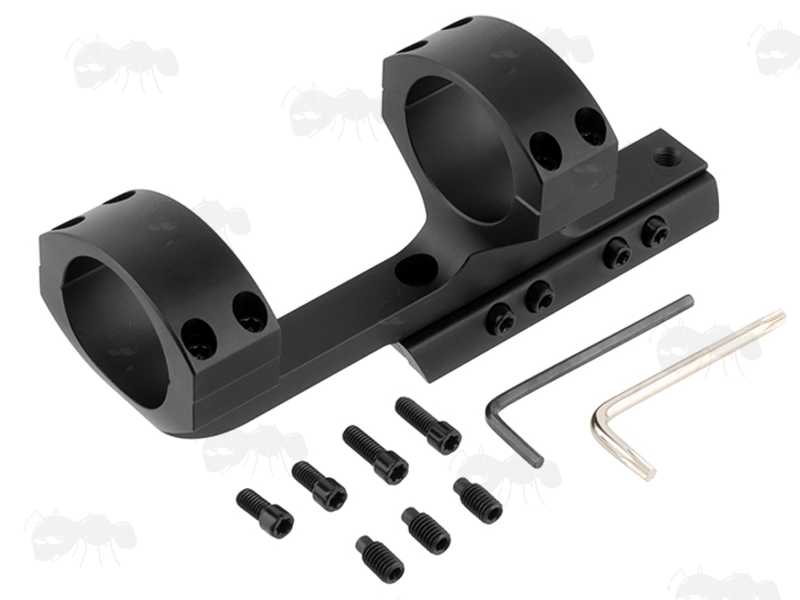

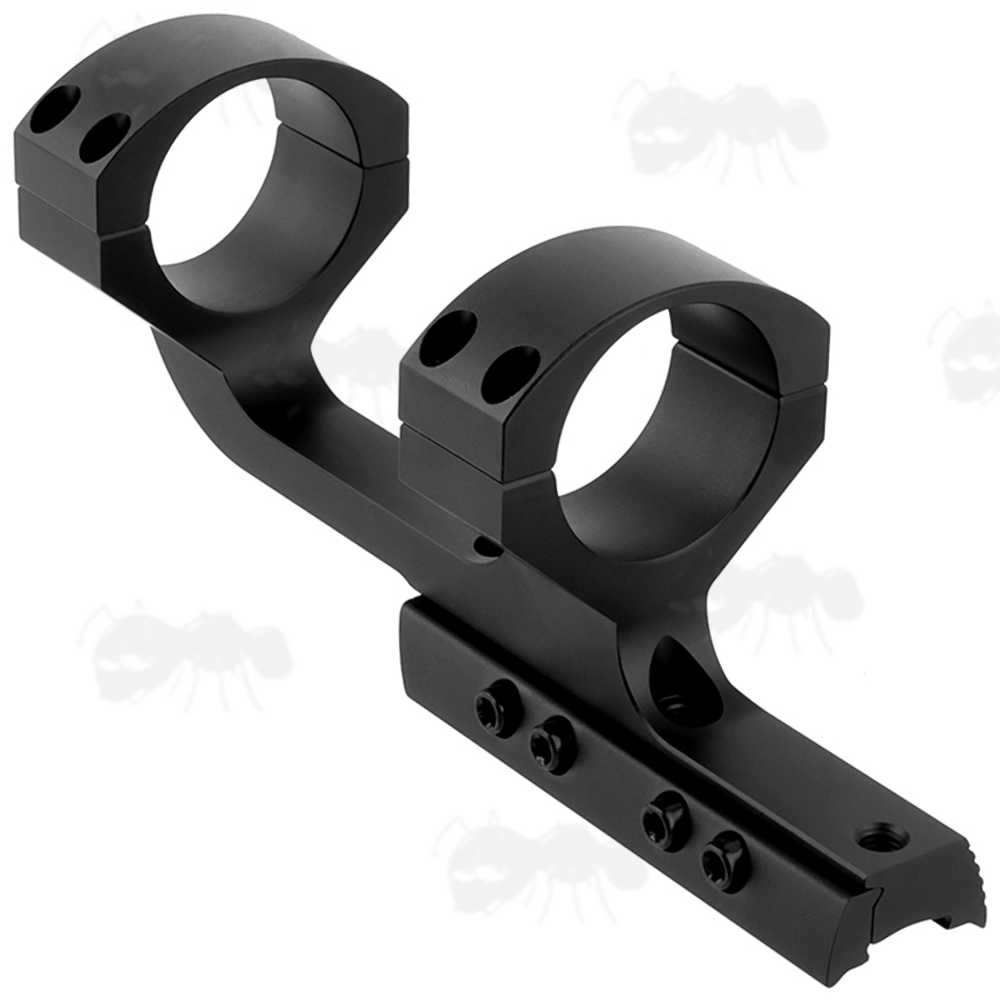

Flat Top Extended Reach One Piece Dovetail Rail Scope Mount For 30mm Scope Tubes

ATHD heavy-duty flat top offset 30mm rings one piece mount.

The mount is equipped to fit a 11mm dovetail rail.

The extended design helps to obtain the correct scope eye relief.

Machined from extruded 6063-T5 aluminium with matt black anodised finish.

Double hex head screw rings.

Overall height 55mm.

Overall length 127mm.

Distance between the rings 64mm.

Ring size ~ 30mm.

Ring thickness ~ 20mm.

55mm long rail base.

Elevation of 20mm.

Weight ~ 132 grams.

Offset design for better eye relief position.

Fits 30mm diameter main tube scopes.

For standard UK 9.5mm-11.5mm wide dovetail rails.

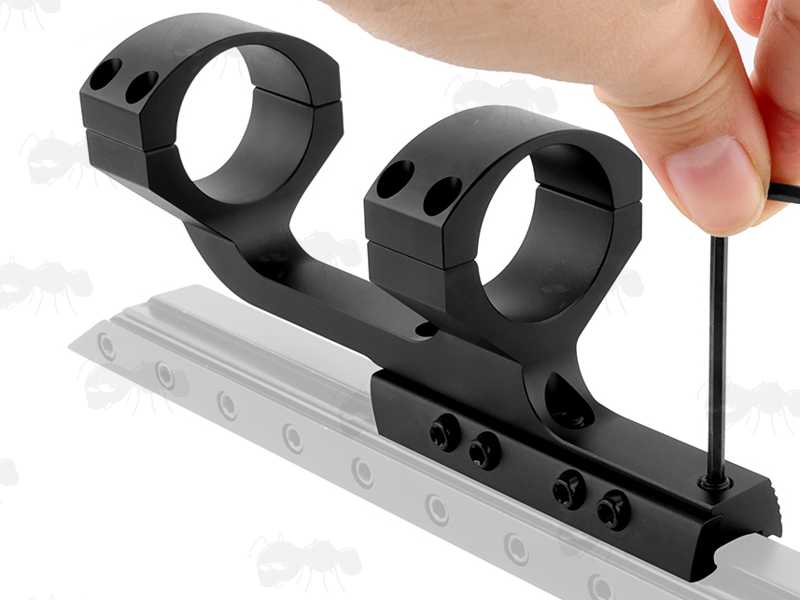

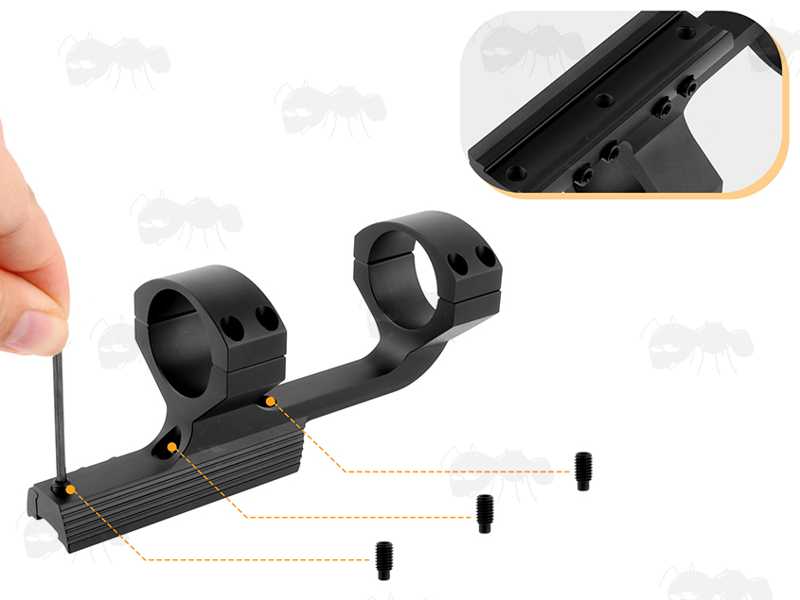

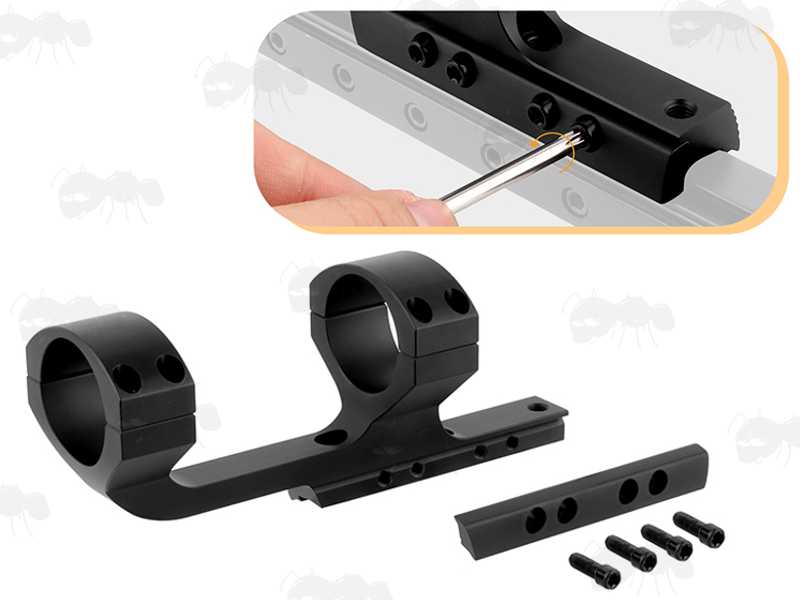

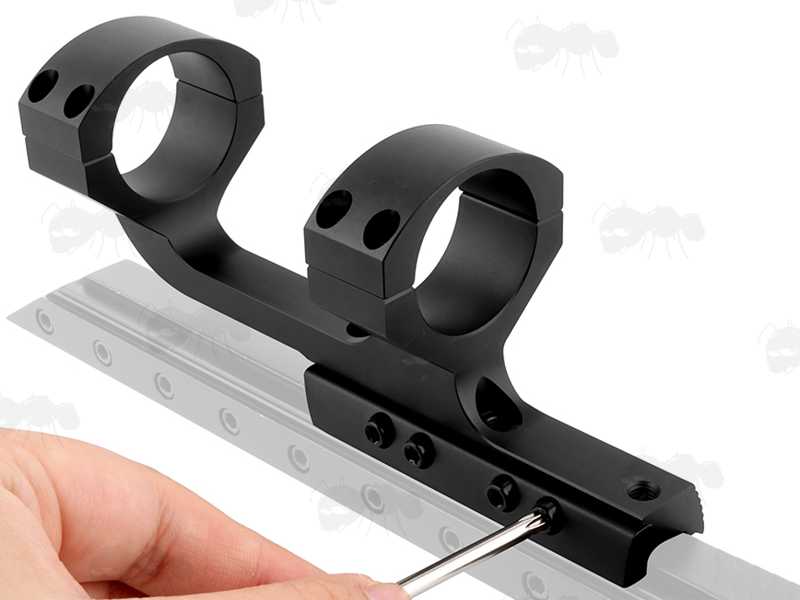

With threaded hole to accept a M4 recoil stopper screw.

Clamp attachment ~ three hex head socket screws.

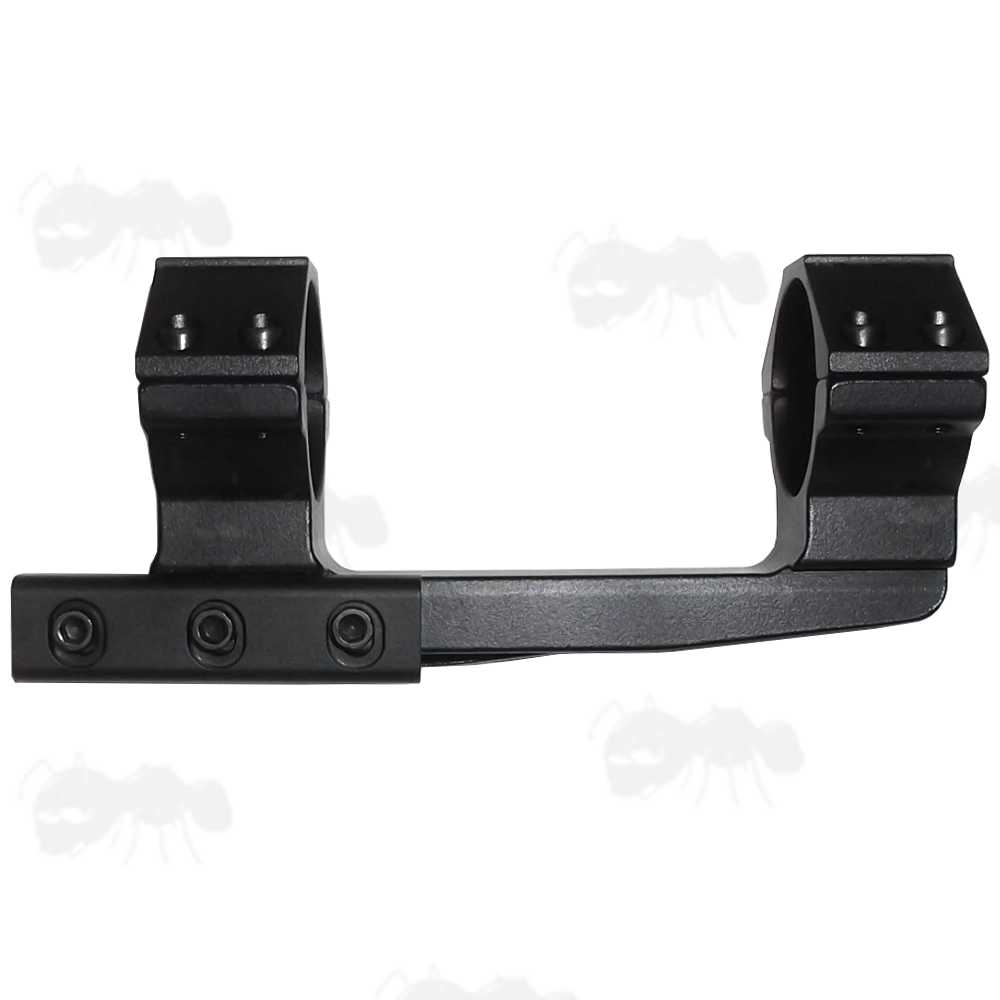

Flat Top Extended Reach One Piece Dovetail Rail Scope Mount For 30mm Scope Tubes

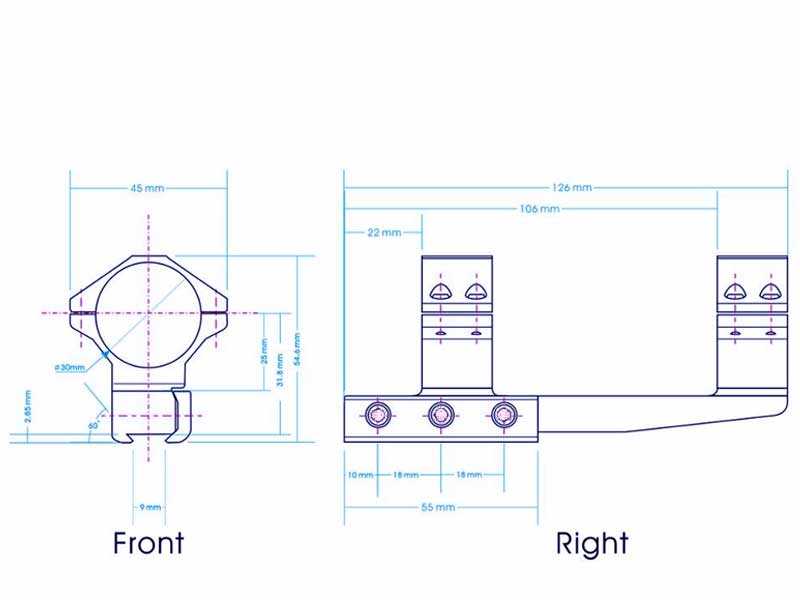

Technical Drawing of The Flat Top Extended Reach One Piece Dovetail Rail Scope Mount For 30mm Scope Tubes

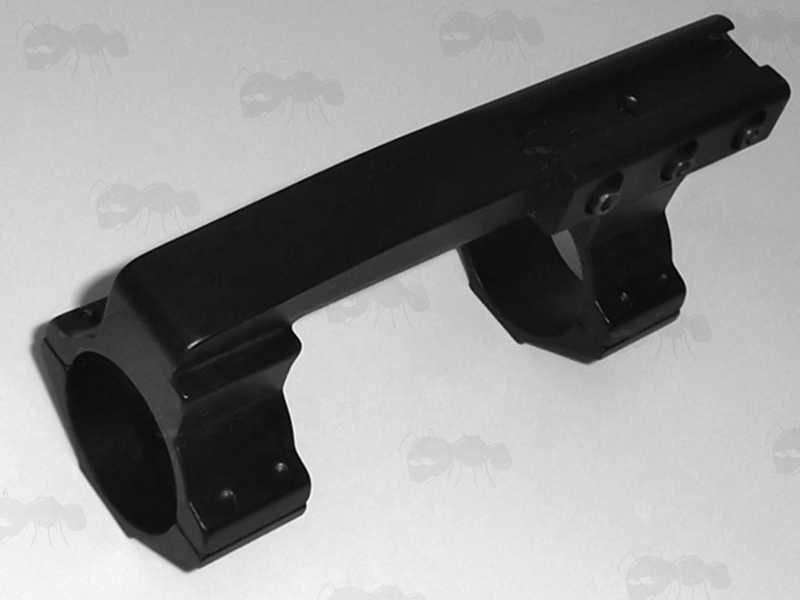

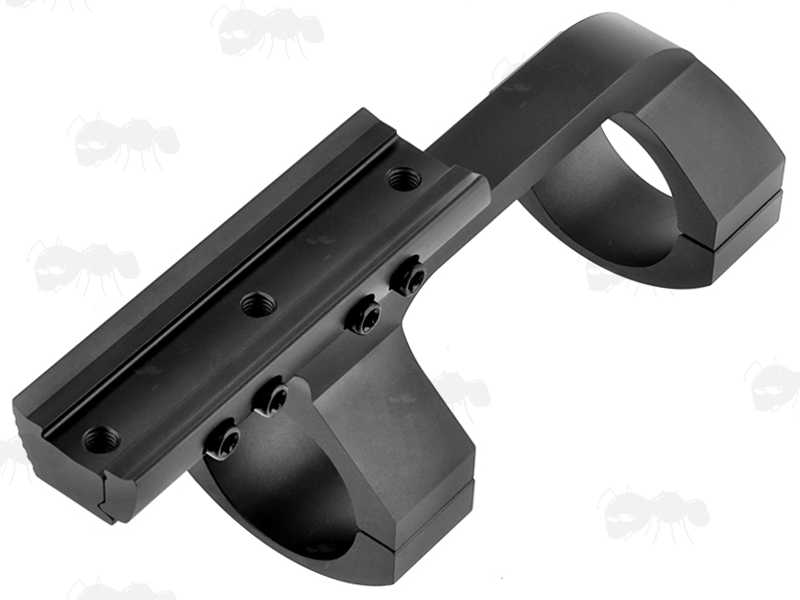

Base View of The Flat Top Extended Reach One Piece Dovetail Rail Scope Mount For 30mm Scope Tubes
