VERTICAL SPLIT TWO PIECE RINGS
For standard UK dovetail rails on rifles, airguns and pistols.
PAIR OF VERTICAL SPLIT DOVETAIL SCOPE MOUNTS

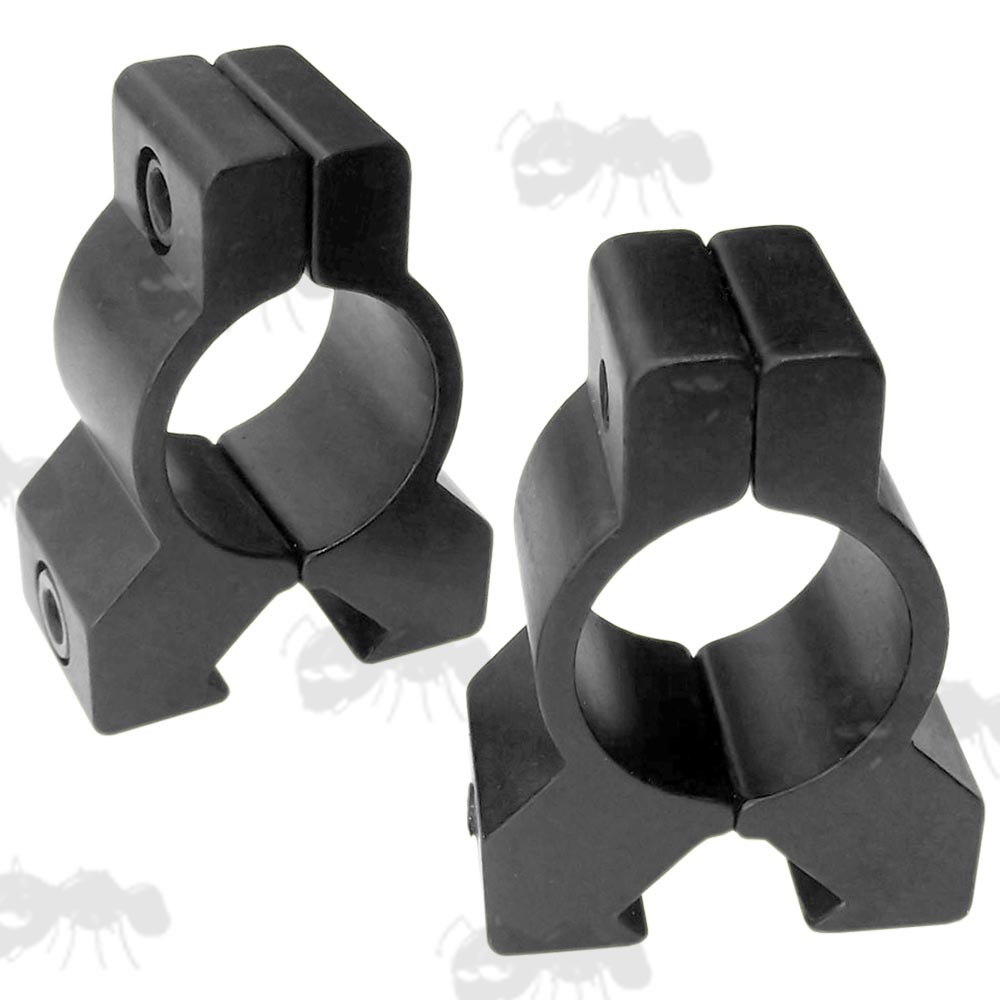

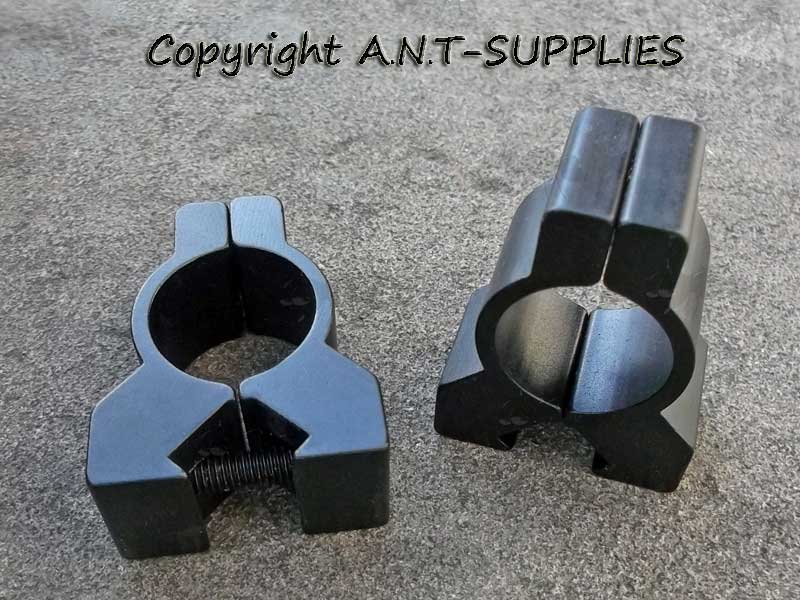

For 3/4 inch / 19mm tubes£6.00p per pair
Low-profile mounts.
Overall height 38mm, width 29mm, thickness 16mm.
Elevation of 8mm.
The pairs weighs 42 grams.

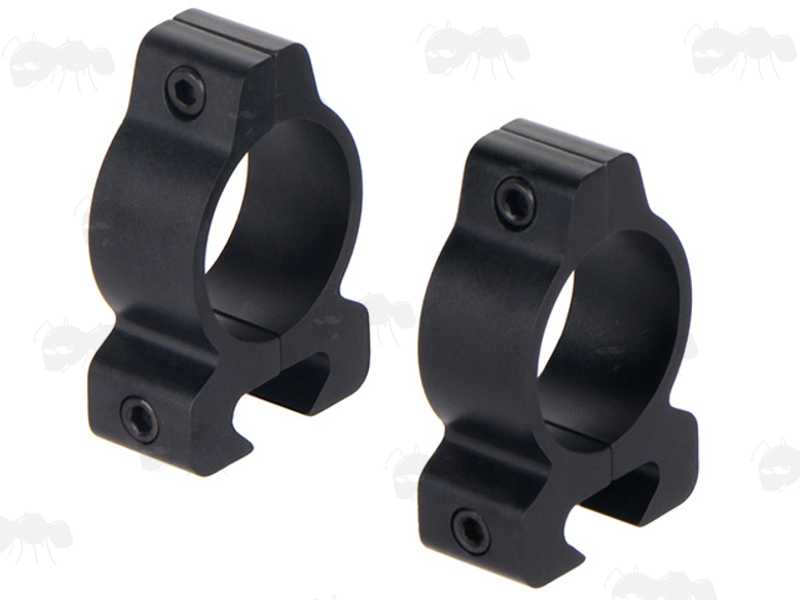

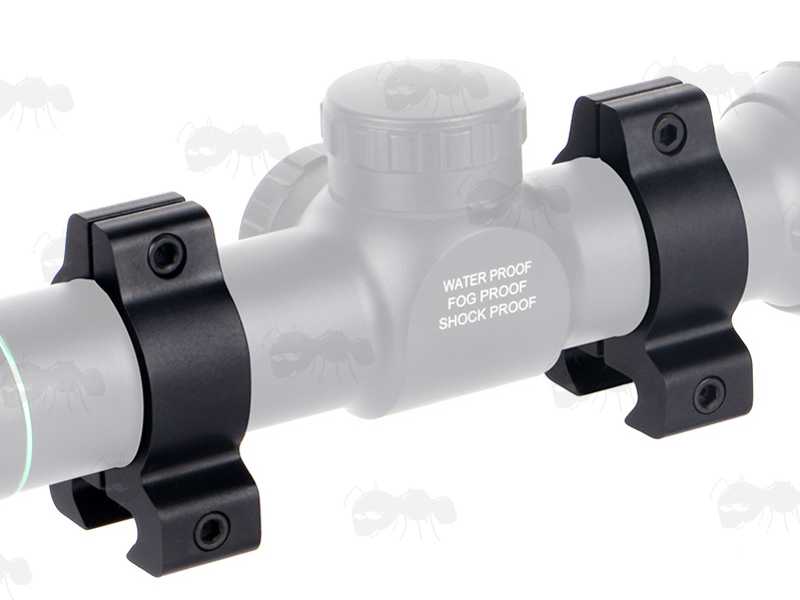

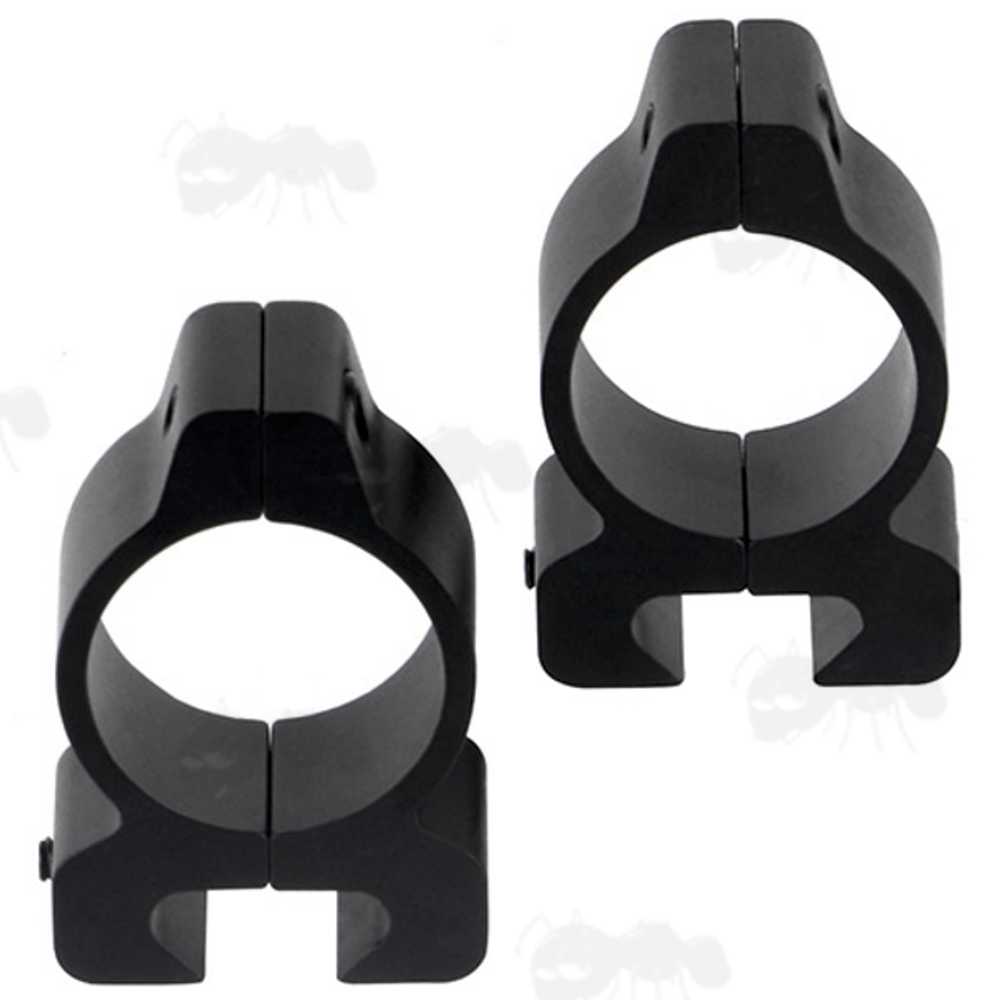

For 1 inch / 25mm tubes (LOW)£10.00p per pair
Low-profile mounts.
Overall height 46mm, width 30mm, thickness 15mm.
Elevation of 10mm.
The pairs weighs 46 grams.

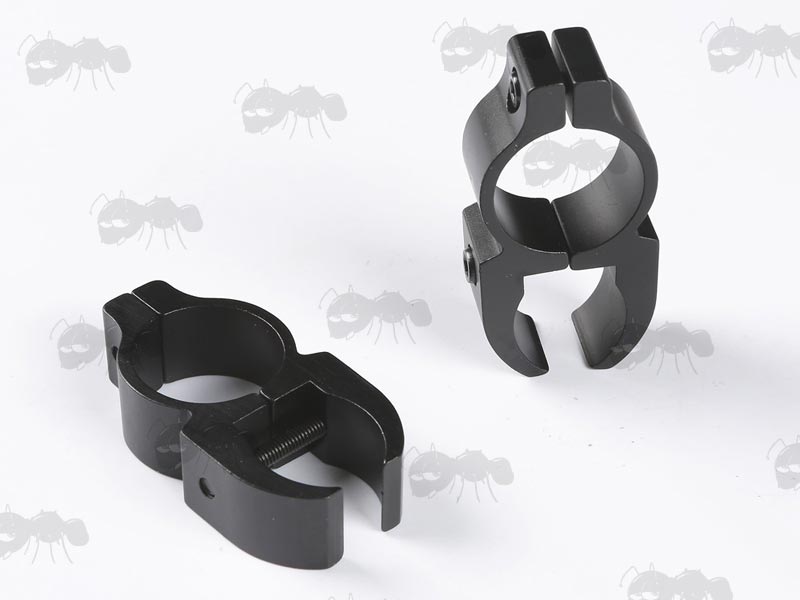

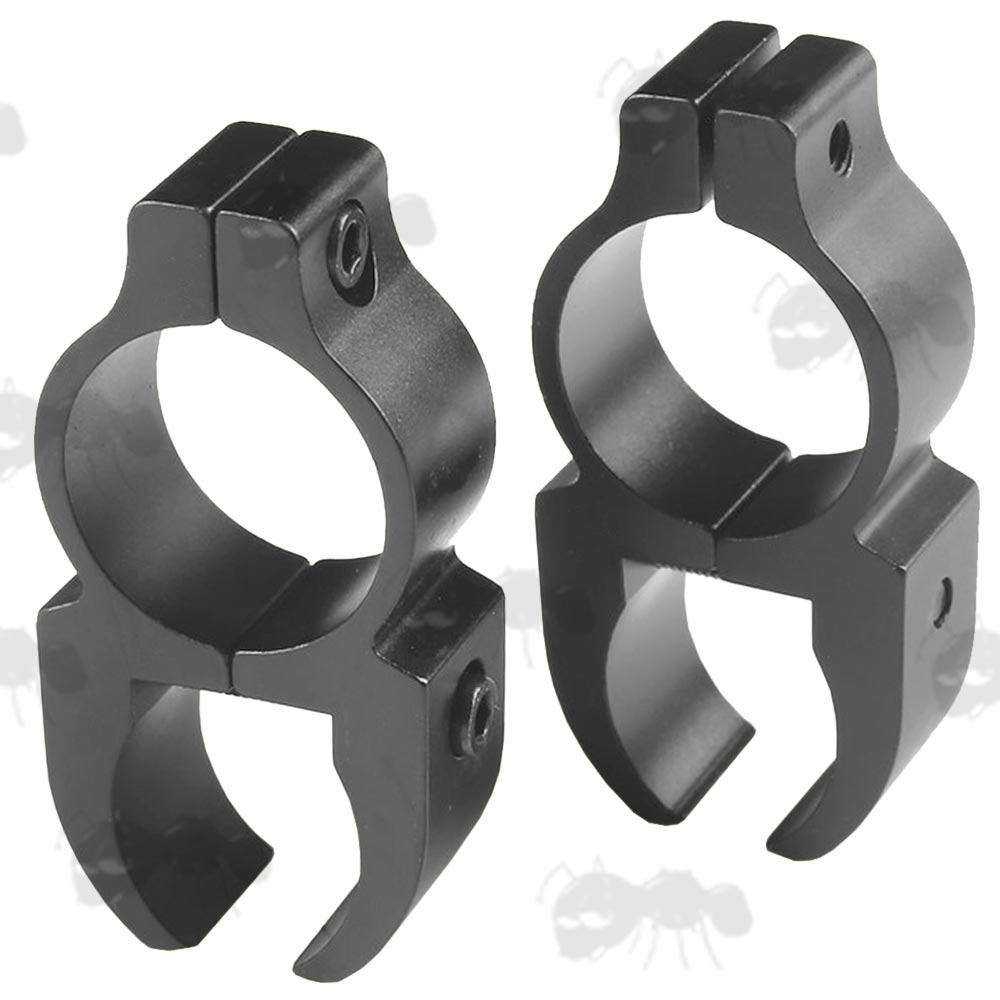

For 1 inch / 25mm tubes (HIGH)£12.00p per pair
High-profile mounts.
Overall height 63mm, width 32mm, thickness 16mm.
Elevation of 28mm.
The pairs weighs 58 grams.

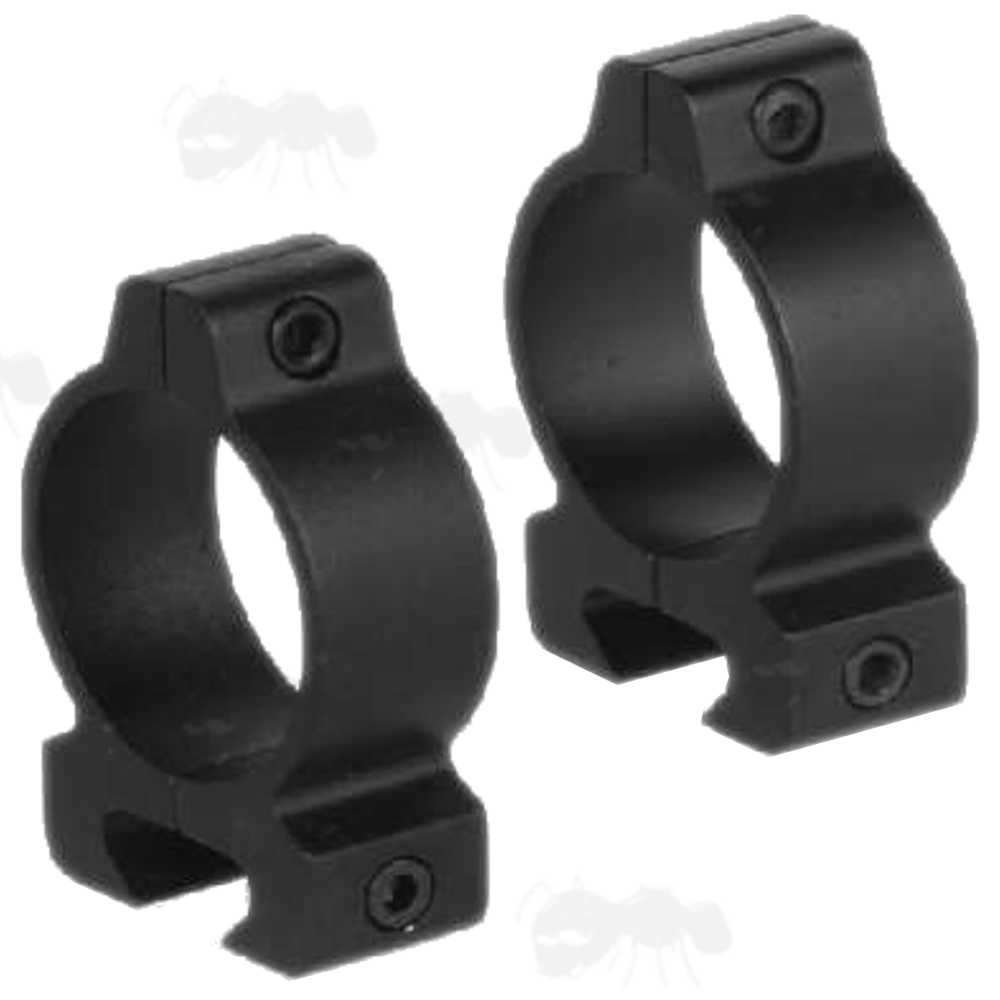

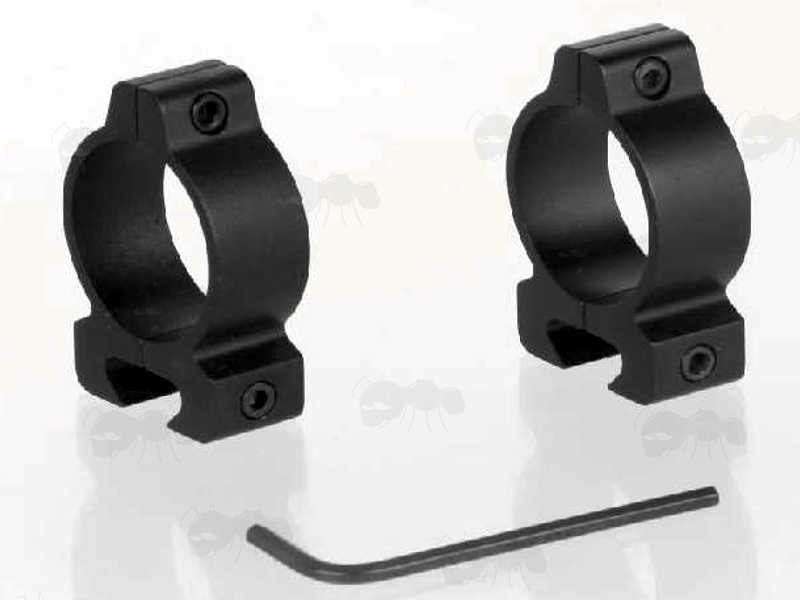

For 1 3/16 inch / 30mm tubes£10.00p per pair
Low-profile mounts.
Overall height 51mm, width 34mm, thickness 15mm.
Elevation of 10mm.
The pairs weighs 48 grams.
Vertical split scope mounts for 9.5-11mm dovetail fittings.
With open see-through design.
Black anodised finish.
Allen key included.
Please Note: due to the vertical split design, there is less adjustment possible when fitting to the rail, as there is not clamping plate that would be on standard horizontally split scope rings.
This means there will fit a smaller range of dovetail rails, as you can not widen the rail clamp fitting without loosening the scope holding ring.
We will add the gun names with rails they fit well, and those they do not, if previous customers let us know.
The low-profile 3/4 inch / 19mm mounts are great for replacing the budget mounts often included with
19mm / 3/4" diameter tube telescopic rifle scopes, usually for .22 rimfire rifles and air rifles.
The 25mm and 30mm low profile mount rail fitting design seems to be a good fit for 13mm rails, such as those on the Weihrauch HW45 air pistol.
Also available ~ Two Piece Double Clamped Dovetail Rail Scope Mounts.
FOR 3/4 INCH / 19MM TUBES:
FOR 1 INCH / 25MM TUBES ~ LOW-PROFILE:
FOR 1 INCH / 25MM TUBES ~ HIGH-PROFILE:
FOR 1 3/16 INCH / 30MM TUBES:
