NOCPIX THERMAL VISION RIFLE SCOPE
Rule the Night, Tame the Wild!
BOLT is a cost-effective thermal riflescope that, despite being priced under £1500, is a versatile product.
It not only delivers high-quality imaging but also features a 10mm exit pupil diameter eyepiece, ensuring excellent visual performance.
More importantly, as a product in the sub-£1500 range, we have equipped it with a 1200m rangefinder-something that competing brands in the same price segment lack.
In addition to the rangefinder, the manufacturer has developed a ballistic calculation function and has completely upgraded the zeroing and ballistic calculation features (which can be demonstrated using the device).
Beyond these core features, BOLT also comes with a range of smart functions.
It supports ten levels of adjustable contrast, sharpness, and screen brightness.
The aiming reticle and LRF reticle can be deeply customized, allowing new users of thermal scopes to flexibly configure their devices and find the settings that best suit their needs. It supports photo and video recording, audio recording, and app connectivity.
Additionally, the product is equipped with a built-in 5000mAh battery along with a replaceable 18650 battery, providing a total runtime of 12 hours-ensuring uninterrupted operation for overnight hunting without battery concerns.
BOLT series is an infrared scope for outdoor hunting.
Designed based on infrared thermal imaging principles, it requires no external light sources during the day and at night, in all hard weather conditions (such as rain, snow, fog, and haze).
It can be used without being affected by strong light and to observe even targets behind obstacles (such as branches, grass, and shrubs).
BOLT series has a variety of battery-powered solutions with long operating hours, and can be widely used for hunting, observation and positioning in low visibility conditions.
The BOLT comes packed with a self-developed thermal sensor offering 20mK NETD and a fast 50Hz refresh rate, giving you smooth, high-definition views even in tough environments.
Backed by our Reality+ image algorithm, the BOLT cuts through fog, brush, and darkness to deliver sharp visuals and reliable target ID.
The product features an aluminium alloy housing and has undergone 5000 impact tests to ensure long-term precision and stability, making it a reliable purchase.

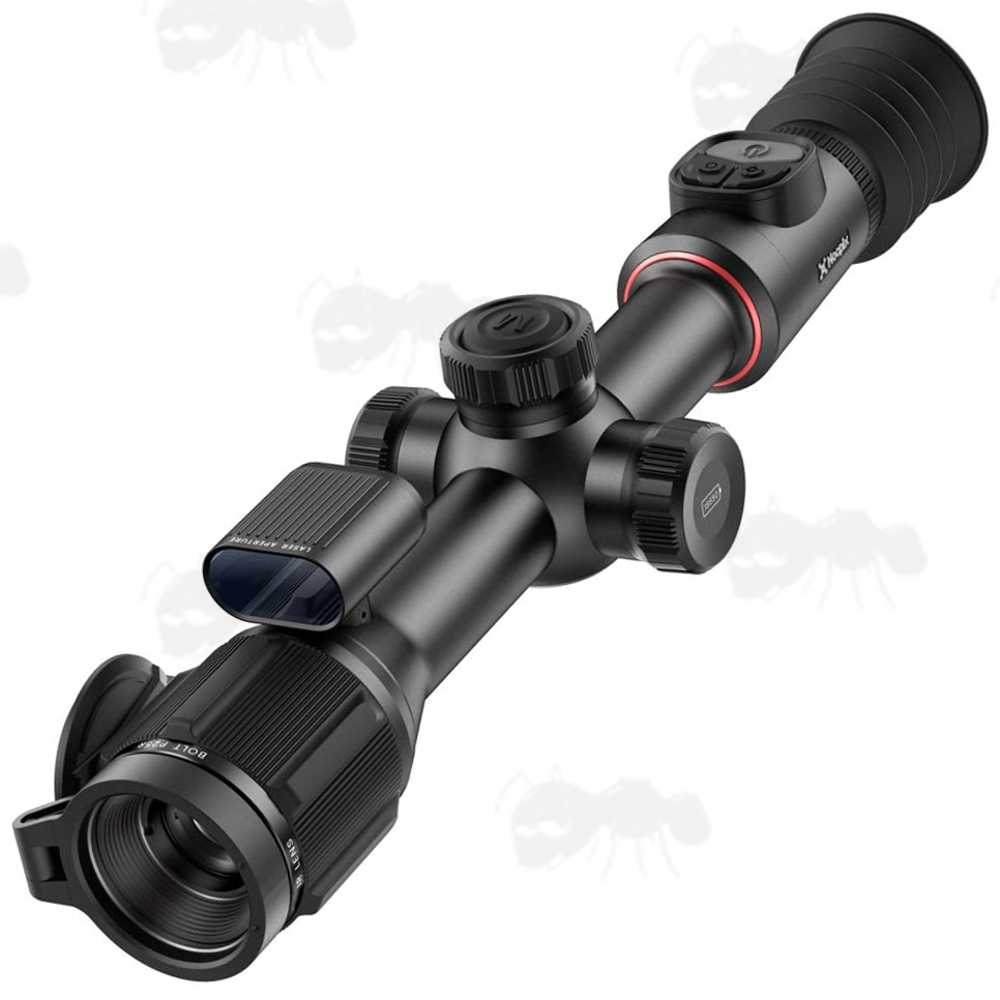

- P25R:
Key Features:
• 30mm Tube
• 50Hz Detector
• F1.0 Lens
• Up to 1800m Detection
• 1200m Periscope-type LRF
• Reality+ AI
• Ballistic Calculation
• R.A.V./Photo/Video/MIC
• Ultra-long Battery Life - 12 Hours
• Dual Battery System
• 10mm Exit Pupil
• 50mm Eye Relief
• 7 Distinct Colour PalettesWhat's Included:
• BOLT series Thermal Imaging Scope
• Heated target for zeroing
• Portable bag
• 18650 Battery (x2)
• Data cable
• Lens cleaning cloth
• Quick start guide
• 18650 Battery charger
|
*The actual operating time depends on the density of Wi-Fi use, photographing, video recording, etc. |
||||
|---|---|---|---|---|
| MODEL | BOLT P25R | BOLT L35R | ||
| MODEL | BOLT P25R | BOLT L35R | ||
| Sensor Resolution | 256 x 192 | 384 x 288 | ||
| Pixel Size | 12μm | |||
| NETD, mK | ≤20 | |||
| Frame rate, Hz | 50 | |||
| Objective lens, mm | 25 F1.0 | 35 F1.0 | ||
| Field of view, ° | 7.0 x 5.3 | 7.5 x 5.7 | ||
| Magnification, × | 3.5~14 | |||
| Detective range, m | 1300 | 1800 | ||
| Exit relief, mm | 50 | |||
| Diopter, D | -5~+5 | |||
| Display | AMOLED 1024 × 768 | |||
| Battery Type | Built-in 5,000 mAh + Replaceable 18650 battery | |||
| Max. operation time, (t=22℃)h* | 12 | |||
| Max. operation time, (t=22℃)h* | 12 | |||
| MIC | Support | |||
| Memory capacity, GB | 32 | |||
| IP rating | IP67 | |||
| Operating temperature,℃ | -20 ~ +50 | |||

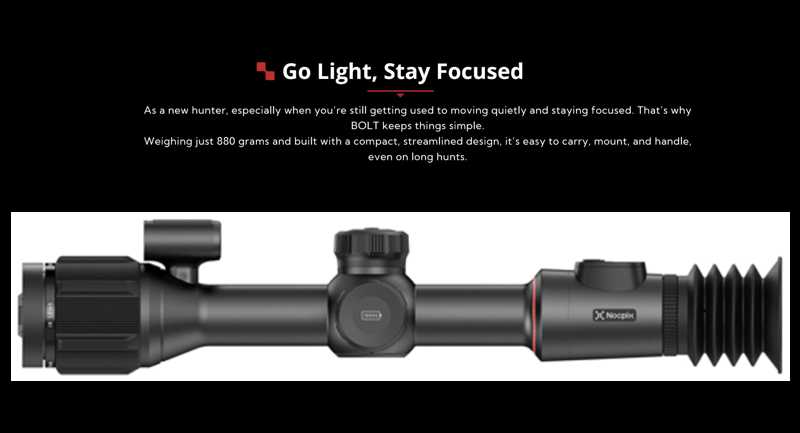

| Weight, g (with battery) | 870 | 880 | ||
| Dimension, mm | 376 x 92 x 75 | |||
Also available ~ Night Vision Rifle Scope.
ALSO AVAILABLE VIA SPECIAL REQUEST:
NocPix Thermal Imaging Clip-On Scope Mate Series - Ultra
NocPix Thermal Imaging Clip-On Scope Mate Series - H50R
NocPix Thermal Imaging Clip-On Scope Mate Series - H38R
NocPix Thermal Imaging Clip-On Scope Mate Series - Lite
NocPix Thermal Imaging Monocular Dome Series - M6T25S
NocPix Thermal Imaging Monocular Lumi Series - H35
NocPix Thermal Imaging Monocular Lumi Series - H35R
NocPix Thermal Imaging Monocular Lumi Series - L19
NocPix Thermal Imaging Monocular Lumi Series - L35
NocPix Thermal Imaging Monocular Lumi Series - L35R
NocPix Thermal Imaging Monocular Lumi Series - P13
NocPix Thermal Imaging Monocular Vista Series - H35
NocPix Thermal Imaging Monocular Vista Series - H35R
NocPix Thermal Imaging Monocular Vista Series - H50
NocPix Thermal Imaging Monocular Vista Series - H50R
NocPix Thermal Imaging Monocular Vista Series - S50R
NocPix Thermal Imaging Riflescope Ace Series - H50
NocPix Thermal Imaging Riflescope Ace Series - H50R
NocPix Thermal Imaging Riflescope Ace Series - L35
NocPix Thermal Imaging Riflescope Ace Series - S60R
NocPix Thermal Imaging Riflescope Bolt Series - L35R
NocPix Thermal Imaging Riflescope Rico Series - H50R
NocPix Thermal Imaging Riflescope Rico Series - H75R
NocPix Thermal Imaging Riflescope Rico Series - L42R
NocPix Thermal Imaging Riflescope Rico Series - S75R
NocPix QUEST Thermal Binocular - H35R
NocPix QUEST Thermal Binocular - H50R
NocPix QUEST Thermal Binocular - L35R
P25R:
THE L35R MODEL IS ALSO AVAILABLE VIA SPECIAL ORDER (£1495):
