GUN MUZZLE BORESIGHTERS
Universal barrel muzzle fitting laser boresighter.
GUN MUZZLE LASER BORESIGHTER KIT
£36.00p per kit

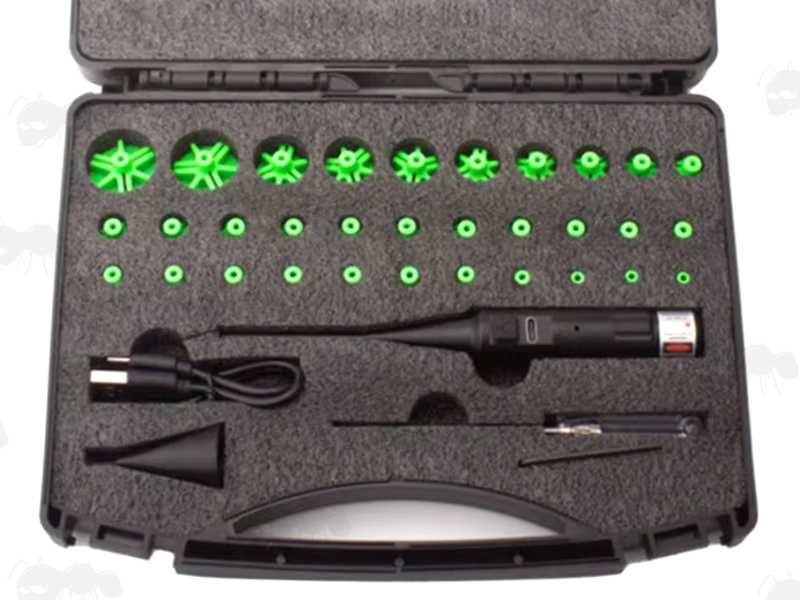

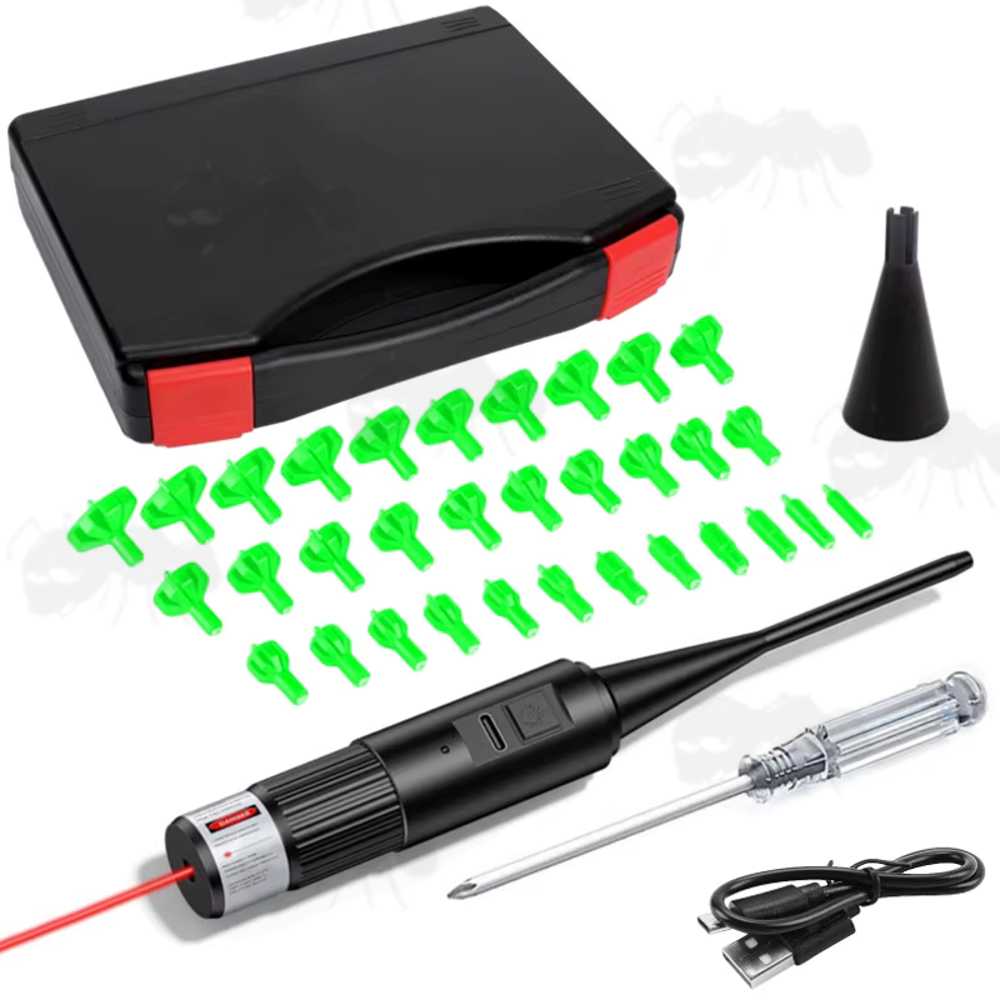

Multi calibre laser boresighting kit, that includes 32 hi-vis green barrel size adaptors.
There should be a suitable option for most rifles and pistols between .159 to .998 caliber, including shotguns.
12g shotguns should need the adapter somewhere between 18mm to 20mm.
Bright green coloured adapters with individual storage slots, for quick identification and selection.

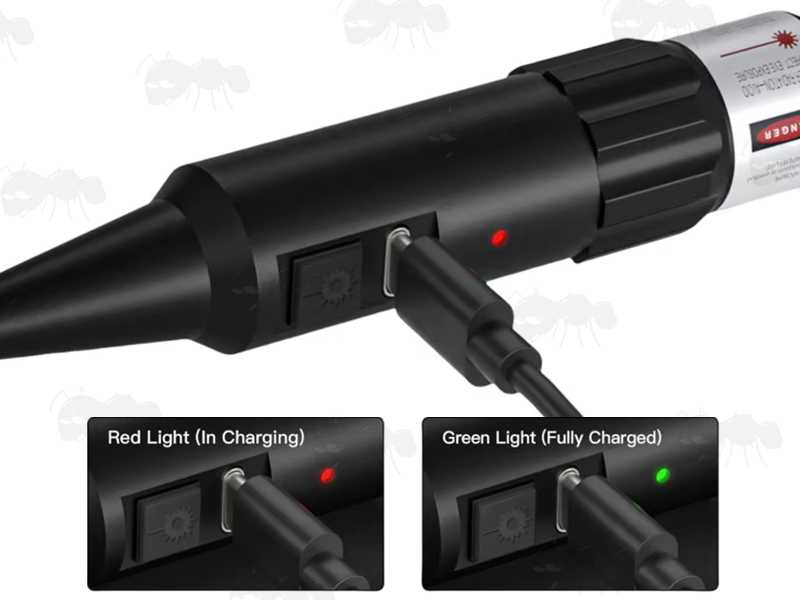

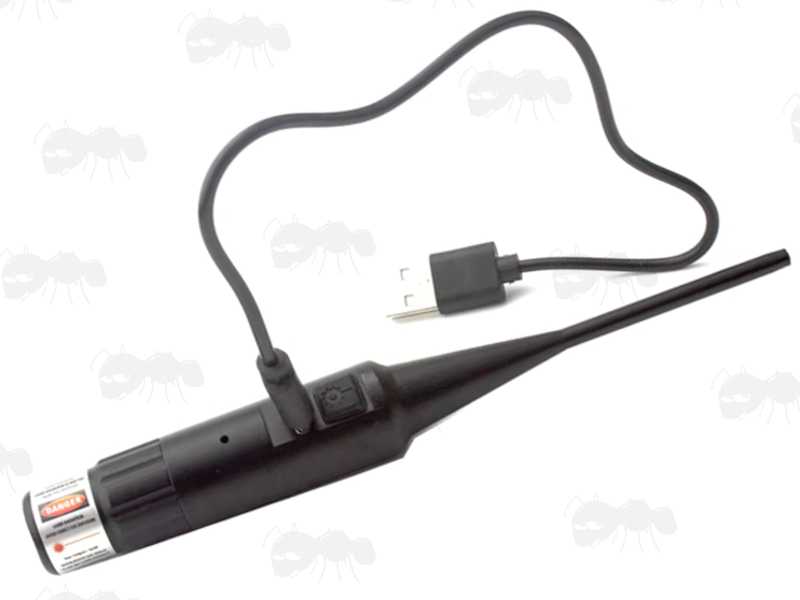

Upgraded model with built in rechargeable battery, with a USB-C charging cable included, red light for charging and green for charged.
Laser boresighter kit that provides a precise reference for zeroing your optics or laser sights.
The high-accuracy laser bore sight kit is effective in dimly lit environments, reaching a range of 15 to 100 yards.
Fits down the muzzle of your gun, ensuring a quick and easy setup on paper.
With calibres of usually .51 and over, there is an auxiliary arbor cone tool, that will significantly improve the stability of the bore sighter, further refining aiming precision.
Provides a laser dot from the center of your barrel.
Should still be okay to use even when a flash suppressor or muzzle brake is fitted.
Whole kit weighs approx 358 grams.

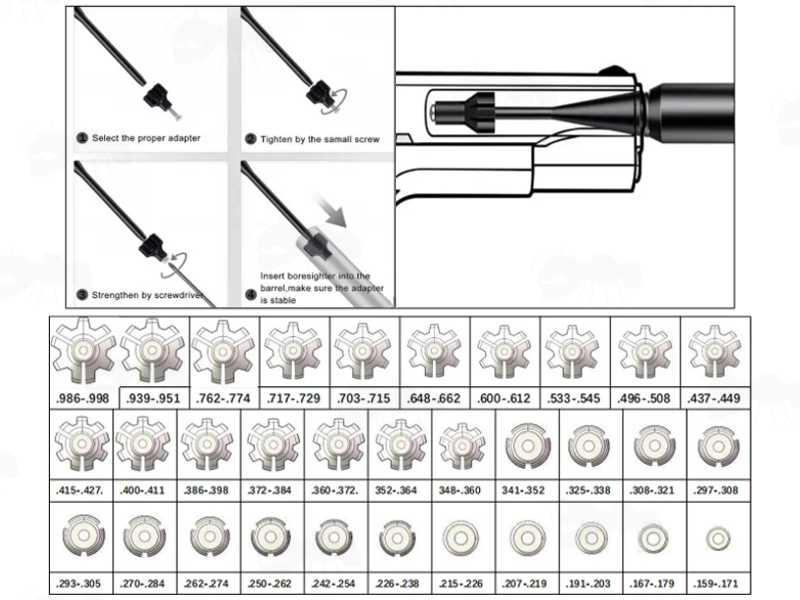

Select the appropriate adaptor, tighten the small screw to the end of the boresighter, insert the boresighter into the barrel, then ensure the correct adaptor was selected and the boresighter is stable.
Power ~ class IIIA laser <1mW.
Wavelength ~ 635-655nm.
Minimum range for sighting ~ 15 yards.
Maximum range for sighting ~ 100 yards.
Dot size ~ 1.5 @ 100 yards.
With on / off function button.
Made form high quality machined aluminium.
Laser sighter length without adaptors ~ 162mm.
Built-in rechargeable battery.
Designed to save ammo by giving a rough zero that should get you "on paper".
Please note they will produce a red dot, and not a visible red beam under most conditions.
There is also a green laser kit available by special request (@ £48).
The green laser beam is brighter and clearer in sunlight and even better in the dark.
Also available ~ Rifle Cartridge Laser Bore Sighters.
|
Sizes up to .51 should be okay to use without the arbor, sizes above will likely required the arbor, for the added stability it provides. |
||||
|---|---|---|---|---|
| NUMBER | CALIBRE | MM | ||
| NUMBER | CALIBRE | MM | ||
| #1 | .159 - .171 | 4.0 - 4.3 | ||
| #2 | .167 - .179 | 4.2 - 4.5 | ||
| #3 | .191 - .203 | 4.9 - 5.2 | ||
| #4 | .207 - .219 | 5.3 - 5.7 | ||
| #5 | .215 - .226 | 5.4 - 5.7 | ||
| #6 | .226 - .238 | 5.7 - 6.0 | ||
| #7 | .242 - .254 | 6.1 - 6.4 | ||
| #8 | .250 - .262 | 6.4 - 6.7 | ||
| #9 | .262 - .274 | 6.7 - 7.0 | ||
| #10 | .270 - .284 | 6.9 - 7.2 | ||
| #11 | .293 - .305 | 7.4 - 7.7 | ||
| #12 | .297 - .308 | 7.5 - 7.8 | ||
| #13 | .308 - .321 | 7.8 - 8.2 | ||
| #14 | .325 - .338 | 8.3 - 8.6 | ||
| #15 | .341 - .352 | 8.7 - 8.9 | ||
| #16 | .348 - .360 | 8.8 - 9.1 | ||
| #17 | .352 - .364 | 8.9 - 9.2 | ||
| #18 | .360 - .372 | 8.8 - 9.4 | ||
| #19 | .372 - .384 | 9.4 - 9.6 | ||
| #20 | .386 - .398 | 9.8 - 10.1 | ||
| #21 | .400 - .411 | 10.2 - 10.4 | ||
| #22 | .415 - .427 | 10.5 - 10.8 | ||
| #23 | .437 - .449 | 11.1 - 11.4 | ||
| #24 | .496 - .508 | 12.6 - 12.9 | ||
| #25 | .533 - .545 | 13.5 - 13.8 | ||
| #26 | .600 - .612 | 15.2 - 15.5 | ||
| #27 | .648 - .662 | 16.5 - 16.8 | ||
| #28 | .703 - .715 | 17.9 - 18.1 | ||
| #29 | .717 - .729 | 18.2 - 18.5 | ||
| #30 | .762 - .774 | 19.4- 19.7 | ||
| #31 | .939 - .951 | 23.6 - 24.2 | ||
| #32 | .986 - .998 | 25.0 - 25.3 | ||

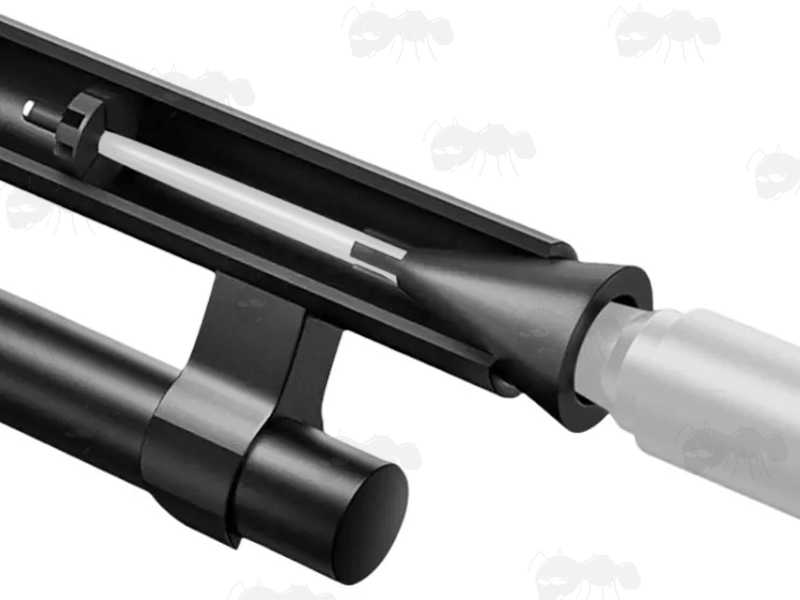

ARBOR ALLOWS TWO POINTS OF CONTACT TO IMPROVE STABILITY ON .51 AND UP:
ALSO AVAILABLE AS A GREEN LASER
