BIPOD SWIVEL STUD RAIL ADAPTER KIT

For fitting a Picatinny rail to your sling swivel / bipod stud.

QR STUD FITTING BIPOD RAIL KIT

£18.00p each

£15.00p each

Condition: New

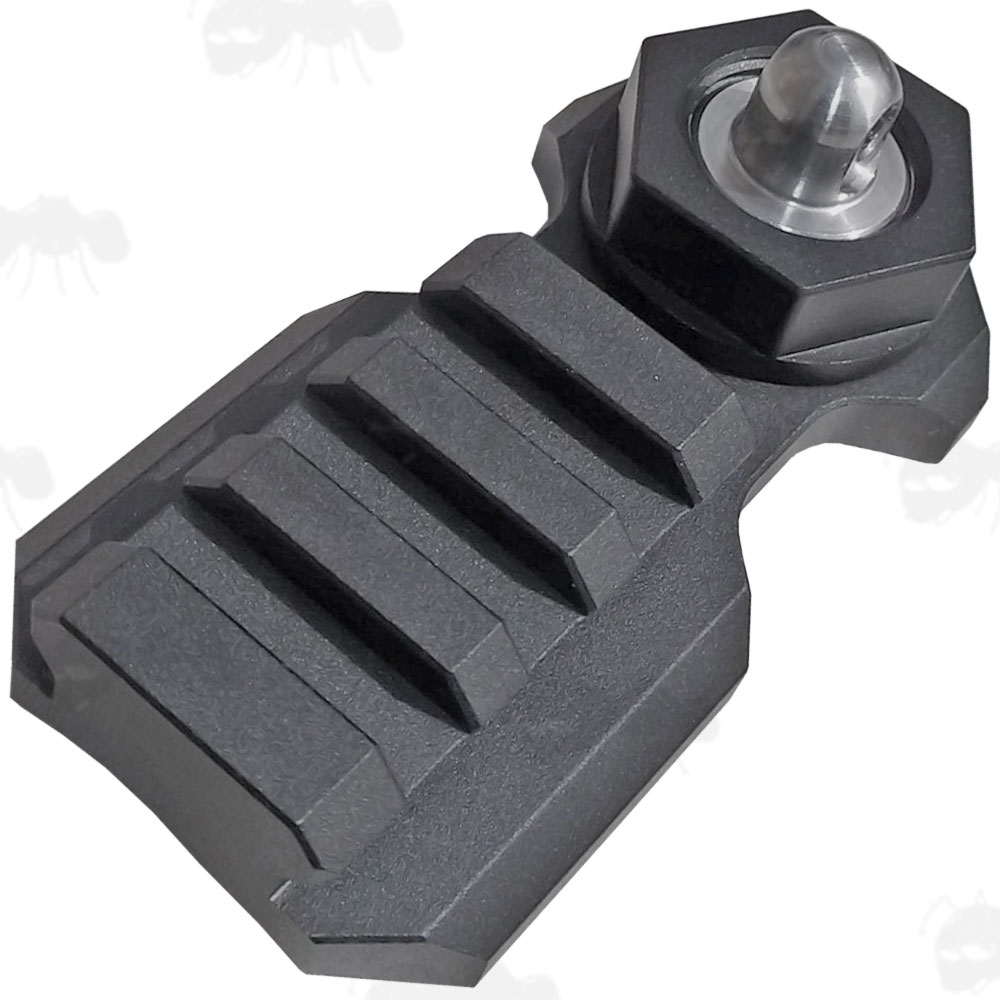

QD Swivel Stud Fitting Three Slot Bipod Picatinny Rail Adapter Kit

Rifle forend QD swivel stud to rail adapter.

For Atlas bipods and similar.

71mm long overall.

38mm long three slot rail length.

Aluminium base with steel fittings.

Black anodised finish body with a stainless steel stud.

For most but no all 20mm wide Weaver / Picatinny rail fitting bipods.

The QD stud extension piece has an internal diameter of 11mm to fit over your existing QD stud.

The smooth cross bar is 3.5mm in diameter.

Weighs approx 50 grams.

This is out most recommended QD stud rail adapter.

Sling stud bipod rail adapter for 20mm rail fitting bipods.

With a sling stud extension so you don't lose out on the stud.

FITTING GUIDE:

Simply place the stainless steel swivel stud extension over your existing swivel QD stud.

Push the retaining bar through the extension stud and your original QD stud.

Place the main rail body over the extension stud and hold in place whilst screwing on the large locking.

This adapter does not included and padding, where possible you may wish to add some to protect wooden forends.


COMPATIBILITY INFORMATION:

The original QD stud rail adapter model will not accept Accu-Tac 1913 Picatinny rail fitting bipods, however customers have confirmed this new adapter will fit, as well as the Spartan Valhalla bipod.

However the spacings do not line to accept the MDT GRND-POD.

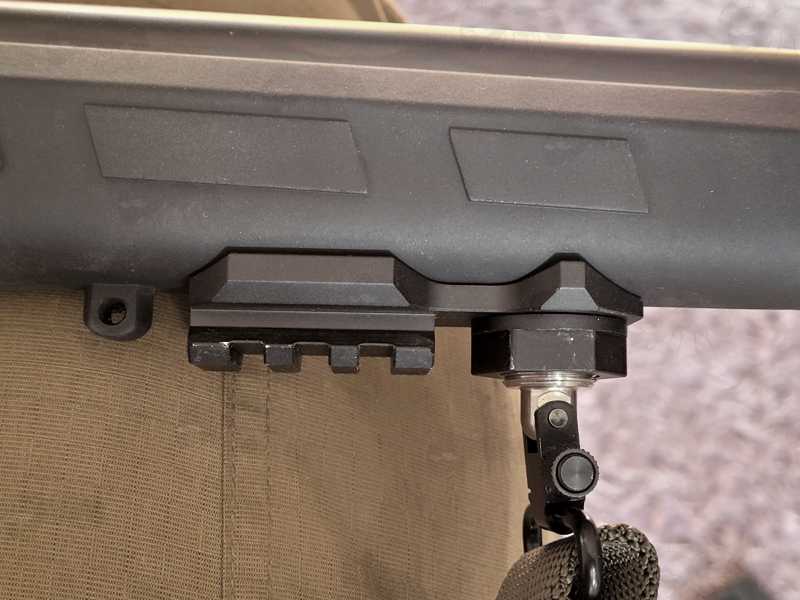

They will likely not fit the factory fitted stud on CZ 457 rifles, as CZ usually have Euro spec QD studs for 6mm wide gate swivels with a 3mm diameter bars / pins, yet most swivels are US spec with 8mm wide gates and 3.6mm diameter bars / pins, alternatively you can replace the retaining bar with a smaller diameter bar.

Please note: check if your QD stud is over 10.5mm in diameter, as they fit stud heads up to 11mm in diameter and length.

Need the other way around? ~ Weaver / Picatinny Rail to QD Base Stud Adapters.

QD Swivel Stud Fitting Three Slot Bipod Picatinny Rail Adapter Kit
Dismantled View of The QD Swivel Stud Fitting Three Slot Bipod Picatinny Rail Adapter Kit

Shown below with black anodised machine QD stud for illustration (not included):

Dismantled View of The QD Swivel Stud Fitting Three Slot Bipod Picatinny Rail Adapter Kits with Black Anodised Machine Thread QD Stud
QD Swivel Stud Fitting Three Slot Bipod Picatinny Rail Adapter Kit Shown with Black Anodised Machine Thread QD Stud

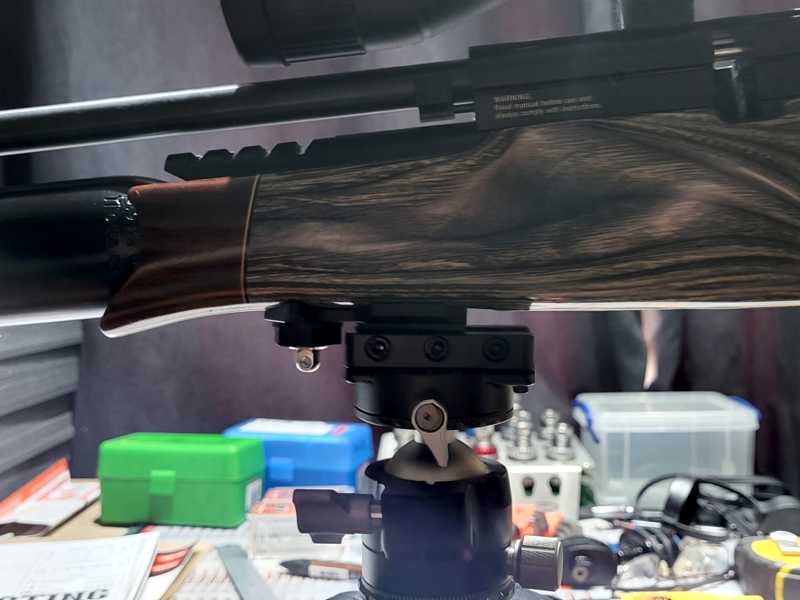

Shown below fitted to a BSA R10, mounted to an Arca-Swiss Artcise ball head (via a Picatinny Rail Adapter) to fit to the Bog Pod Deathgrip tripod:

QD Swivel Stud Fitting Three Slot Bipod Picatinny Rail Adapter Kit Shown with Black Anodised Machine Thread QD Stud
