TRIPOD HIGH-PROFILE RIFLE CRADLE MOUNT
Arca-Swiss plate and 3/8"-16 threaded.
TRIPOD RIFLE CRADLE ADAPTER
BLACK£50.00p each

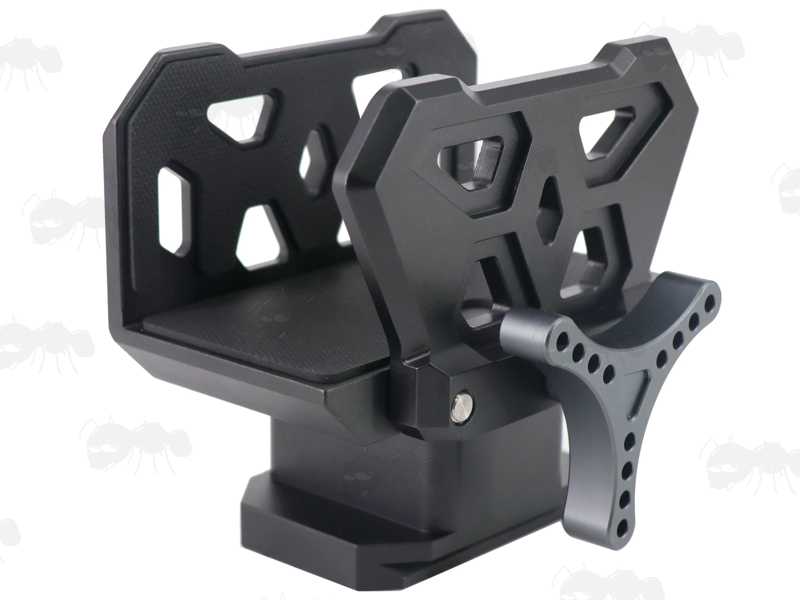

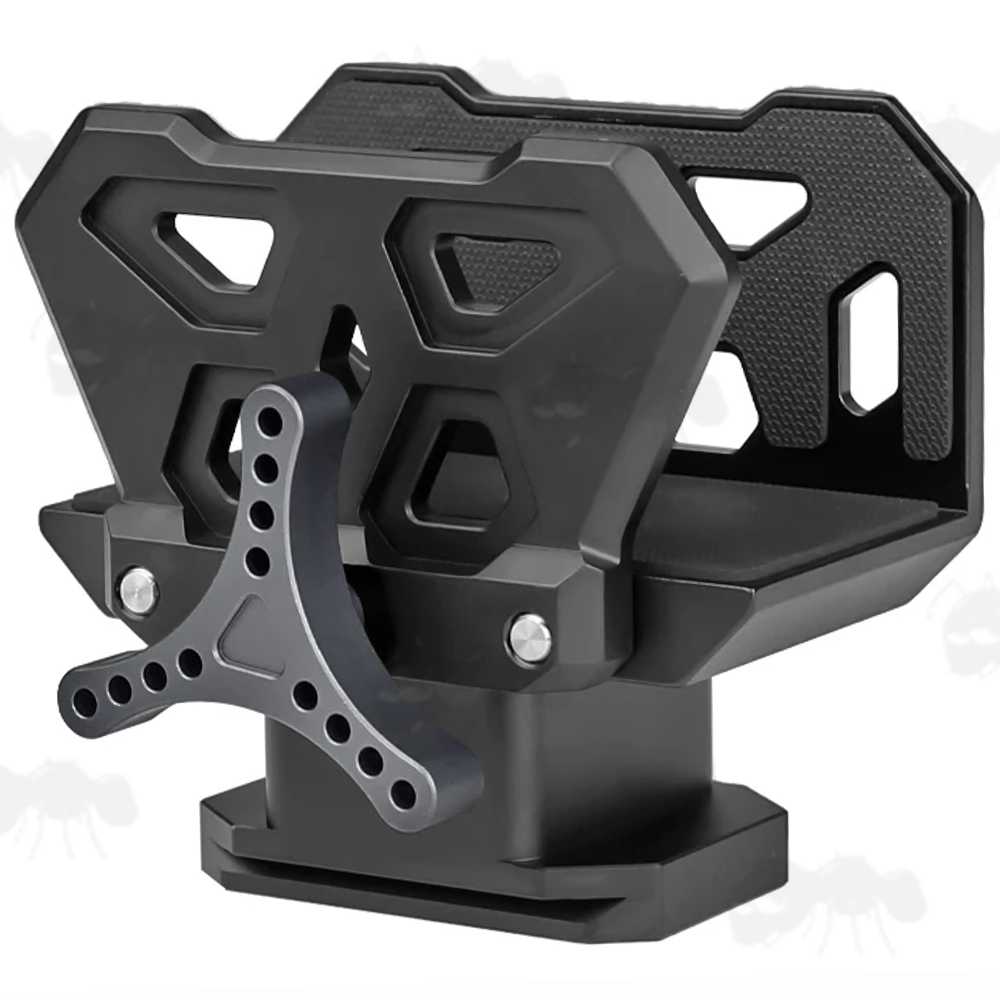

Elevated base design rifle cradle head for ARCA-Swiss dovetail systems or 3/8" threaded tripods.
With large triangular locking handle for easy grip.
CNC machined skeletonised design to reduce extra weight.
This model is made especially high, to prevent the locking handle contacting your tripods ball head or the tripod.
The interior rubber pads enhance friction with mounted equipment and offer scratch protection during intense impacts.
The larger triangular locking knob reduces excess weight and allows for effortless adjustments, even while wearing gloves.

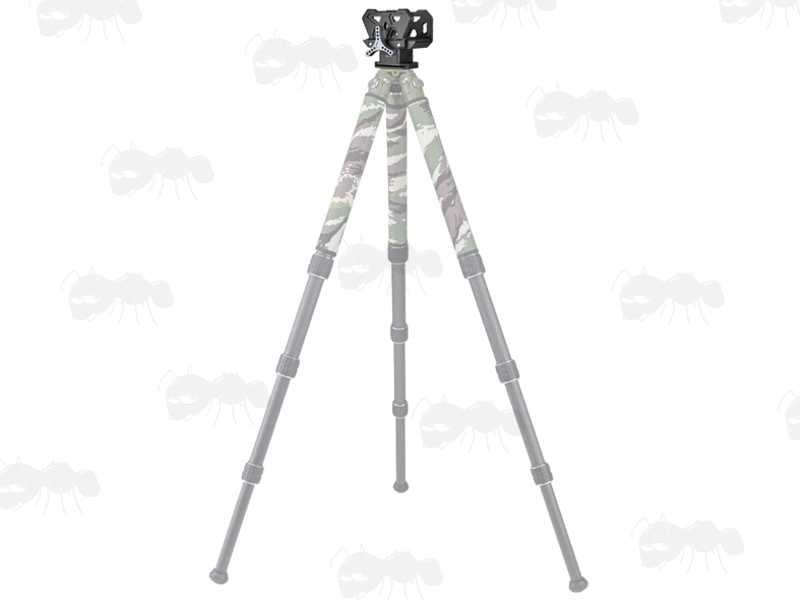

Quickly connects to ball heads, bipod sticks, or monopods (with suitable fittings).
With an quick-fitting Arca-Swiss plate to be mounted on a camera tripod head.

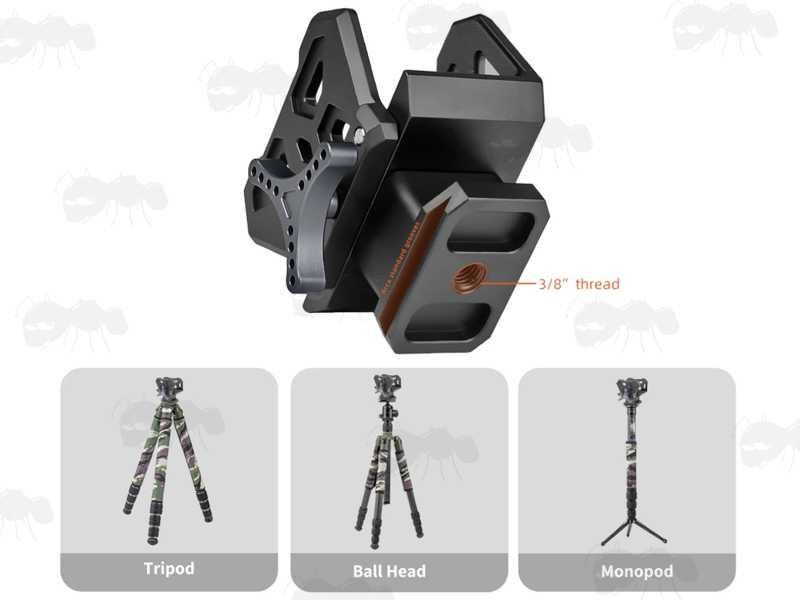

It also provides a 3/8"-16 threaded hole, that will fit most threaded monopods, bipod and tripods (thread adapters available to go down to 1/4"-20 thread).
Fits a variety of rifle fore-ends profiles.
Constructed from T6063 aluminium alloy and enhanced with hard anodising.
ARCA Swiss profile base for direct mounting on Arca standard tripods.

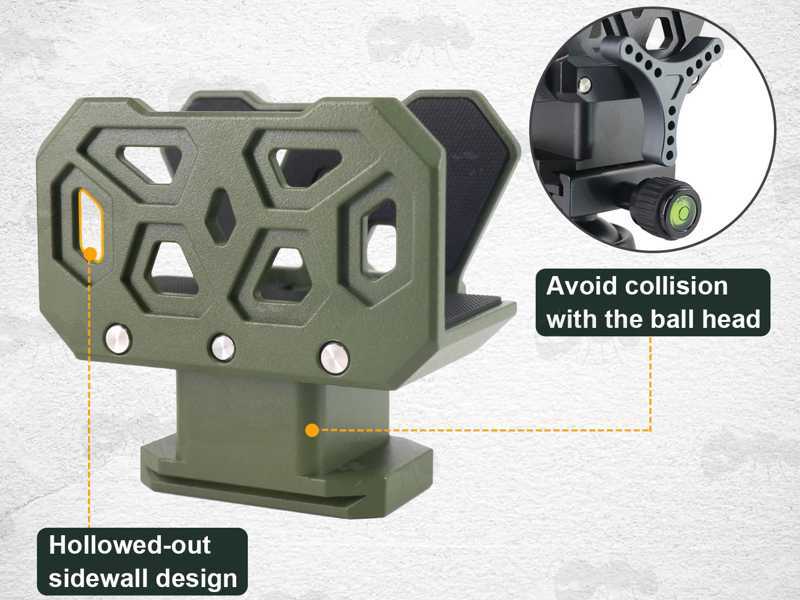

With an adjustable clamp range of 46mm to 74mm, this hunting tripod saddle incorporates a hollowed-out sidewall design for weight reduction.
Rubber pads for increased friction and protection against scratches.
Triangle lock-knob for easy operation even whilst wearing gloves on.
Overall length ~ 92mm / 3.62″.
Overall max width ~ 158mm / 6.22″.
Overall height ~ 86mm / 3.38″.
Clamp minimum width ~ 46mm / 1.81″.
Clamp maximum widths ~ 74mm / 2.91″.
Internal saddle height ~ 44mm / 1.73″.
Weighs 376 grams.
Also available ~ Camera to Weaver / Picatinny Mounts and Rifle Rests.

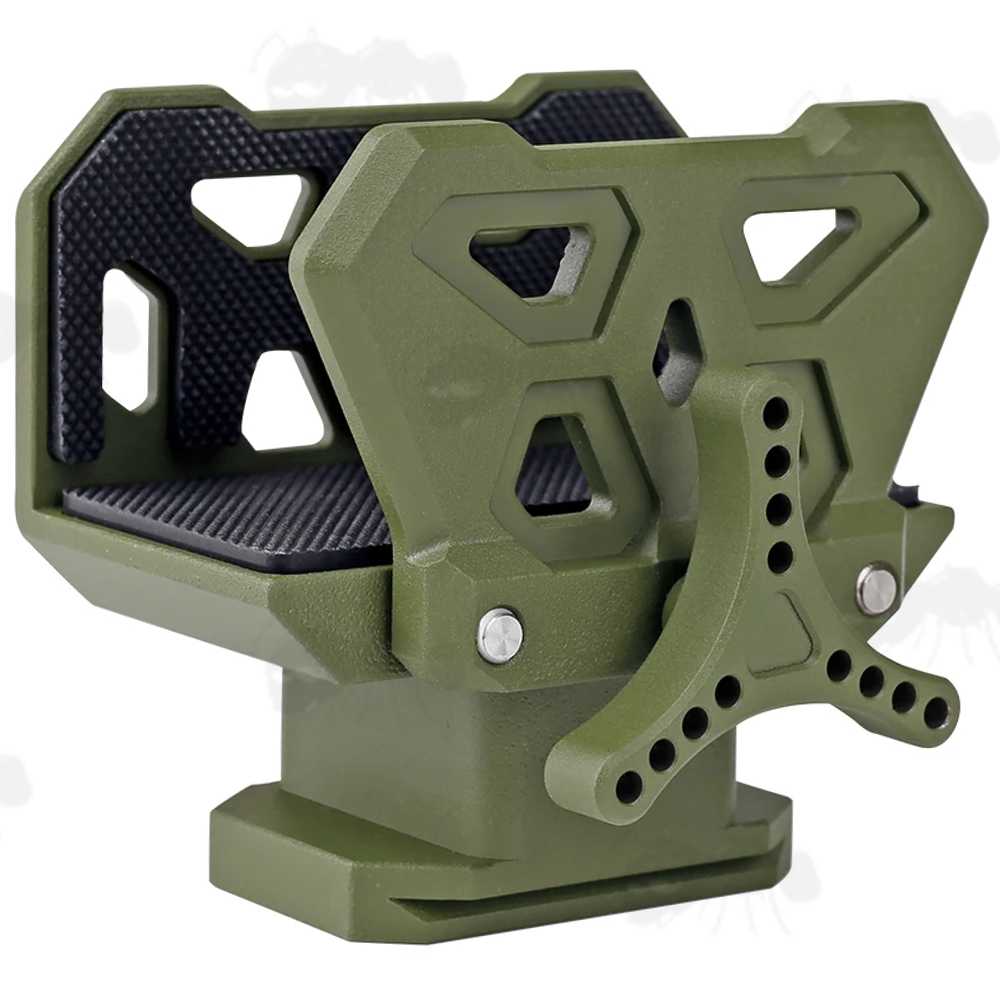

AVAILABLE IN GREEN FINISH BY SPECIAL ORDER
GREEN£50.00p each
AVAILABLE BY PRIOR REQUEST

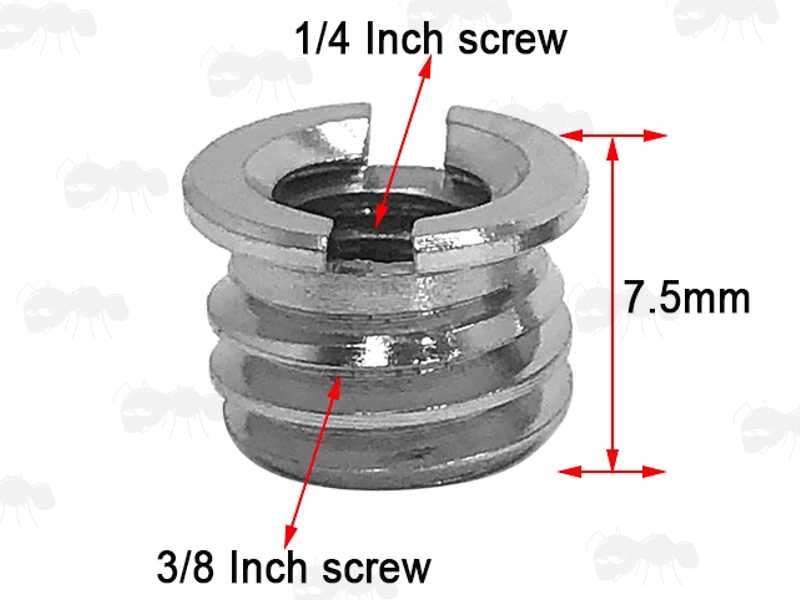

A FREE 3/8"-16 TO 1/4"-20 THREAD INSERT ADAPTER IS INCLUDED:
