RUGER 10/22 RIFLE FOREND ACCESSORY MOUNT
For fitting a light, laser, bipod and sling.
RUGER 10/22 RIFLE FOREND ACCESSORY MOUNT
Condition: New
For Ruger 10/22 rifles.

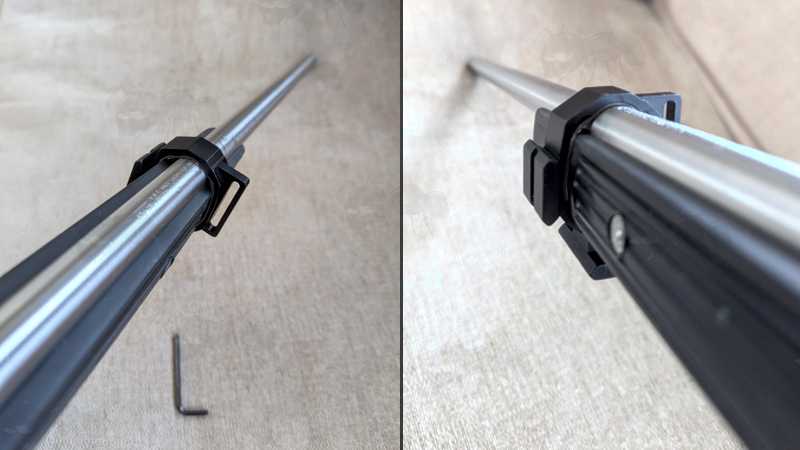

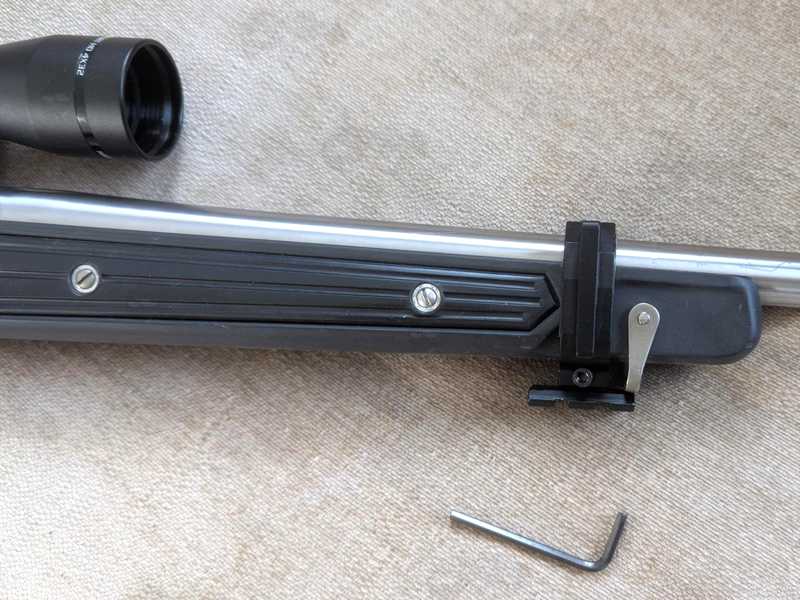

Quick fitting forend barrel band accessory mount.
With a base two slot rail usually for bipod, and a side one slot Weaver / Picatinny rail usually for laser unit or torch mounting.
The opposite side then has a 1.25" wide x 0.13" thick slot for sling webbing / attachment point.
Please Note: will not accept Atlas V8 style bipods without widening the cross slots to accept the clamping bolts square shaft in the bipod head.
This is likely the case with all bipods with square bolt shafts, and those with large diameter round bar shafts.
If your bipod has two clamping bolt shafts, they may also not line up perfectly with the adapters rail slots, meaning you would have to offset it slightly to only fit one of the rail slots, tests with such bipods have all, so far, then fitted securely.
The adapters rail slots dimensions:
Width ~ 4mm.
Depth ~ 2mm.
Distance between the base rail slots ~ 8mm.
Made from T6 aircraft grade aluminium, with black anodised finish.
The main body is 0.62 inches / 15mm long.
Internal width is 33mm, height is 40mm.
Weighs approx 34 grams.
Reversible design.
Attaches easily and in seconds.
Mounting hardware included.
Designed to replaces the factory fitted original forend barrel band.
Usually no modifications or gunsmithing required.

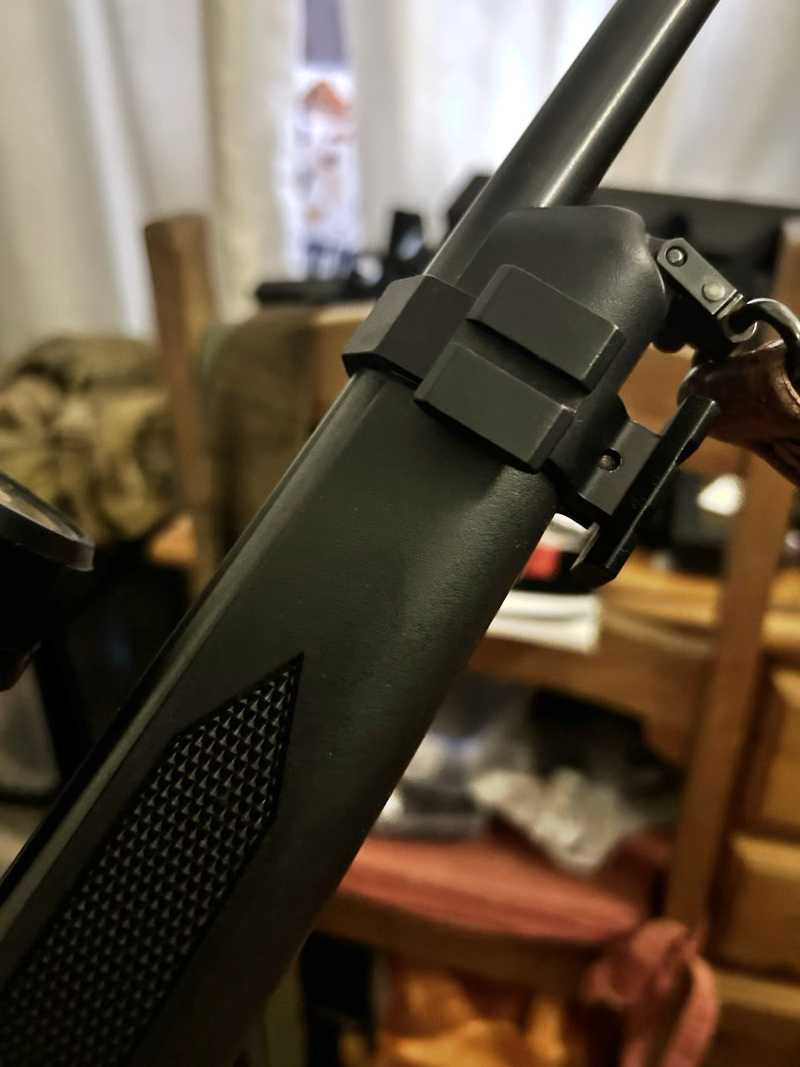

Please Note: these are designed for the 10/22 wooden stock, so the fitting is slightly too large for synthetic stocks.
They do fit the synthetic stock perfectly is using padding / a shim of approx 90mm long by 15mm wide and 1mm thick (we will include a suitable shim if we have them available at the time).
Also available:
Sling Swivel Fitting Base for Ruger 10/22,
Ruger Silencer Adapters,
Ruger Buttpad Extender,
Ruger Sight Rails.
If fitting to a synthetic stock, you will need padding / a shim of approx 90mm long by 15mm wide and 1mm thick:
