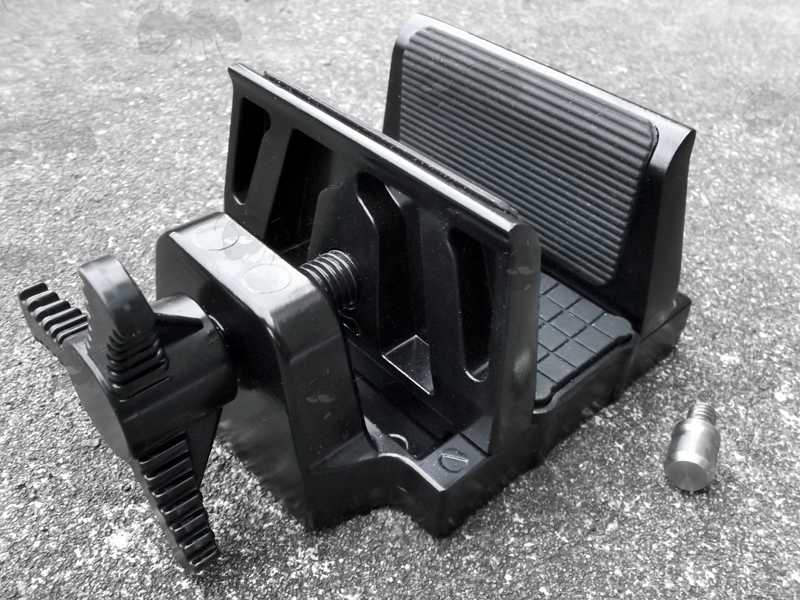

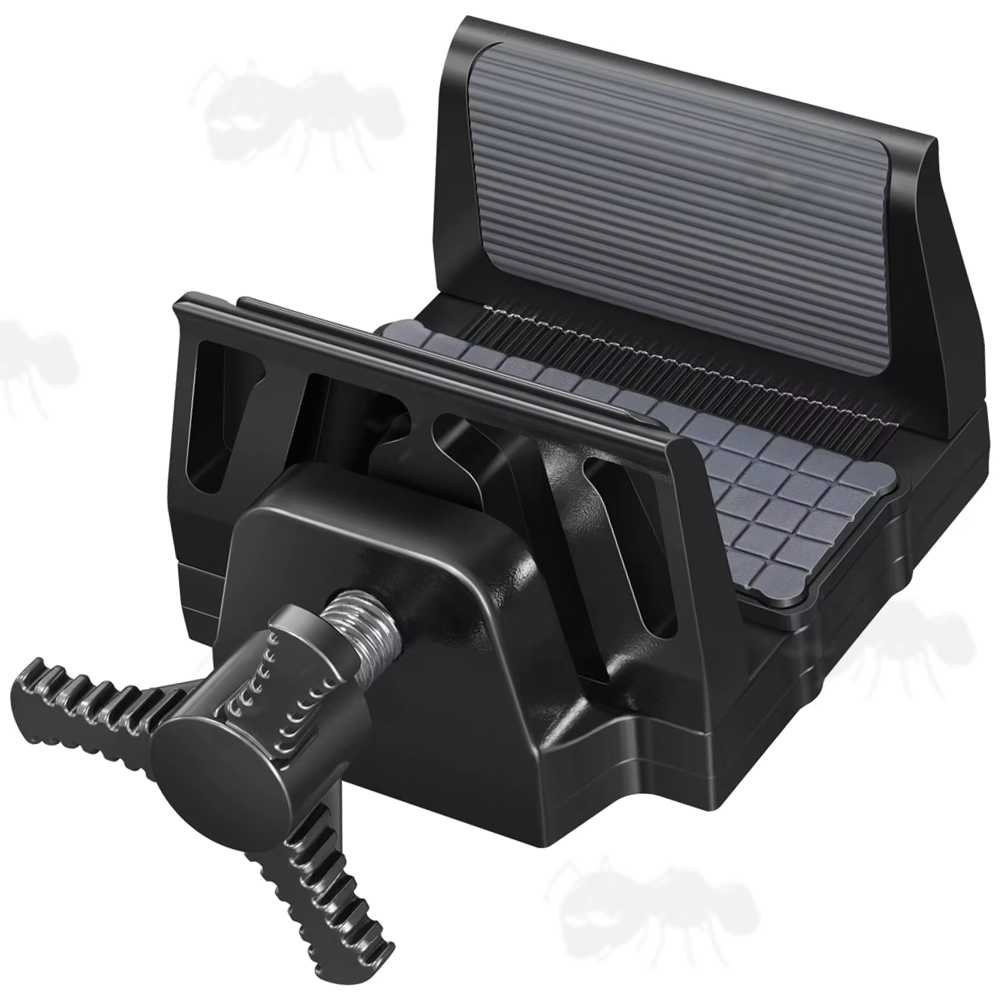

Rifle Tripod Saddle Mount Rest - Trakiom / 1/4″-20 and 3/8″-16 Camera Threaded Base

Ant Hill > Rifle Bipods > Rifle Bipod Fittings > Rifle Trakiom Saddle Rest

RIFLE SADDLE CLAMP MOUNT

With Trakiom fitting and 1/4"-20 and 3/8"-16 threads.

RIFLE TRIPOD SADDLE REST CLAMP

Black Finished Metal Rifle Tripod Fitting Saddle Mount Rest with Oversized Tension Knob, for 1/4-20 and 3/8-16 Threaded Camera / Rifle Shooting Bipod or Tripod Sticks

BLACK

£36.00p each
SOLD OUT

Condition: New

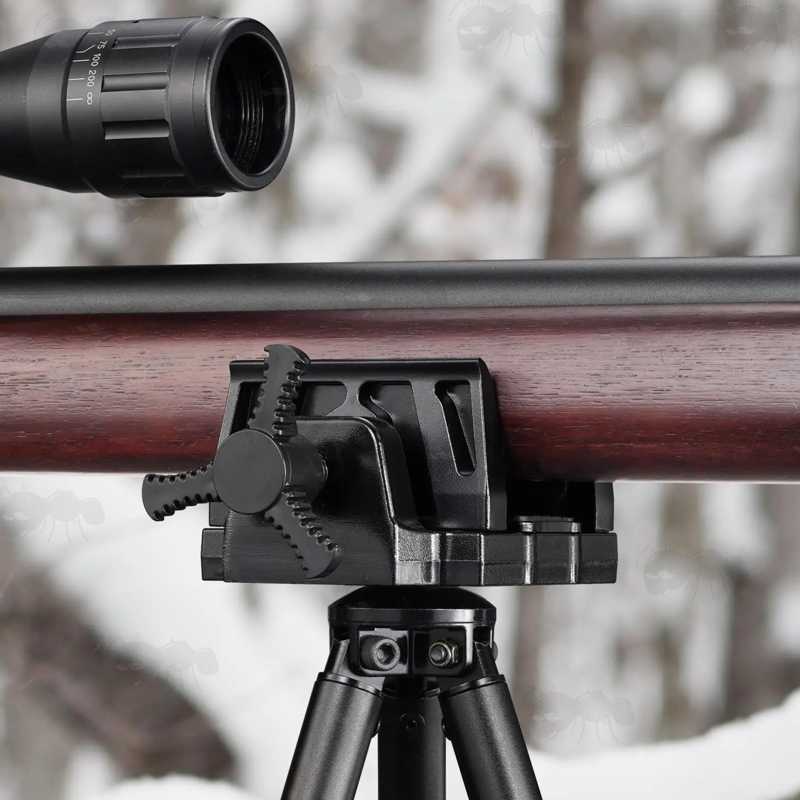

Rifle cradle mount rest for threaded monopod, bipod and tripod shooting sticks.

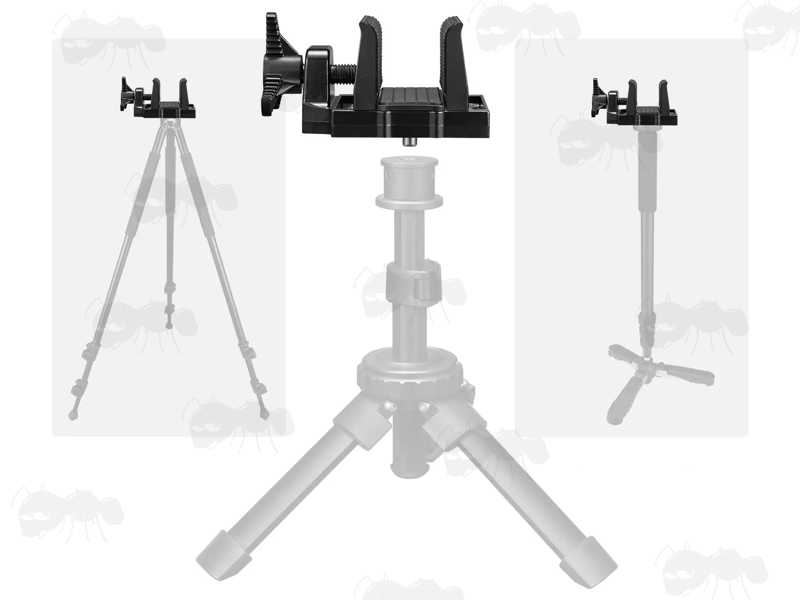

With a 3/8"-16 threaded hole and 1/4"-20 thread insert adapter, that will fit most threaded shooting and camera monopods, bipods and tripods.

Suitable for most rifle forend / handguard profiles.

Made from aluminium with black painted finish.

3/8” threaded base with a 1/4” thread adapter, as well as a stud for attaching to Trakiom compatible products.

Double-headed T-shaped clamp structure compatible with equipment widths between 1.5 inch (38mm) and 2.4 inches (61mm).

Heavy-duty chocolate block profile protective black rubber padding on the internal base and ribbed pads on the clamping plates.

The rubber pads increase friction and protection against scratches.

Large plastic tri-arm locking handle, for easy operation even if wearing gloves.

With the use of a thread adapter, these can also then fit ARCA Swiss profile base for direct mounting on ARCA standard tripod heads, we have some available on the link below.

Overall length ~ 90mm / 3.54″.

Overall width ~ 138mm / 5.43″.

Overall height ~ 62mm / 2.44″.

Clamp minimum width ~ 38mm / 1.5″.

Clamp maximum widths ~ 61mm / 2.4″.

Internal saddle height ~ 42mm / 1.65″.

Weighs approx 442 grams.

Also available ~ Sand Bag Rifle Rests and Camera Thread to ARCA Swiss Adapters.

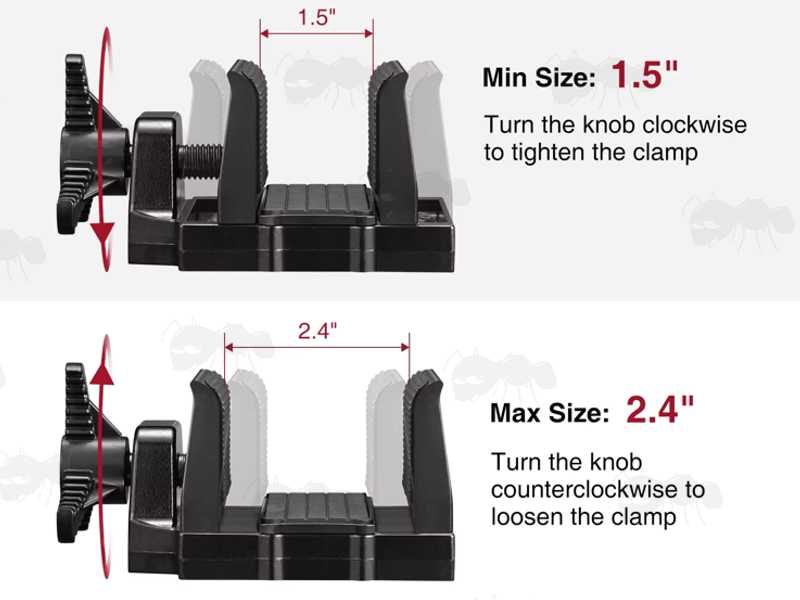

Minimum and Maximum Clamp Widths on The Black Finished Metal Rifle Tripod Fitting Saddle Mount Rest with Oversized Tension Knob, for 1/4-20 and 3/8-16 Threaded Camera / Rifle Shooting Bipod or Tripod Sticks

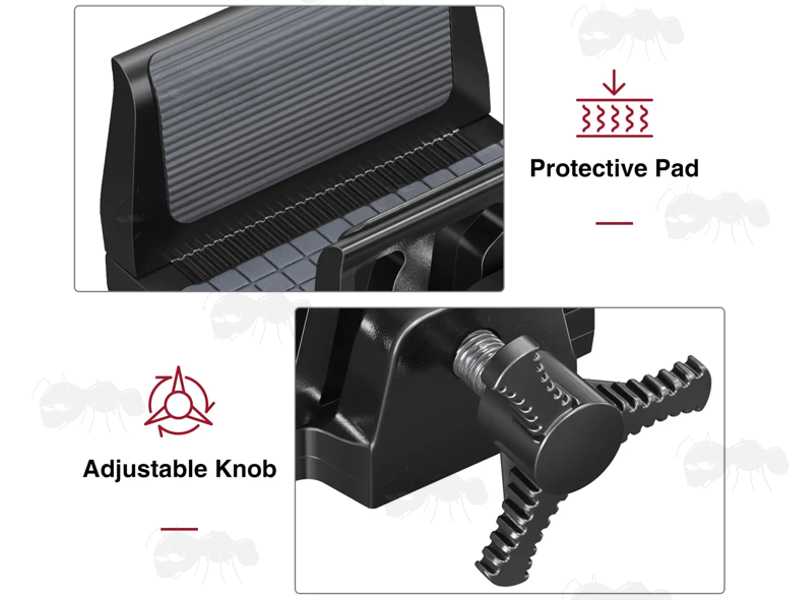

Close-Up View of the Padding and Large Adjuster Knob on The Black Finished Metal Rifle Tripod Fitting Saddle Mount Rest with Oversized Tension Knob, for 1/4-20 and 3/8-16 Threaded Camera / Rifle Shooting Bipod or Tripod Sticks

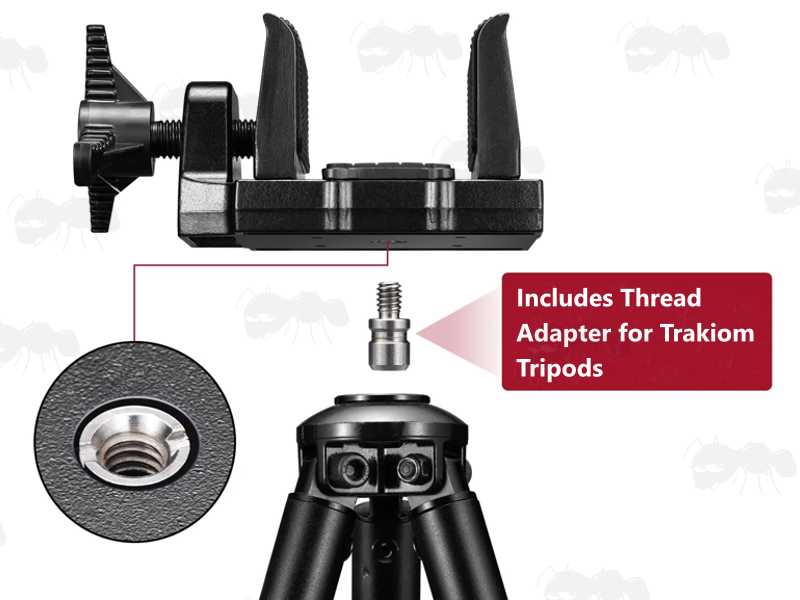

3/8”-16 threaded base with 1/4”-20 thread bushing adapter and a 1/4” latch adapter:

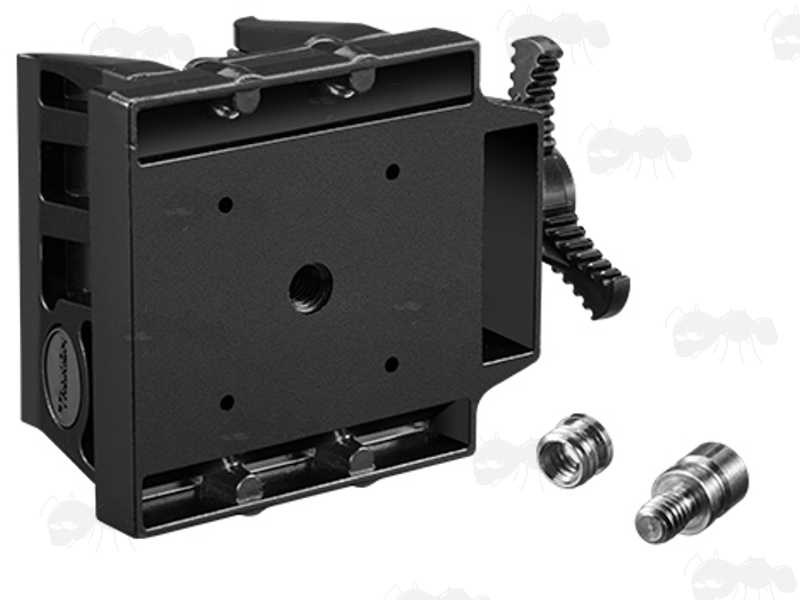

Base View of The Threaded Hole and Adapters Included with The Black Finished Metal Rifle Tripod Fitting Saddle Mount Rest with Oversized Tension Knob, for 1/4-20 and 3/8-16 Threaded Camera / Rifle Shooting Bipod or Tripod Sticks
