ADJUSTABLE SCOPE RINGS FOR DOVETAIL RAILS

SportsMatch UK Logo UK Animated Flag
Proudly made in the United Kingdom

SPORTSMATCH ADJUSTABLE ONE PIECE RINGS

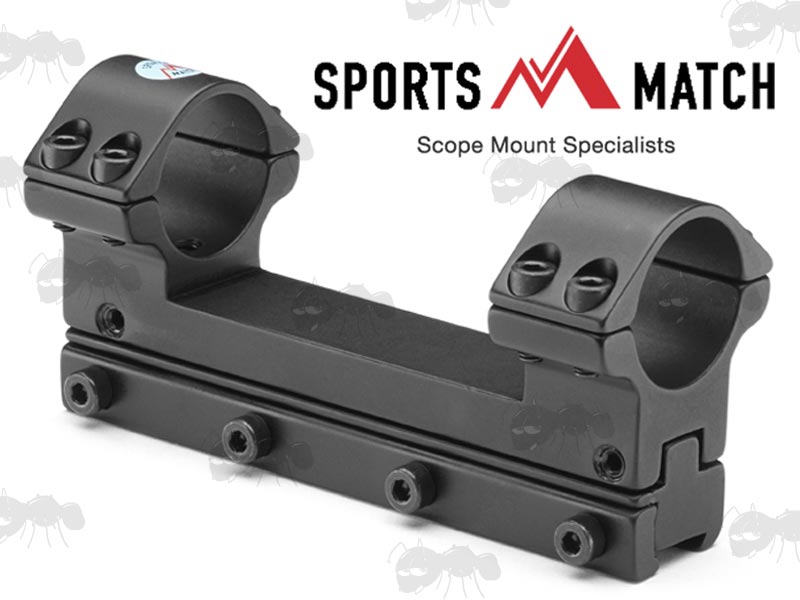

AOP55AOP55 Sportsmatch Dovetail Rail One Piece Fully Adjustable High Profile 25mm Diameter Scope Rings25mm

£49.80p each
SOLD OUT

For 1" / 25mm diameter body tube rifle scopes.

Elevation ~ 26.5mm.

Length ~ 110mm.

Weight ~ 196 grams.

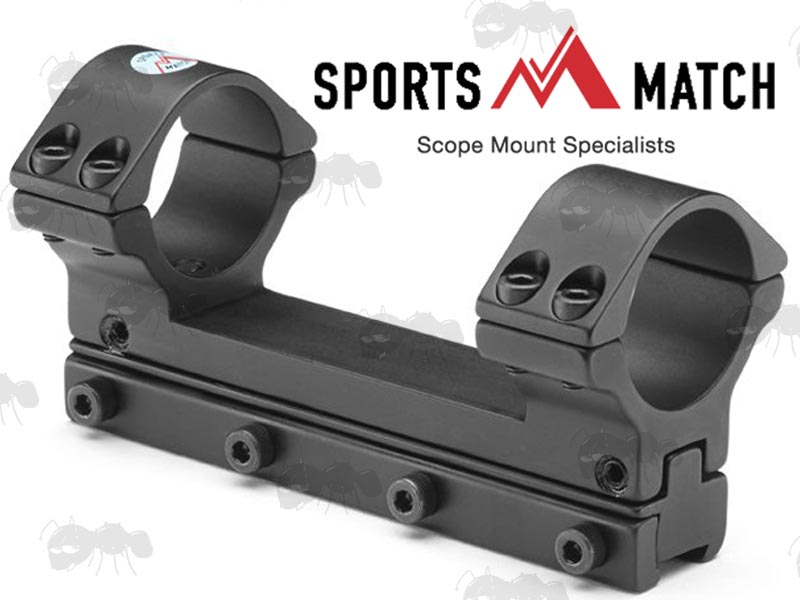

AOP56AOP56 Sportsmatch Dovetail Rail One Piece Fully Adjustable High Profile 30mm Diameter Scope Rings30mm

£79.80p each
SOLD OUT

For 1 3/16 / 30mm diameter body tube rifle scopes.

Elevation ~ 25mm.

Length ~ 110mm.

Weight ~ 192 grams.
Condition: New, in packaging

Please Note: We can not accept returns on SportsMatch mounts if removed from the packaging

Made in the United Kingdom.

One piece, high-profile mounts.

Adjustable for windage and elevation / height.

Fits 9.5mm - 11.5mm wide dovetail rails.

Ring thickness ~ 21mm.

Double clamped, 21mm thick scope mounts for standard dovetail rifle rails.

Precision machined high grade aluminium alloy construction with a matte black finish.

Suits scopes with objective lenses up to 60mm diameter (on most rifles).

Allen key included for securing scope and mounting.

Does not include arrestor pin.

It is important that all the following instructions are followed in order for this product to function correctly.

Use the allen keys supplied in order for these products to function correctly and to avoid damage to your scope.

Prior to fitting ensure weapon is unloaded and made safe.

Max torque rating 25in/lbs.

All screws need checking for tightness periodically.

Adjustable for windage, elevation / height.

Lateral position also adjustable for perfect dovetail centering.

The maximum amount of adjustment from one end of the mount to the other is 2mm (windage & elevation).

The locking screws include an anti vibration coating.

Provides up to 45 MOA vertical adjustment.

Ideal for long range shooting with high powered air rifles / rifles.

AOP55 / AOP56 - One Piece Adjustable Mount Fitting Instructions:

  1. This product includes an optional Recoil Arrestor Pin in the pack, which can be fitted in one of two positions.
    If the Recoil Arrestor Pin is required please refer to the FAQ section on Sportsmatch guide page for fitting instructions.
  2. Before fitting the mount check the windage adjusting screws (A), rear locking screws (B) and elevation locking screw (C) for tightness.
  3. Undo the side clamp screws (E) and attach the mount to the dovetails with the elevation adjusting screw (D) at the rear (butt) end.
    Please note the side clamp is reversible to suit a wide range of dovetail widths.
  4. Remove top cap screws (F) along with top caps and fit scope in desired position. re-fit top caps.
  5. Shoot a five shot group at approximately 30 yards (closer if necessary), using a large target.
    Measure distances vertically and horizontally from the aiming point.
  6. To correct elevation, remove mount complete with scope from the rifle.
    Undo both of the rear locking screws (B) approximately ½ turn.
    Loosen the elevation locking screw (C) approximately ¼ turn.
    Turn the elevation adjusting screw (D) to correct point of impact.
    Clockwise lowers point of impact and vice versa.
    Retighten elevation locking screw (C).
    Retighten both rear locking screws (B) evenly by ½ turn.
    Then re-fit mount complete with scope to dovetail.
    Repeat if necessary.
    Maximum adjustment anti-clockwise on the elevation adjusting screw (D) is 2½ turns.
  7. To correct windage, leave scope and mount on rifle.
    To move point of impact to RIGHT - turn right hand windage adjusting screw (A) at front of mount anti-clockwise.
    Then tighten opposite side windage adjusting screw (A).
    Check the rear locking screws (B).
    To move point of impact LEFT - turn left hand windage adjusting screw (A) at front of mount anti-clockwise.
    Then tighten opposite side windage adjusting screw (A).
    Check the rear locking screws (B).
    Repeat if necessary.

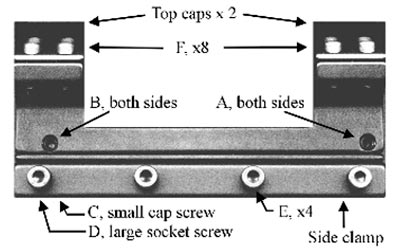

Sportsmatch Dovetail Rail One Piece Fully Adjustable Scope Mount Guide

The elevation (D) and windage (A) adjusting screws, move the point of impact approx:
1" @ 15 yards, 2" @ 30 yards, 5" @ 50 yards, with ¼ turn.

Important Adjuster screws (A) and locking screws (B) should be tightened firmly but not overtightened or damage to product may occur.

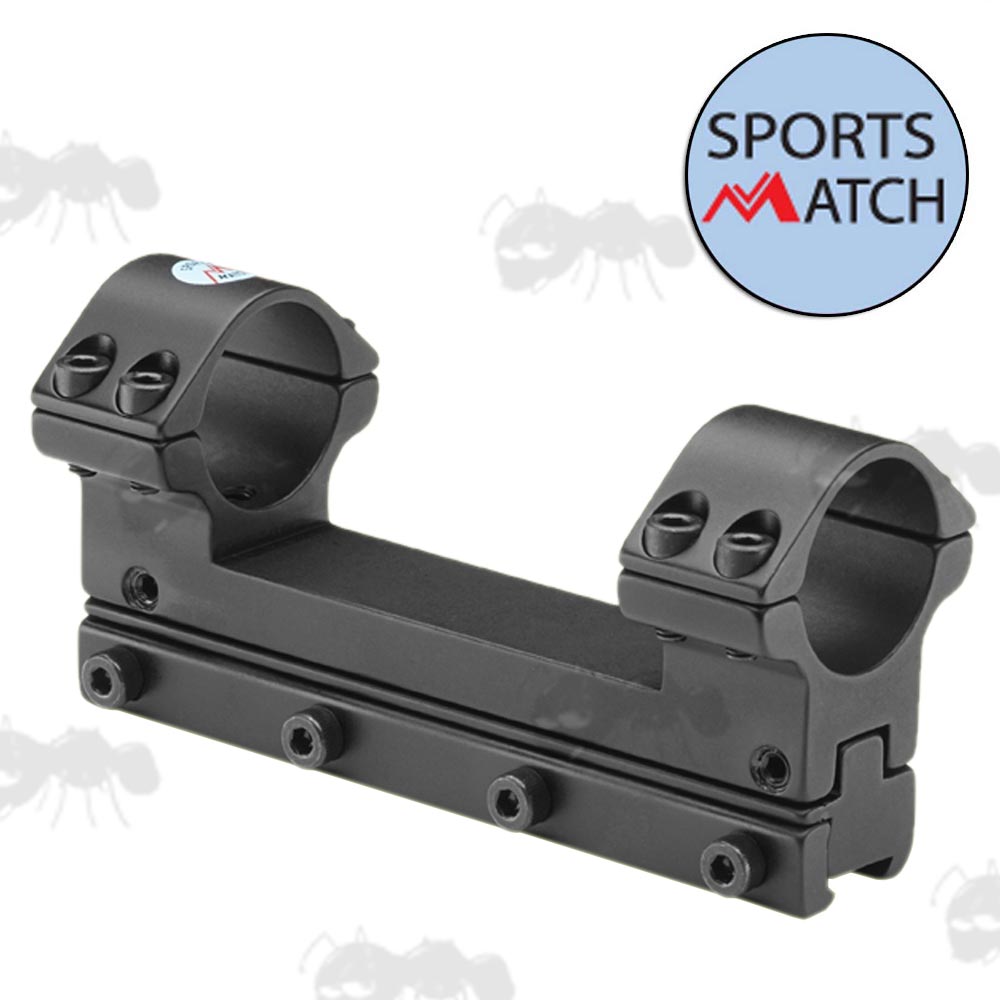

AOP55 Sportsmatch Dovetail Rail One Piece Fully Adjustable High Profile 25mm Diameter Scope Rings

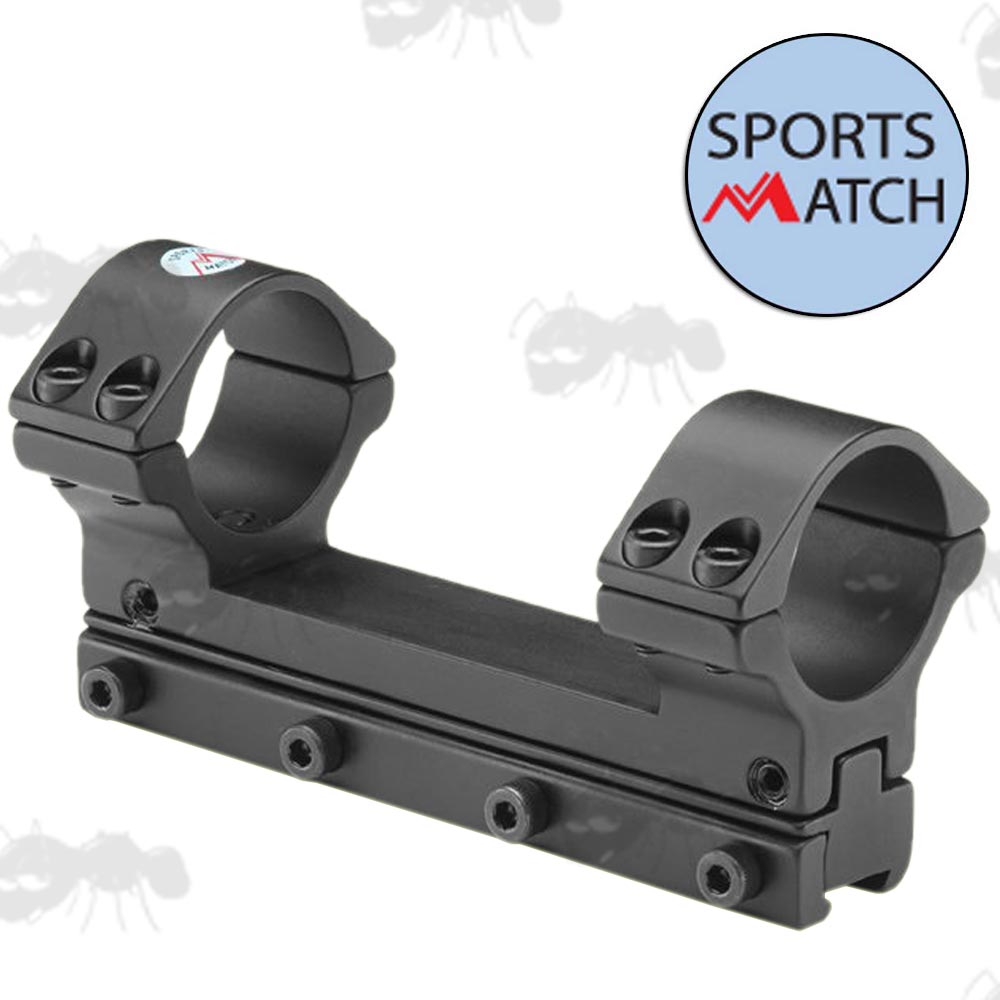

AOP56 Sportsmatch Dovetail Rail One Piece Fully Adjustable High Profile 30mm Diameter Scope Rings
