ADJUSTABLE SCOPE RINGS FOR DOVETAIL RAILS
Proudly made in the United Kingdom

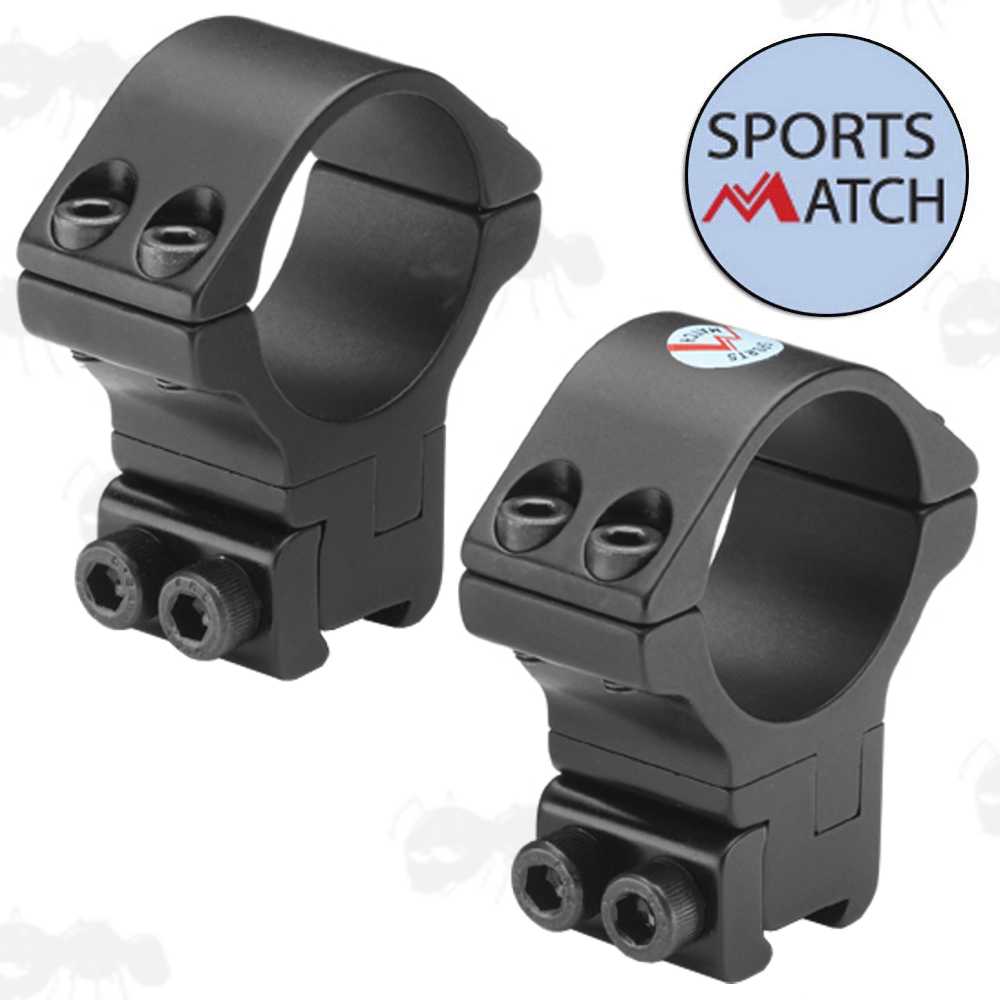

SPORTSMATCH ADJUSTABLE SCOPE RINGS

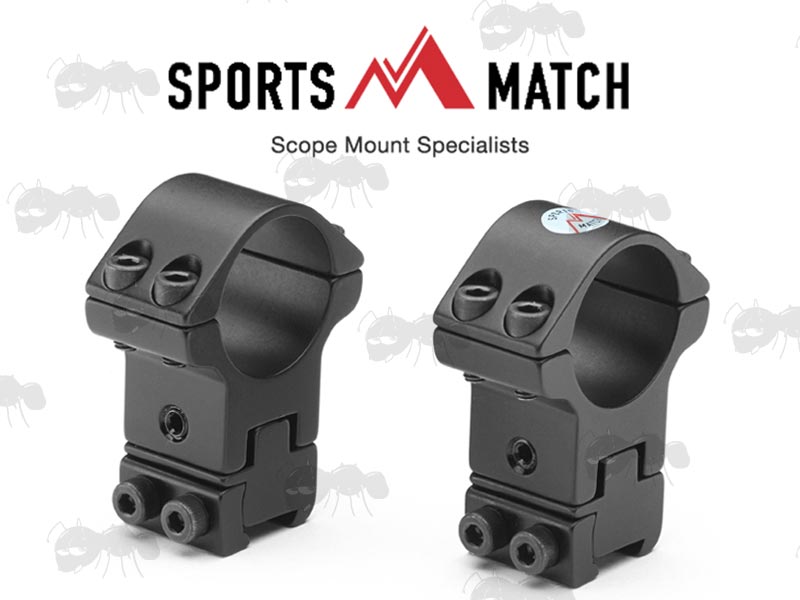

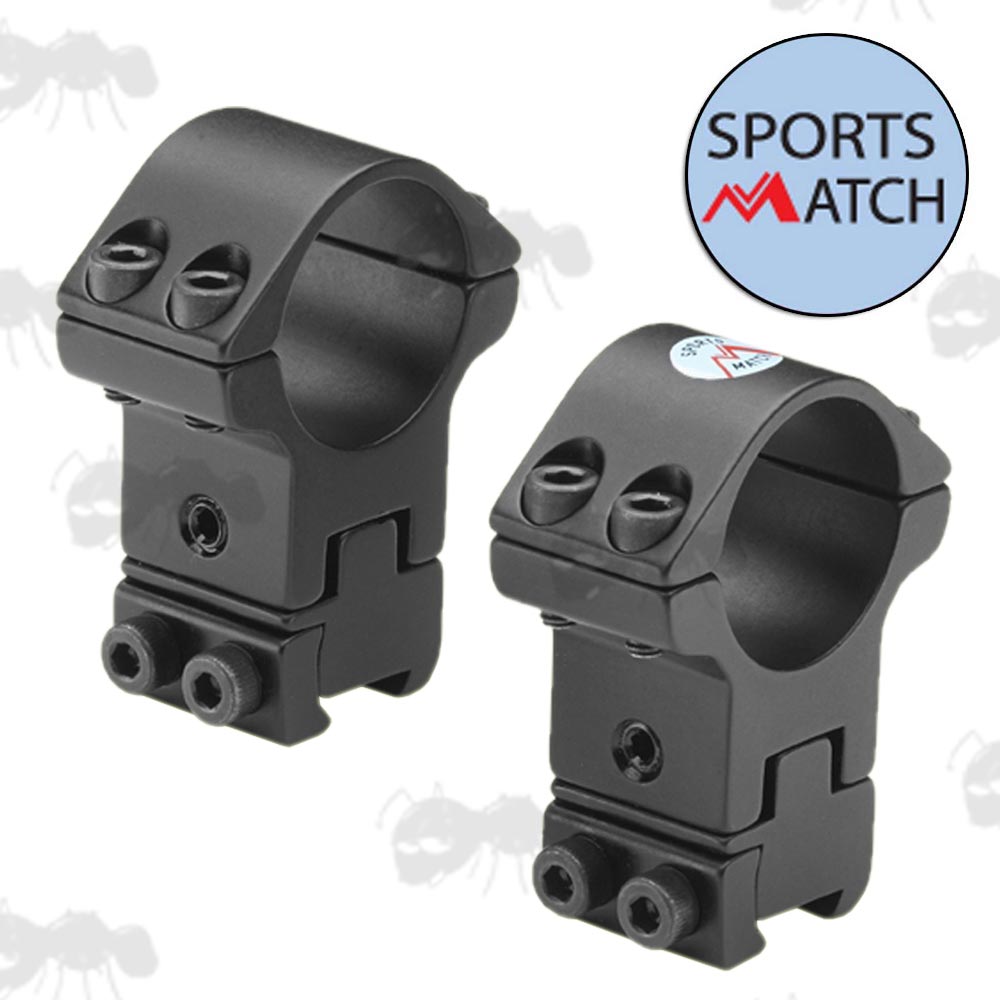

25mm ~ FULLY ADJUSTABLE£92.40p per pair
SOLD OUT
For 1" / 25mm diameter body tube rifle scopes.
Elevation ~ 26.5mm to 29mm.
Weight ~ 116 grams.
Adjustable for windage, elevation / height.

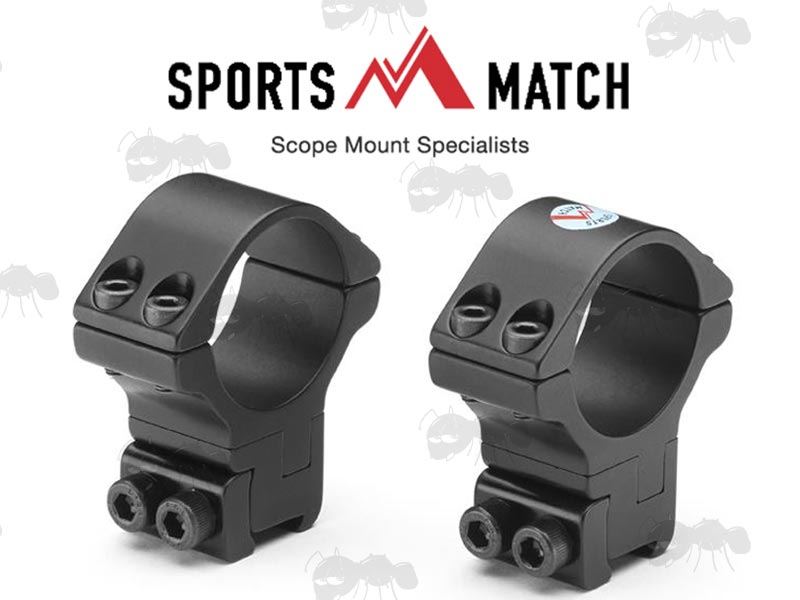

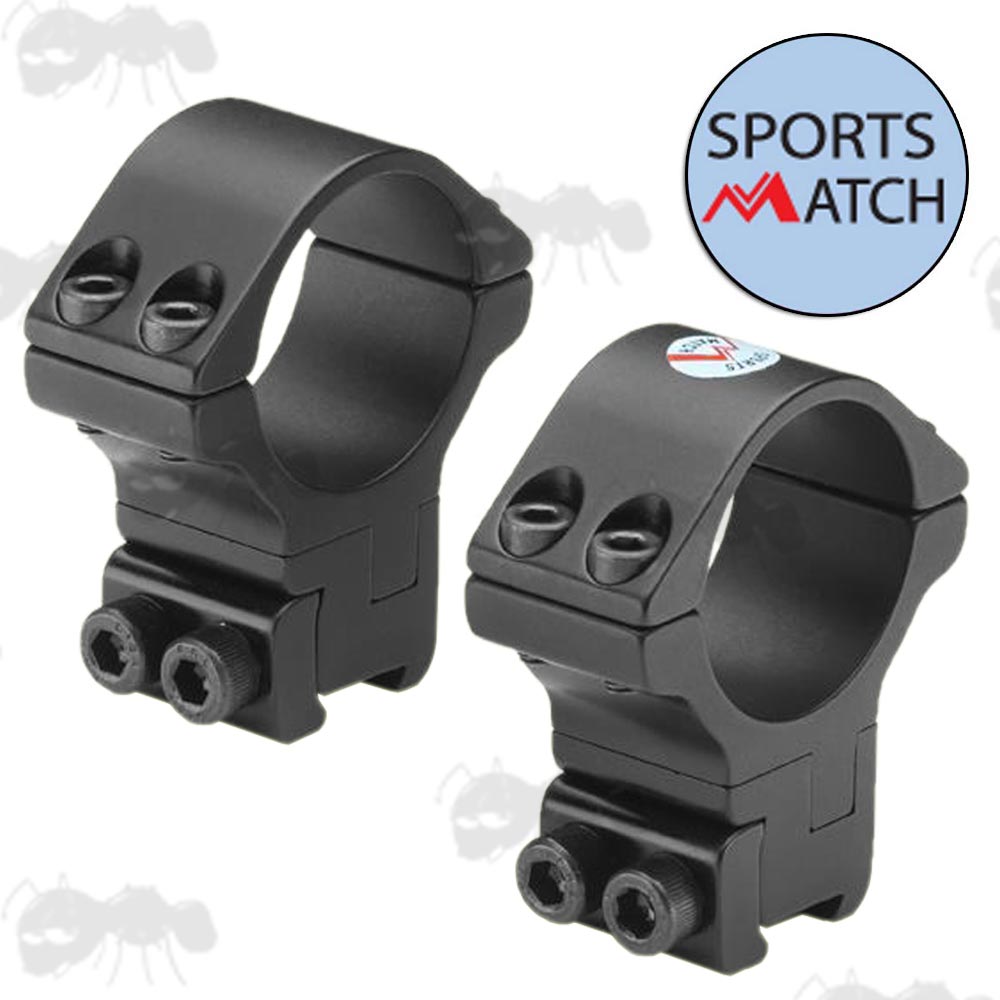

30mm ~ ADJUSTABLE£59.40p per pair
SOLD OUT
For 1 3/16 / 30mm diameter body tube rifle scopes.
Elevation ~ 22.5mm - 23.8mm.
Weight ~ 119 grams.
Adjustable for elevation / height.

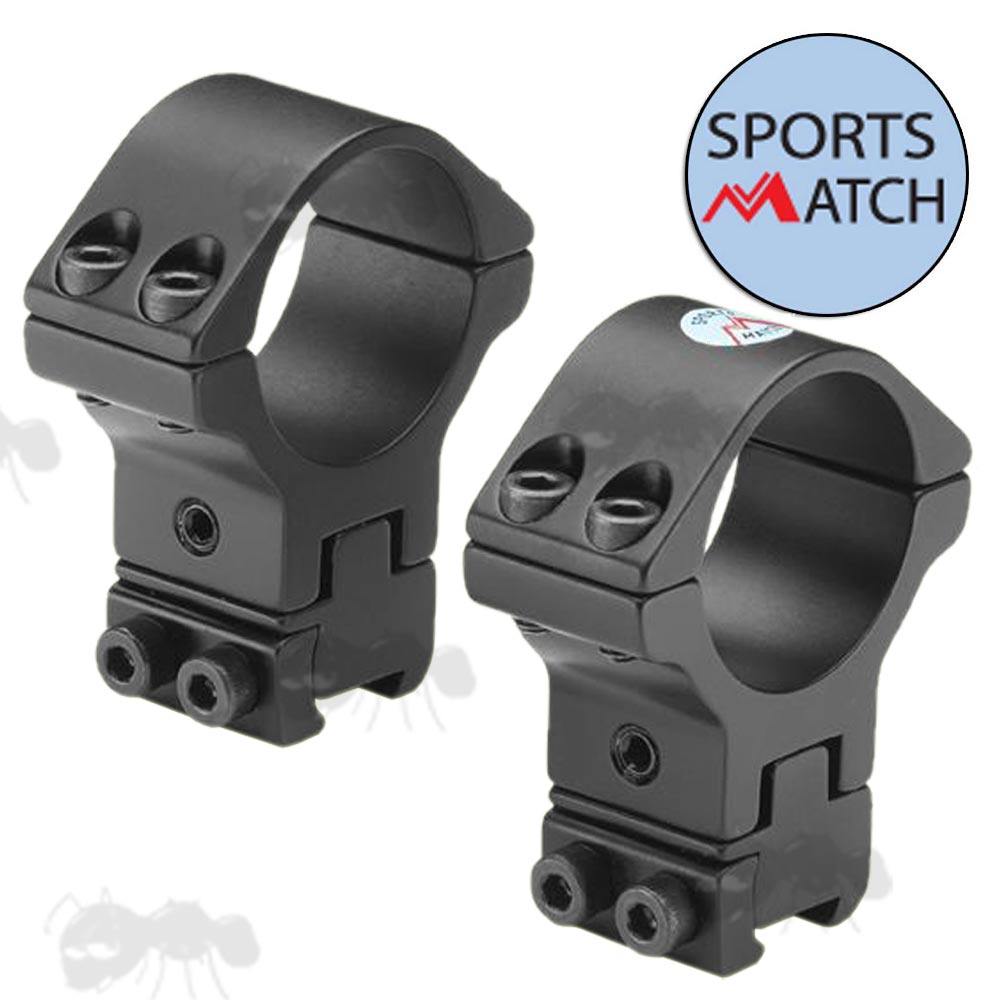

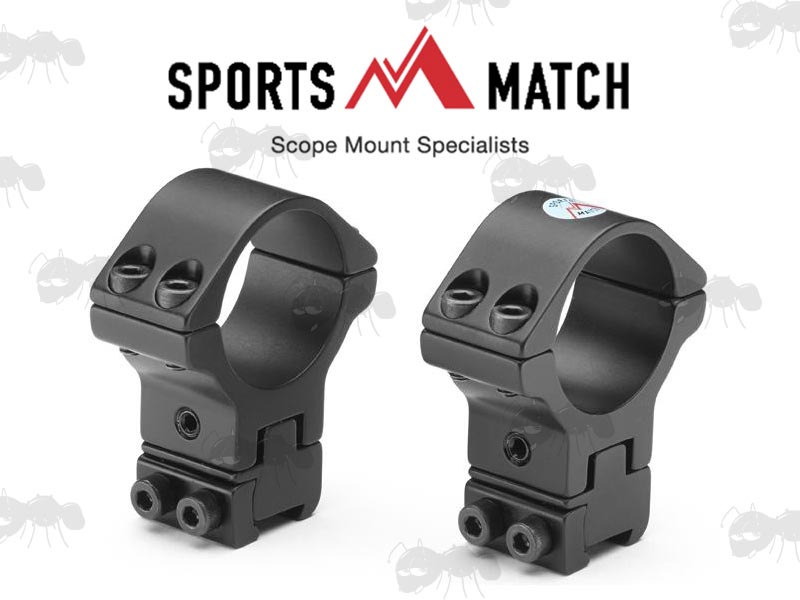

30mm ~ FULLY ADJUSTABLE£102.00p per pair
SOLD OUT
For 1 3/16 / 30mm diameter body tube rifle scopes.
Elevation ~ 25mm - 27.5mm.
Weight ~ 120 grams.
Adjustable for windage, elevation / height.

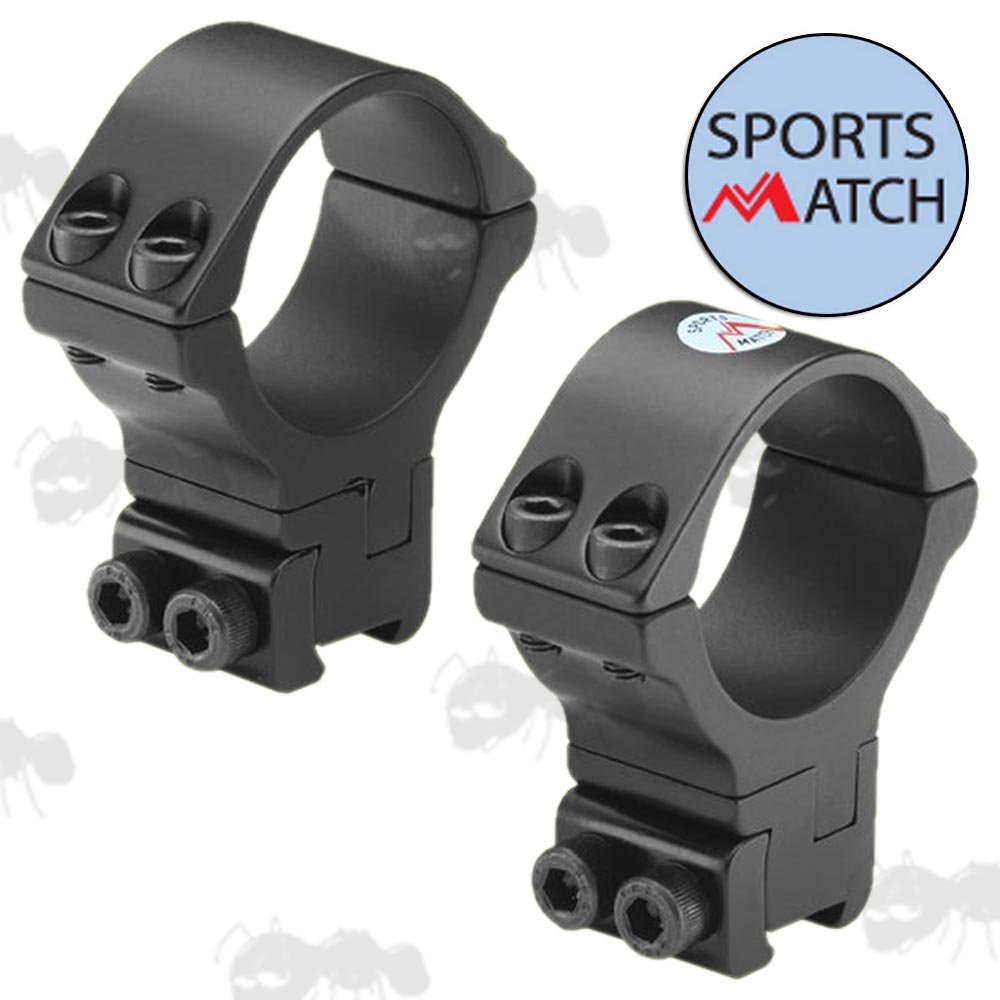

34mm ~ ADJUSTABLE£88.20p per pair
SOLD OUT
For 34mm diameter body tube rifle scopes.
Elevation ~ 24mm - 25.3mm.
Weight ~ 133 grams.
Adjustable for elevation / height.
Please Note: We can not accept returns on SportsMatch mounts if removed from the packaging
Made in the United Kingdom.
Two piece, high-profile mounts.
Fits 9.5mm - 11.5mm wide dovetail rails.
Ring thickness ~ 21mm.
The ATP66 30mm fully adjustable are a good match for the
Yukon Photon XT and RT digital night vision sights.
Double clamped, 21mm thick scope mounts for standard dovetail rifle rails.
Precision machined high grade aluminium alloy construction with a matte black finish.
Suits scopes with objective lenses up to 60mm diameter (on most rifles).
Allen key included for securing scope and mounting.
Does not include arrestor pin.
It is important that all the following instructions are followed in order for this product to function correctly.
Use the allen keys supplied in order for these products to function correctly and to avoid damage to your scope.
Prior to fitting ensure weapon is unloaded and made safe.
Max torque rating 25in/lbs.
All screws need checking for tightness periodically.
MORE INFORMATION ON THE FULLY ADJUSTABLE TWO PIECE MOUNTS:
Adjustable for windage, elevation / height.
Lateral position also adjustable for perfect dovetail centering.
The locking screws include an anti vibration coating, which locate into a hardened steel spigot to ensure no loss of zero.
Provides up to 75 MOA vertical adjustment.

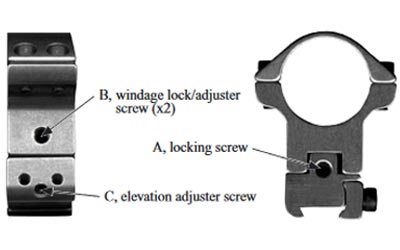

ATP65, 65E, 66, 66E Fully Adjustable 2 Piece Fitting Instructions:
- Loosen screws (A) 1/4 turn then fit mounts and scope to rifle in the usual way.
- Re-tighten screws (A) firmly, shoot a five shot group at approximately 25 metres and measure vertical and lateral distance between the aiming point and actual point of impact.
Elevation Adjustment:
- Loosen screws (A) 1/4 turn (MUST BE BOTH MOUNTS).
- Loosen screw (B) above screw (C) 1/4 turn MAXIMUM (BOTH MOUNTS).
- The point of impact is adjusted by turning screw (C) on the rear mount.
Clockwise to raise point of impact and anti-clockwise to lower, 1/4 turn is approximately 30mm at 25 metres. - Re-tighten screws (B) firmly above screws (C).
- Re-tighten screws (A) firmly.
- Shoot another five shot group and repeat steps 1 to 5 if necessary.
Windage Adjustment:
- Loosen screws (A) (MUST BE BOTH MOUNTS).
- Point of impact is adjusted by loosening rear mount screw (B) 1/4 turn on one side only. i.e. turning the left hand screw (as viewed from rear of scope) anti-clockwise, will move point of impact to the right and vice versa. 1/4 turn is approximately 40mm at 25 metres.
- Tighten screw (B) on OPPOSITE side of rear mount firmly.
- Re-tighten screws (A) firmly.
- Shoot another five shot group and repeat steps 1 to 4 if necessary.
Please note: For instructional purposes, all adjustment references have been made using the rear mount only. If required the front mount can be adjusted in the same way.
Both front and rear mounts can also be adjusted laterally (simultaneously) to align with the centre line of the barrel, as well as vertically (simultaneously) to provide different heights.
The above figures are purely for guidance as individual rifle / scope / pellet combinations can cause considerable variations.
Final adjustments to point of impact should be made using the scope turrets.
MORE INFORMATION ON THE ELEVATION AND HEIGHT ADJUSTABLE TWO PIECE MOUNTS:
Adjustable for elevation / height.
The locking screws include an anti vibration coating, which locate into a hardened steel spigot to ensure no loss of zero.
Provides up to 75 MOA vertical adjustment.
ATP61 30mm, ATP34 34mm Adjustable Elevation / Height, Extra High Mounts Fitting Instructions:
- Easyfit recoil pin included.
- Fit mounts and scope to rifle in usual way and check adjuster locking screws (A) are securely tightened.
- Shoot a five shot group at approximately 25 yards, measure vertical distance from aiming point.
- To correct elevation loosen locking screws (A) on front and rear mount using 2.5mm allen key.
Turn screw (B) clockwise to lift rear of scope using 2mm allen key (ΒΌ turn = approx 22mm at 25 yards).
Re-tighten locking screws (A) FIRMLY.
To lower rear of scope undo locking screws (A), push down on top of rear mount and turn adjuster screw (B) anti-clockwise as required.
Re-tighten locking screws FIRMLY.
Note: Both front and rear mount adjusters can be used to lift scope evenly if required.
Maximum adjustment is 2 turns which equals 1.3mm of full adjustment.
