ADJUSTABLE SCOPE RINGS FOR WEAVER RAILS
Proudly made in the United Kingdom

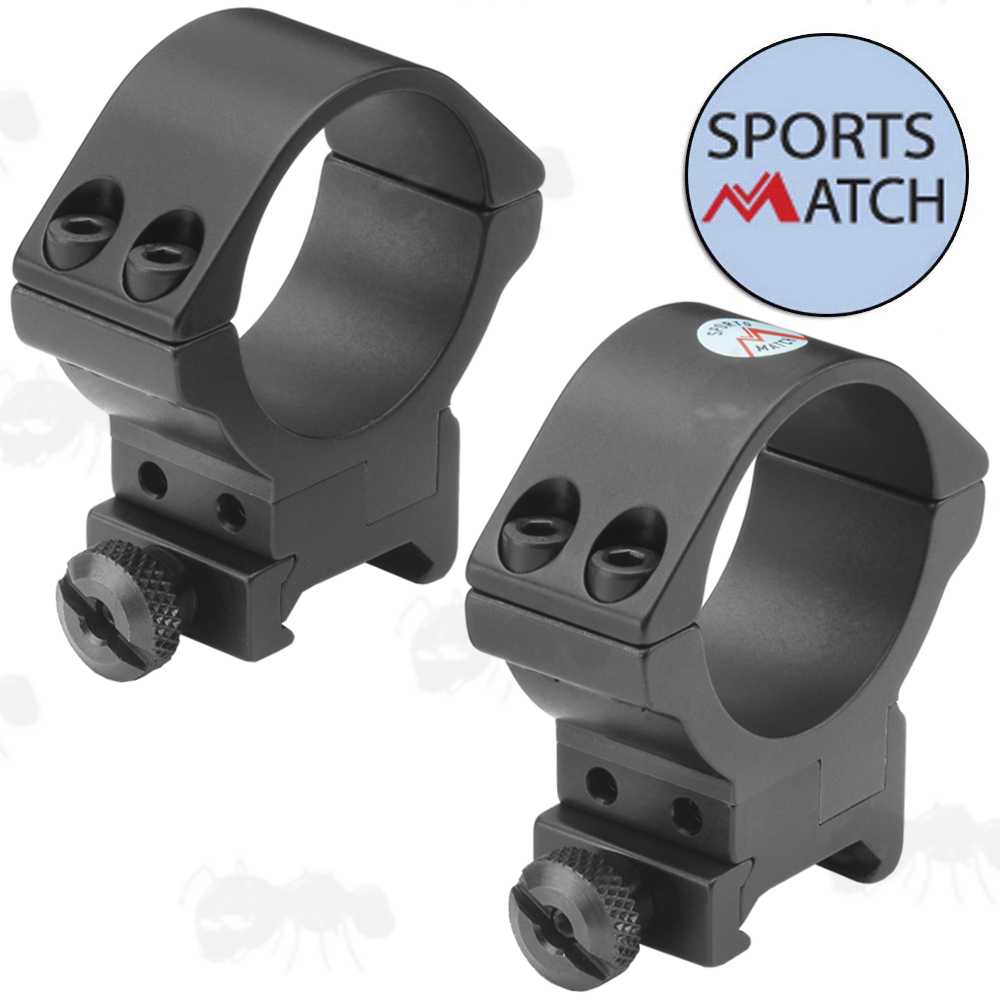

SPORTSMATCH ADJUSTABLE SCOPE RINGS
TWO PIECE ~ 30mm£99.00p per pair
SOLD OUT
Elevation ~ 21mm - 22.5mm.
For up to 56mm lens diameter (on most rifles).
Weight ~ 134 grams.
Adjustable for elevation and height.
TWO PIECE ~ 30mm£124.80p per pair
SOLD OUT
Elevation ~ 26.5mm - 29mm.
For up to 60mm lens diameter (on most rifles).
Weight ~ 140 grams.
Adjustable for windage, elevation and height.
Please Note: We can not accept returns on SportsMatch mounts if removed from the packaging
Made in the United Kingdom.
Two piece, high-profile mounts.
For 1 3/16 / 30mm diameter body tube rifle scopes.
Fits 20mm wide Weaver / Picatinny rails.
Ring thickness ~ 21mm.
Double clamped, 21mm thick scope mounts for Weaver/Picatinny rifle rails.
Precision machined high grade aluminium alloy construction with a matte black finish.
Allen key included for securing scope and mounting.
It is important that all the following instructions are followed in order for this product to function correctly.
Use the allen keys supplied in order for these products to function correctly and to avoid damage to your scope.
Prior to fitting ensure weapon is unloaded and made safe.
Max torque rating 25in/lbs.
All screws need checking for tightness periodically.
MORE INFORMATION ON THE ELEVATION AND HEIGHT ADJUSTABLE TWO PIECE MOUNTS:
Adjustable for windage and height.
Lateral position also adjustable for perfect weaver centering.
High tensile construction with a totally solid mechanism utilising fasteners with a special anti vibration coating to ensure no loss of zero.
Includes square section hardened steel arrestor bolt.
Provides up to 50 MOA adjustment on elevation and height.
30mm diameter body tube high range scope rings suitable for all Weaver / Picatinny rails.
Ideal for long range shooting.
This product is designed to maintain exact alignment with the scope during adjustment provided these instructions are followed correctly.

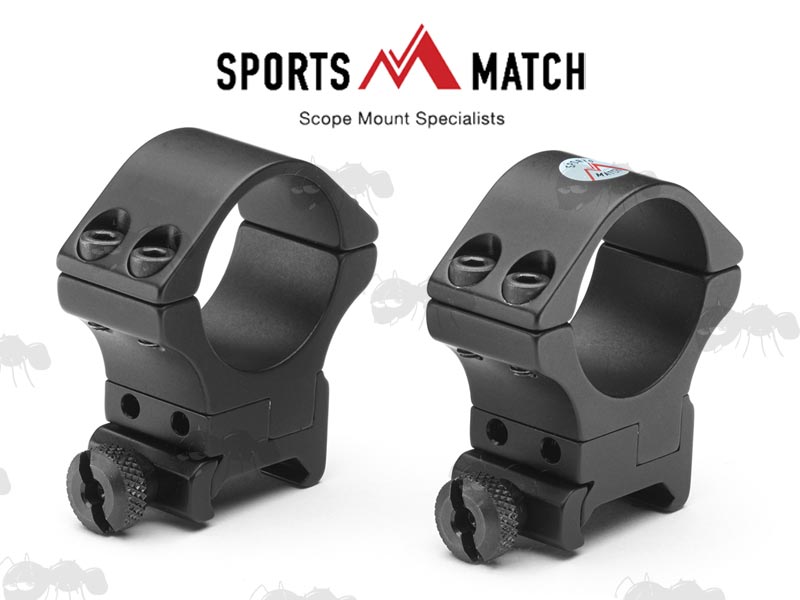

ATP72 – Adjustable Elevation and Height Fitting Instructions:
- Ensure your rifle is unloaded prior to fitting this product.
- Fit mounts and scope to rifle in usual way and check adjuster locking screws (A) are securely tightened*.
- Shoot a five shot group and note the point of impact.
- To adjust elevation, loosen locking screws (A) on front and rear mounts.
Turning the adjuster screw (B) clockwise on either mount will increase the angle by 4 MOA (minutes of angle) per 1/4 turn.
The maximum adjustment is 3 turns (50 MOA. These figures are approximate and based on a mount spacing of 80mm. Re-tighten locking screws (A) FIRMLY. - Shoot another 5 shot group and repeat step 4 as necessary.
- To lower mounts undo locking screws (A), on front and rear mounts, push firmly downwards on the top cap (C) whilst turning screw (B) anticlockwise as required.
Retighten locking screw (A) FIRMLY.
Both front and rear mount adjusters can be used to lift scope evenly if required.
*In some cases it may be necessary to adjust mounts up before fitting for clearance reasons.
If this is the case we recommend that you leave screws (A) loose until scope is fitted.
MORE INFORMATION ON THE FULLY ADJUSTABLE TWO PIECE MOUNTS:
Adjustable for windage, elevation and height.
Lateral position also adjustable for perfect weaver centering.
The locking screws include an anti vibration coating, which locate into a hardened steel spigot to ensure no loss of zero.
Includes square section hardened steel arrestor bolt.
Provides up to 65 MOA vertical adjustment.
30mm diameter body tube high range scope rings suitable for all Weaver / Picatinny rails.
Ideal for Yukon Photon XT and RT digital night vision sights.

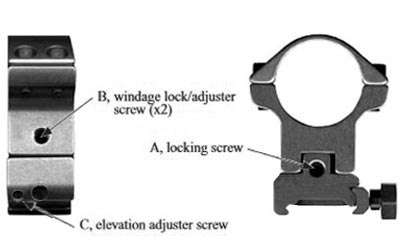

ATP90 Fully Adjustable 2 Piece Fitting Instructions:
- Loosen screws (A) 1/4 turn then fit mounts and scope to rifle in the usual way.
- Re-tighten screws (A) firmly, shoot a five shot group at approximately 25 metres and measure vertical and lateral distance between the aiming point and actual point of impact.
Elevation Adjustment:
- Loosen screws (A) 1/4 turn (MUST BE BOTH MOUNTS).
- Loosen screw (B) above screw (C) 1/4 turn MAXIMUM (BOTH MOUNTS).
- The point of impact is adjusted by turning screw (C) on the rear mount.
Clockwise to raise point of impact and anti-clockwise to lower, 1/4 turn is approximately 30mm at 25 metres. - Re-tighten screws (B) firmly above screws (C).
- Re-tighten screws (A) firmly.
- Shoot another five shot group and repeat steps 1 to 5 if necessary.
Windage Adjustment:
- Loosen screws (A) (MUST BE BOTH MOUNTS).
- Point of impact is adjusted by loosening rear mount screw (B) 1/4 turn on one side only. i.e. turning the left hand screw (as viewed from rear of scope) anti-clockwise, will move point of impact to the right and vice versa. 1/4 turn is approximately 40mm at 25 metres.
- Tighten screw (B) on OPPOSITE side of rear mount firmly.
- Re-tighten screws (A) firmly.
- Shoot another five shot group and repeat steps 1 to 4 if necessary.
Please note: For instructional purposes, all adjustment references have been made using the rear mount only.
If required the front mount can be adjusted in the same way.
Both front and rear mounts can also be adjusted laterally (simultaneously) to align with the centre line of the barrel, as well as vertically (simultaneously) to provide different heights.
The above figures are purely for guidance as individual rifle / scope / pellet combinations can cause considerable variations.
Final adjustments to point of impact should be made using the scope turrets.
