SEE-THRU SCOPE RINGS FOR DOVETAIL RAILS
Proudly made in the United Kingdom
SPORTSMATCH SEE-THRU SCOPE RINGS
SOLD OUT Condition: New, in packaging
Please Note: We can not accept returns on SportsMatch mounts if removed from the packaging
Made in the United Kingdom.

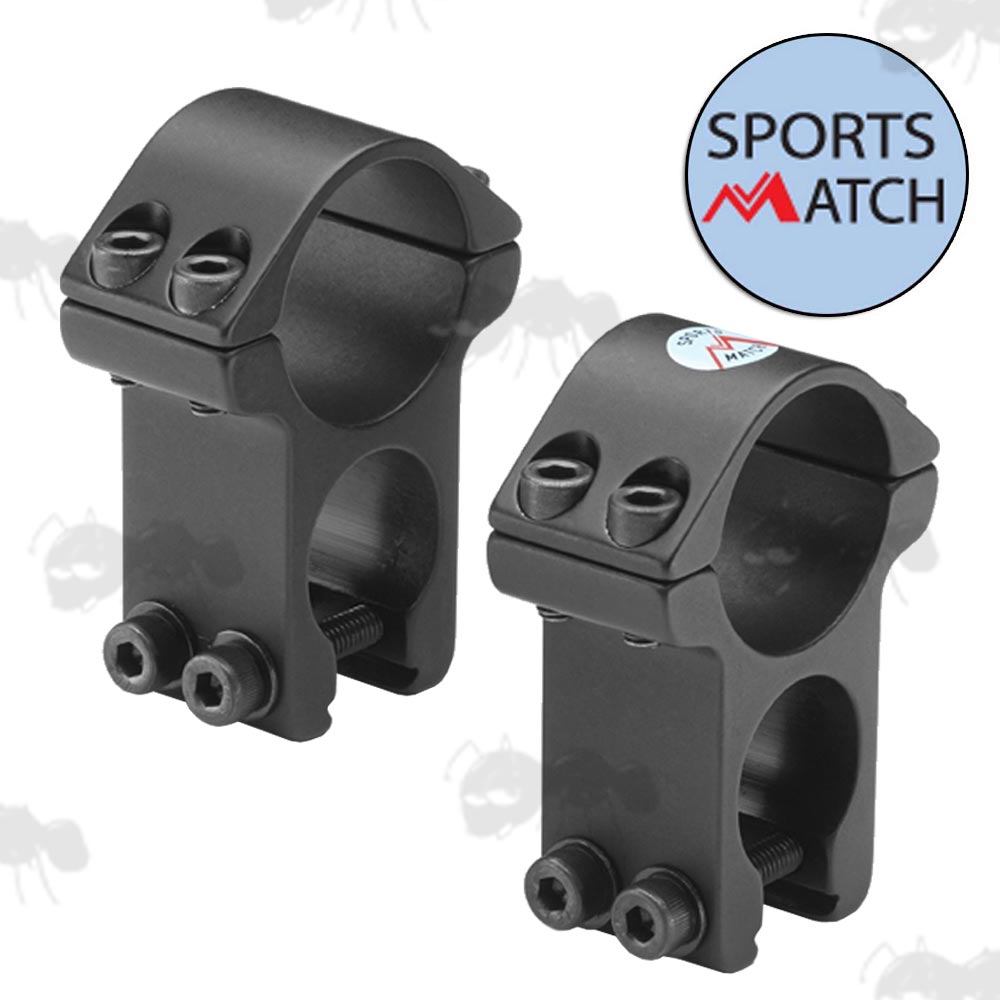

High profile two piece mounts.
Fits 9.5mm - 11.5mm wide dovetail rails.
For 1" / 25mm diameter body tube rifle scopes.
For scopes with up to 40mm diameter lens.
Elevation ~ 25mm.
Weight ~ 92 grams.
Double clamped, 21mm thick scope mounts for standard dovetail rifle rails.
Precision machined high grade aluminium alloy construction with a matte black finish.

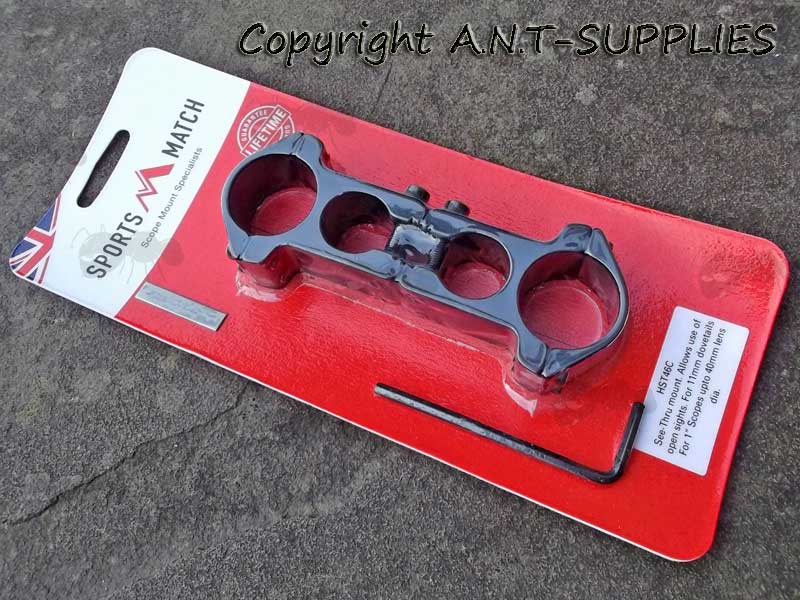

Allen key included for securing scope and mounting to rail.
Does not include arrestor pin.
Allows use of iron sights with rifle scopes up to 40mm lens diameter (on most rifles).
Fitting SportsMatch See-Thru Mounts:

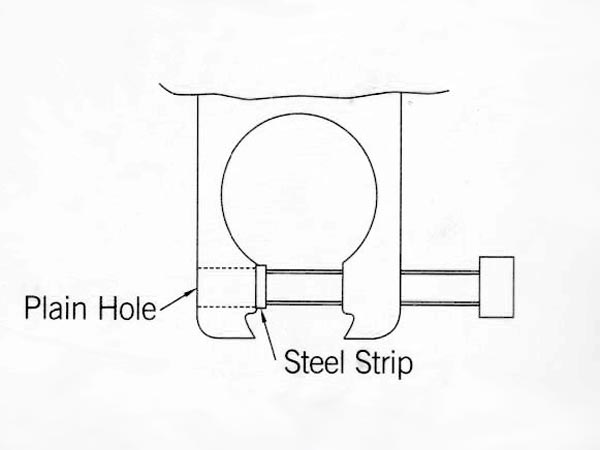

If groove on rifle is too wide for the mount to slide on or fit over, remove the two side screws (M4 x 25mm) and washers, refit the screws the reverse way and insert the metal strip (included), as shown below.
By then gradually tightening the screws, the legs of the mount can spread apart until the mount will fit over the groove.
Release the tension on the screws, remove the metal strip and refit in the original position and tighten.
Note: Do not exceed a torque of 4.5lb/ft (6NM) on any of the screws.
They should fit BSA Meteor air rifles but we are yet to have confirmation on this.
Also available ~ SportsMatch 15mm Rail Scope Mounts.
