TORX HEAD INSERT SCREWS

Replacement / upgrade screws.

PACK OF INSERT SCREWS

£3.60p (5.7mm) & £4.80p (5.0mm) for ten
Size
Condition: New
Two M4 Thread Insert Screws with T15 Torx Heads
*SPECIAL OFFER*
Buy any mix of three packs or more for 20% off

Pack of ten high-quality torx head insert screws for mounting carbide inserts on lathes, milling machines etc.

Made from 12.9 alloy steel.

Overall length choice of ~ 7mm, 8mm or 9mm.

Head type ~ flat countersunk.

Head diameter choice of ~ 5.0mm or 5.7mm.

Thread ~ M4 machine screw.

Thread pitch ~ 0.7.

Insert screw length is measured on the overall length, including the head.

Tool required ~ Torx T15 (not included).

Please Note: these images are stock photos and may not
be showing the corresponding thread length, diameter etc.

We can supply other sizes by special order:

M2 ~ 5mm, 6mm, 8mm.
M2.5 ~ 5mm, 6mm, 8mm.
M3 ~ 8mm, 10mm, 12mm.
M3.5 ~ 8mm, 10mm, 12mm.
M4 ~ 6mm, 7mm, 8mm, 9mm, 10mm, 12mm.
M5 ~ 12mm, 15mm.
M6 ~ 18mm.

Seven M4 Thread Insert Screws with T15 Torx Heads

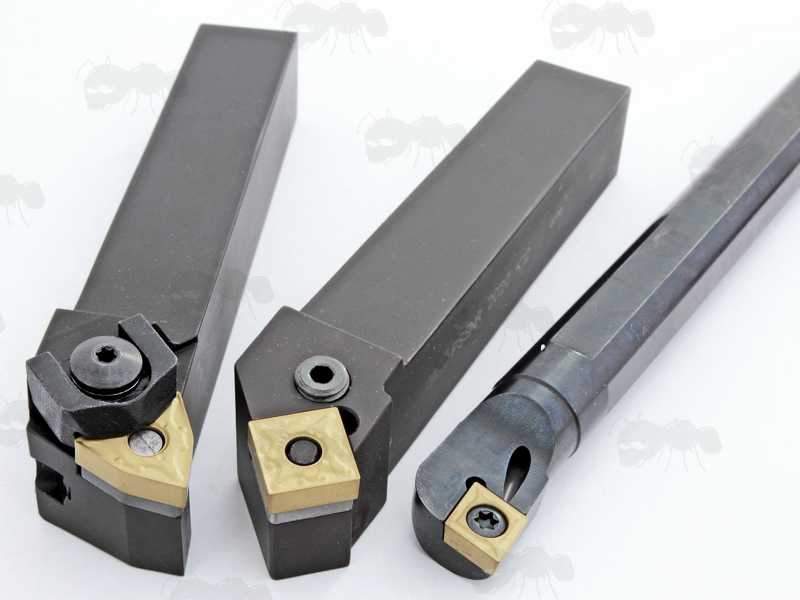

EXAMPLE OF FITTING TO MACHINING TOOL CARBIDE INSERTS:

Insert Screws Shown Fitted to Milling Tools Carbide Inserts

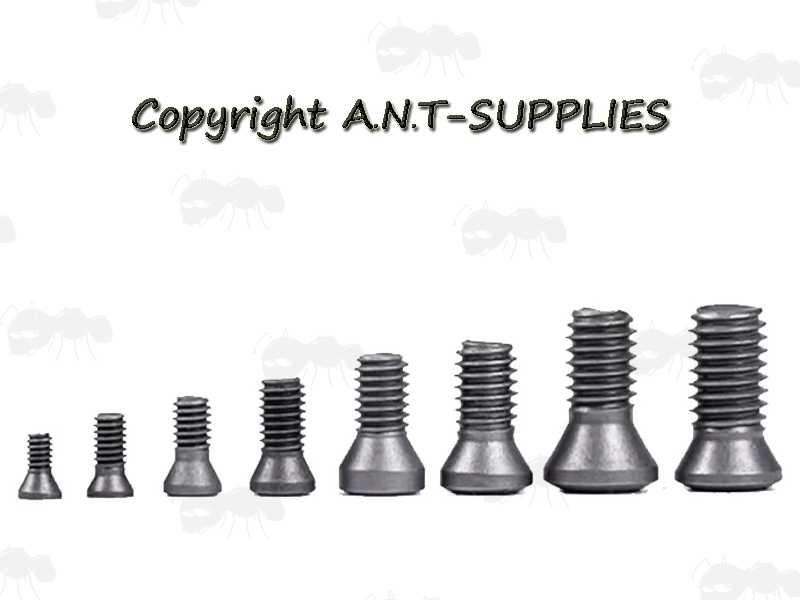

Seven Assorted Sizes of Insert Screws with Torx Heads

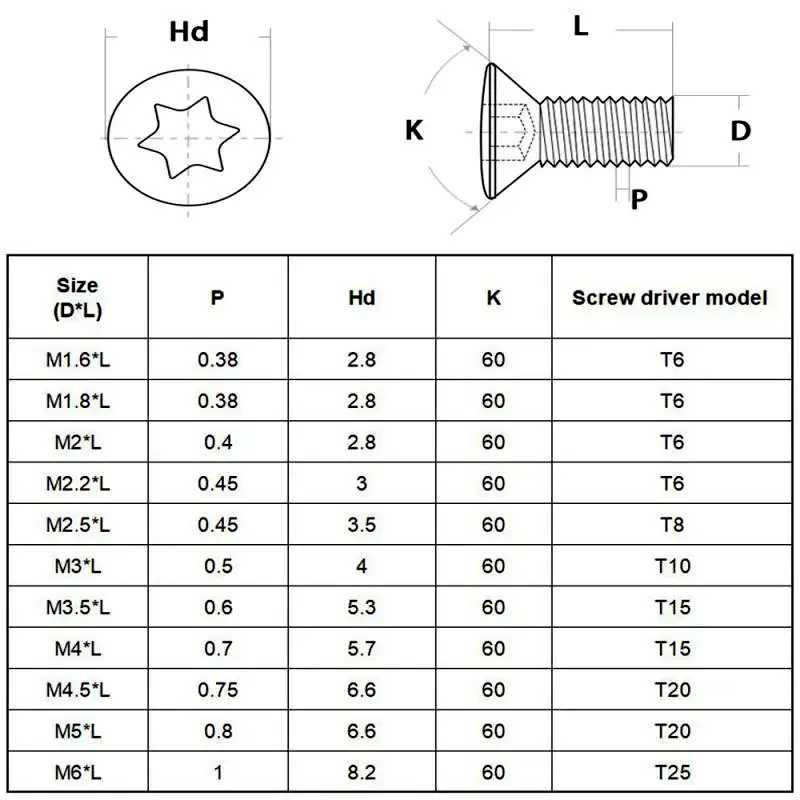

Insert Screws Specs Table Graphic
