SPORTSMATCH RECOIL PIN

SportsMatch UK Logo

Replacement / spare roll pins.

UK Animated Flag
Proudly made in the United Kingdom

REPLACEMENT EASYFIT SPORTSMATCH RECOIL PIN

SportsMatch Replacement Rolled Recoil Arrestor PinFOR MOST MOUNTS

£3.00p each

Length ~ 10mm.
SportsMatch Replacement Rolled Recoil Arrestor Pin for DM60 and DM70 Dampa MountsFOR DM60 & DM70 DAMPA MOUNTS

£3.00p each

Length ~ 8mm.
Options
Condition: New

EasyFit replacement anti-recoil arrestor pin from SportsMatch UK.

Two lengths available, most SportsMatch mounts that accept a recoil pin need the 10mm length, the dovetail rail Dampa mounts (DM60 / DM70) that accept a recoil pin need the 8mm length.

Made from steel.

Diameter ~ 4mm.

Weight ~ 0.5 grams.

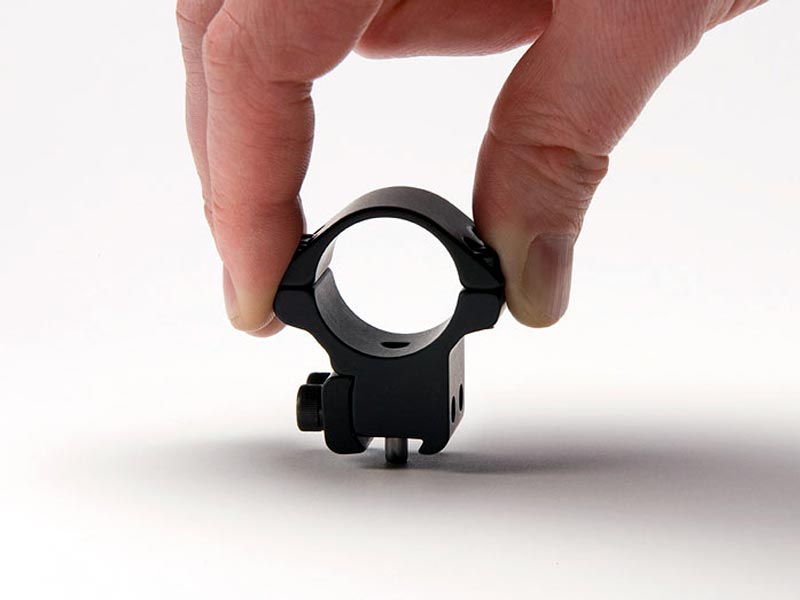

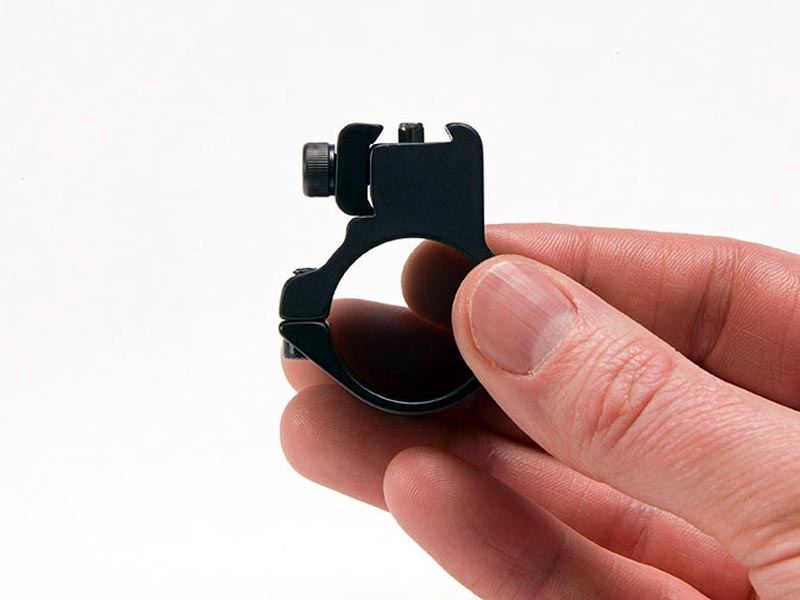

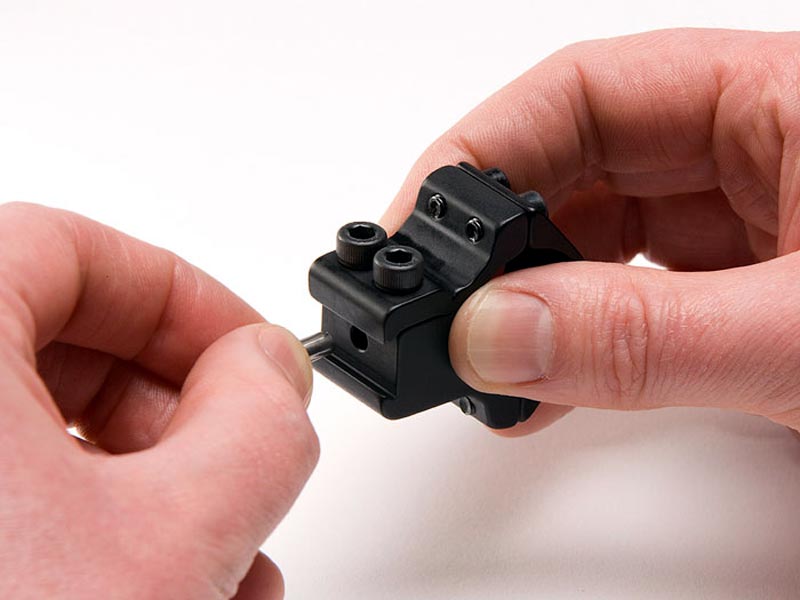

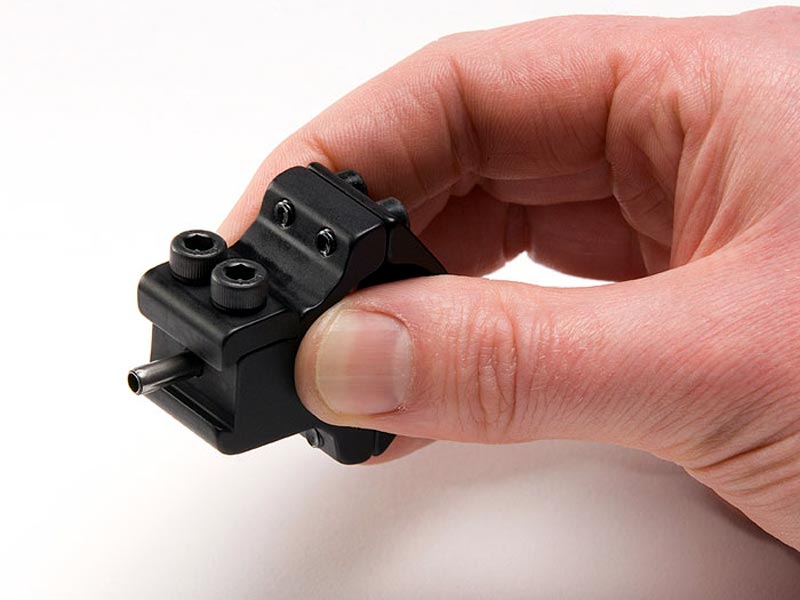

HOW TO FIT THE EASYFIT ARRESTOR PIN:

Fitting an EasyFit Arrestor Pin To a SportsMatch Mount
Fitting an EasyFit Arrestor Pin To a SportsMatch Mount
Fitting an EasyFit Arrestor Pin To a SportsMatch Mount
Fitting an EasyFit Arrestor Pin To a SportsMatch Mount

HOW TO REMOVE THE EASYFIT ARRESTOR PIN:

The easiest way is to firstly remove the dovetail clamp and then remove the arrestor pin with pliers as shown.

Alternatively the arrestor pin can be carefully tapped out using a suitable drift pin punch.

Pliers Removing EasyFit Arrestor Pin From a SportsMatch Mount

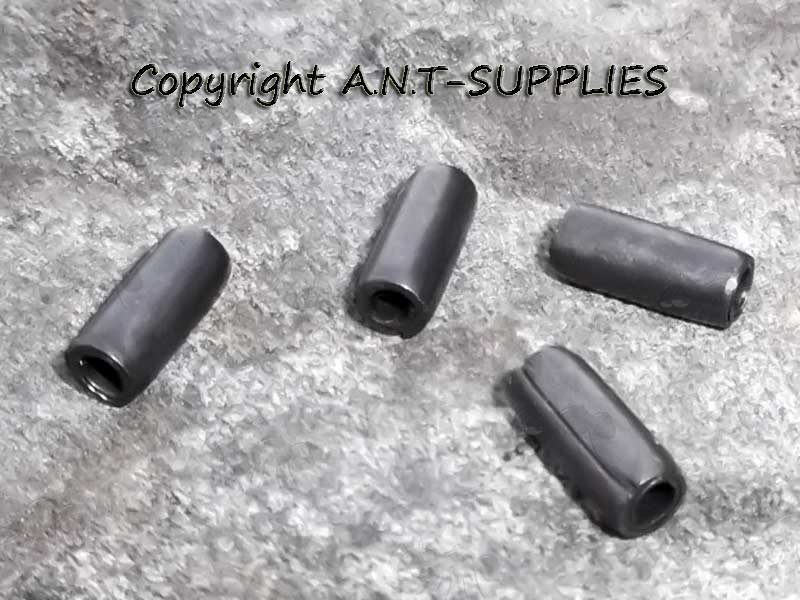

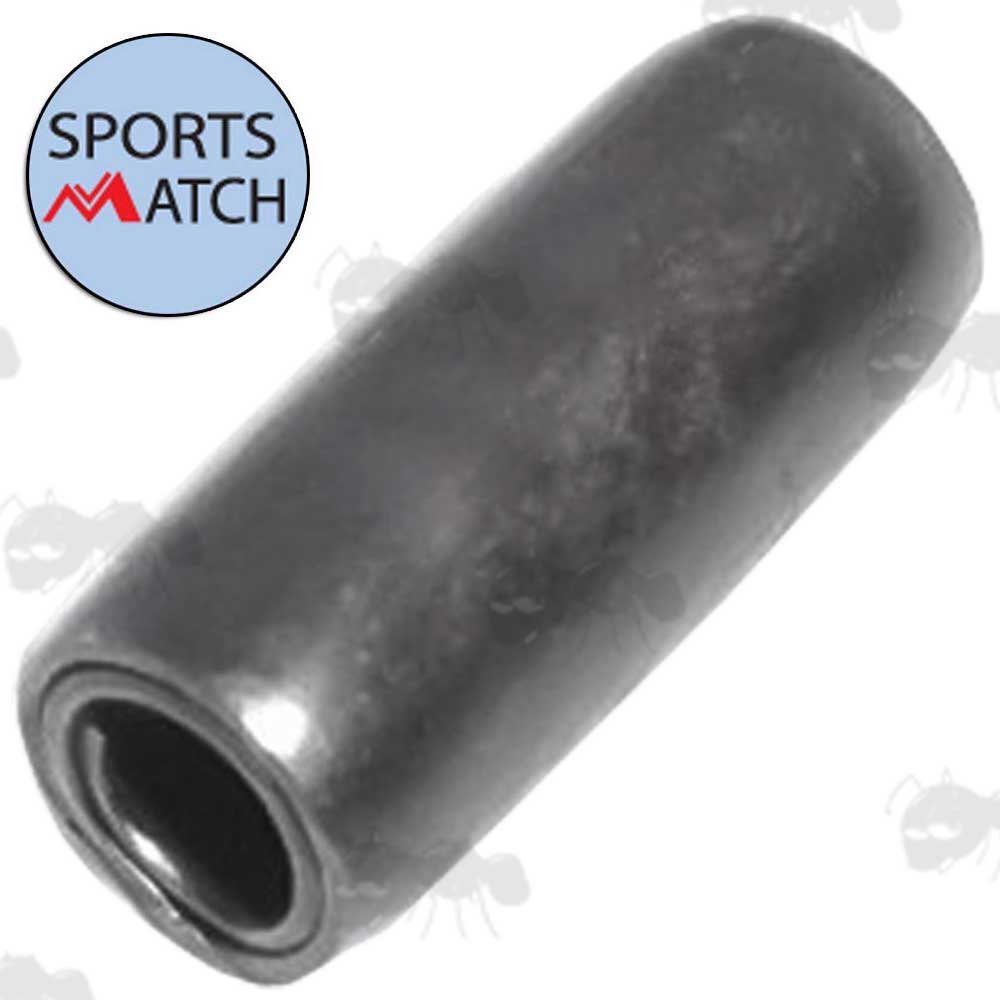

FOR MOST MOUNTS (10mm LONG):

Four SportsMatch Replacement Rolled Recoil Arrestor Pins

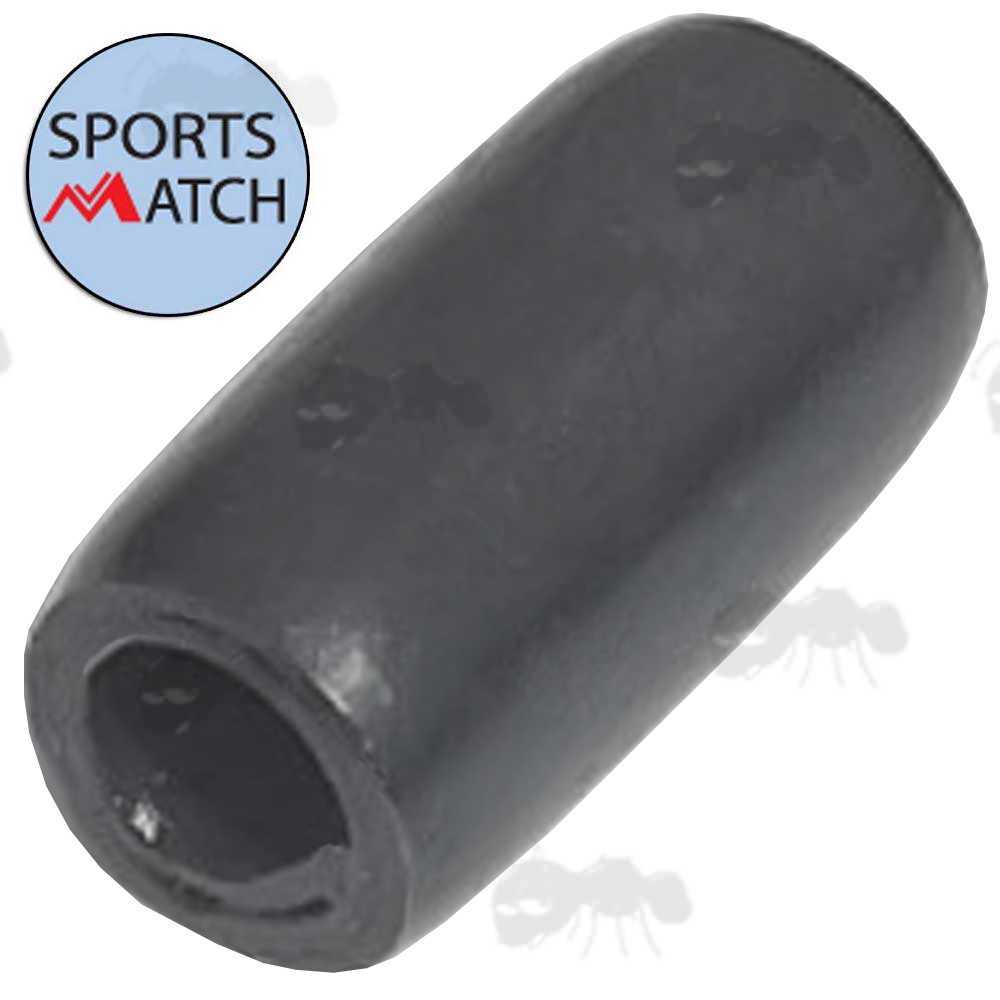

FOR DM60 & DM70 DAMPA MOUNTS (8mm LONG):

Four SportsMatch Replacement Rolled Recoil Arrestor Pins for DM60 and DM70 Dampa Mounts
