AIR ARMS MUZZLE END FITTING RAIL BASE MOUNT ADAPTERS
![Orange and Blue Air Arms Logo](../graphics/LOGO-AIR-ARMS-ORANGE-BLUE.jpg)
![UK Animated Flag](../graphics/FLAG-BRITAIN.gif)
Made in the United Kingdom
AIR ARMS MUZZLE END RAIL BASE MOUNT
Air Arms aluminium muzzle end with dovetail groove rail.
Provides a 9-11mm dovetail rail.
We have four metal railed muzzles available in three diameters.
Allows you to fit a front diopter sight to your Air Arms rifle.
They are not threaded, so can not be fitted at the same time as a silencer, our ABS adapters
on the link below can be fitted further along the barrel to still allow for a silencer.
The Air Arms grub screws can currently be requested to be included with the muzzle end without charge, but are available separately, as well as stainless steel grub screws.
Link for information on the ~ front diopter sight.
Now available ~ new design ABS muzzle rail adapters, for a wider range of rifle barrel diameters:
More information on each product:

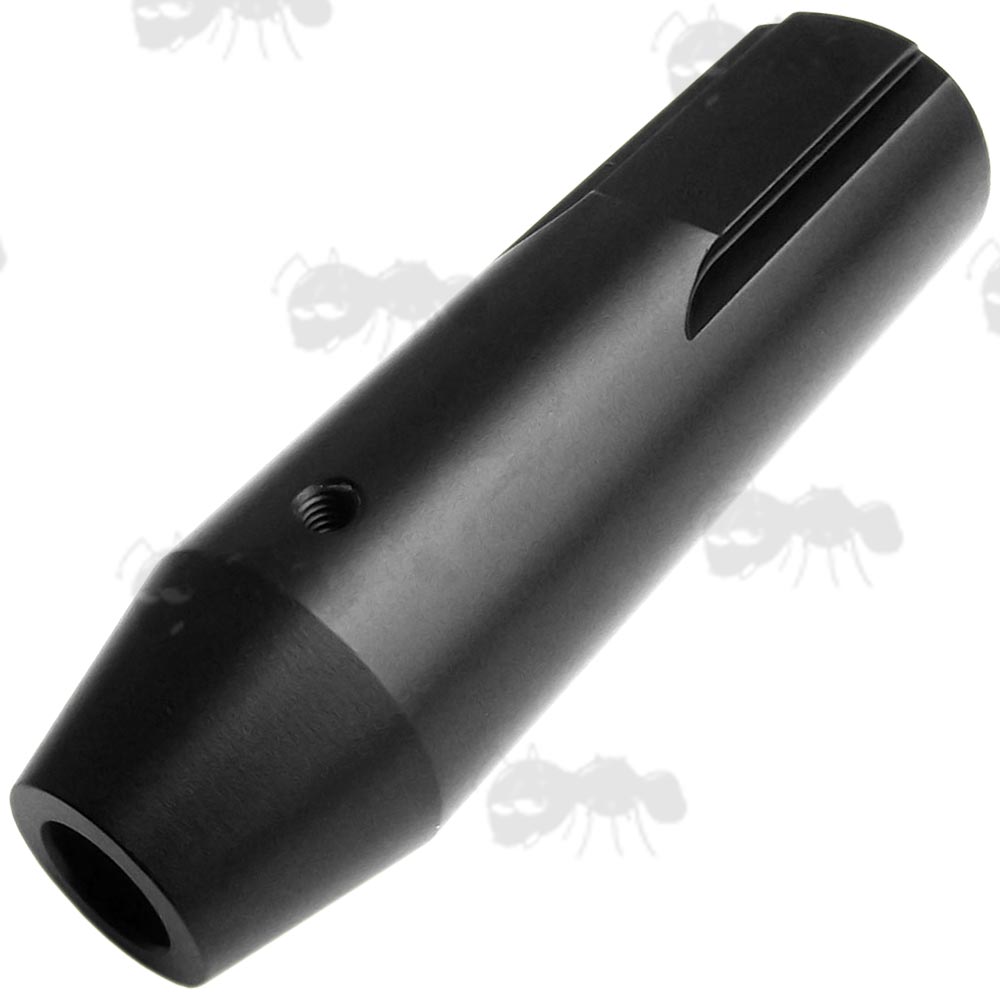

- Air Arms S410 railed muzzle end description for 10mm barrels:
Internal diameter ~ 10mm.
Length ~ 90mm.
Weighs ~ 60 grams.

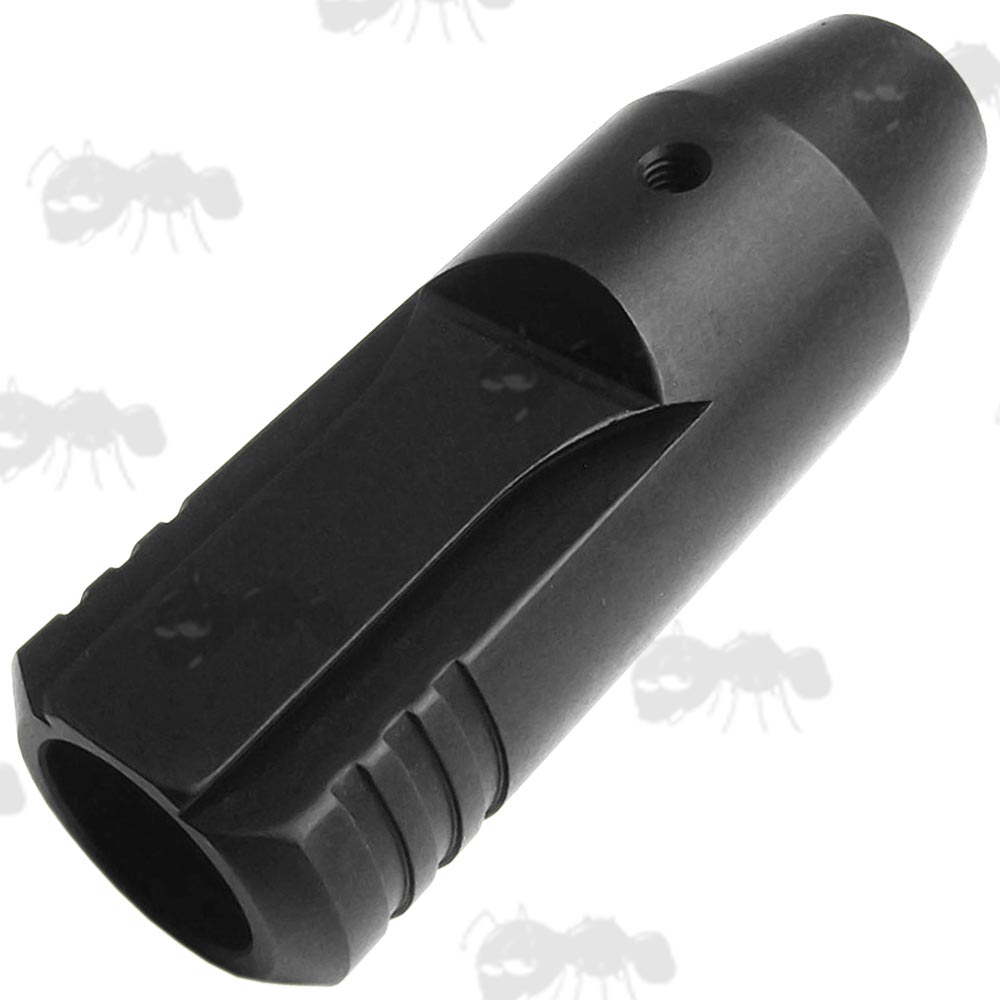

Requires the flat end grub screw.- Air Arms S200 railed muzzle end description for 15mm barrels:
Internal diameter ~ 15mm.
Length ~ 74mm.
Weighs ~ 43 grams.

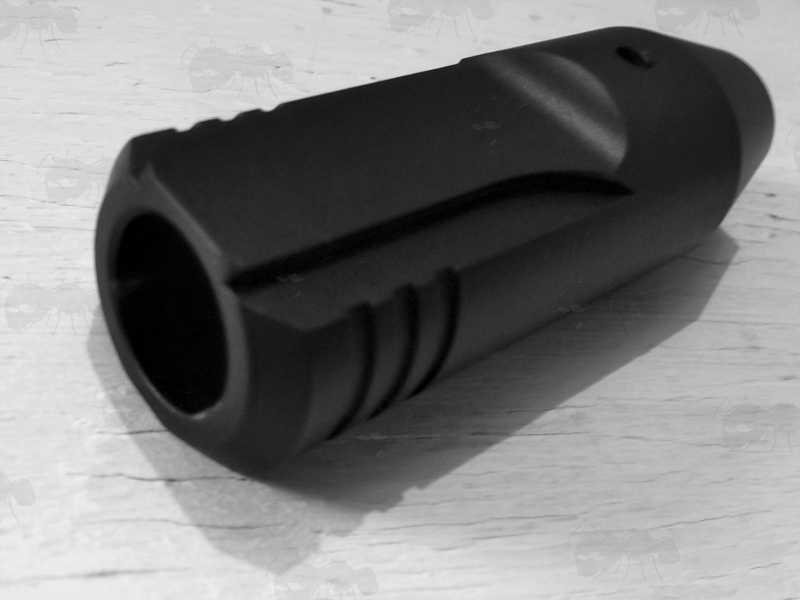

Requires the flat end grub screw.- Air Arms MPR Sporter railed muzzle end description for 14mm barrels:
Internal diameter ~ 14mm.
Length ~ 73mm (short version).
Weighs ~ 47 grams.

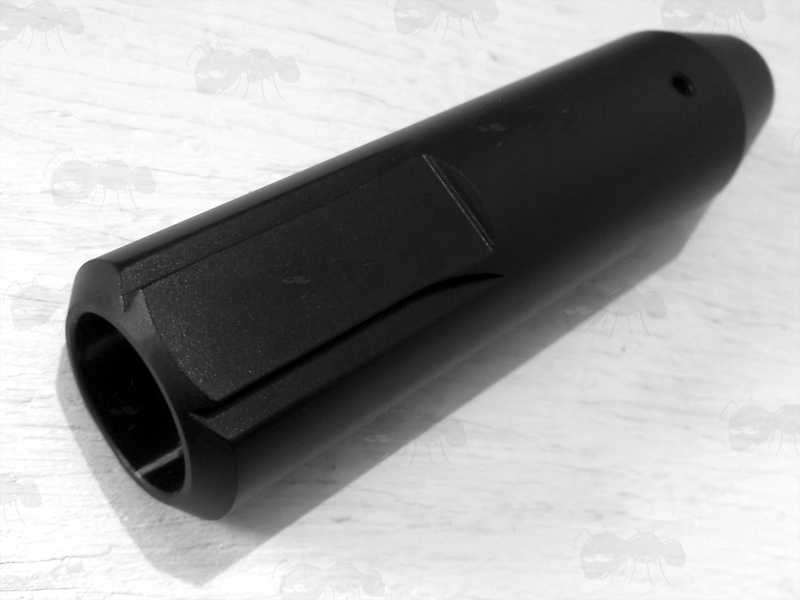

Requires the cone end grub screw.- Air Arms MPR Biathlon railed muzzle end description for 14mm barrels:
Internal diameter ~ 14mm.
Length ~ 101mm (short version).
Weighs ~ 62 grams.

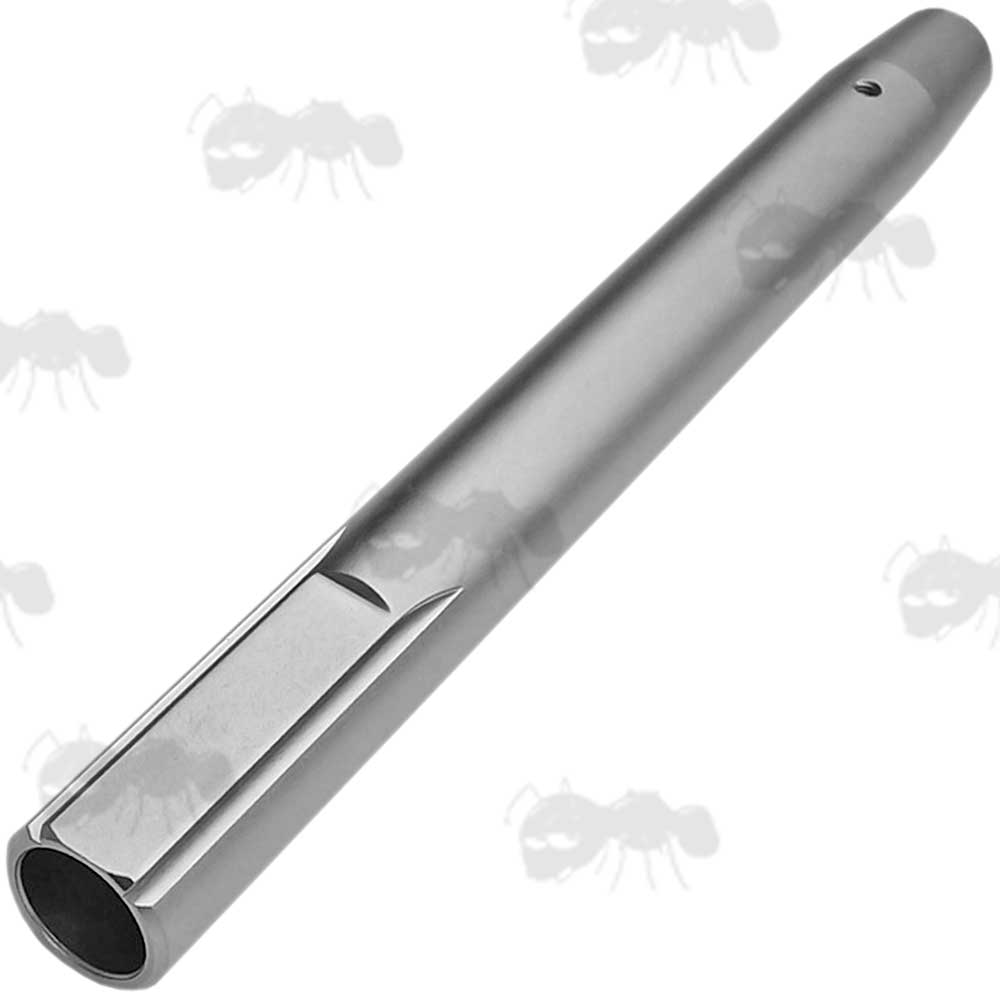

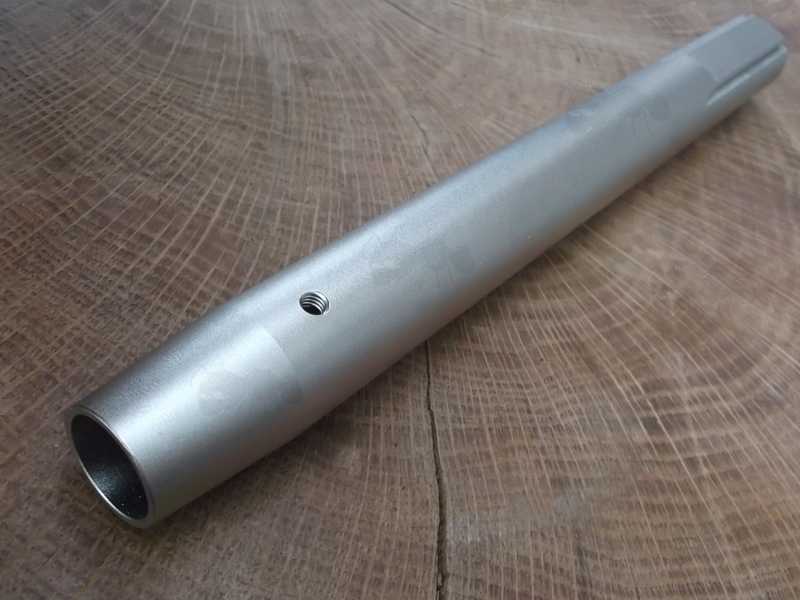

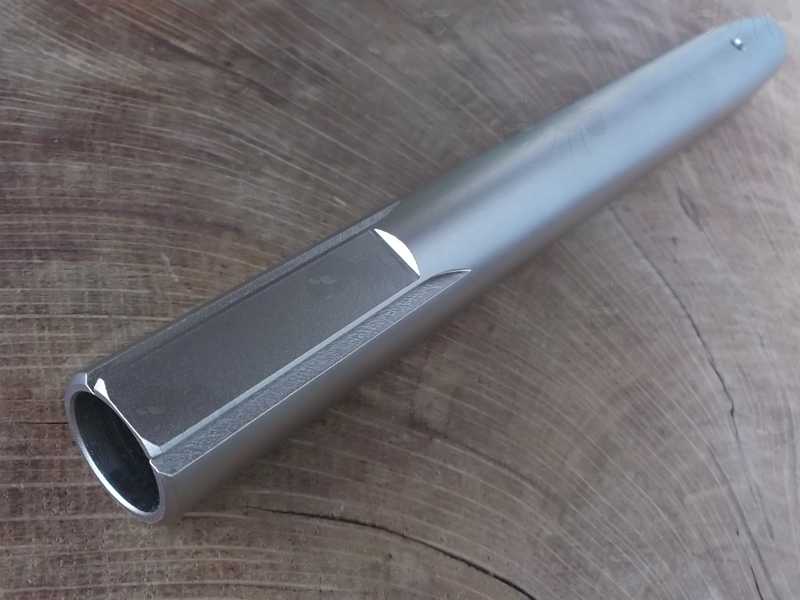

Requires the cone end grub screw.- Air Arms MPR Precision railed muzzle end description for 14mm barrels:
Internal diameter ~ 14mm.
Length ~ 200mm (long version).
Silver anodised finish.
Weighs ~ 68 grams.
Requires the cone end grub screw.

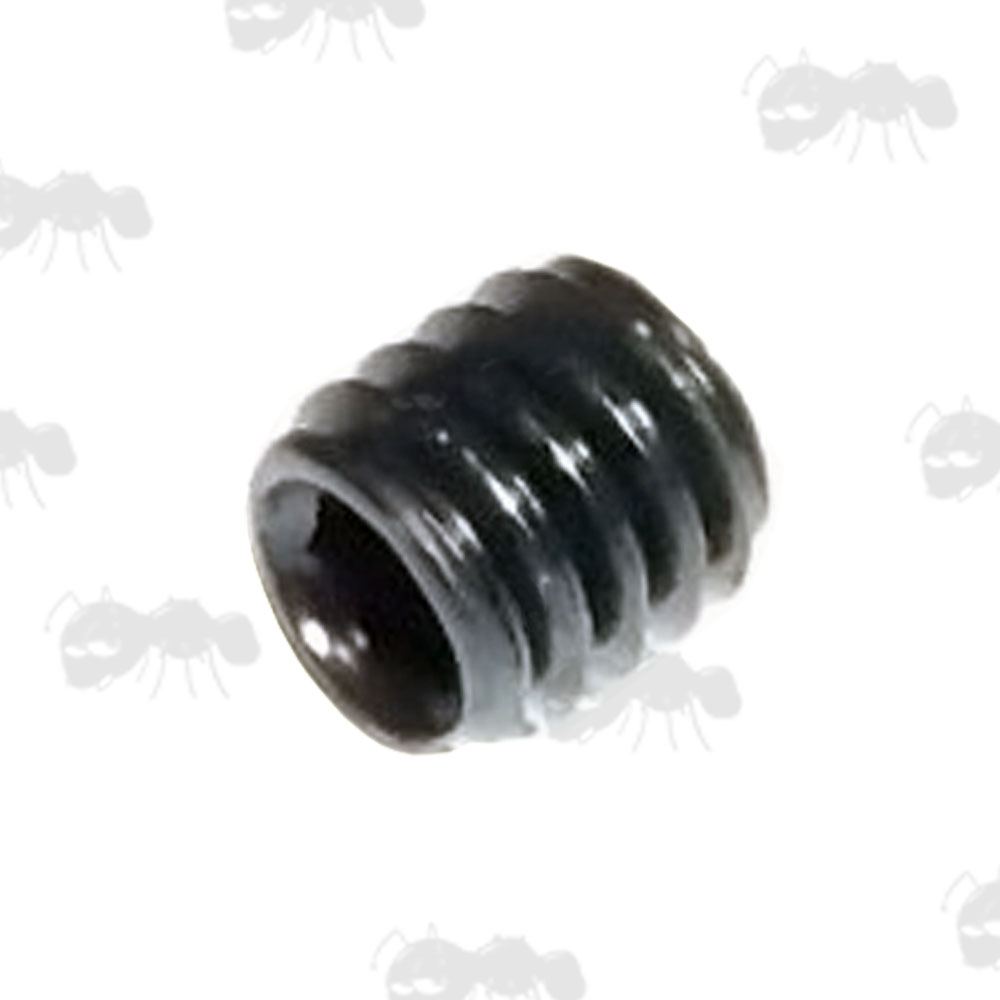

Also available ~ 80 gram weights to fit the MPR Precision Muzzle and MPR FT Muzzle ends.- Muzzle fitting flat end grub screw description:
Air Arms Spare Part Number TX228, flat base grub screw.
Secures the standard and dovetail muzzle on the S200, S400, S410, S510 and TX200.

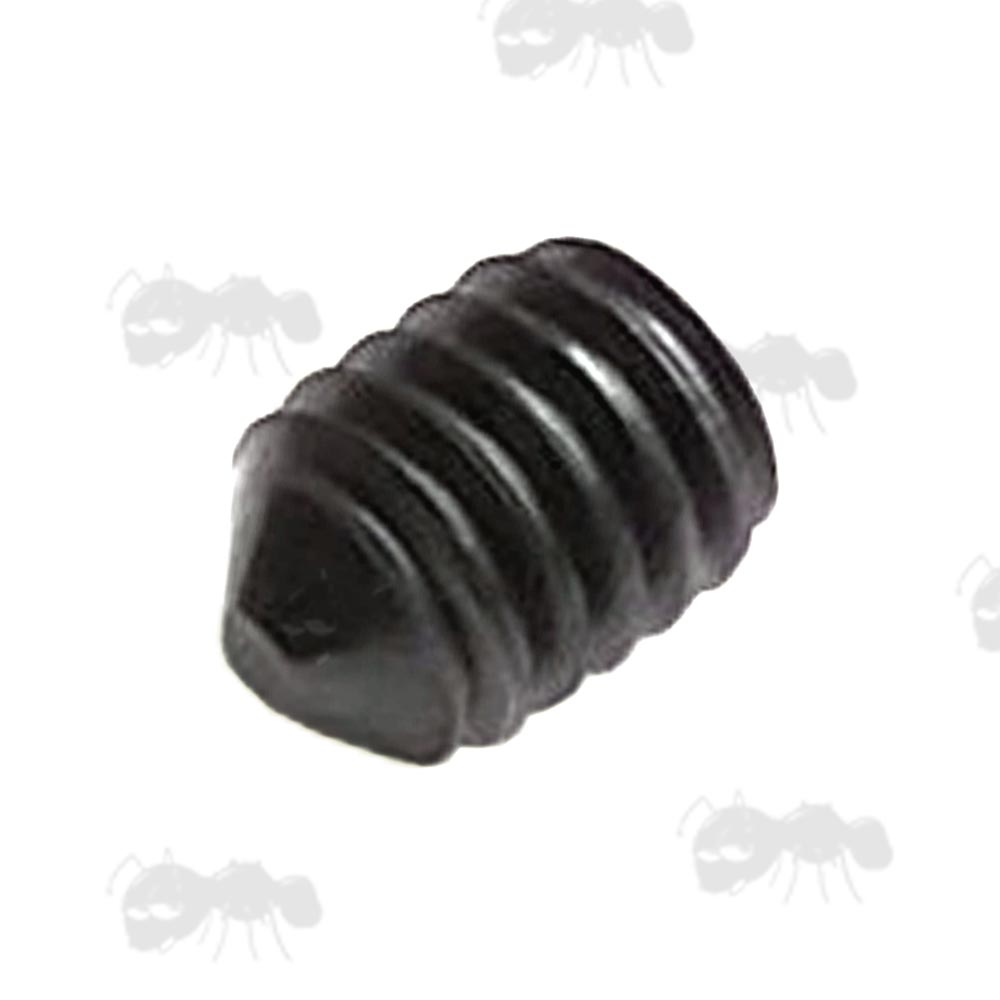

4mm long M4 thread.- Muzzle fitting cone end grub screw description:
Air Arms Spare Part Number JT228, cone base grub screw.
Secures the long and short dovetail muzzle on the MPR and Biathlon.
5mm long M4 thread.
More available from ~ Air Arms.
![Air Arms S200 Muzzle End with Dovetail Rail Groove](images/AIR-ARMS-S200-DOVETAIL-RAIL-MUZZLE-END-MAIN.jpg)
![Four Assorted Sized Air Arms Muzzle End with Dovetail Rail Groove](images/AIR-ARMS-DOVETAIL-RAIL-MUZZLE-END-SIZES.jpg)
Air Arms MPR 10m series exploded view:
![Exploded Spare Parts View of Air Arms MPR Rifle](images/AIR-ARMS-MPR-10m-BARREL-CYLINDER-BODY-SPARE-PARTS.jpg)

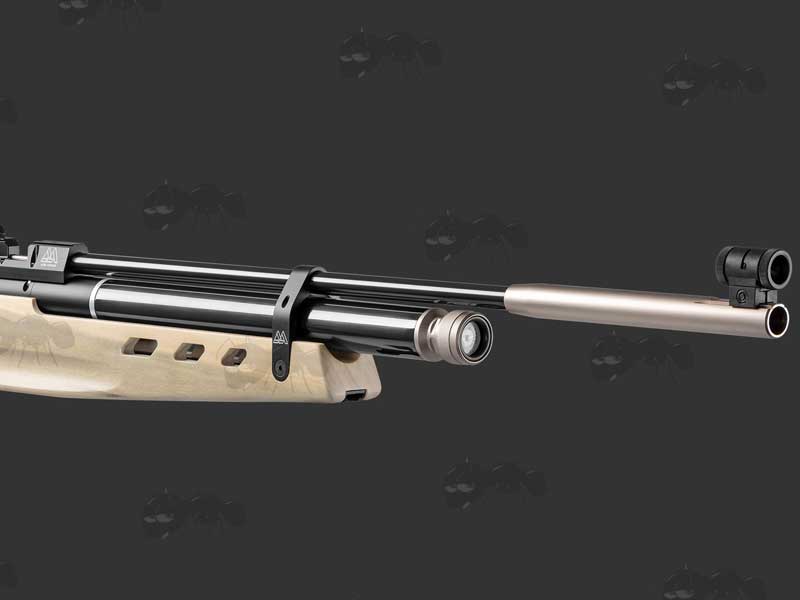

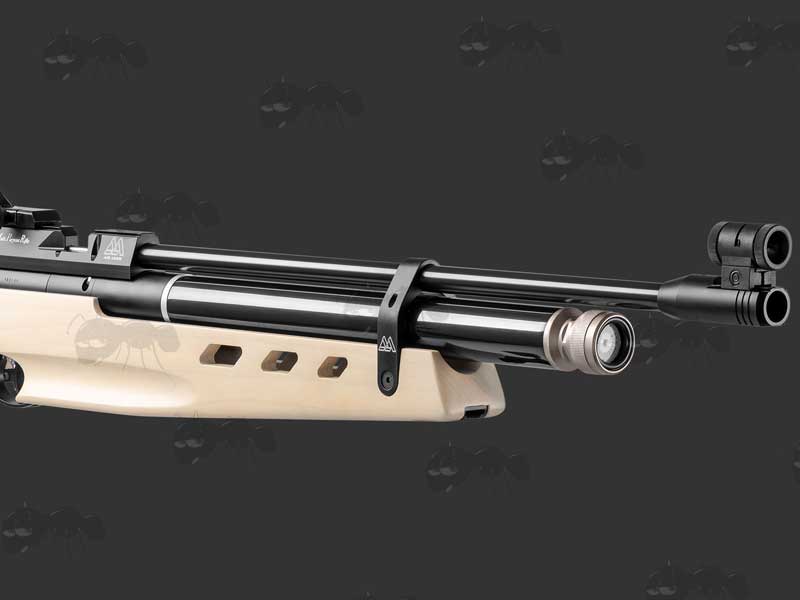

Air Arms MPR 10m Sporter and Precision Rails Muzzles Shown Fitted:
![Air Arms MPR Sporter Railed Muzzle on Rifle](images/AIR-ARMS-MPR-DOVETAIL-RAIL-MUZZLE-END-SHORT-MAIN.jpg)
![Air Arms MPR Precision Railed Muzzle on Rifle](images/AIR-ARMS-MPR-PRECISION-DOVETAIL-RAIL-MUZZLE-END-LONG-SILVER-MAIN.jpg)
![Exploded Spare Parts View of Air Arms MPR Rifle](images/AIR-ARMS-MPR-SPORTER-MAIN.jpg)
![Exploded Spare Parts View of Air Arms MPR Rifle](images/AIR-ARMS-MPR-PRECISION-MAIN.jpg)
![Air Arms TX228 Flat End and JT228 Pointed End Grub Screws for Fixing the Muzzle](images/AIR-ARMS-MUZZLE-FIXING-GRUB-SCREW-STYLES.jpg)
