HAWKE PICATINNY RING CAPS

For Hawke scopes and sights ring mounts.

Hawke Optics Logo

HAWKE PICATINNY SCOPE RING CAPS

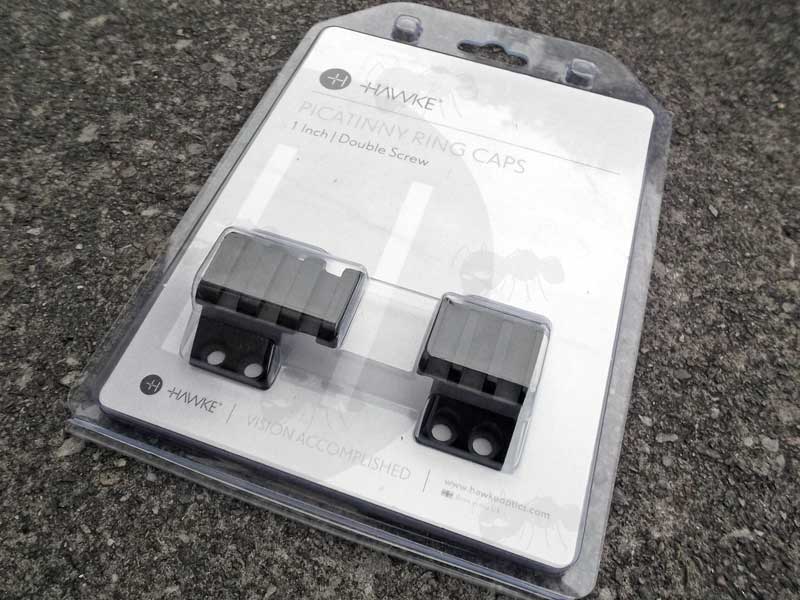

22150Pair of Double Clamped Hawke Picatinny Accessory Rail Scope Ring Top For 25mm Mounts, Model 22 150DOUBLE CLAMPED 25mm

£16.80p each

Ring length ~ 20mm.

Rail lengths ~ 25mm & 35mm.

Weight ~ 22 grams.

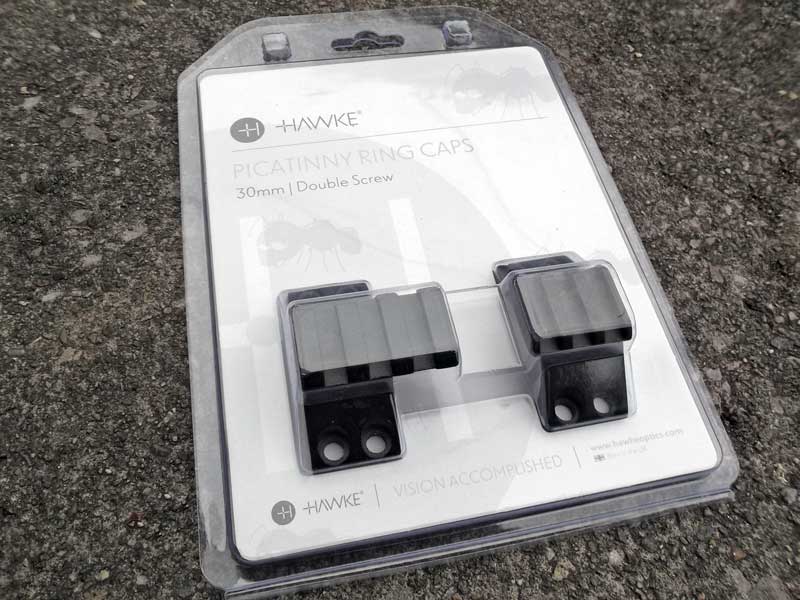

22151Pair of Double Clamped Hawke Picatinny Accessory Rail Scope Ring Top For 30mm Mounts, Model 22 151DOUBLE CLAMPED 30mm

£16.80p each

Ring length ~ 20mm.

Rail lengths ~ 25mm & 35mm.

Weight ~ 28 grams.

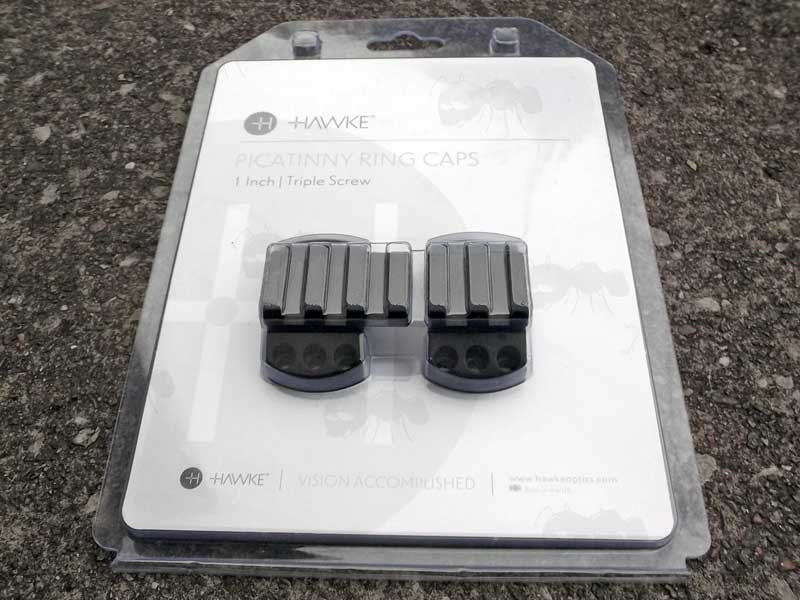

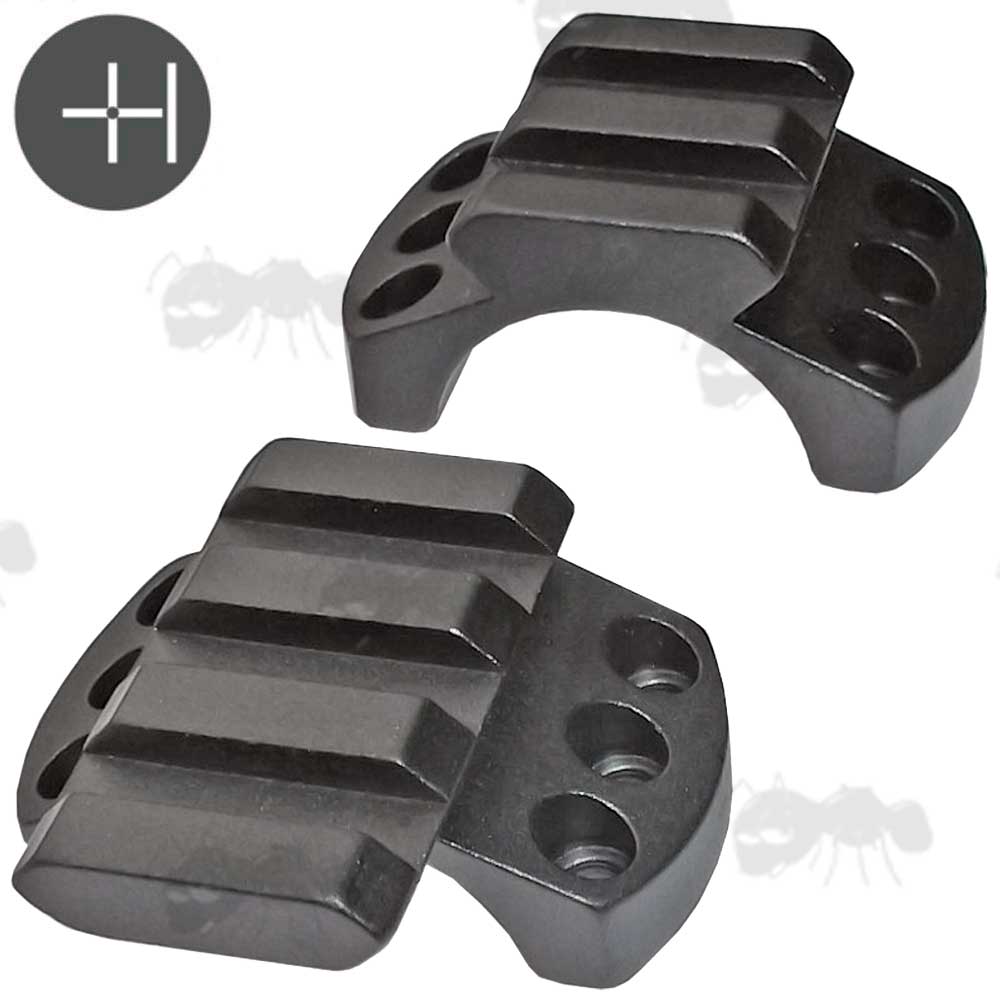

22153Pair of Triple Clamped Hawke Picatinny Accessory Rail Scope Ring Top For 25mm Mounts, Model 22 153TRIPLE CLAMPED 25mm

£18.00p each

Ring length ~ 24mm.

Rail lengths ~ 24mm & 35mm.

Weight ~ 34 grams.

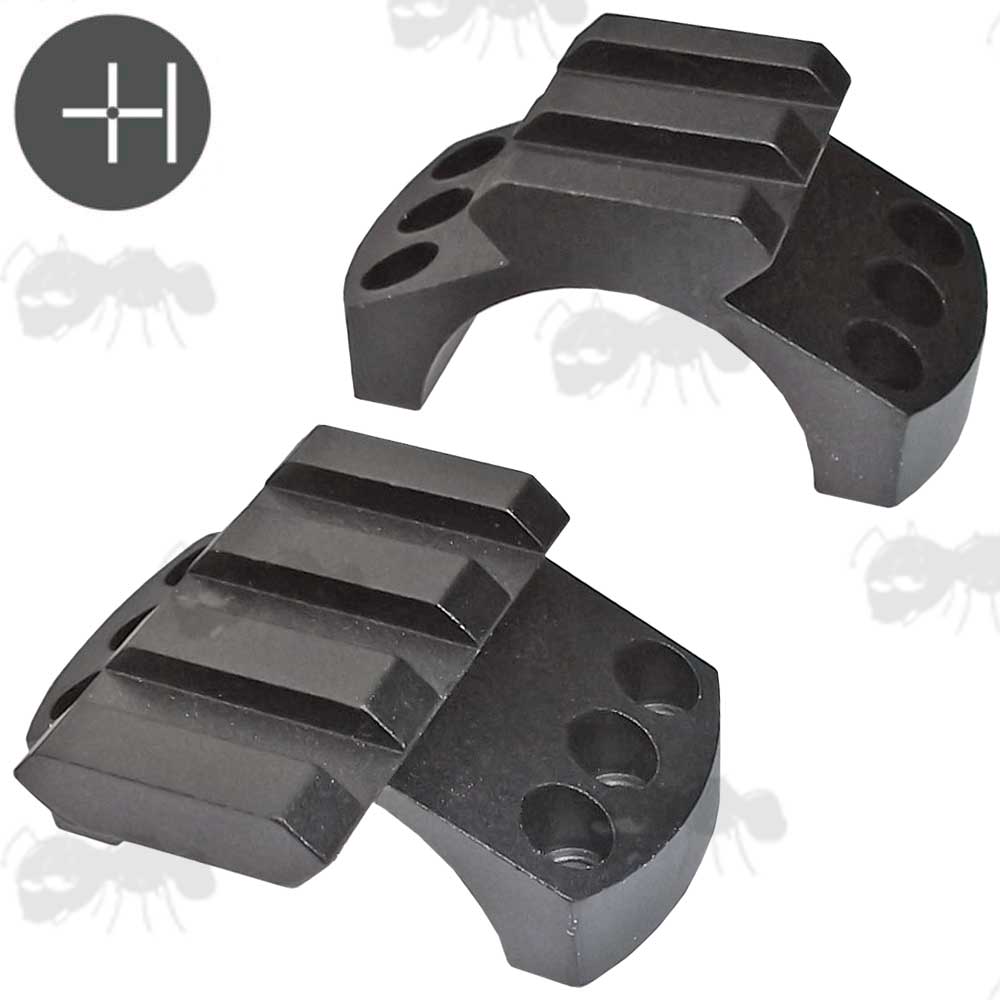

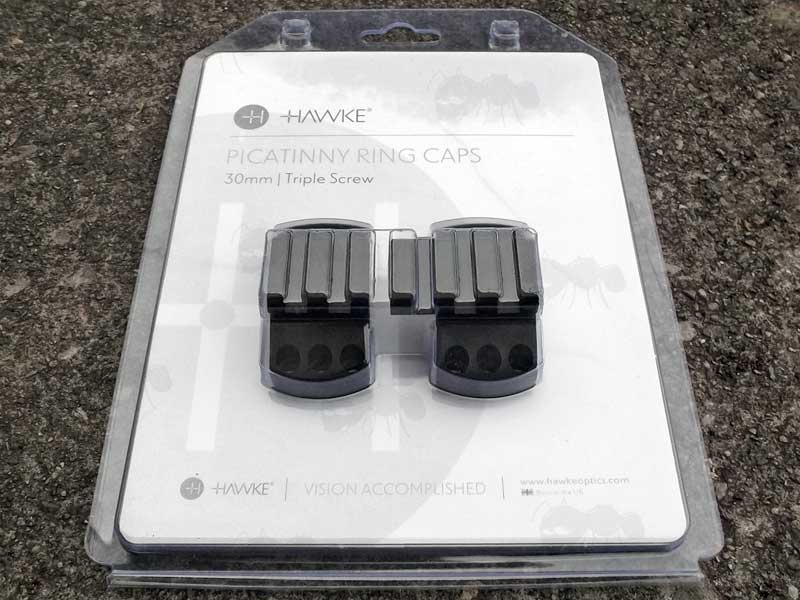

22154Pair of Triple Clamped Hawke Picatinny Accessory Rail Scope Ring Top For 30mm Mounts, Model 22 154TRIPLE CLAMPED 30mm

£18.00p each

Ring length ~ 23mm.

Rail lengths ~ 23mm & 34mm.

Weight ~ 40 grams.
Condition: New

The packaging is removed for posting, unless part of a larger order.

For converting Hawke aluminium scope mounts to have a top Picatinny accessory rail.

Aluminium construction with matt black anodised finish.

Please Note: Hawke Picatinny caps are only compatible with Hawke Match ring mounts and Hawke Extension ring mounts.

To fit: alternatively tighten the screws that hold the top clamps to the rings.

Do not over tighten.

For the top clamp screws ~ 16 in/lbs, 1.33 ft/lbs, 1.8 Nm.

Fixing hole spacings:

Double clamped ~ 10mm centre to centre.

Triple clamped ~ 0mm - 7.5mm - 15mm centres to centres.

The double clamped fit the Hawke Dovetail Match One Piece, Match Two Piece, Extension scope mounts and
the Hawke Weaver / Picatinny Match Two Piece and Extension scope mounts.

Pair of Double Clamped Hawke Picatinny Accessory Rail Scope Ring Top For 25mm Mounts, Model 22 150
Pair of Double Clamped Hawke Picatinny Accessory Rail Scope Ring Top For 30mm Mounts, Model 22 151

Pair of Triple Clamped Hawke Picatinny Accessory Rail Scope Ring Top For 25mm Mounts, Model 22 153
Pair of Triple Clamped Hawke Picatinny Accessory Rail Scope Ring Top For 30mm Mounts, Model 22 154
