SHOTGUN VENTED RIB TO RAIL BASE MOUNT
Easy and quick to fit.
SHOTGUN VENTED RIB TO BASE RAIL
8mm£45.00p each
SOLD OUT
4.33 inches / 110mm long rail.
Ribs 8mm or slightly over.
With 10 cross slots.
Weighs approx 50 grams.
10mm£45.00p each
4.33 inches / 110mm long rail.
Ribs 10mm or slightly over.
With 10 cross slots.
Weighs approx 50 grams.
9.5mm / 3/8″£45.00p each
4.33 inches / 110mm long rail.
Ribs 3/8″ or slightly over.
With 10 cross slots.
Weighs approx 60 grams.
Weaver / Picatinny rail adapters for vented shotgun ribs.
Designed for dot / reflex / collimator sights.
Only suitable for sights weighing up to 500 grams.
Made for steel with alloy fittings.
Approx overall height 9mm.
Allen keys and fittings includes.
Quick to fit and provides a secure 20mm Picatinny / Weaver top sight rail.
Split two piece design with screws for securing through the vented rib and side grub screws for finer adjustment.
With the two piece design it allows them to be fitted without needing to remove a fitted sight bead.
Although fitting the rail will block the use of the fitted open sight.
These two piece adapters tighten together, so have a more important minimum fit width.
Most have screws with 3mm thread, in case you need to get longer ones for your shotgun.
The grub screw side screws have 3mm threads.
OPTIONS BY REQUEST:
6mm wide x 10 slot long adapter for Beretta A400 Xplor Novator, AL391 Urika.
7mm wide x 110mm long adapter for Baikal: MP-27, MP-153, IZH-27.
7mm wide x 150mm long adapter for MP-155.
8mm wide x 110mm long adapter for Tulsky Oruzheiny Zavod: TOZ-34, ТОЗ-34.
10mm wide x 110mm long adapter for Baikal: MP-27EM-1C, MP-153, MR-27EM-1C Sporting, MR-18 20/76.

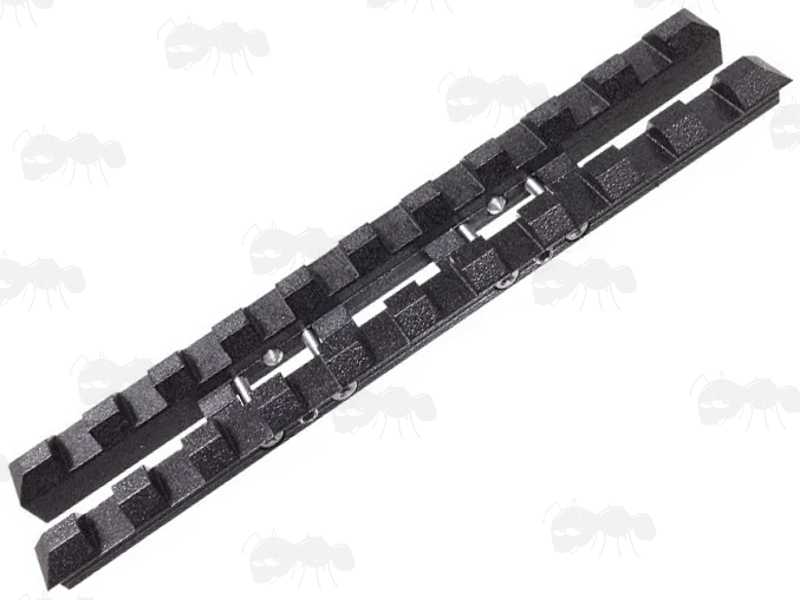

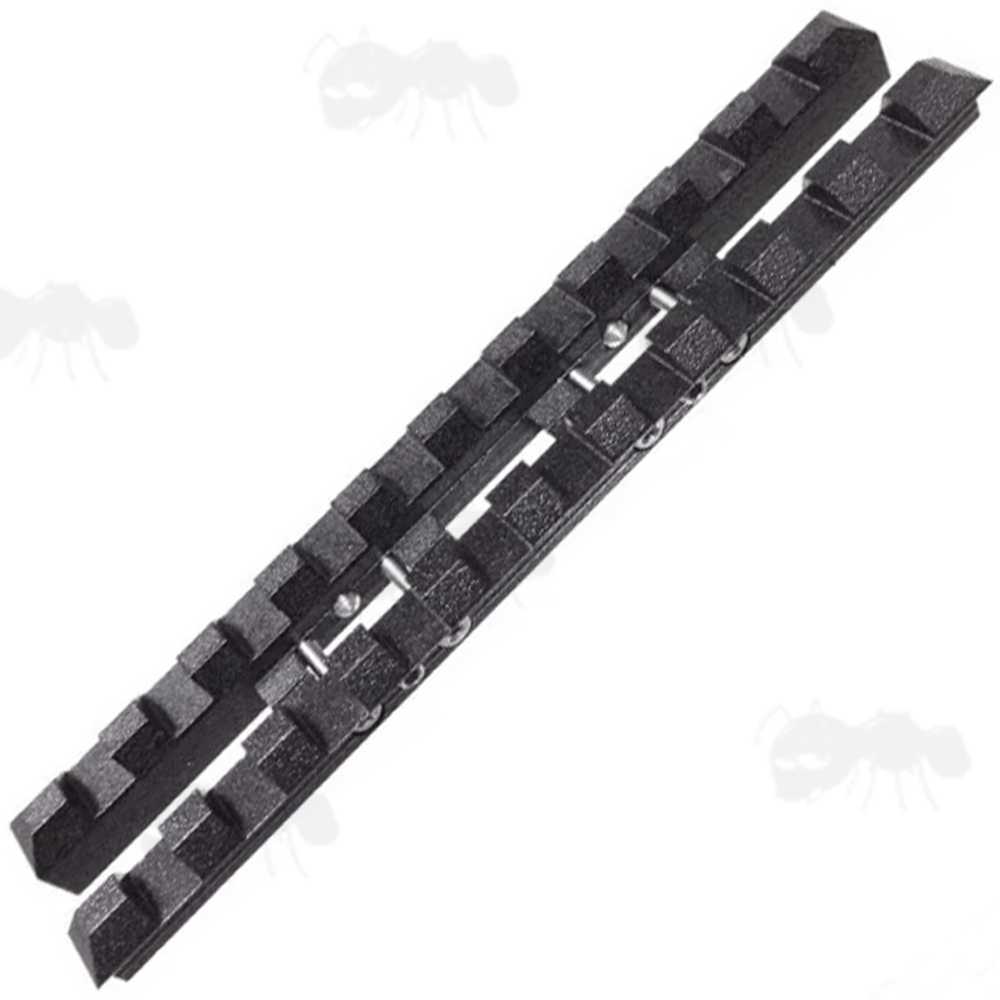

1/4″ wide x 110mm long adapter for Savage Renegauge: Field, Turkey Bottomland, Turkey Obsession, Waterfowl.
3/8″ wide x 110mm long adapter for Mossberg: 500, Maverick 88.
Also available:
One Piece Shotgun Rib Rail Base Adapters,
Shotgun Fiber Holosights,
Shotgun Rib Repair Kit.

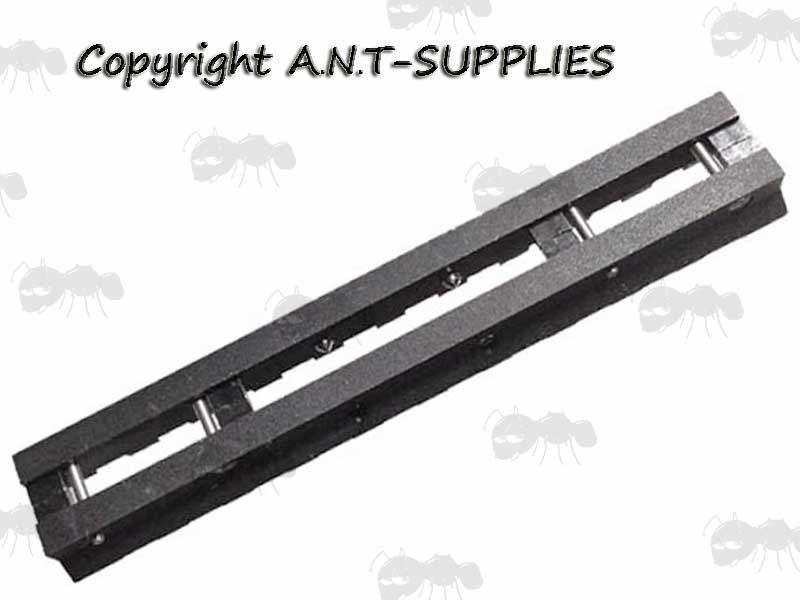

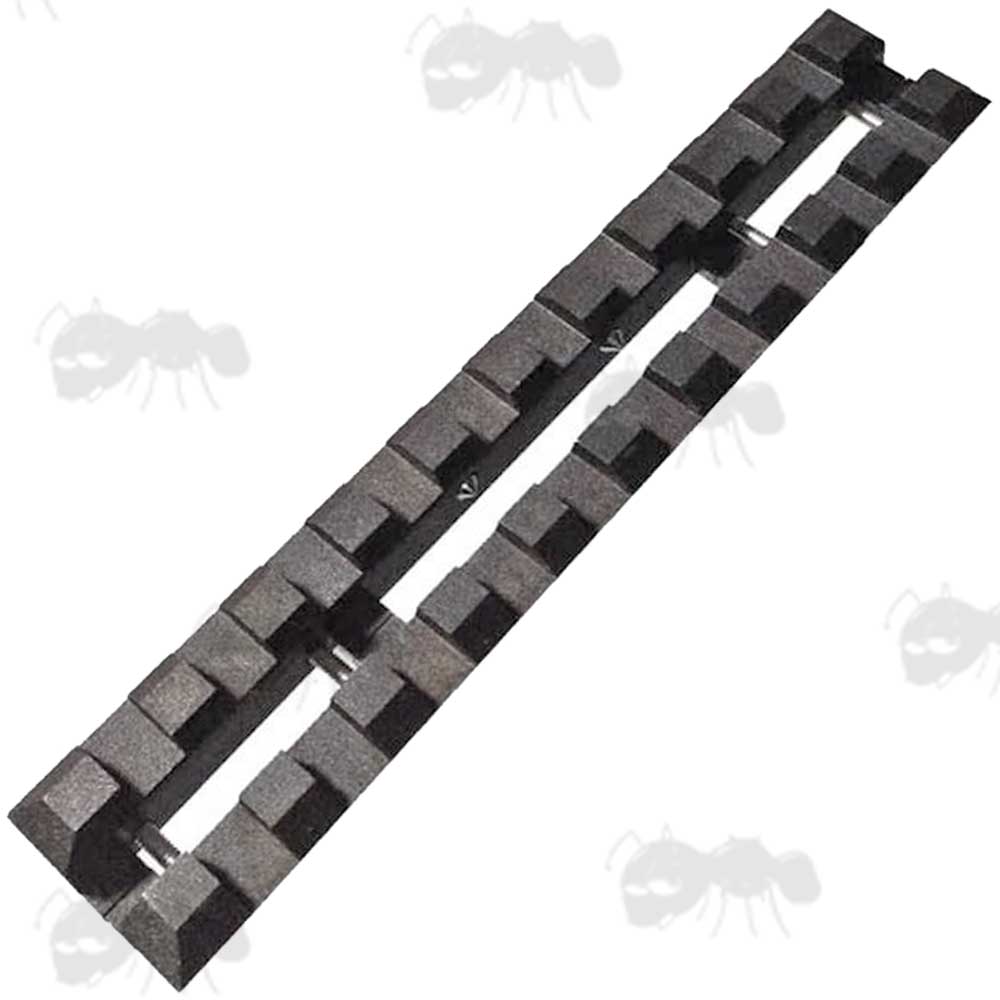

6mm WIDE ~ 10 SLOT:
The 6mm should fit Beretta A400 Xplor Novator, AL391 Urika:

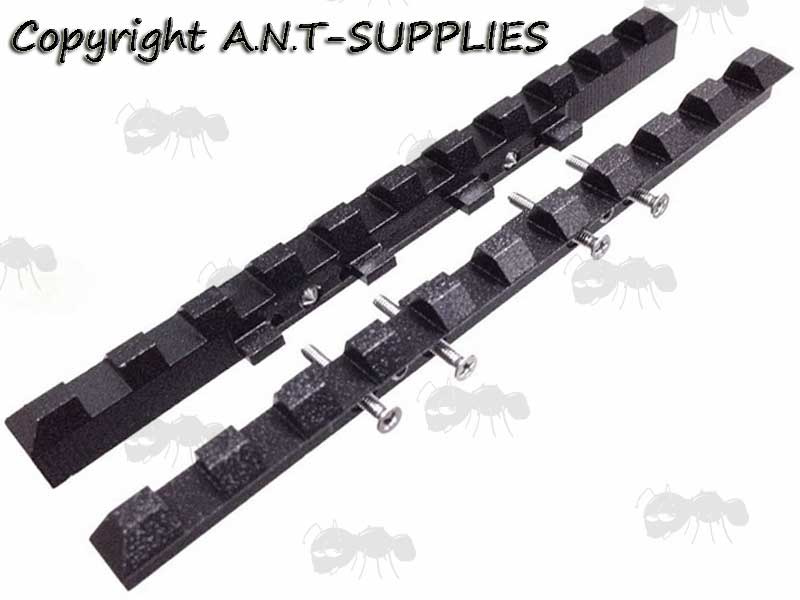

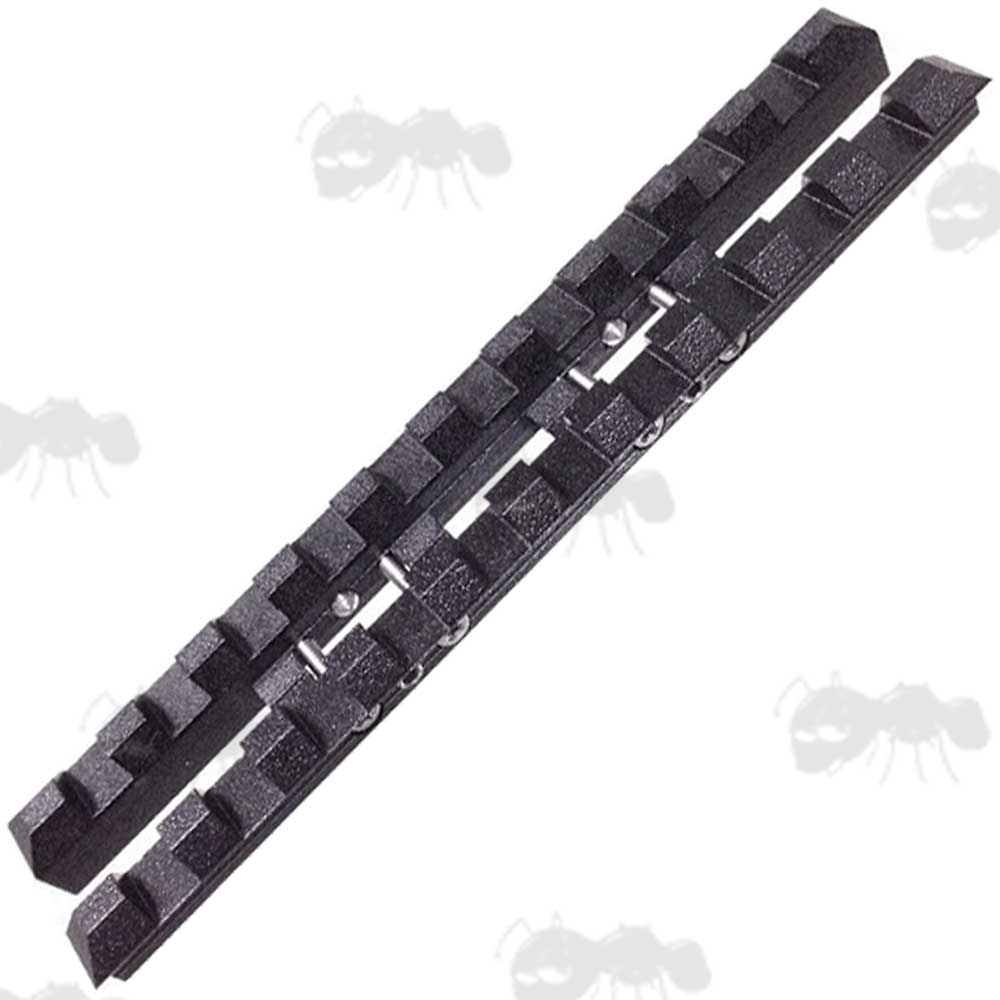

7mm WIDE ~ 10 SLOT:
The 7mm (110mm) should fit Baikal MP-27, MP-153, IZH-27:

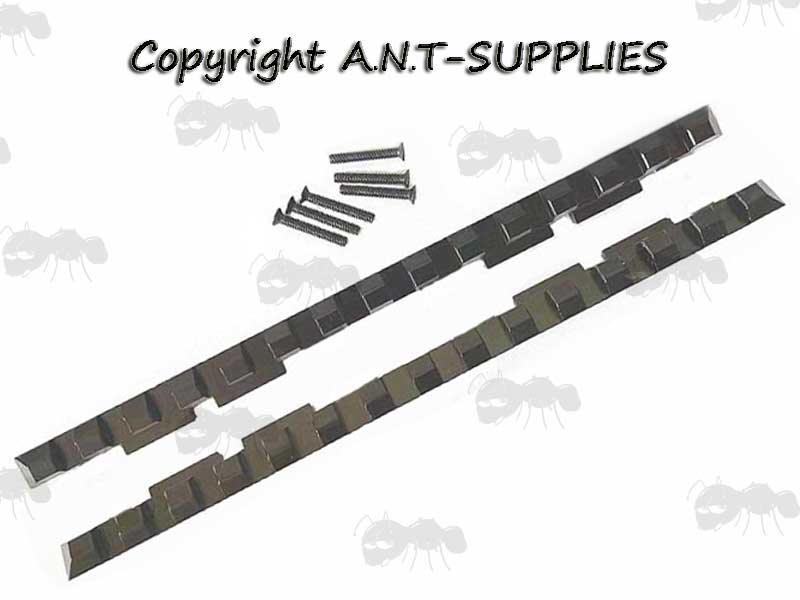

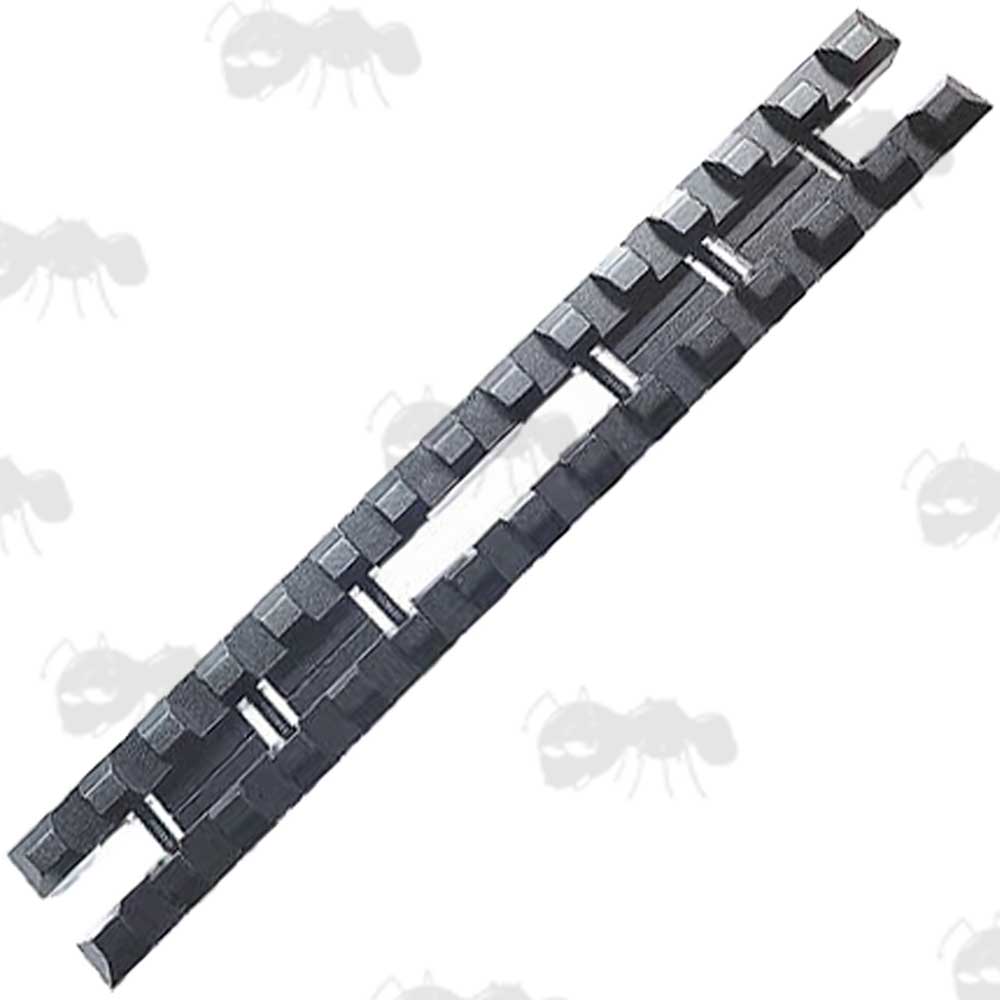

7mm WIDE ~ 14 SLOT:
The 7mm (150mm) should fit MP-155:

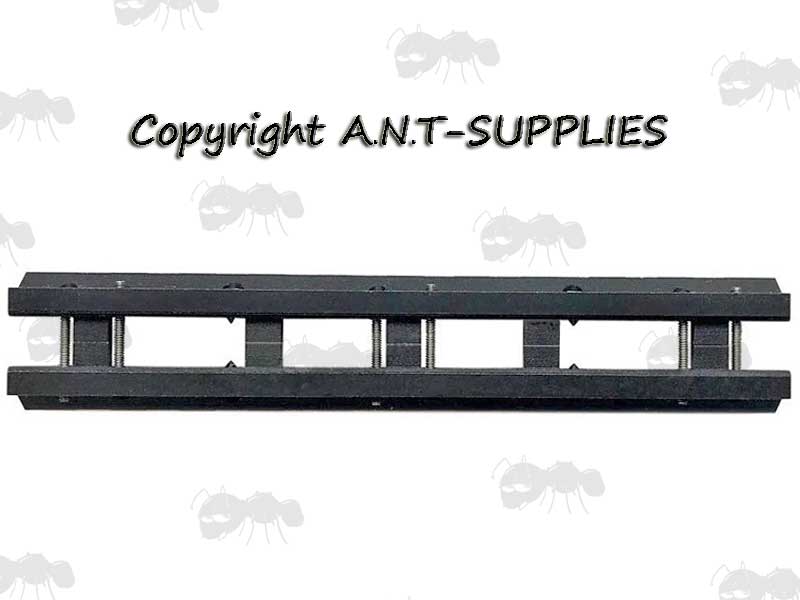

8mm WIDE ~ 10 SLOT:
The 8mm should fit Tulsky Oruzheiny Zavod TOZ-34, ТОЗ-34:

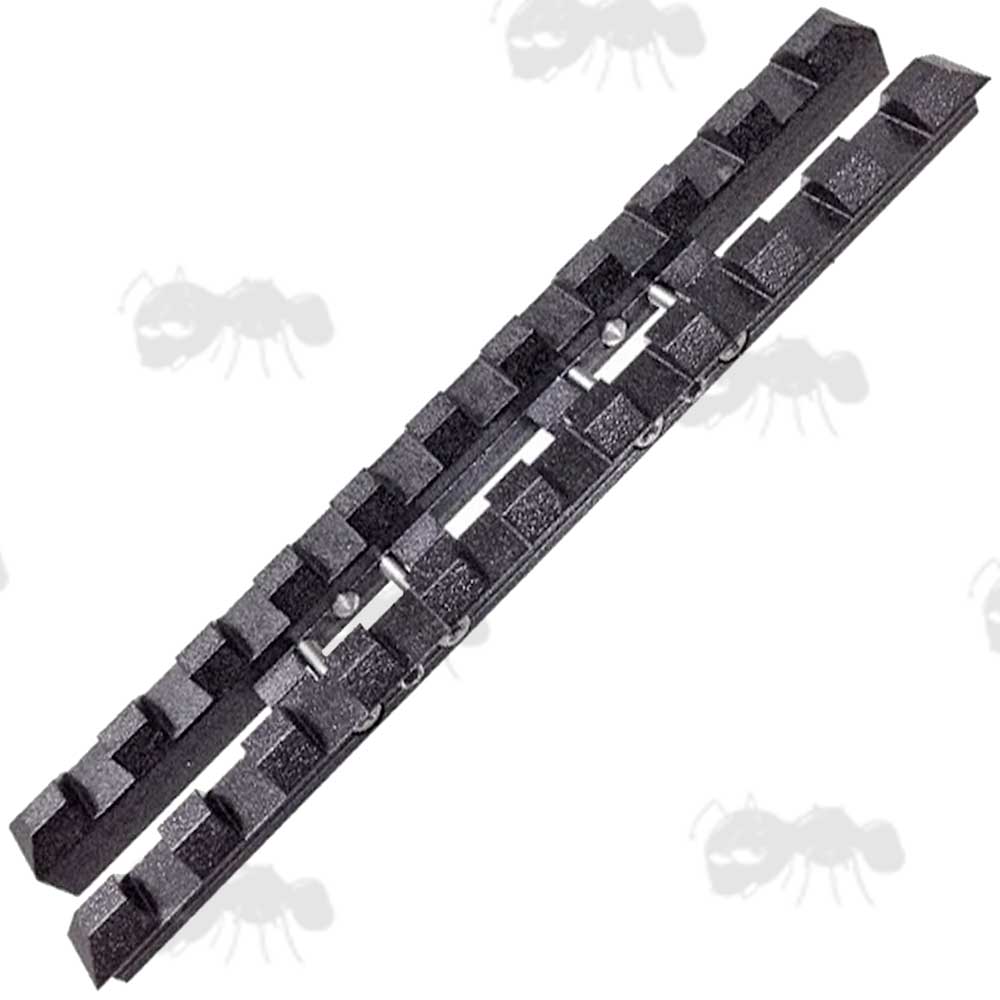

10mm WIDE ~ 10 SLOT:
The 10mm should fit Baikal MP-27EM-1C, MP-153, MR-27EM-1C Sporting, MR-18 20/76:

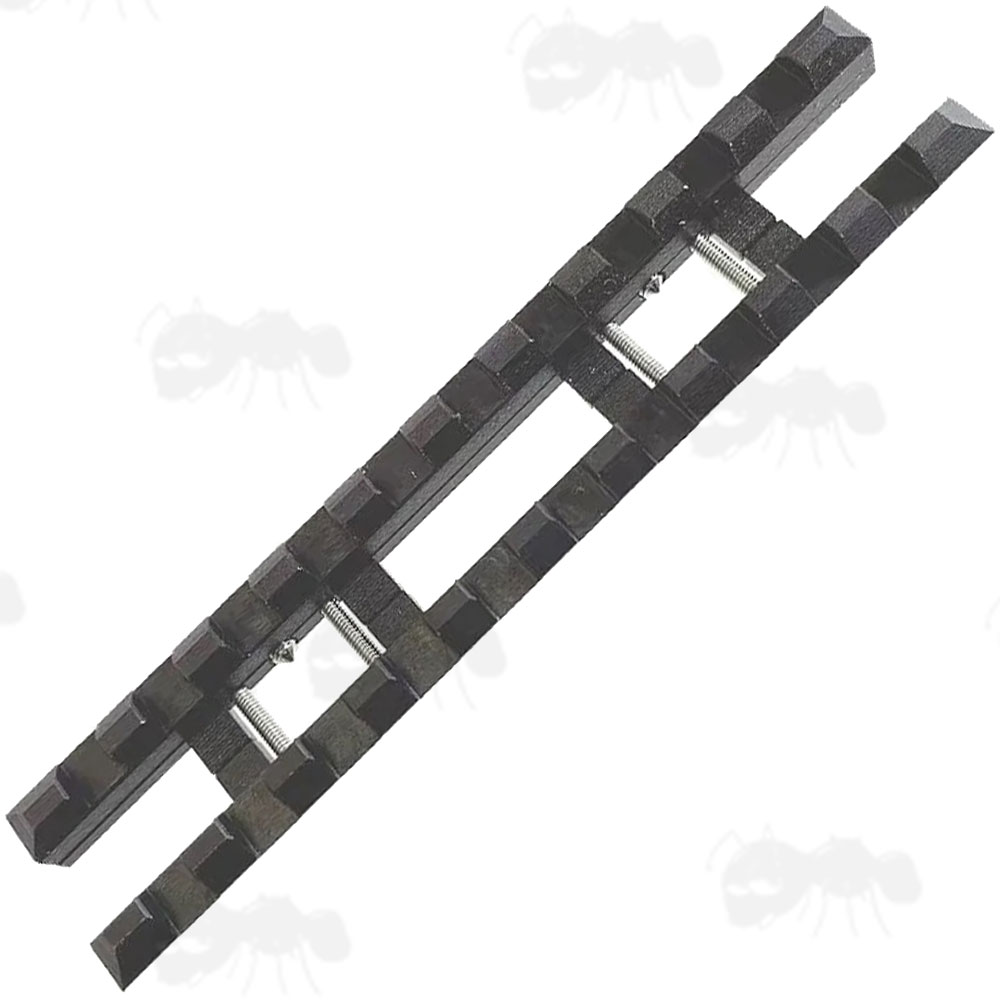

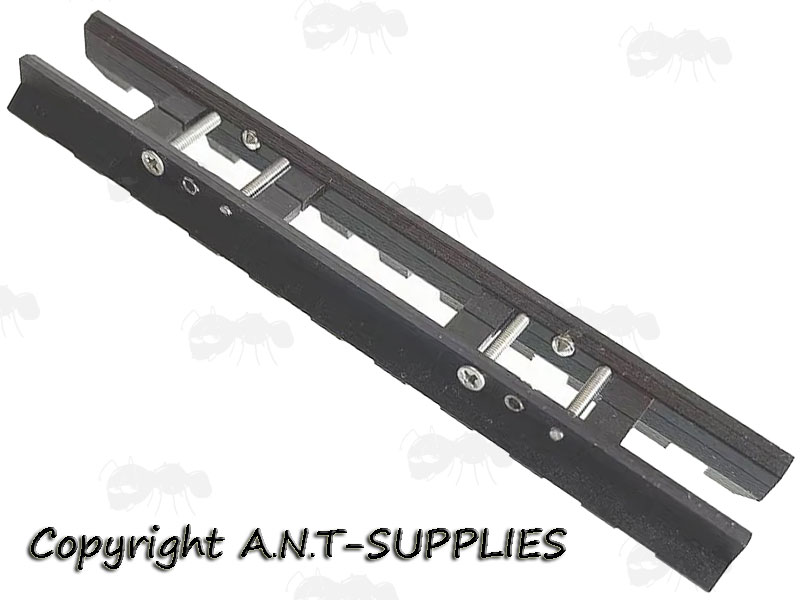

3/8″ ~ 10 SLOT:
The 3/8″ should fit Mossberg 500, Maverick 88:
