WEAVER PICATINNY RAIL BASE MOUNT
For DIY accessory rail fittings.
DIY WEAVER / PICATINNY RAIL BASE MOUNT
£14.40p each
£6.00p each
Overall height ~ 22mm.
Overall length ~ 52mm.
Distance between hole diameters:
35mm centre to centre /
10mm centre to centre.
Weighs approx ~ 44 grams.
£14.40p each
Overall height ~ 21mm.
Overall length ~ 45mm.
Elevation ~ 0.50" / 12.7mm.
Distance between hole diameters:
28mm centre to centre.
Weighs approx ~ 58 grams.
£16.20p each
Overall height ~ 26mm.
Overall length ~ 45mm.
Elevation ~ 0.75" / 19.0mm.
Distance between hole diameters:
28mm centre to centre.
Weighs approx ~ 66 grams.
£18.00p each
Overall height ~ 29mm.
Overall length ~ 45mm.
Elevation ~ 0.83" / 21.1mm.
Distance between hole diameters:
28mm centre to centre.
Weighs approx ~ 68 grams.
Custom DIY Weaver / Picatinny rail fitting base mount.
Aluminium base mount with steel fittings.
Fitting hole diameters - 5mm.
For custom build projects.
Fits Weaver / Picatinny style rails.
With two pre-drilled holes for fittings.
Also available ~ Weaver / Picatinny Quick-Release Rails and Mini Weaver / Picatinny Riser Rails.
90 DEGREE SIGHT BASE:
Designed for compatibility with Aimpoint T1 / T2 style sights, to use as an off to one
side auxiliary / secondary co-witness sight.
So will fit other sights that use the Aimpoint Micro mounting standard.
They match up well with our 11 slot flat base DIY rails, but you
would need to tap screw holes and cut the rail length down.

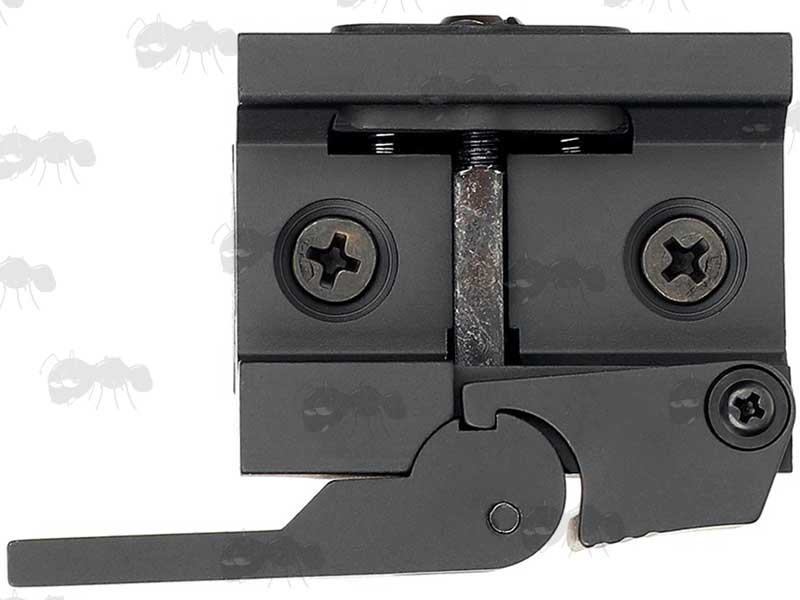

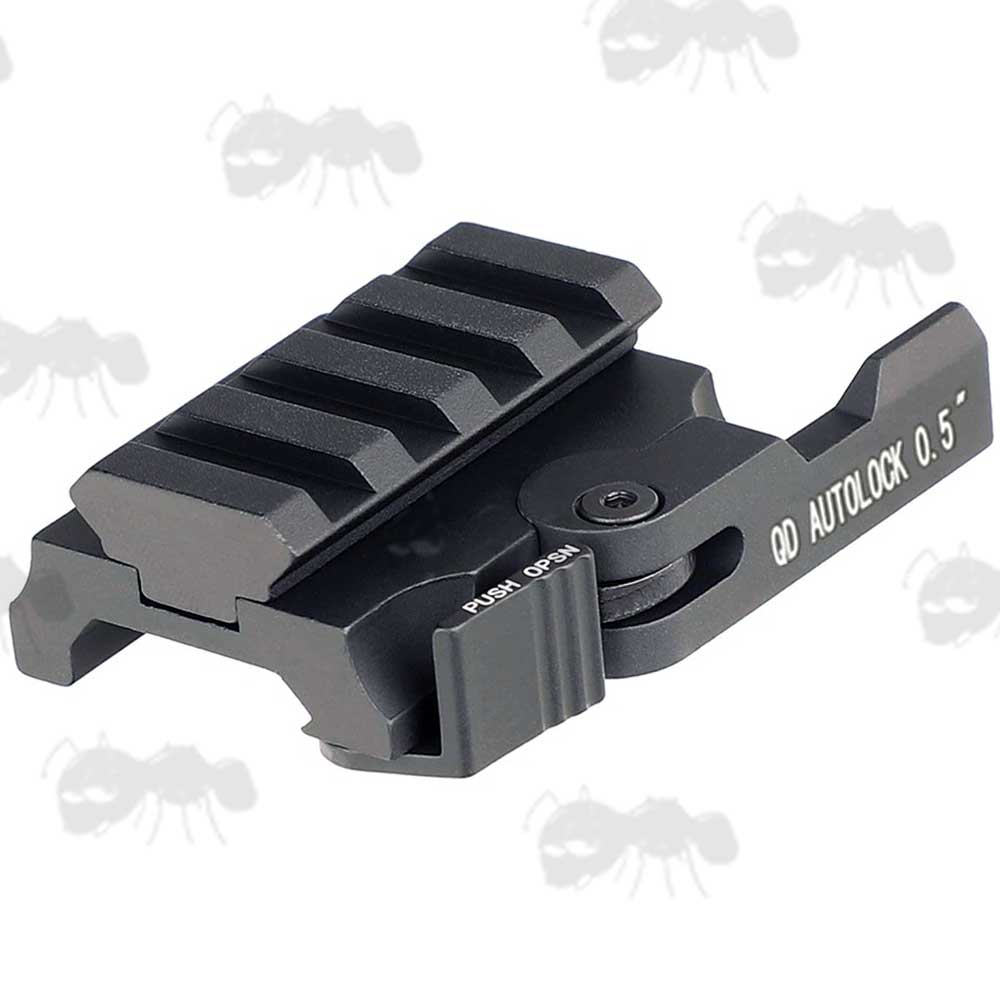

LOCKING QUICK RELEASE + RAIL ~ LOW:

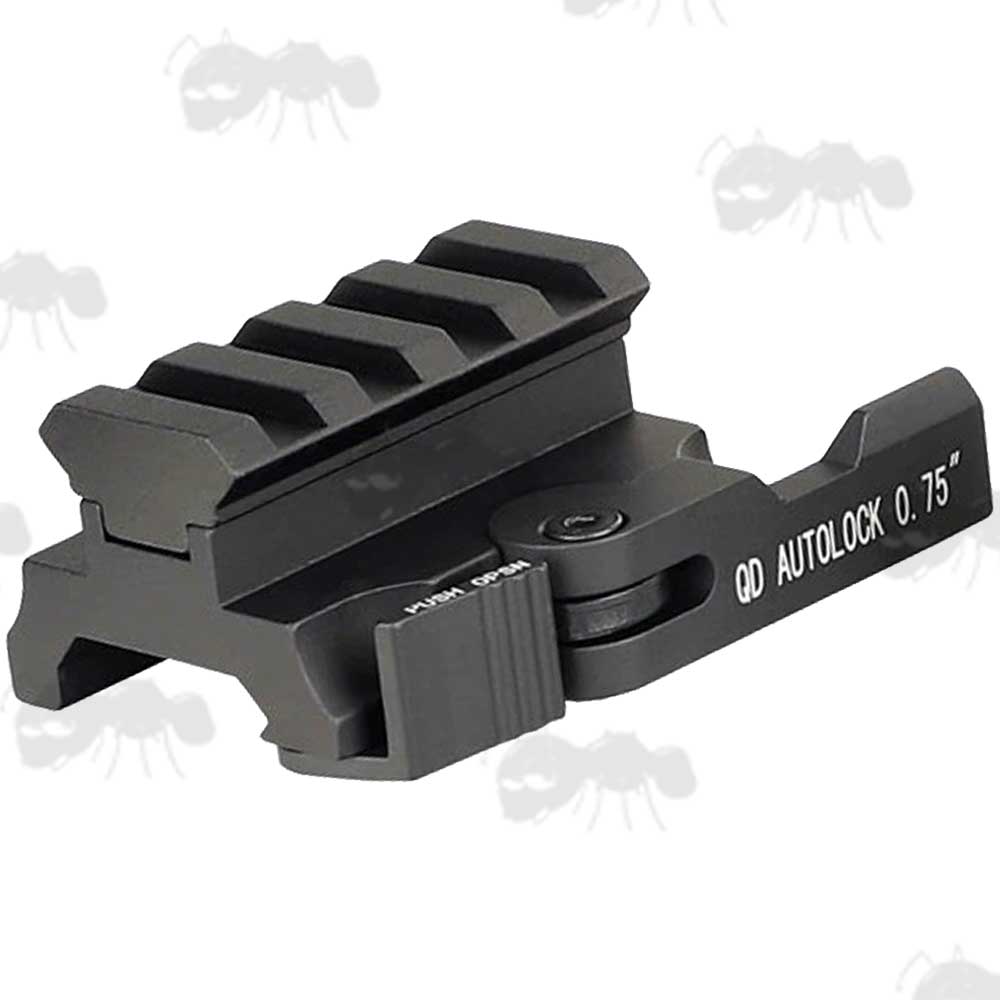

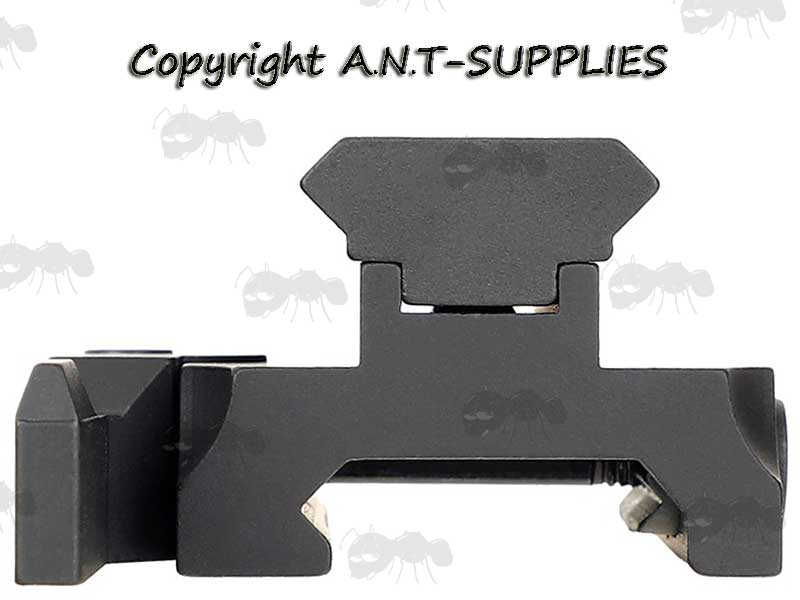

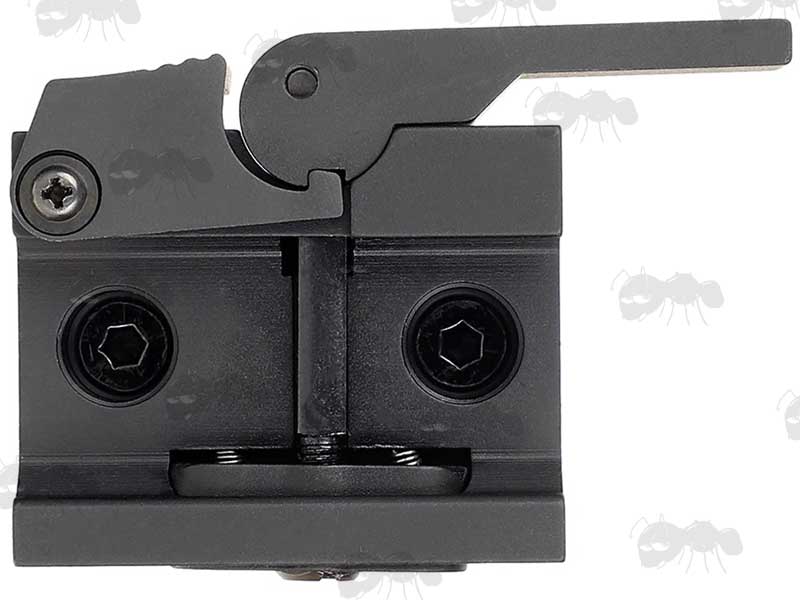

LOCKING QUICK RELEASE + RAIL ~ MEDIUM:

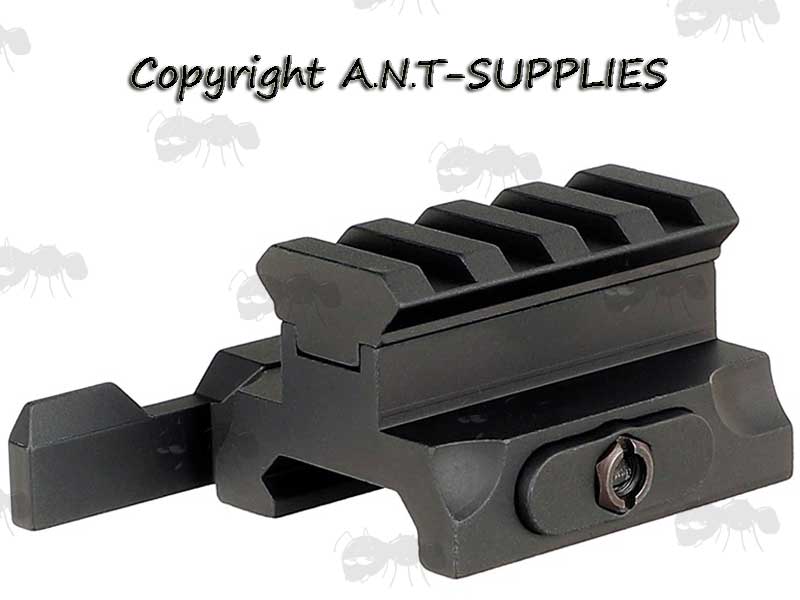

LOCKING QUICK RELEASE + RAIL ~ HIGH:
