SHOTGUN RIB TO BASE RAIL MOUNT

Easy and quick to install.

SHOTGUN RIB TO BASE RAIL

Aluminium Shotgun Rib Weaver Adapter RailWEAVER ~ ALUMINIUM ~ 5 SLOT

£18.00p each

2.17 inches / 55mm long rail.

Ribs up to 8.2mm wide.

Overall height 9.5mm.

Weighs approx 20 grams.

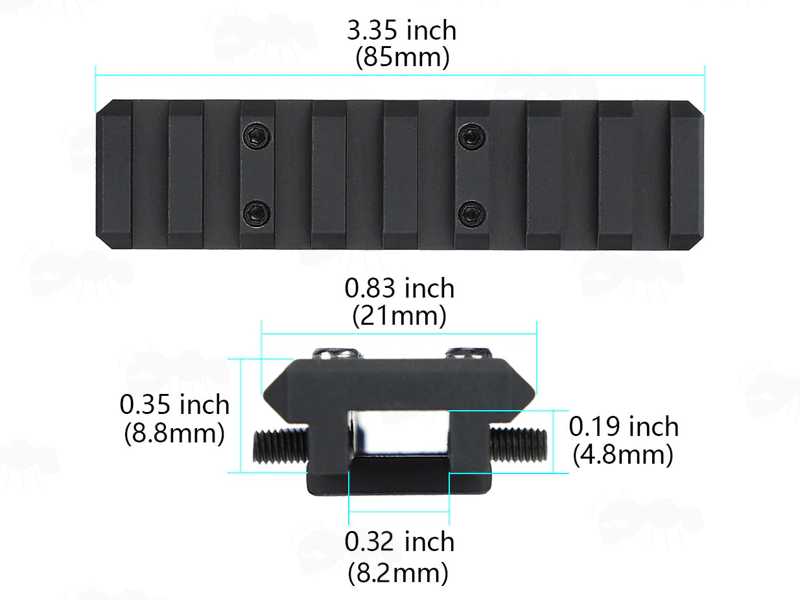

Aluminium Shotgun Rib Weaver Adapter Rail, 85mm LongWEAVER ~ ALUMINIUM ~ 8 SLOT

£21.00p each

3.35 inches / 85mm long rail.

Ribs up to 8.2mm wide.

Overall height 9.5mm.

Weighs approx 28 grams.
Steel Shotgun Rib Weaver Adapter RailWEAVER ~ STEEL ~ 5 SLOT

£22.80p each

2.17 inches / 55mm long rail.

Ribs up to 8.2mm wide.

Overall height 9.5mm.

Weighs approx 45 grams.
Aluminium Shotgun Rib Dovetail Adapter RailDOVETAIL ~ ALUMINIUM

£22.80p each

2.16 inches / 55mm long rail.

Ribs up to 8.2mm wide.

Overall height 10mm.

Weighs approx 22 grams.
Steel Shotgun Rib Weaver / Picatinny Adapter RailWEAVER ~ STEEL ~ 10 SLOT

£42.00p each

4.33 inches / 110mm long rail.

Ribs 10mm or slightly over.

Overall height 9mm.

Weighs approx 50 grams.
Condition: New

For vented shotgun ribs.

Designed for mini reflex / collimator sights.

Only suitable for sights weighing up to 400 grams.

Allen keys and fittings includes.

10mm high overall.

Quick to fit and provides either a secure 20mm Picatinny / Weaver or 11mm Dovetail top sight rail, depending on the version.

The 5 to 8 slot and the dovetail models have two plates for fitting through the vented rib and side grub screws for finer adjustment and are designed for ribs up to 8.2mm wide.

Fitting the rail will block the use of the fitted open sight.


The shorter one piece adapters are fixed and tighten on with grub screws, so have a maximum fit width.

The longer two piece adapters parts tighten together, so have a more important minimum fit width.

More information on the 10 slot length rails below.

The 10 slot length version is also available for 7mm and 8mm ribs by prior-request.

10 Slot Long Steel Shotgun Rib Weaver Adapter Rail
With the two piece design it allows them to be fitted without needing to remove a fitted sight bead.

RIB TO WEAVER / PICATINNY RAIL ADAPTER:

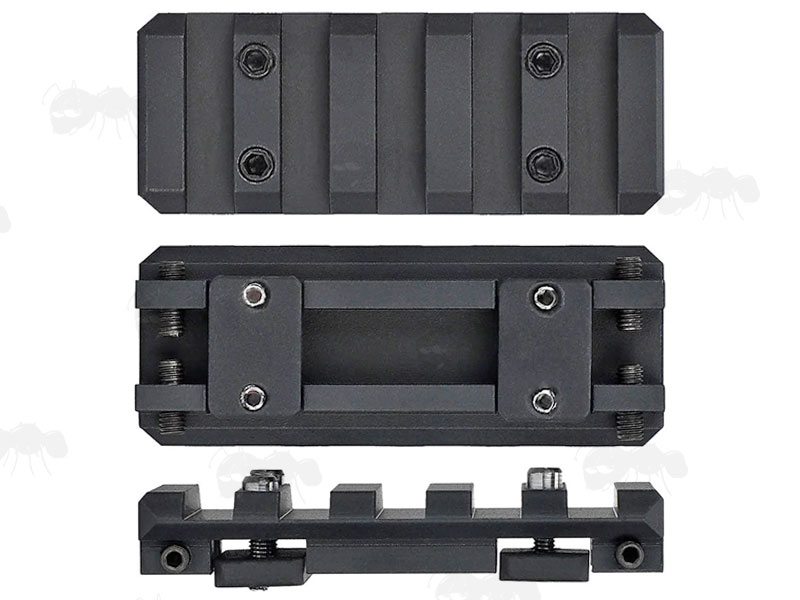

Base View of The Shotgun Rib to Weaver Rail Adapter
Base View of The Aluminium 55mm Long Shotgun Rib to Weaver Rail Adapter

RIB TO WEAVER / PICATINNY RAIL ADAPTER ~ ALLOY 85mm LONG:

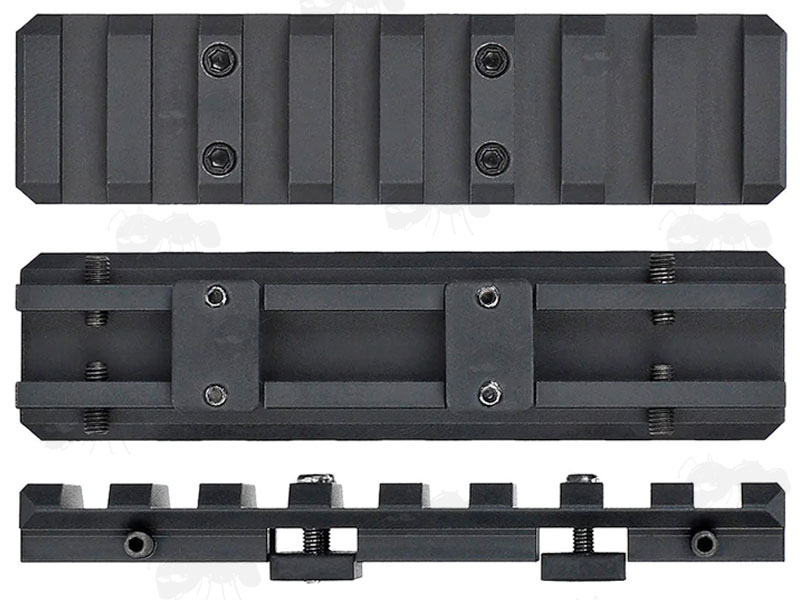

Base View of The Aluminium Shotgun Rib Weaver Adapter Rail, 85mm Long

RIB TO DOVETAIL RAIL ADAPTER:

Base and Top View of The Shotgun Rib Dovetail Adapter Rail

10 SLOT LONG STEEL RIB (7mm, 8mm or 10mm) TO WEAVER RAIL ADAPTER

Available to pre-order by request, and should fit amongst others:

The 7mm should fit Baikal MP-27, MP-153, IZH-27:

10 Slot Long Steel Shotgun Rib Weaver Adapter Rail

The 8mm should fit Tulsky Oruzheiny Zavod TOZ-34, ТОЗ-34:

10 Slot Long Steel Weaver Adapter Rail for 8mm Wide Shotgun Ribs

The 10mm should fit Baikal MP-27EM-1C, MP-153, MR-27EM-1C Sporting, MR-18 20/76:

Approx 9.75mm distance between the rails when tightened.

Slight modification to the adapter maybe needed for other 10mm ribs.

Reportedly doesn't fit the Benelli M2 as a slightly different profile, possibly due to the angle of the rib as the adapter attached but would not sit high enough to mount anything on the rail.

10 Slot Long Steel Shotgun Rib Weaver Adapter Rail
