QUICK-RELEASE WEAVER / PICATINNY RAILS
Fast fitting / removing 20mm wide rails.

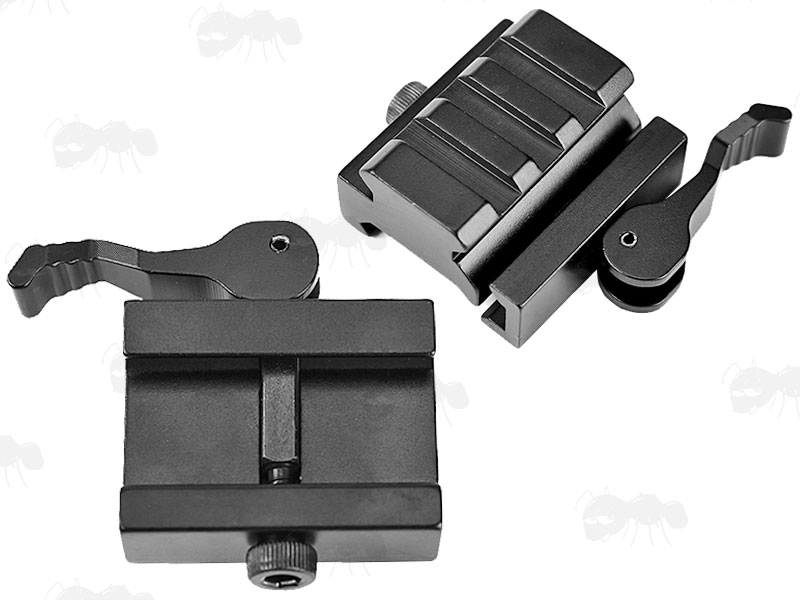

QUICK-RELEASE LEVER RAIL RAISER
MINI (3 SLOTS)
£8.40p each3 slot.
Length ~ 1.5" / 40mm.
Elevates ~ 0.6" / 15mm.
Weighs approx 52 grams.
SHORT (5 SLOTS)
£9.00p each5 slot.
Length ~ 2.4" / 60mm.
Elevates ~ 0.6" / 15mm.
Weighs approx 74 grams.
MEDIUM (7 SLOTS)
£10.80p each7 slot.
Length ~ 3.14" / 80mm.
Elevates ~ 0.6" / 15mm.
Weighs approx 76 grams.

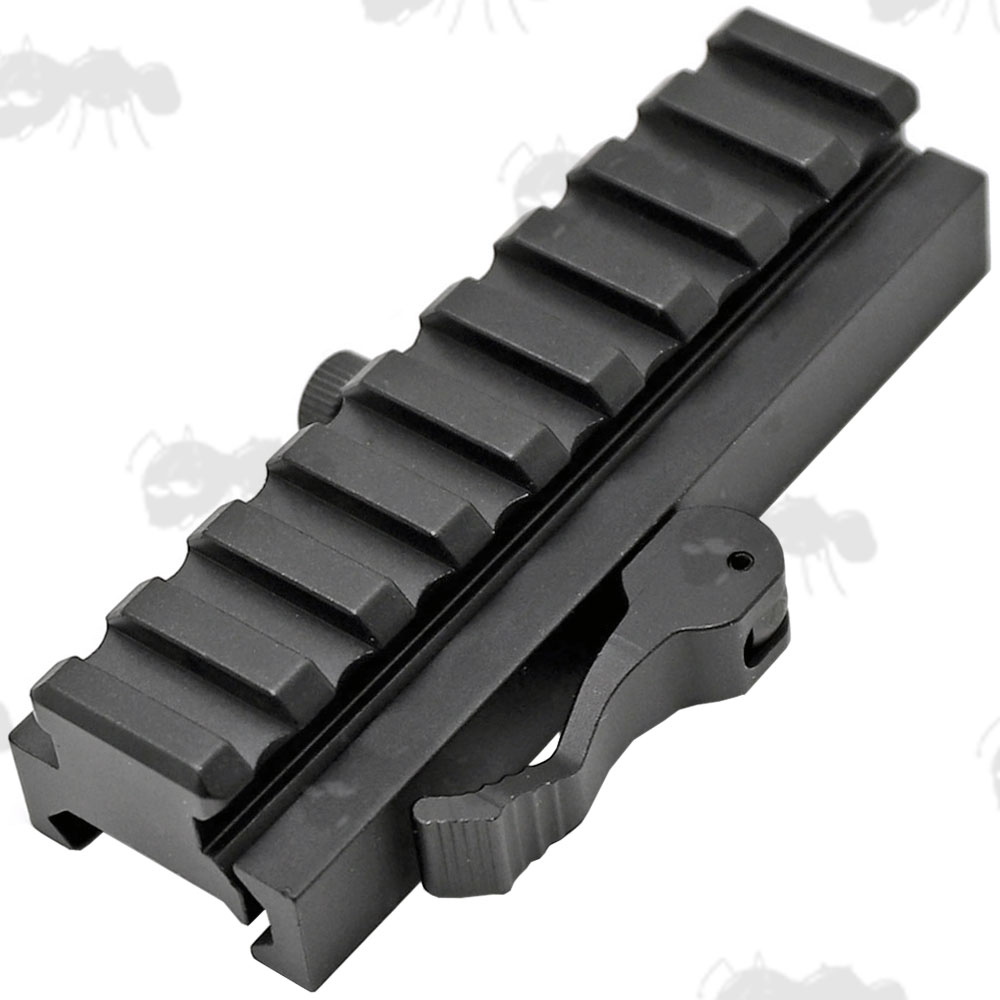

LONG (9 SLOTS)
£12.00p each9 slot.
Length ~ 3.75" / 95mm.
Elevates ~ 0.6" / 15mm.
Weighs approx 88 grams.
Quick-release 20mm wide rail for Weaver or Picatinny mount fittings.
High-quality aluminium alloy rail with steel fittings, matt black anodised finish.
Fits most but not all 20mm wide Picatinny / Weaver rails to allow for quick removal / mounting of various equipment.
They have a nut on the other end of the throw lever shaft to adjust the clamp tension.
Please Note:
There are usually more compatibility issues with quick-release rails / mounts than fixed versions.
With the short three slot rail, they often need the tension nut tightening for a tight fit, but this depends on the exact thickness profile of the rail they are fitting.
The three slot rail will not accept Vector Optics budget tactical scope mounts: SCTM-27, SCTM-22, SCTM-08P and SCTM-65.
Also available ~ Weaver / Picatinny DIY Rail Base Mounts and Mini Weaver / Picatinny Riser Rails.
MINI (3 SLOTS):
SHORT (5 SLOTS):
MEDIUM (7 SLOTS):
LONG (9 SLOTS):
BASE VIEW OF THE CURRENT 5, 7 SLOT AND 9 SLOT RAILS:
THE 5, 7 SLOT AND 9 SLOT RAILS ALSO HAVE CURVED EDGES:
