Air Arms Accessory Rail

Ant Hill > Scopes / Sights / Optics > Rails and Adapters > Air Arms Accessory Rail

AIR ARMS FOREND RAIL

Also known as Anschutz / Euro or UIT rail.

S904-BP

Black Air Arms HFT 500 Anschutz Forend Accessory Rail

GALAHAD BULLPUP £24.00p each
Black.

76mm long.

Weight ~ 12 grams.

KS441

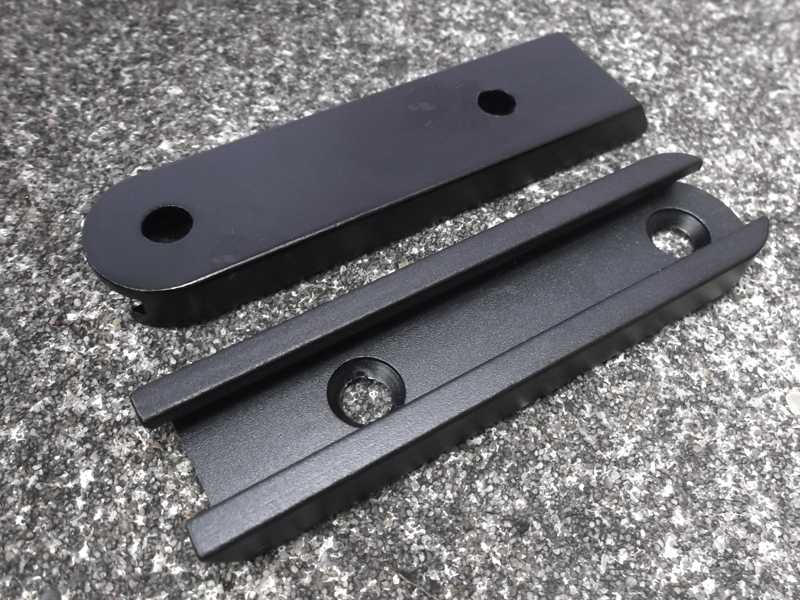

Black Air Arms TDR Anschutz Forend Accessory Rail

TDR £36.00p each
Black.

74mm long.

Weight ~ 12 grams.

S745

Black Air Arms Ultimate Sporter Anschutz Forend Accessory Rail

ULTIMATE Part No.74 £30.00p each
Black.

190mm long.

Weight ~ 32 grams.

JT440

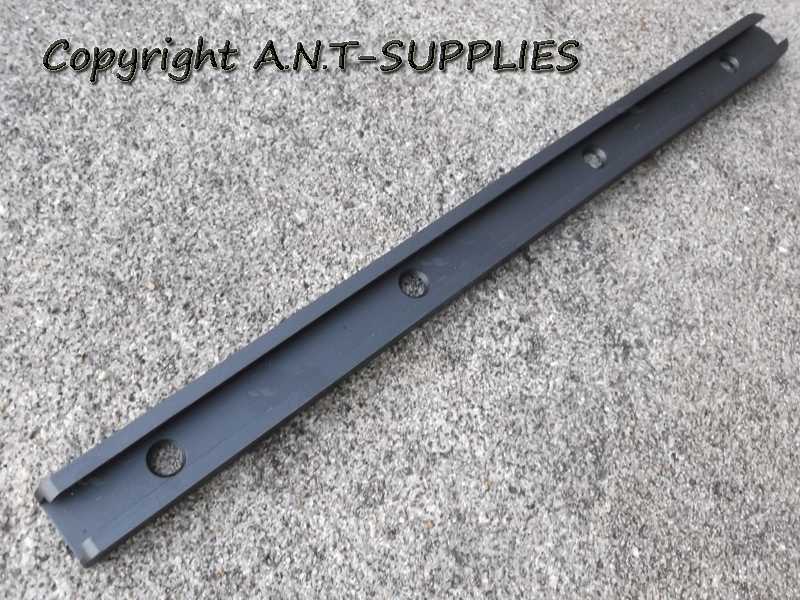

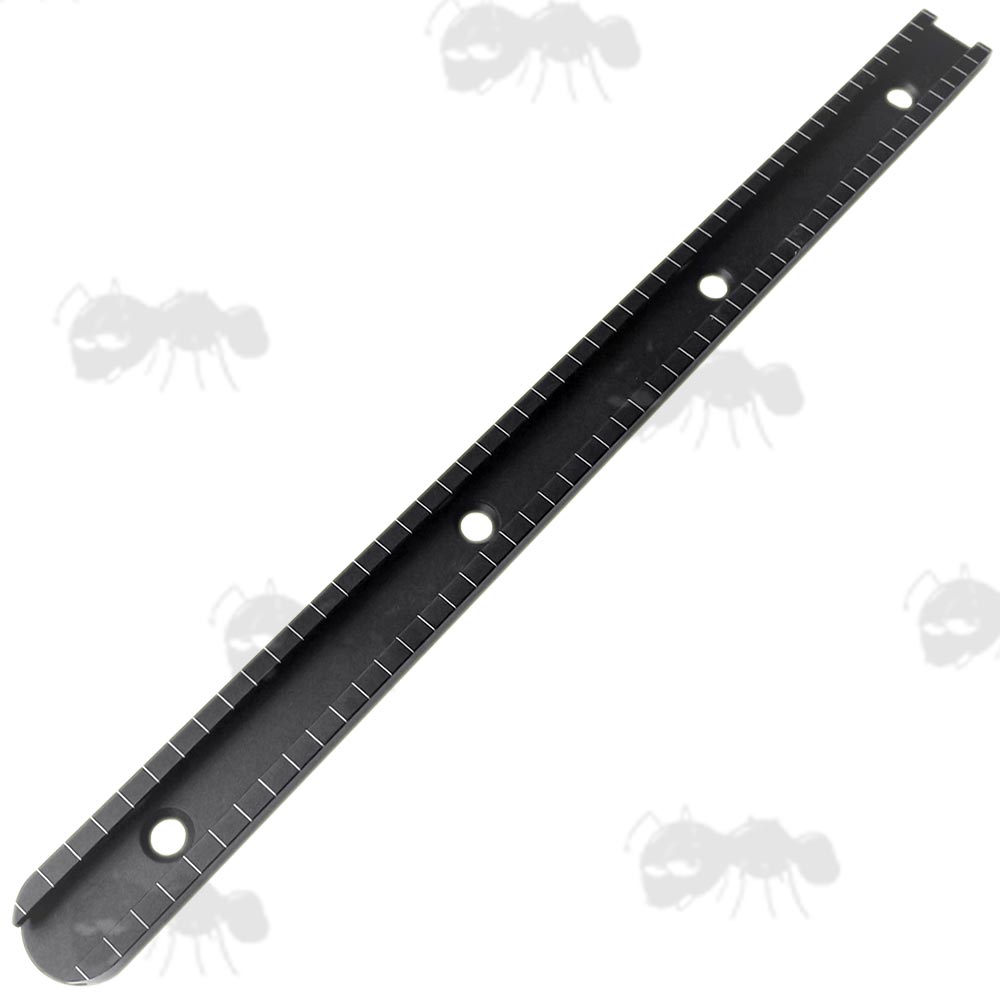

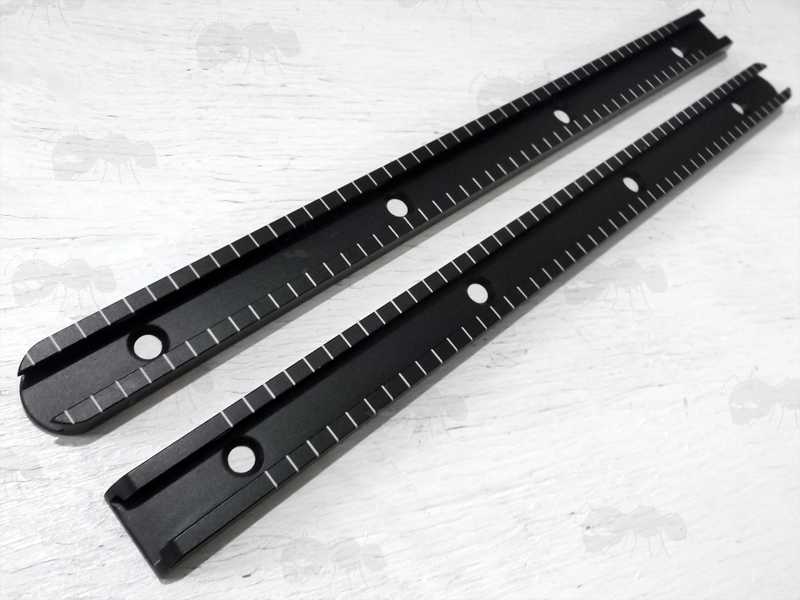

Black Air Arms MPR 10m Anschutz Forend Accessory Rail

MPR 10m Part No.46
MPR BIATHLON Part No.7 £37.50p each

Black.

259mm long.

Weight ~ 42 grams.

JT745

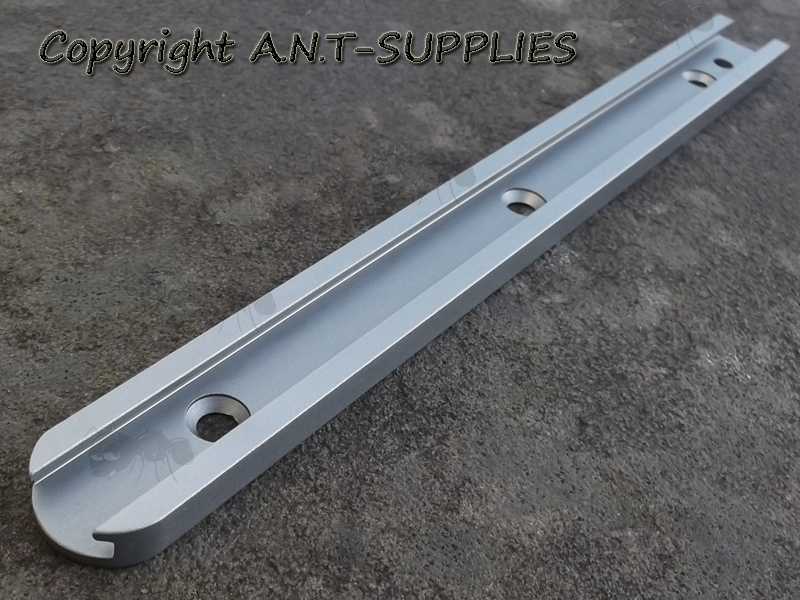

Gun Grey Air Arms HFT 500 Anschutz Forend Accessory Rail

HFT 500 Part No.68 £36.00p each

Gun Grey.

190mm long.

Weight ~ 32 grams.

SSSS

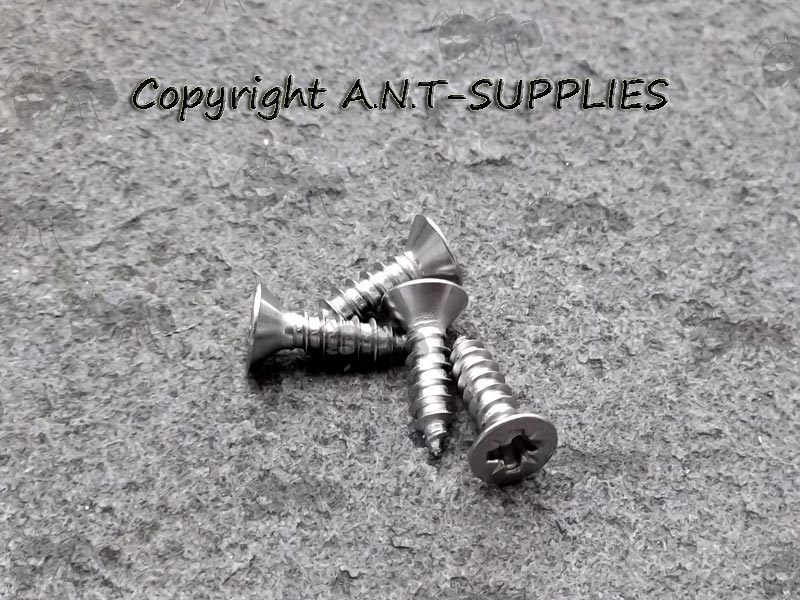

Set of Four Stainless Steel Pozi Head Wood Screws for Fitting Air Arms Accessory Rails

FITTINGS SET (4) £2.40p per set or
90p if part of larger order
Silver.

8mm long.

Weight ~ 3 grams.

Condition: New

Official Air Arms accessory rails.

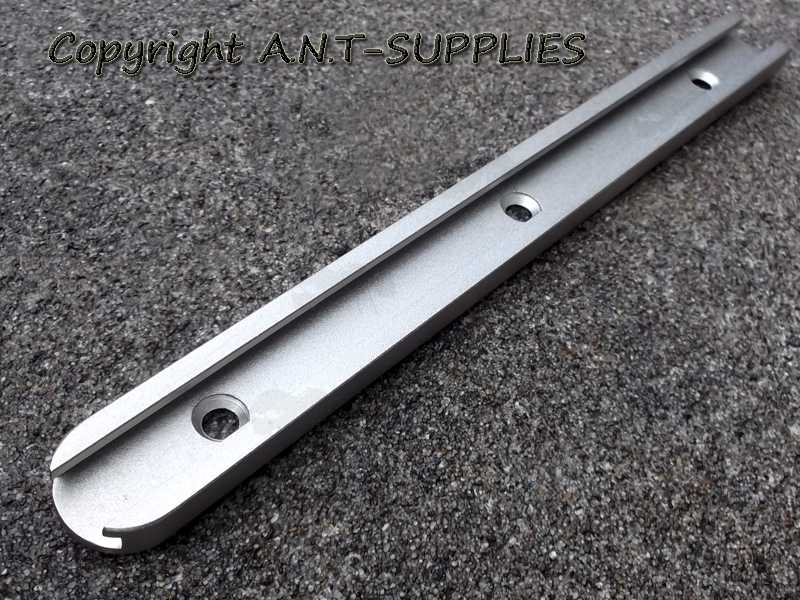

Black anodised aluminium (silver anodised on the EV2 / FTP-900 rail).

The T-profile channel is approx 13.5mm wide x 2.5mm thick.

Overall width ~ 18mm.

Overall height ~ 7mm.

Pre-drilled with 5mm diameter holes with 70mm center spacings.

Compatible with Anschutz / Euro / UIT rail accessory.

Option to add set of stainless steel accessory rail fitting screws.

We also have the bipod / sling stud, and bipods available for these rails.

The Harris bipod adaptor number 6 fits in exactly and the 6A adaptor will fit but is slightly bigger.

The JT441 MPR Internal Rail will accept the Air Arms JT485 0.7 oz / 20 gram stock weights to adjust the rifles balance.

Also available ~ UIT / Anschutz / Euro Accessory Rail to Weaver / Picatinny Rail Adapters.

Five Assorted Length Air Arms Accessory Rails

Galahad Bullpup rail on the top, TDR rail below, showing the different end profiles:

Air Arms Galahad Bullpup and TDR Rifle Forend Accessory Rail

GALAHAD BULLPUP RAIL:

The Ultimate and MPR Biathlon rail are approx 6.54mm thick,
the Bullpup is approx 6.89mm thick.

The shoulder section is 1.7mm thick on the Ultimate rail so some of our
standard UIT rail adapters may not be able to fully tighten, without adaption.

The MPR Biathlon shoulder section is 1.8mm thick, and the Bullpups is 2.1mm thick.
