LEVER ACTION RIFLE SCOPE RAILS
20mm wide Weaver / Picatinny accessory rails.

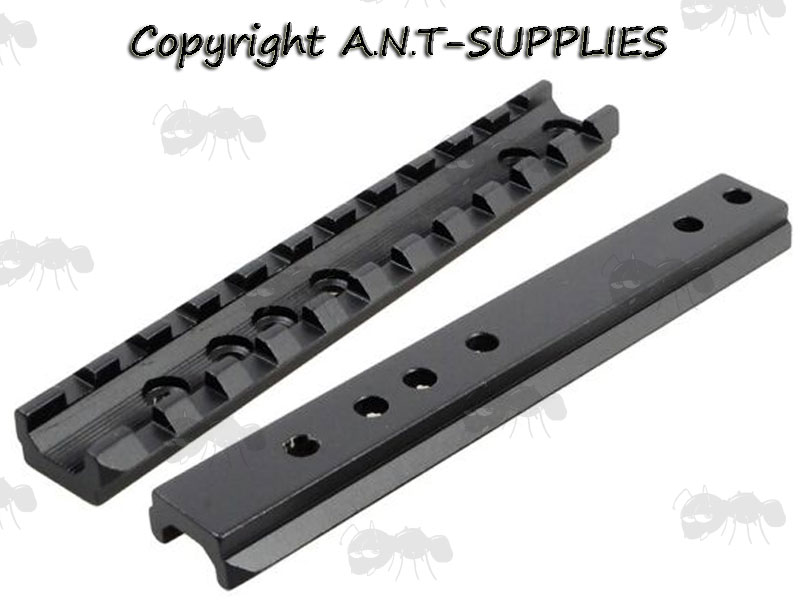

FLAT BASE LEVER ACTION RIFLE SIGHT RAIL
Do-it-yourself flat base Weaver / Picatinny sight rail.
Fixing hole diameters ~ 5mm.
4.7 inches / 120mm long overall with eleven cross slots.
0mm - 13mm - 60mm - 72mm - 82mm - 95mm centre hole spacings.
Precision machined high quality aluminium construction, with matt black anodised finish.
Weighs approx 30 grams.
Please note: these are designed to fit a range of lever action rifles, but you will likely need different screw fittings for each, we do include a set, but they won't fit all models.
This 11 slot rail could (only could) fit the following, although we have not had confirmation:
Marlin 1894, 9, 45, 30AS, 30AW, 336 (all models), 62, 93, 336, 336C, 375, 444, 1993, 1894 Cowboy, 1895, Glenfield 30, Zane grey, Camp 9 carbine, 922M, 989, .22 auto rifle, most model XT rifles.
Westernfield Model 740.
We have had confirmation it fit the Marlin 1894CB.
Will not fit Winchester 1894 AE (Angle Eject):
The hole spacings are slightly too wide apart for the factory drilled holes on the receiver.
(The supplied screws also will not be compatible).
Will not fit the Marlin 39A without some modification ~ cutting and drilling.
