RUGER SCOPE RAILS

Precision machined high quality construction with matt black anodised finish.

NEW RUGER 10/22 SCOPE RAIL

Ruger 10/22 9.5-10.5mm Wide Dovetail and 20mm Wide Weaver / Picatinny Low Sight RailMULTI

£9.60p each

£9.00p each

Length ~ 120mm / 4.75″.

Weight ~ 28 grams.
Low-Profile Ruger 10/22 Weaver Rail Scope Base Cut Out ChannelLOW

£12.00p each



Length ~ 118mm / 4.67″.

Weight ~ 36 grams.
Options
Condition: New

Sight rail for fitting to the Ruger 10/22 rifles and variants.

Mounts onto the top of the 10/22 receiver and matches the pre-drilled holes on the receiver.

Made from black anodised finished aluminium.

Curved profile base.

Colour ~ black.

MOA ~ 0.

You should need four Imperial 6-48 thread size screws, originally slot headed,
although we do often have Torx head screws available separately.


We had a report back that the factory included 6mm long thread screws are too long for a Mannlicher stock Ruger 10/22 (and likely others), as they effect the action, instead 4mm long thread Torx screws worked without issue, or the screws can be shortened.


We have had confirmation that the low rail will fit the Umarex 10/22 .177 Co2 airgun, you just have to leave out the second screw from the stock end as it will jam the bolt assembly mechanism, the other three screws will secure the rail.

MULTI RAIL:

Low-profile multi-rail for switching between Dovetail and Weaver / Picatinny mounts.

The top is a 9.5mm-10.5mm dovetail rail and the overall width is for 20mm Weaver / Picatinny mounts.

The top of the dovetail rail is approximately 10.45mm wide and the overall width of the base is 20.50mm with six cross slots for Weaver / Picatinny mounts.

With six fixing holes: centres approx ~ 12mm - 65mm - 78mm - 87mm - 99mm.

With 6 cross slots.

Adds 6mm elevation.

Please Note: The screws are too big and wont fit the Ruger 10/22 receivers.

The included steel screws are 10mm overall and with 3.9mm diameter threads.


They should fit the Ruger 96/22, but we are yet to have this confirmed.

LOW:

Low-profile 11 slots Picatinny rail mount for Ruger 10/22 model, allows for the mounting of Picatinny or Weaver standard scopes, red dots, magnifiers, etc.

With U cut out channel in the center of the rail, that will still allow the use of your iron sights.

Aircraft grade aluminium with black anodized finish.

Included set of flat head screws for the Ruger 10/22 factory mounting holes.

Four imperial 6-48 thread size screws.

Please Note: The included screws are too long for some Ruger 10/22 receivers (7mm overall, with 3.3mm diameter threads).

We offer sets of Torx head screws (link below), 4mm long threads should work out, rather than 6mm long threads.

HIGH RAIL:

High-profile, see-through weaver rail.

With 11 cross slots.

Adds 18mm elevation.

Includes steel fixing bolts, with no modifications to your rifle necessary.

Included set of flat head screws for the Ruger 10/22 factory mounting holes.

Four imperial 6-48 thread size screws.

The screws are 7mm overall and with 3.3mm diameter threads.

MULTI:

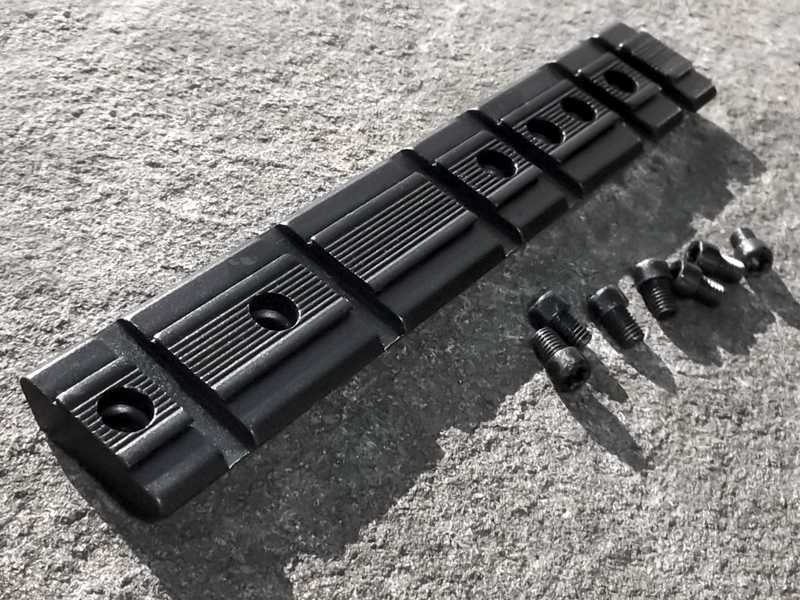

Ruger 10/22 9.5-10.5mm Wide Dovetail and 20mm Wide Weaver / Picatinny Low Sight Rail

LOW:

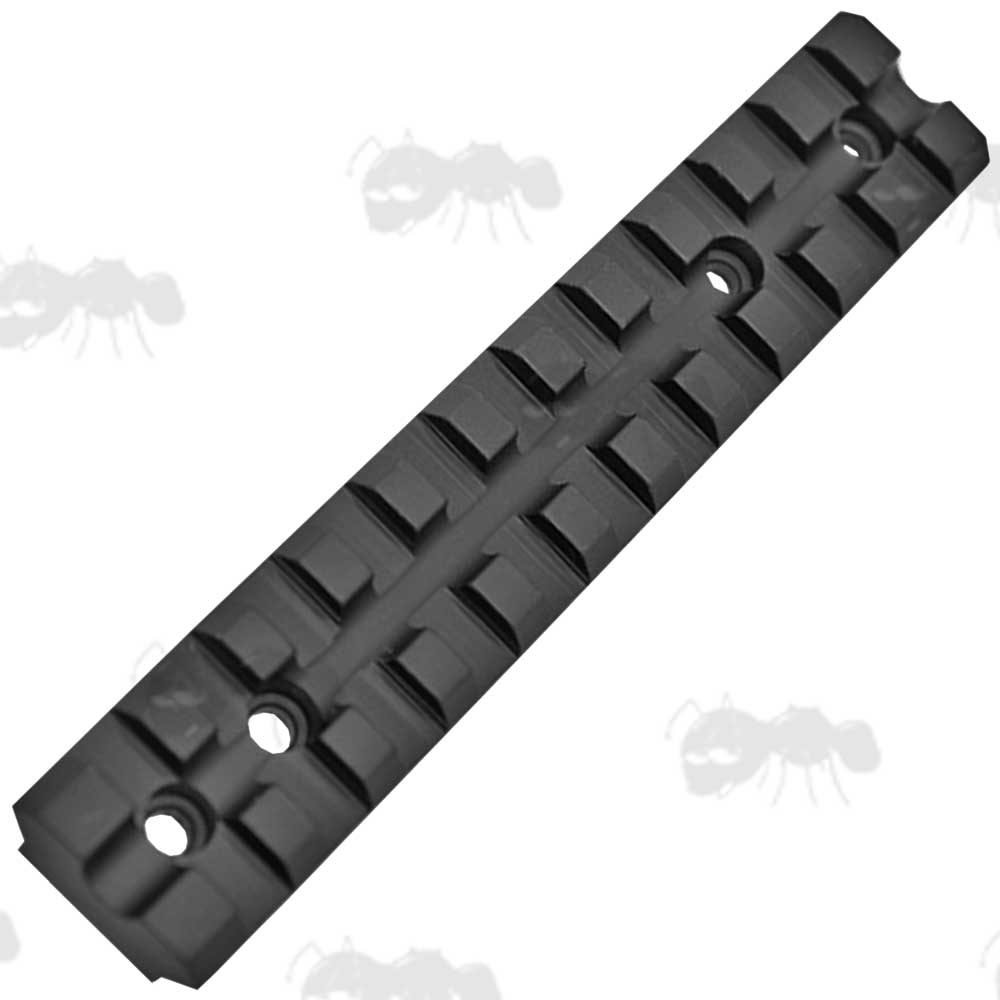

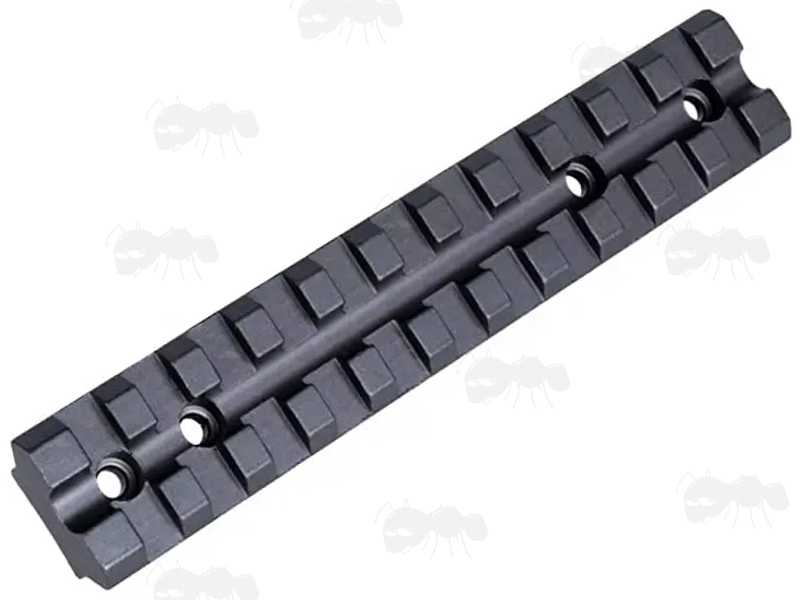

Low-Profile Ruger 10/22 Weaver Rail Scope Base Cut Out Channel with Fittings

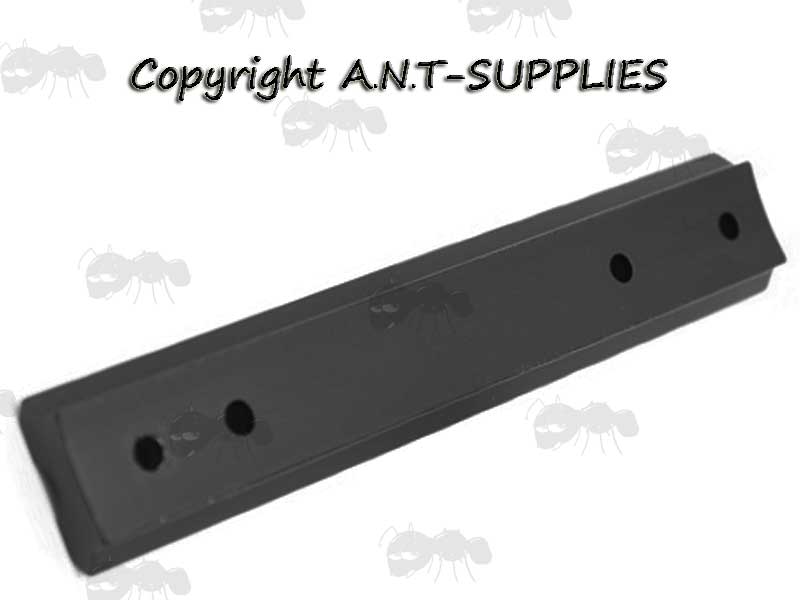

Base View of The Low-Profile Ruger 10/22 Weaver Rail Scope Base Cut Out Channel with Fittings Fitted to Rifle

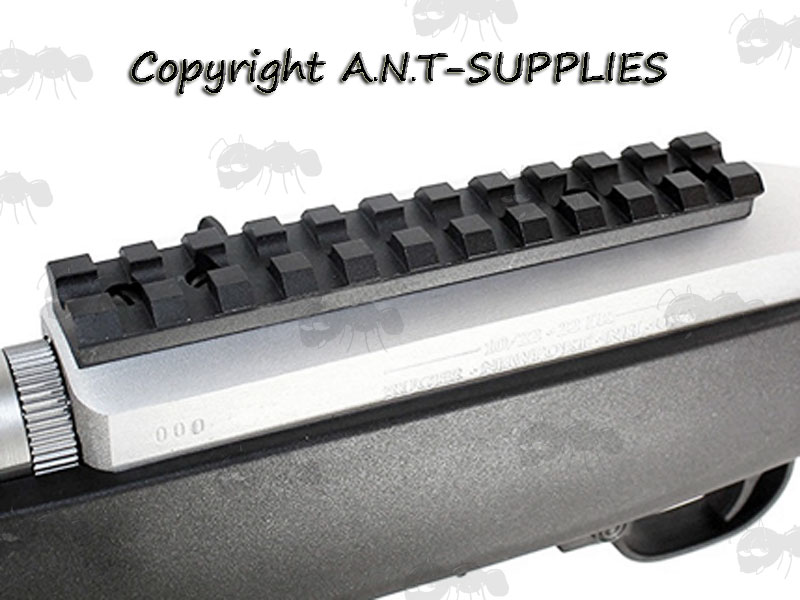

Low-Profile Ruger 10/22 Weaver Rail Scope Base Cut Out Channel with Fittings Fitted to Rifle

HIGH:

High-Profile Ruger 10/22 Weaver Rail Scope Base with Fittings

Ruger 10/22 Weaver Rail Scope Base with Hi-Profile See-Through DesignHIGH

£12.00p each
SOLD OUT, AVAILABLE VIA SPECIAL REQUEST

Length ~ 117mm / 4.60″.

Weight ~ 43 grams.

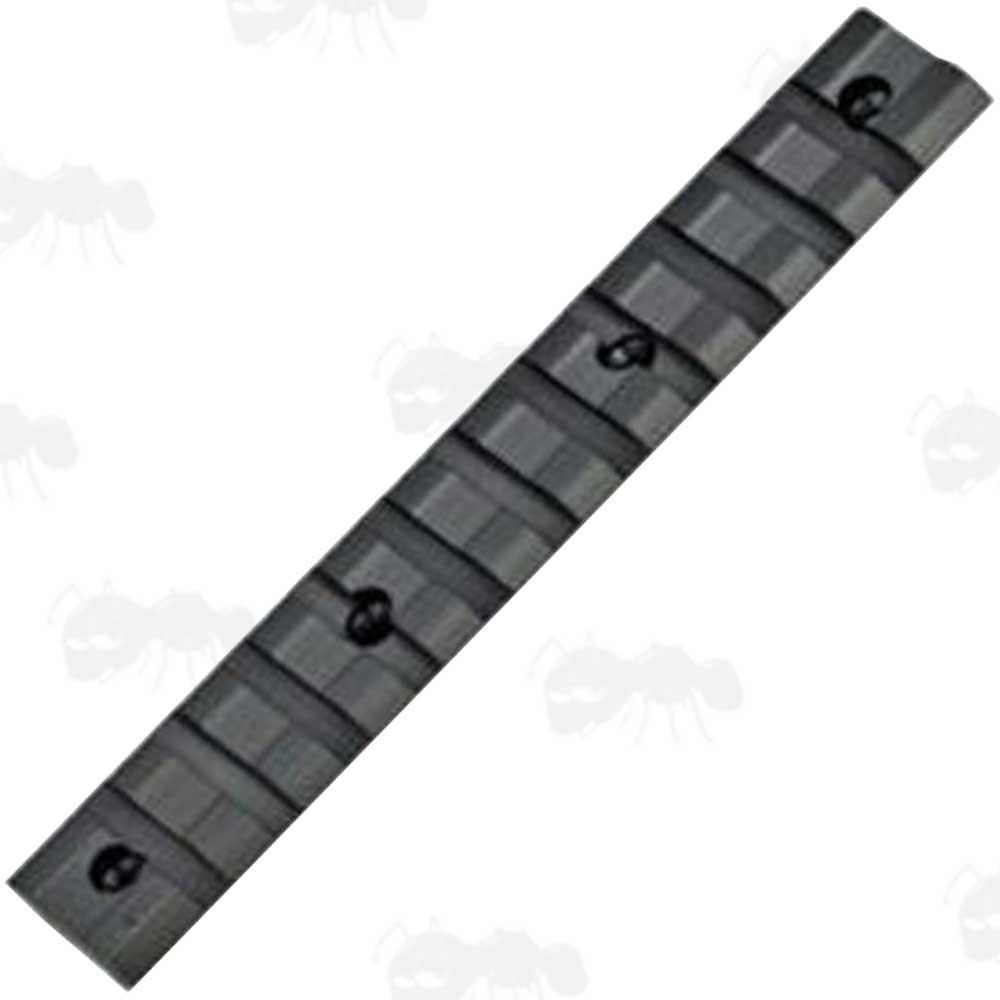

#48335Umarex Ruger 10/22 Multi-Slot Weaver Rail Scope BaseIT IS UNCLEAR IF THE ABOVE RAILS WILL FIT THE RUGER 10/22 CO2 AIRGUN
THIS WAS THE OFFICAL UMAREX 10/22 WEAVER RAIL AND THE HOLES WOULD SUGGEST THE ABOVE WOULD NOT LINE UP, MORE INFO ADDED ABOVE WHEN AVAILABLE


£19.80p each
