REMINGTON 700 SCOPE RAIL BASES

20mm wide sight rails.

NEW REMINGTON 700 BASE RAILS

Two Piece Remington 700 Steel Weaver / Picatinny RailsTWO PIECE 0MOA ~ OMEGA

£24.00p per set

£18.00p per set
SOLD OUT

36mm & 44mm long.

Weight ~ 59 grams.
One Piece Long Remington 700 Steel Weaver / Picatinny Rail with 0MOAONE PIECE LONG 0MOA

£40.80p each

£33.00p each

159mm long.

Weight ~ 135 grams.
One Piece Long Remington 700 Steel Weaver / Picatinny Rail with 20MOAONE PIECE LONG 20MOA

£40.80p each

£30.00p each

159mm long.

Weight ~ 130 grams.
Condition: New

Remington 700 Weaver / Picatinny bases, designed to give precision and stability for the Remington 700 and similar rifles.

With T-15 torx style screws.

Options for both Remington 700 long and short action receivers.

Constructed from heat-treated, high strength steel to be sure that your rifle scope is will stay in place.

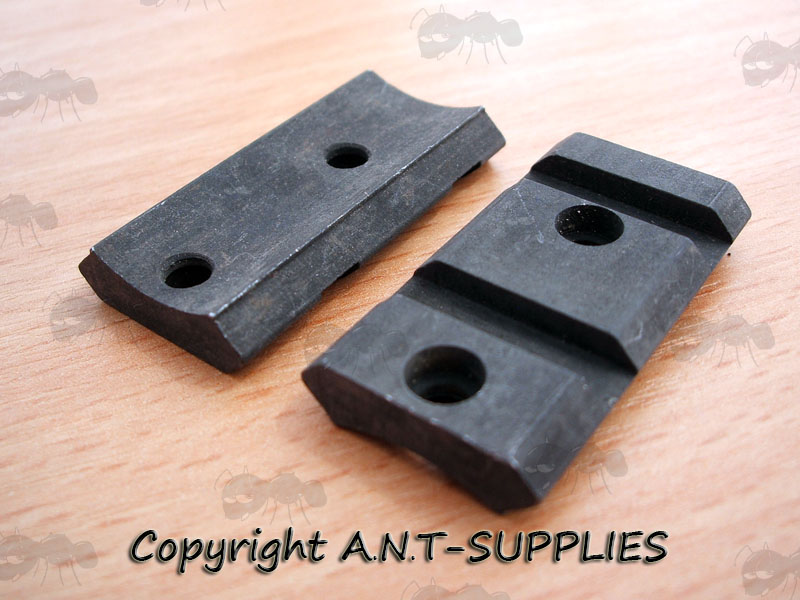

Two piece rails extra information:

The rail for the rear of the receiver is thicker than the front rail, which also has a rounder base profile.

Omega set: elevation rear ~ 6.5mm, front ~ 3.5mm.

As well as Remington 700, the two piece rails should fit Ruger 10/22, Browning X-Bolt (with the shorter screws), Nosler M48, Howa 1500 and Weatherby Vanguard Series II rifles, the two piece design can fit a wider range of rifles than the one piece rails.

The one piece rails should also fit the Browning X-Bolt (with the shorter screws).

Please Note: last feedback says the one piece short action rail was 1/4" too short to fit the Howa 1500 short action, and they don't fit Rem 700 short action in .308 Win.


One piece rail hole spacings:
Hole centres ~ 1st to 2nd, 2nd to 3rd, 3rd to 4th.

Short action:
21.90mm, 92.3mm, 15.30mm.

Long action:
21.94mm, 113.9mm, 15.24mm.


Short action zero MOA: elevation rear ~ 10.2mm, front ~ 7.5mm.

Short action 20 MOA: elevation rear ~ 10.2mm, front ~ 6.5mm.

Make sure your firearm is unloaded before installation.

Check your firearms receiver for burrs around the screw holes and remove them.

Remove all oil and grease from the holes in the receiver, base screws and surfaces.

Set the base rail on the receiver.

Using a hex key, install the supplied or other suitable screws,
and tighten to the correct torque (approx 25 in/lb).

Also available ~ Spare Rail Mount Screws.

TWO PIECE ~ OMEGA:

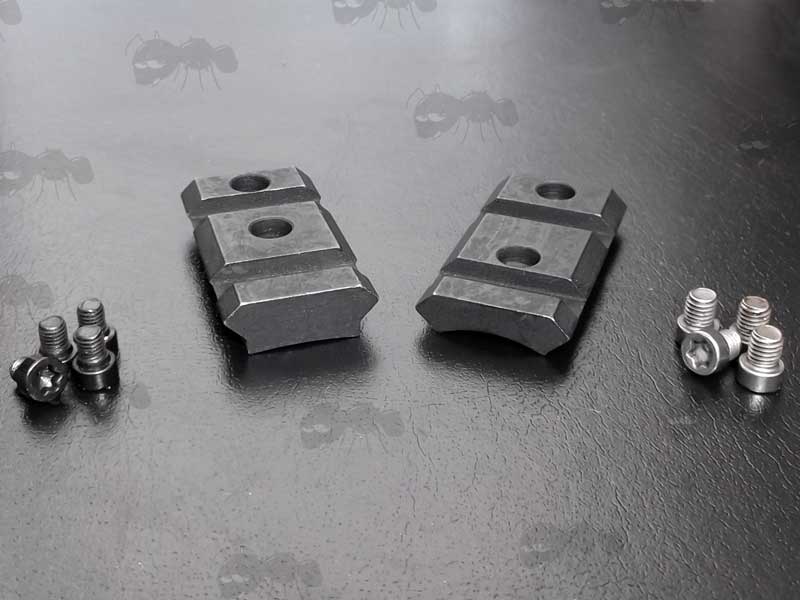

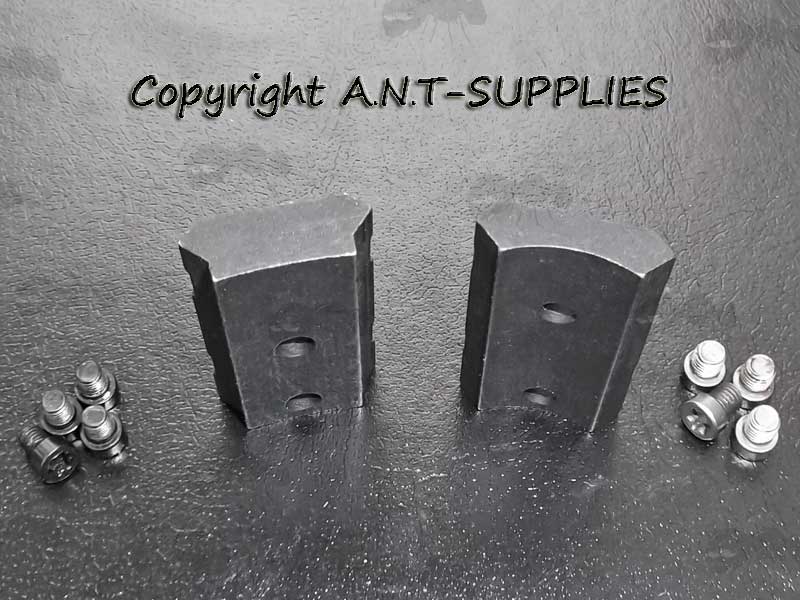

Two Piece Remington 700 Steel Weaver / Picatinny Rails With Screw Set

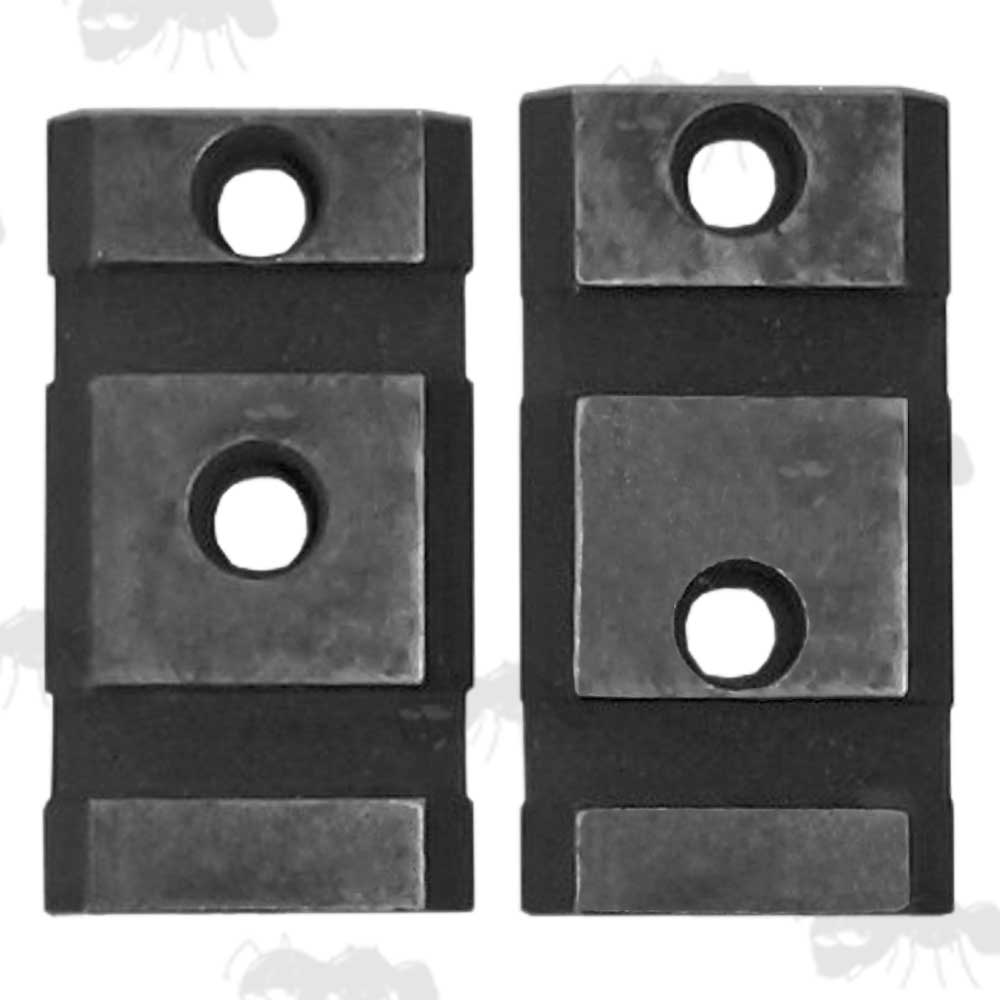

Two Piece Remington 700 Steel Weaver / Picatinny Rails

ONE PIECE SHORT AND LONG ACTIONS:

Base View of Short and Long Action One Piece Remington 700 Steel Weaver / Picatinny Rails
Top View of Short and Long Action One Piece Remington 700 Steel Weaver / Picatinny Rails
