WEAVER / PICATINNY TO DOVETAIL MOUNT ADAPTERS
Precision machined high quality aluminium alloy construction.
For fitting your Weaver / Picatinny scope mounts to 9.5mm-11.5mm wide dovetail rails.
WEAVER TO DOVETAIL SCOPE MOUNT ADAPTER
ONE SLOT£5.40p each or
£8.09p for two
25mm long.
Weighs 5 grams.
FOUR SLOTS£6.60p each or
£9.89p for two
47mm long.
Weight ~ 8 grams.
NINE SLOTS£9.90p each or
£14.86p for two
97mm long.
Weight ~ 15 grams.
Snap in Weaver / Picatinny scope mount to dovetail adapter.
Spring-loaded, ultra-low profile inserts.
Fits inside the bases of most Weaver and Picatinny scope mount rings, to allow them to be fitted to 3/8″ / 11mm dovetail rails.
Keeps a low-profile, only adding 4mm elevation.
Aluminium with a matte black anodised finish.
The spring-loaded snap-in action means they stay fitted inside the mounts and not on the rail.
They then fix to the rail with the force of tightening the scope ring mounting clamp.
The one slot adapter has a removable recoil stopper screw.
The one slot adapters are often used for the PARD NV008, we also have a multi-rail PARD mount available.
Please note:
Take care to check the small screws are secure in either end of the rail, they stop the adapters pulling apart, but are small and easy to lose.
No reported problems as yet, but due to the flat design they may not be suitable to some round profile receiver rails.
FITTING INSTRUCTIONS:

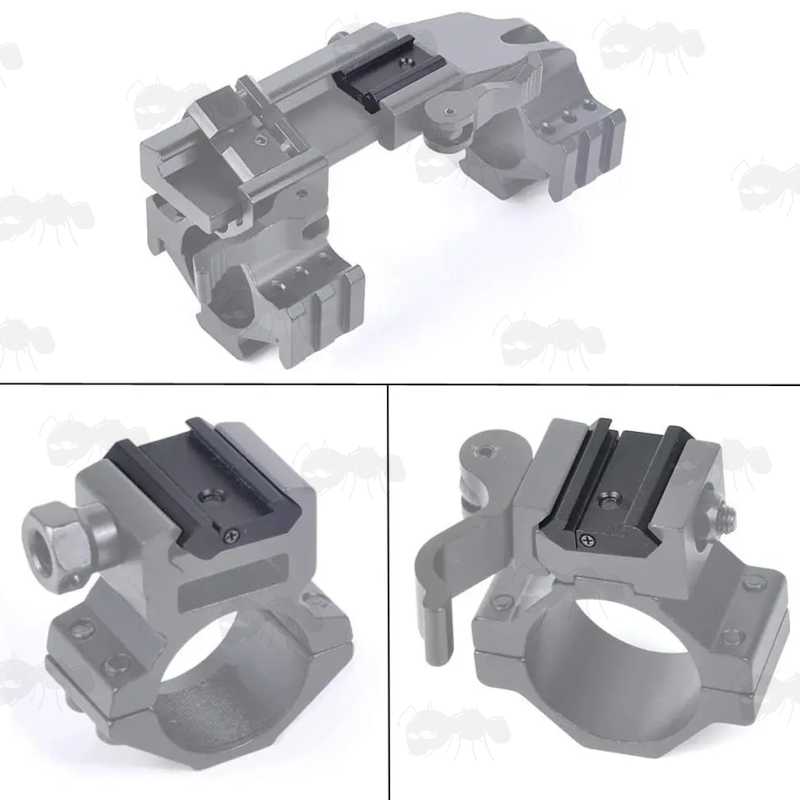

We only recommend these to be fitted into to clamping plates of the base of the scope mounts / device you are mounting.
They are not designed to fit the rail, as with standard adapters, although that can be possible with the one slot lengths, if you have recoil pin holes for the grub screws to anchor to.
If fitting two of the one slot adapters, make sure both are installed the same way.
The screws at the end of the adapters are only to secure the springs, and not really designed to hold the adapter to the rail, as the extra force to hold the adapter can damaged the screws.
Also available ~ Weaver / Picatinny to Dovetail Rail Adapters.
ONE SLOT LENGTH:

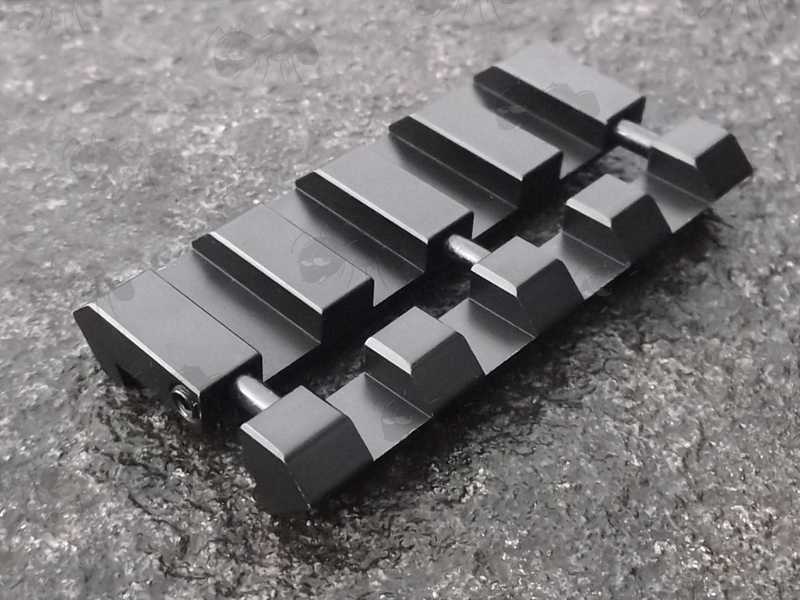

FOUR SLOT LENGTH:

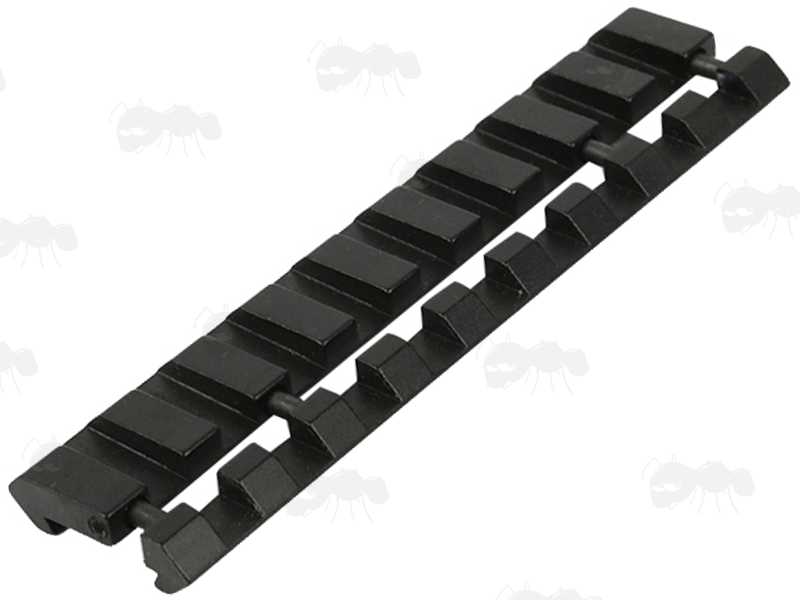

NINE SLOT LENGTH:
