ROUNDED BASE WEAVER / PICATINNY RAILS
20mm wide rails.
Precision machined high quality construction with matt black anodised finish.
NEW ROUND BASE WEAVER RAIL BASE
1 SLOT ~ LOW ~ 29MMALPHA
£5.40p each or
£8.64p for two
22mm centre to centre holes.
1.12 inches / 29mm long overall.
Slots ~ 1.
Overall height 7mm.
1 SLOT ~ LOW ~ 29MMOMEGA
£5.40p each or
£8.64p for two
22mm centre to centre holes.
1.12 inches / 29mm long overall.
Slots ~ 1.
Overall height 7mm.
1 SLOT ~ HIGH ~ 20MM£5.40p each or
£8.64p for two
13mm centre to centre holes.
0.75 inches / 20mm long overall.
Slots ~ 1.
Overall height ~ 12mm.
4 SLOT ~ 100MM£6.00p each or
£9.60p for two
0mm - 12mm - 60mm - 72mm - 82 centre hole spacings.
4 inches / 100mm long overall.
Slots ~ 4.
Overall height ~ 8mm.
12 SLOT ~ 125MM£6.60p each or
£10.56p for two
90mm centre to centre holes.
5.87 inches / 124mm long overall.
Slots ~ 12.
Overall height ~ 9mm.
13 SLOT ~ 140MM£7.20p each or
£11.52p for two
Originally designed as a
Mossberg 500/590 sight rail.
0mm - 13mm - 67mm - 80mm centre hole spacings.
5.5 inches / 140mm long overall.
Slots ~ 13.
Overall height ~ 9mm.
20mm wide rails that should accept most Weaver and some Picatinny mounts.
Black anodised finished aluminium.
With pre-drilled fixing holes.
Alternatively can be fixed in place with epoxy resin glue.
Two rails can be fitted inline if a longer rail is required and space allows.
Screw / glue on rail for DIY setups.
Weaver / Picatinny rail with rounded base to allow fitting on cylinders or barrels.
Most of the rails have a curved base to fit a curve for 28mm diameters, the exceptions are:
The 13 SLOT ~ 140mm rail has a curve for 60mm diameters.
Please note: the mini rails have slightly narrower cross slots, at around 3.8mm, compared to the slots on the longer rails are approx 4.9mm wide, so many not accept mounts with slightly wider location bars.
Please note: that the height of the rails has varied from batch to batch in the past, they are correct at the time of writing this, but if a factor please feel free to double check with us before ordering.
Also available ~ Rail Mount Screws and Flat Bottomed Weaver / Picatinny Rails.

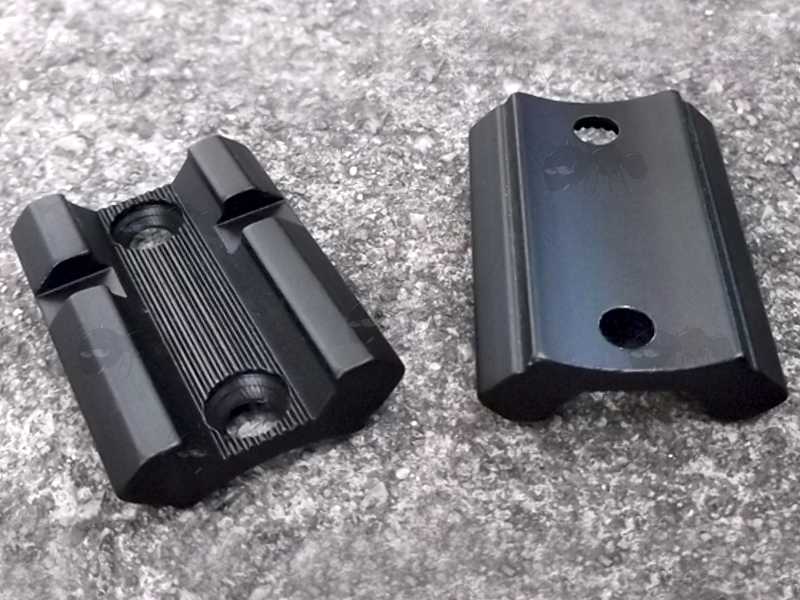

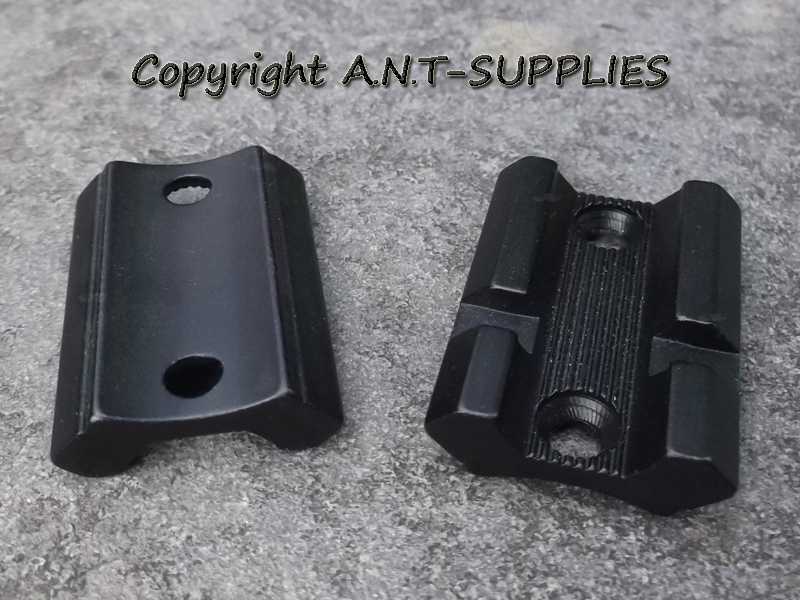

1 SLOT ~ LOW ~ 29MM ALPHA:

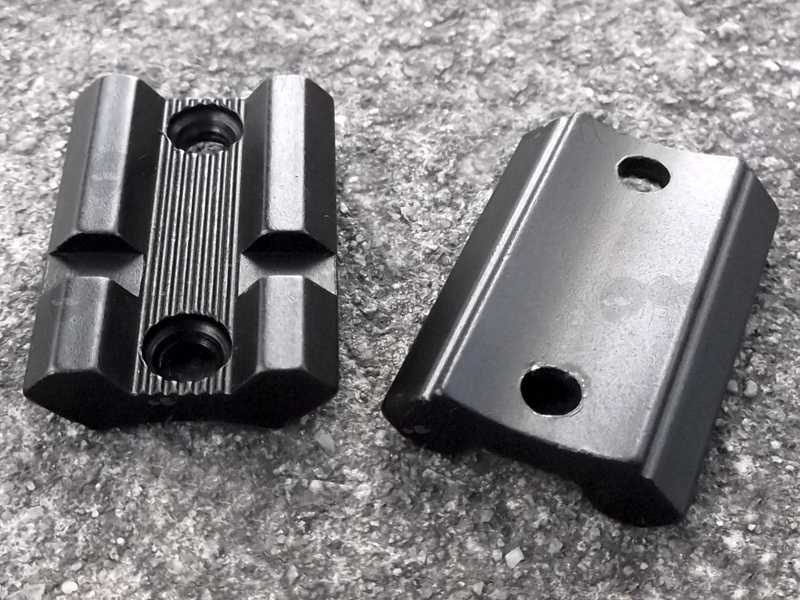

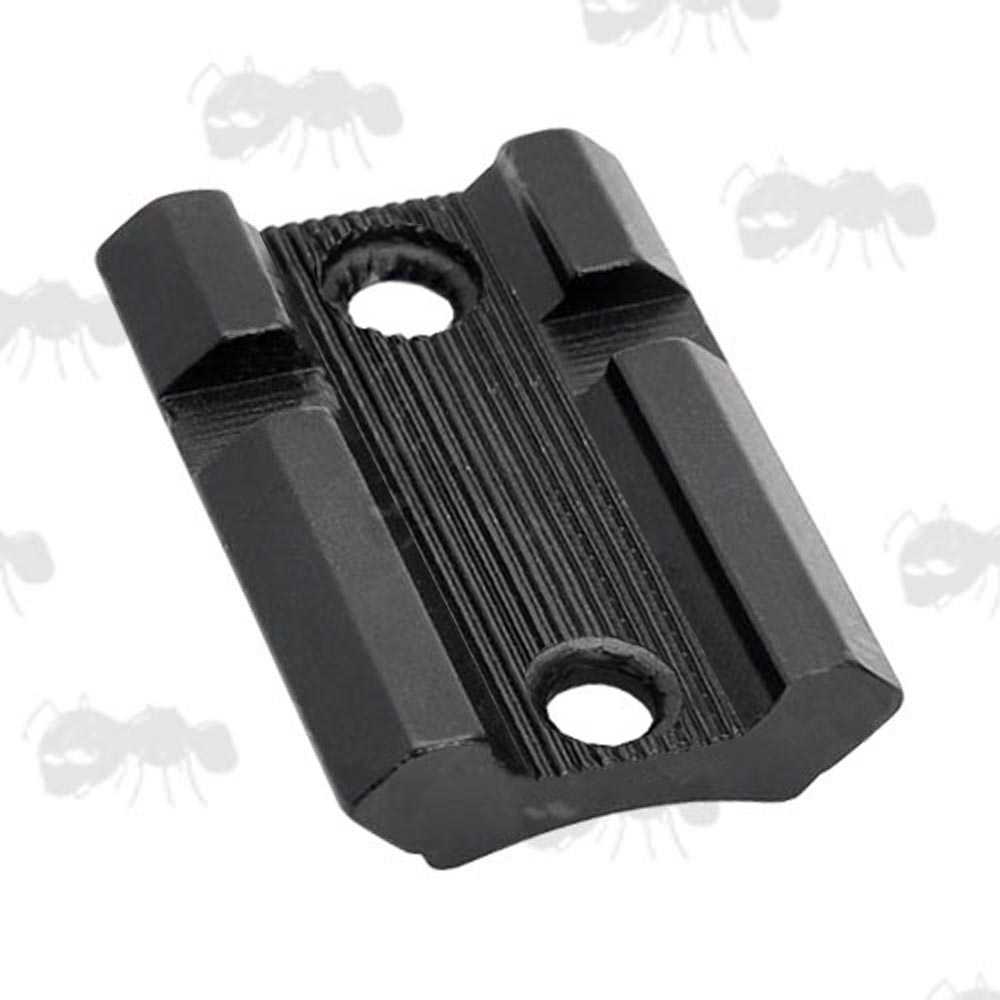

1 SLOT ~ LOW ~ 29MM OMEGA:

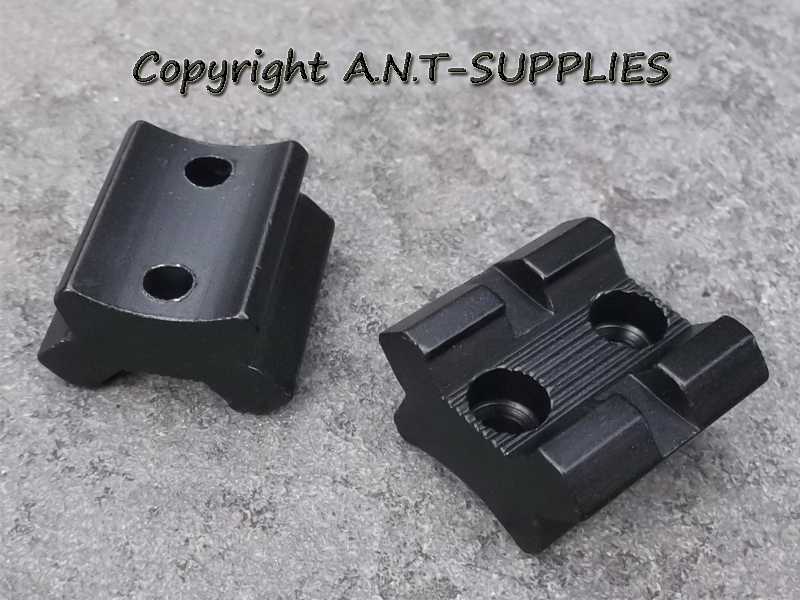

1 SLOT ~ HIGH ~ 20MM:

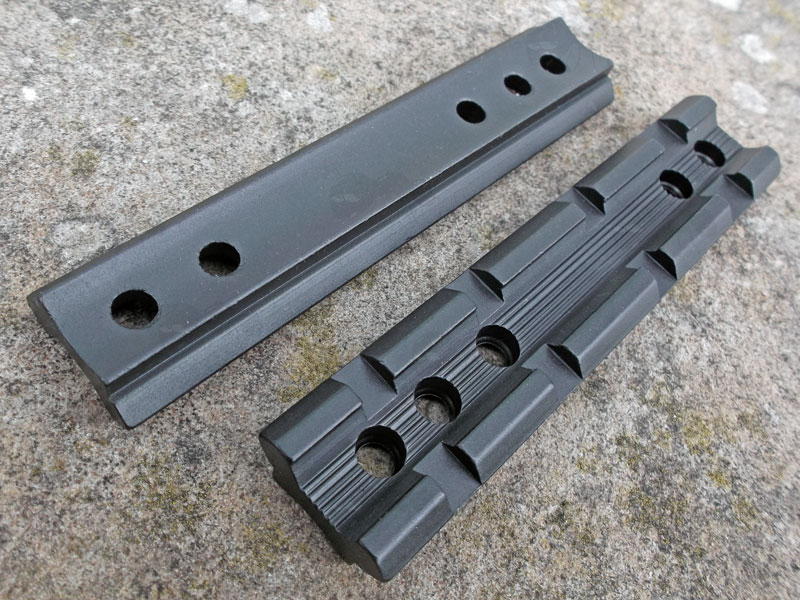

4 SLOT ~ 100MM:
The irregular cross slot spacing and widths on this option make it more suitable to Weaver rail mounts:

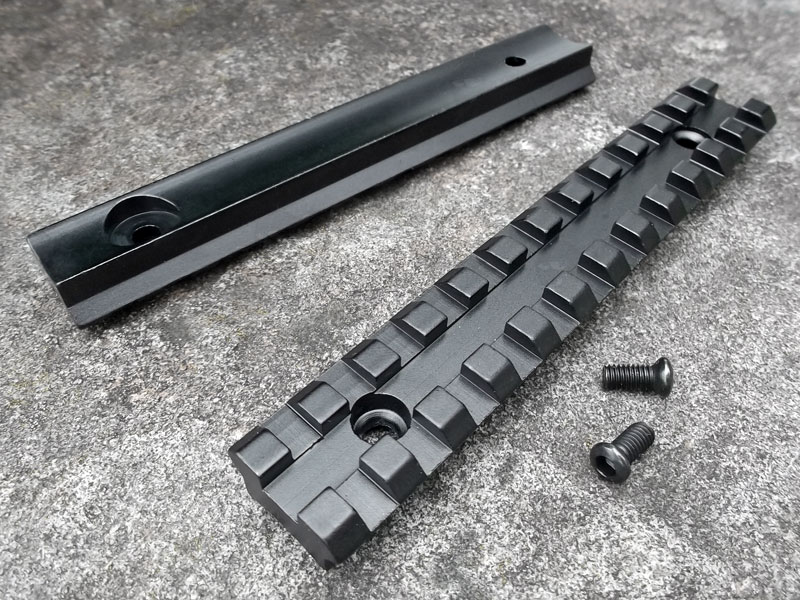

12 SLOT ~ 125MM:

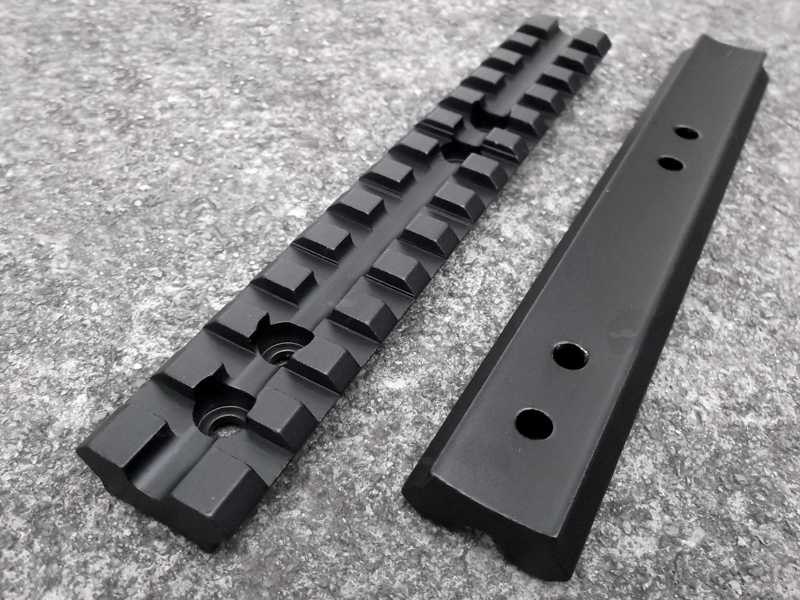

13 SLOT ~ 140MM:
