REMINGTON 700 SCOPE RAIL BASE
Long action Picatinny sight rails.

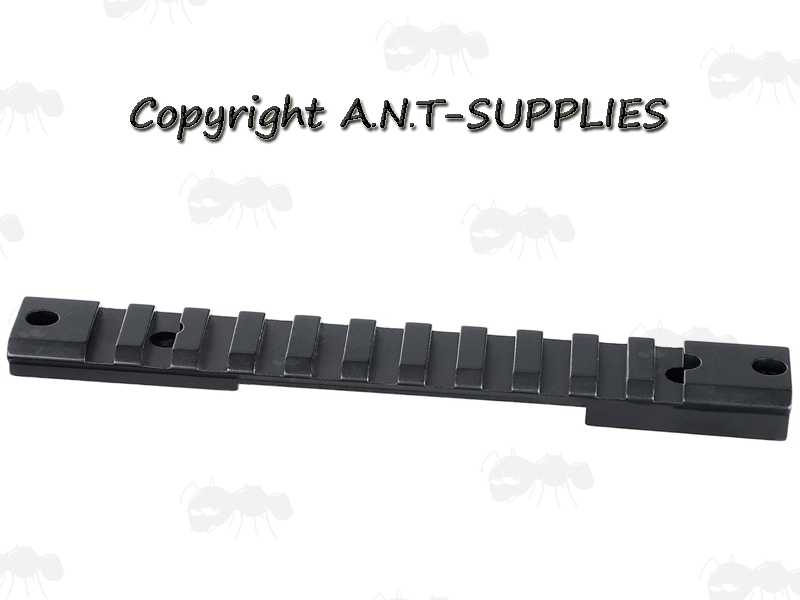

REMINGTON 700 ONE PIECE BASE RAILS

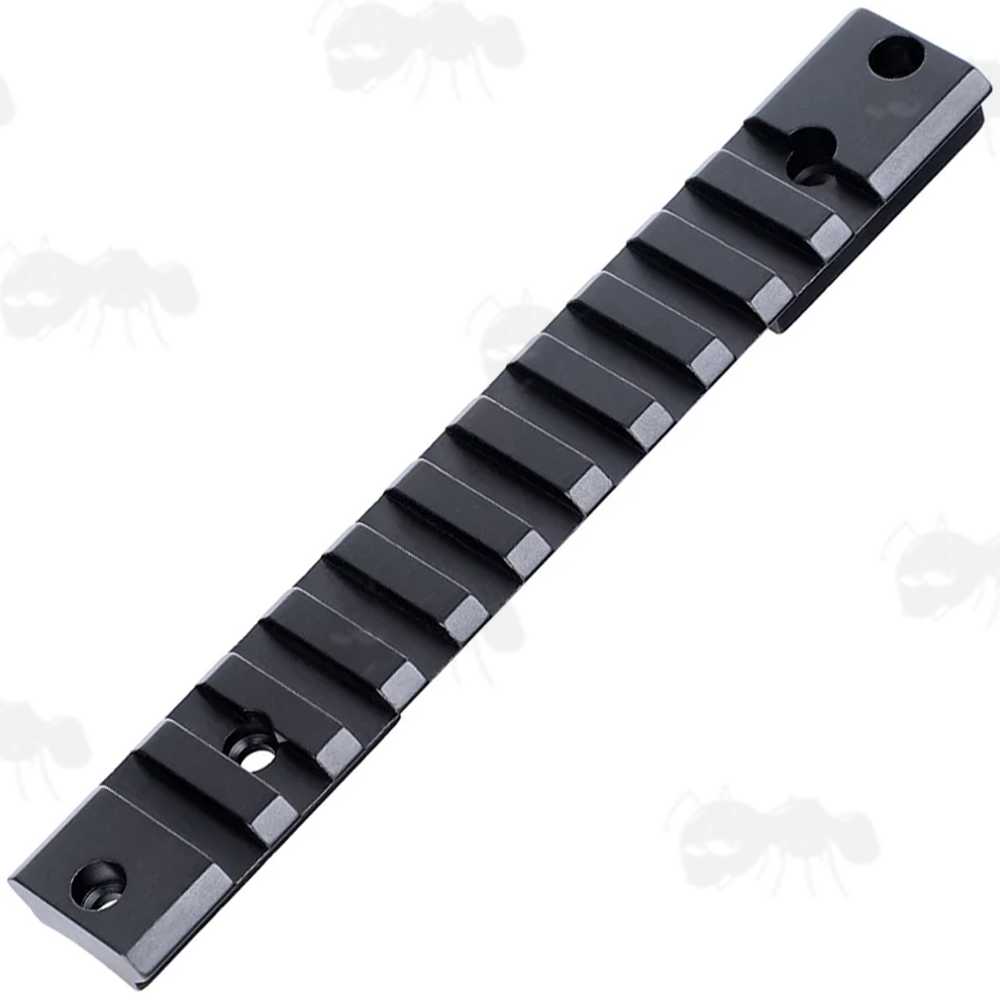

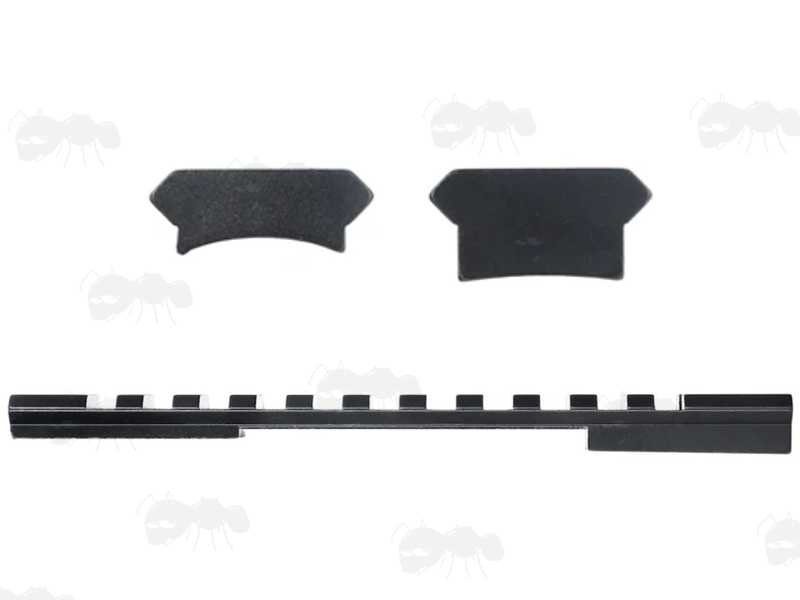

SHORT ACTION 0MOA£18.00p each
AVAILABLE BY SPECIAL ORDER
138mm long.
Elevation **mm.
Weight ~ 40 grams.

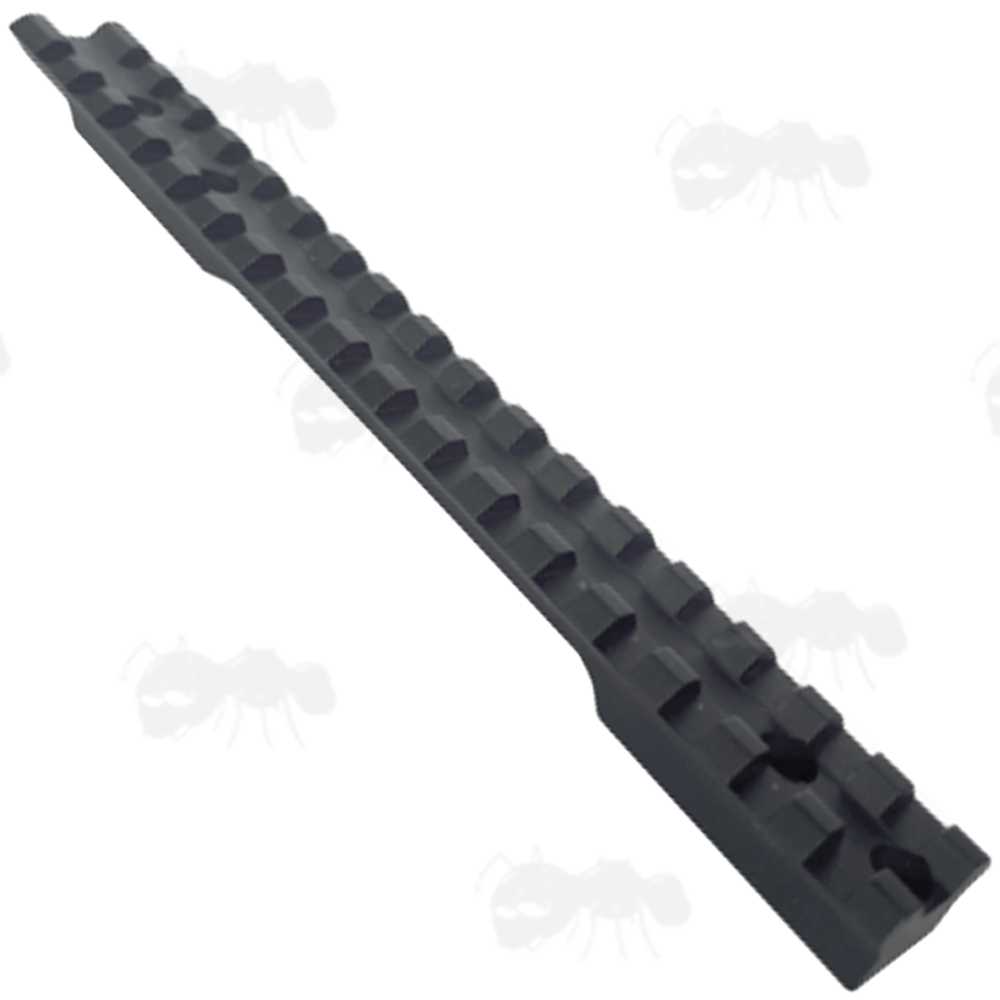

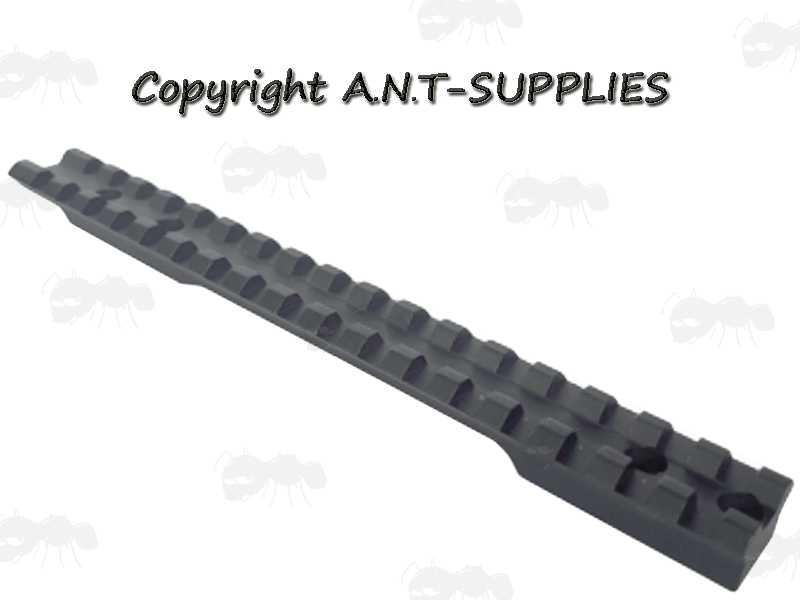

LONG ACTION 0MOA£30.00p each
AVAILABLE BY SPECIAL ORDER
159mm long.
Elevation **mm.
Weight ~ *** grams.
Remington 700 Picatinny base rail, designed to give precision and stability for your Remington 700 rifle.
These one piece rails should also fit the: Remington 721, Remington 725, Sauer 100, Sauer 101, Bergara B-14 Long Action and Browning X-Bolt (with shorter screws).
Please Note: we can not guarantee the provide screws will be correct for all the above mentioned rifles.

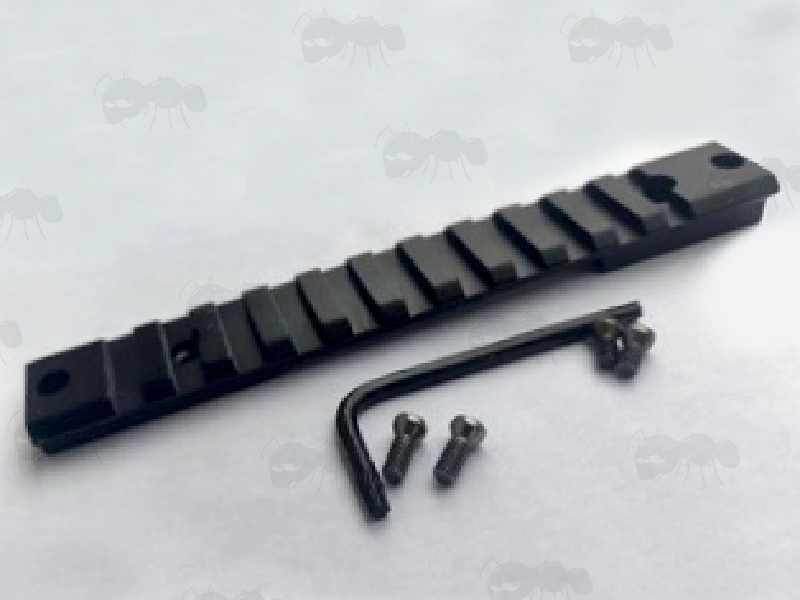

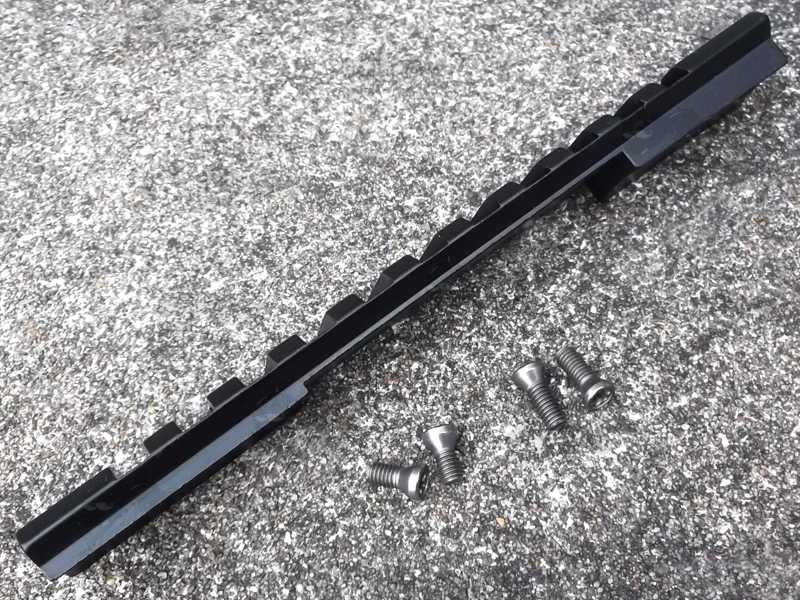

With T-15 torx style screws.
Option for Remington 700 short and long action receivers, and rifles with similar design.
Constructed from high strength aluminium alloy.

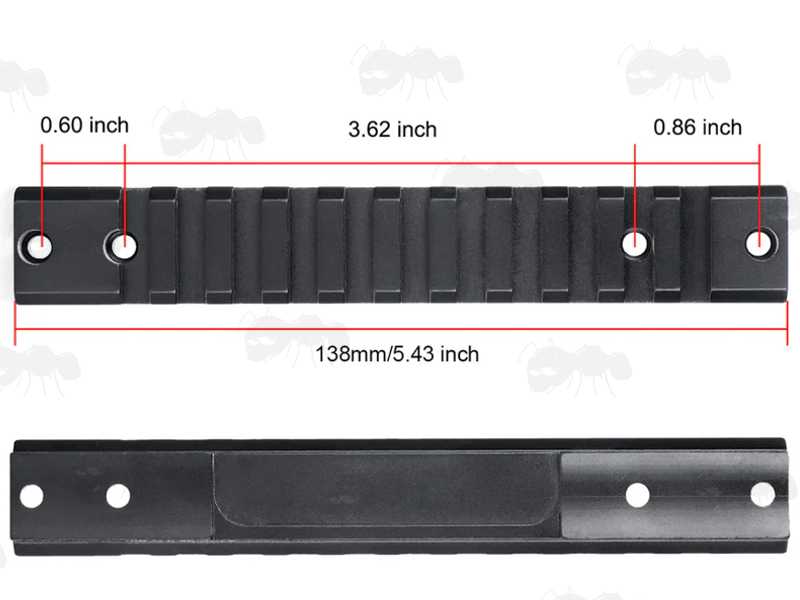

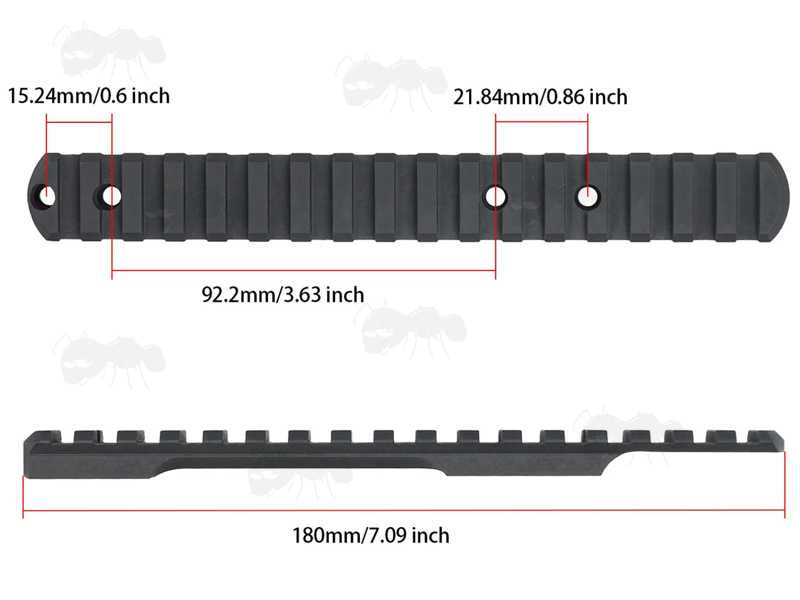

| Hole centre spacings: | 1st to 2nd | 2nd to 3rd | 3rd to 4th |
|---|---|---|---|
| SHORT ACTION | 21.90mm | 92.3mm | 15.30mm |

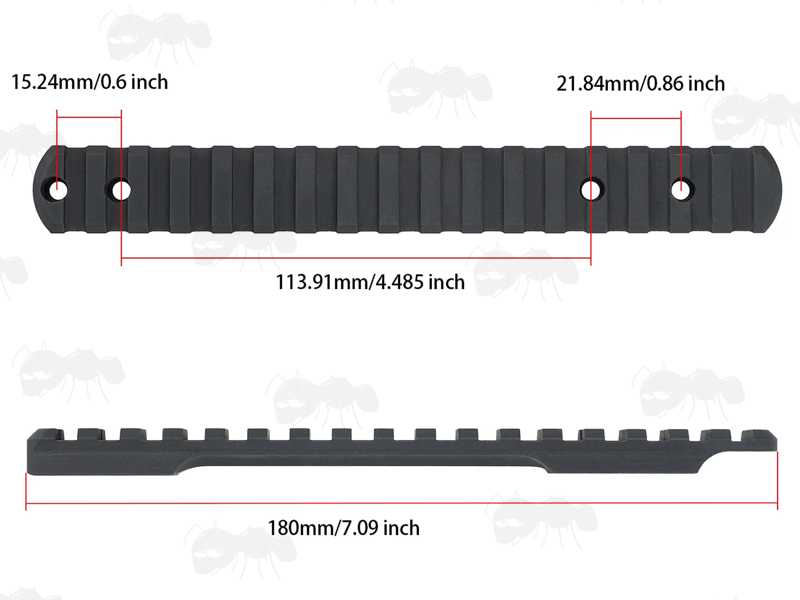

| LONG ACTION | 21.94mm | 113.9mm | 15.24mm |
Make sure your firearm is unloaded before installation.
Check your firearms receiver for burrs around the screw holes and remove them.
Remove all oil and grease from the holes in the receiver, base screws and surfaces.
Set the base rail on the receiver.
Using a hex key, install the supplied or other suitable screws, and tighten to the correct torque (approx 25 in/lb).
Also available ~ Remington 700 Two Piece Weaver Rails and Spare Rail Mount Screws.
By special order we can also supply:
Warne™ Scope Mounts Two-Piece Mounting Weaver Base for Remington 700 (Matte Black) ~ @ £50
CVA Paramount Muzzleloaders Picatinny and Remington 700 UML Scope Rail (0 MOA) ~ @ £80
CVA Paramount Muzzleloaders Picatinny and Remington 700 UML Scope Rail (20 MOA) ~ @ £80
Leupold™ Remington 700 Short / Long Scope Mounts - 1" Black Rings - Medium or High Base ~ @ £150
Williams™ WGOS Remington (Pre-2003) Firesight Set - Fits Remington 700 Muzzleloaders ~ @ £60
Williams™ WGOS-Remington (Post-2003) Firesight Set - Fits Remington 700 Muzzleloaders ~ @ £60
Williams™ Western Precision Muzzleloading Sight Set - Remington 700 ~ @ £200

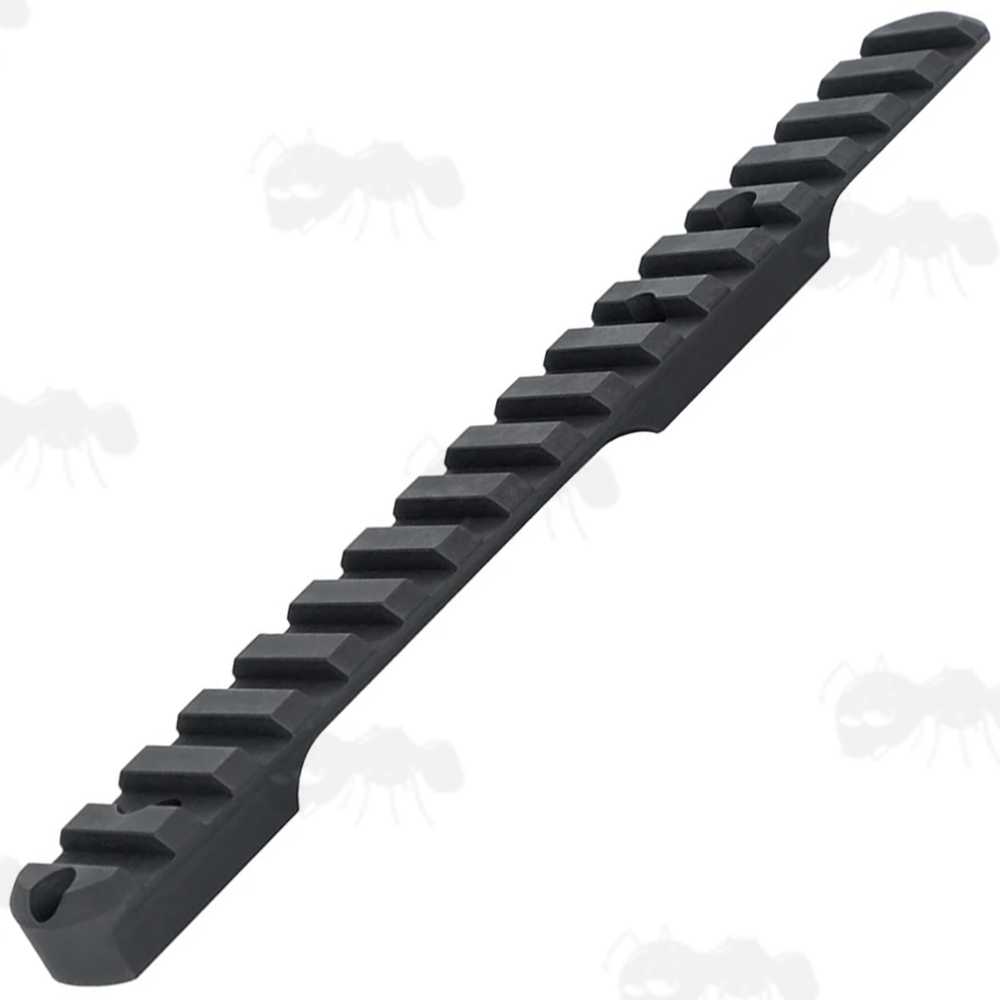

SHORT ACTION:
LONG ACTION:
ALSO AVAILABLE BY SPECIAL ORDER:
LEUPOLD REMINGTON 700 SHORT ACTION SIGHT RAIL:
WILLIAMS WESTERN PRECISION REMINGTON 700 GLOBE PEEP SIGHT SET:
