THREADED MUZZLE ADAPTER

For 12mm to 14mm silencers / moderators / muzzle brakes.

THREAD ADAPTERS FOR AIRSOFT RIFLES

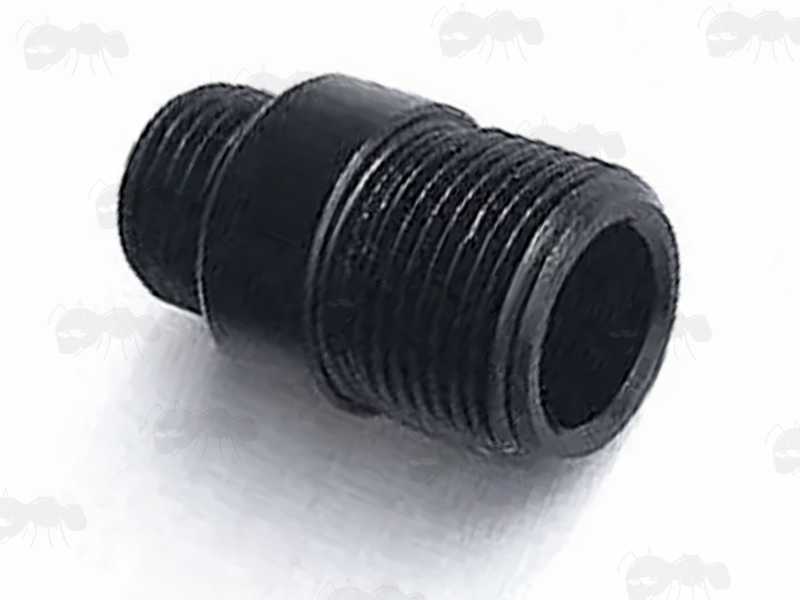

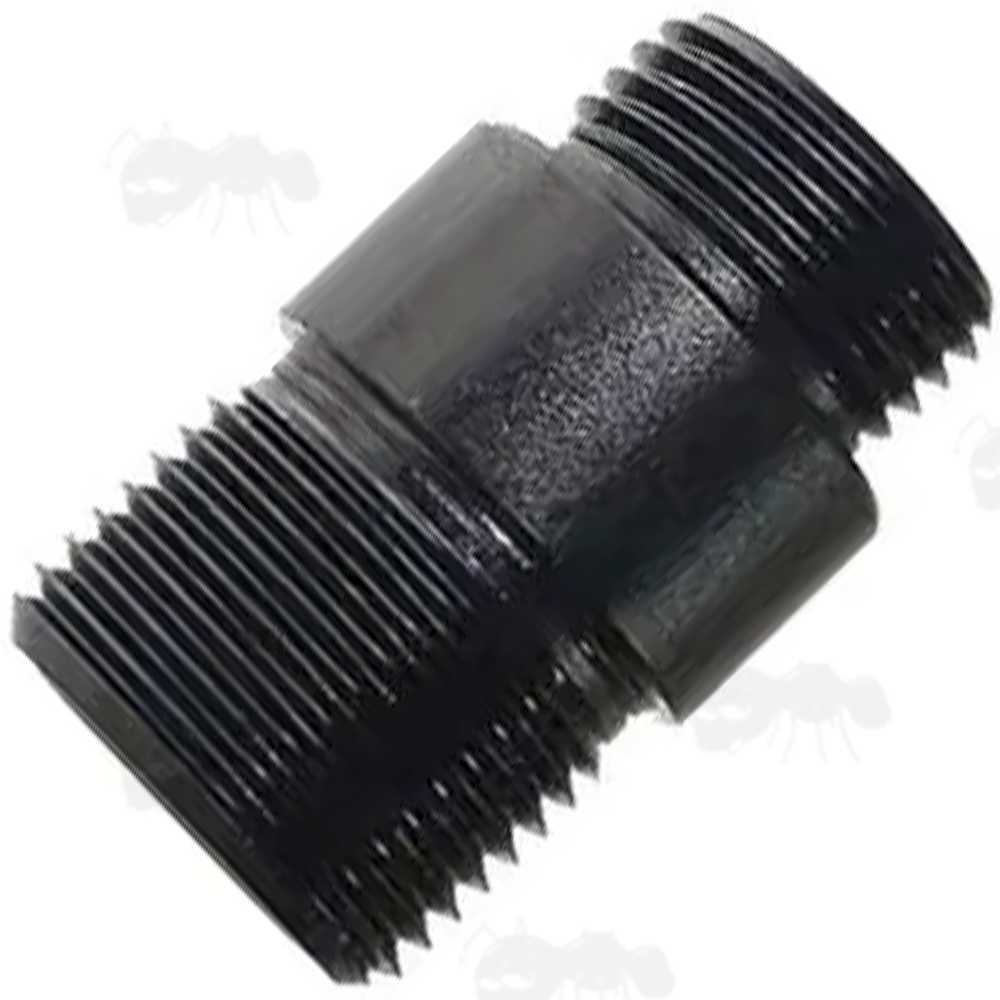

Black Anodised 6061 T6 Aircraft Grade Alloy M12x1 Right Hand Male Thread To M14x1 Left Hand Male Thread Muzzle AdapterM12x1 RH MALE TO M14x1 LH MALE

£15.00p each
AVAILABLE TO PRE-ORDER

External thread ~ M14x1 LH.

External thread ~ M12x1 RH.

The 12mm threads length ~ **mm.

The 14mm threads length ~ **mm.

Overall diameter ~ **mm.

Overall length ~ **mm.

Weighs ~ 5 grams.


OPTION A

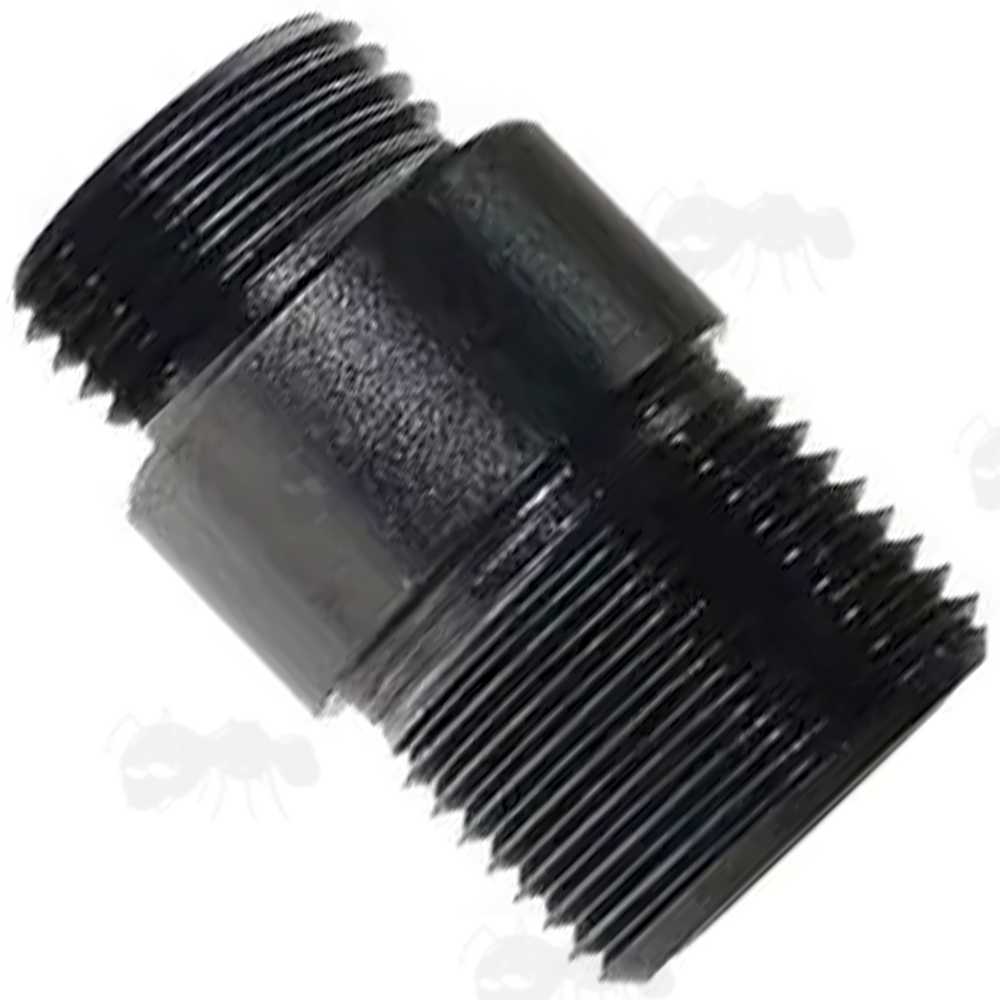

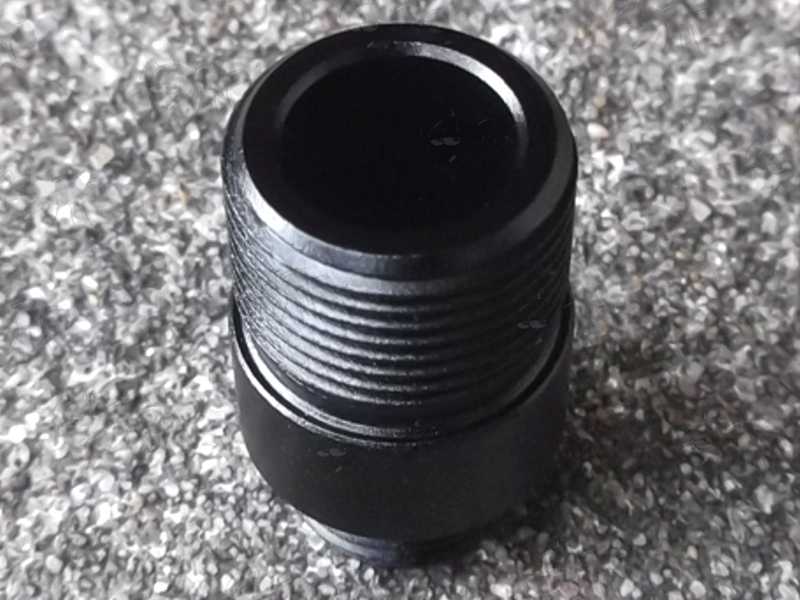

Black Anodised 6061 T6 Aircraft Grade Alloy M12x1 Left Hand Male Thread To M14x1 Left Hand Male Thread Muzzle AdapterM12x1 LH MALE TO M14x1 LH MALE

£15.00p each
AVAILABLE TO PRE-ORDER

External thread ~ M14x1 LH.

External thread ~ M12x1 LH.

The 12mm threads length ~ **mm.

The 14mm threads length ~ **mm.

Overall diameter ~ **mm.

Overall length ~ **mm.

Weighs ~ 5 grams.


OPTION B

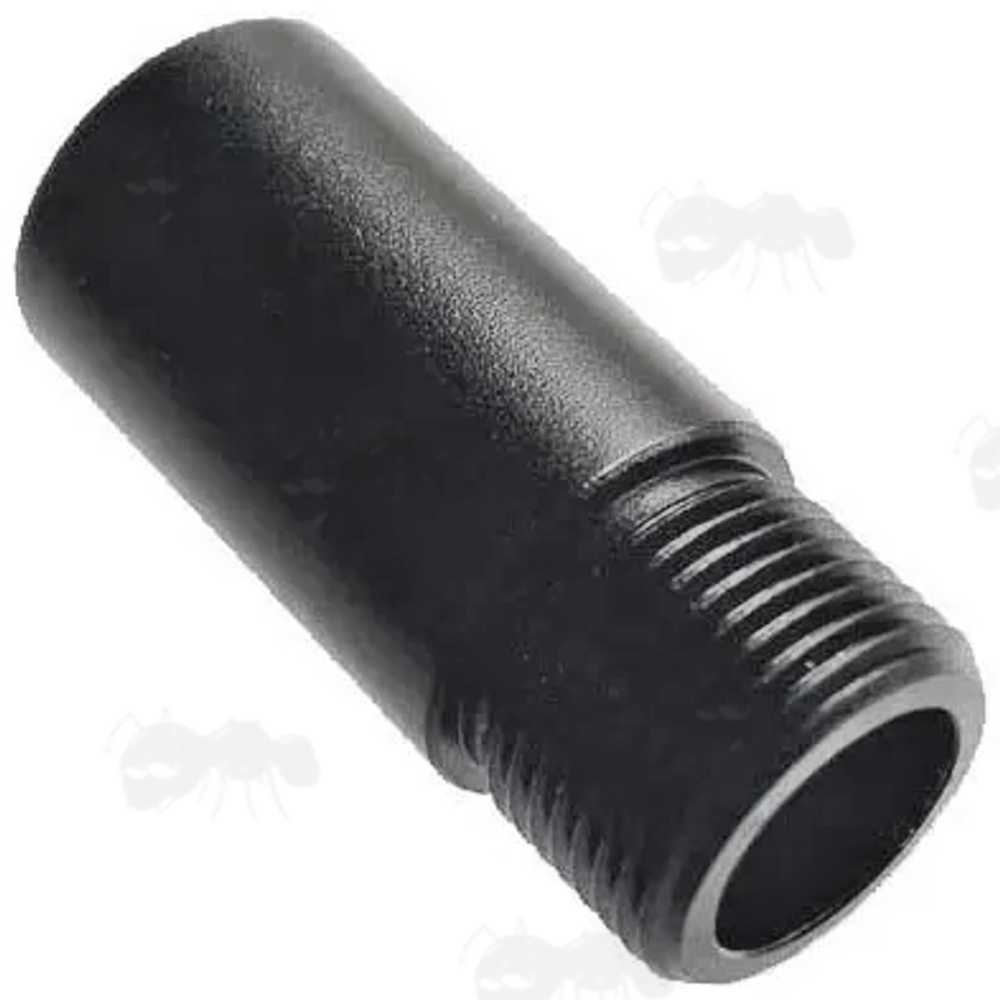

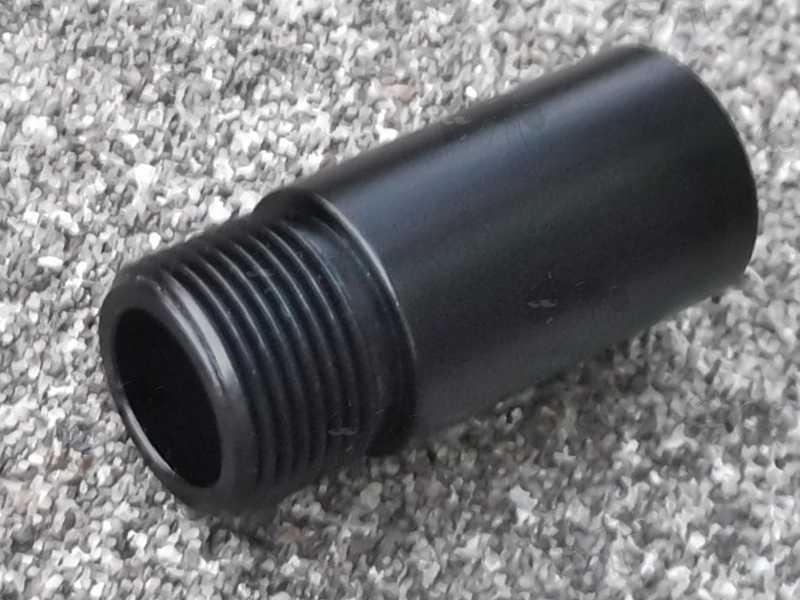

Black Anodised 6061 T6 Aircraft Grade Alloy M12x1 Right Hand Female Thread To M14x1 Left Hand Male Thread Muzzle AdapterM12x1 RH FEMALE TO M14x1 LH MALE

£18.00p each
AVAILABLE TO PRE-ORDER

External thread ~ M14x1 LH.

Internal thread ~ M12x1 RH.

The inner threads depth ~ 22mm.

Outer threads length ~ 10mm.

Overall diameter ~ 15mm.

Overall length ~ 33mm.

Weighs ~ 6 grams.


OPTION C
Black Anodised 6061 T6 Aircraft Grade Alloy M12x1 Left Hand Female Thread To M14x1 Left Hand Male Thread Muzzle AdapterM12x1 LH FEMALE TO M14x1 LH MALE

£18.00p each
SOLD OUT

External thread ~ M14x1 LH.

Internal thread ~ M12x1 LH.

The inner threads depth ~ 22mm.

Outer threads length ~ 10mm.

Overall diameter ~ 15mm.

Overall length ~ 33mm.

Weighs ~ 6 grams.


OPTION D
Options
Condition: New

Choice of adapters for changing a 12mm to 14mm left hand thread.

Made of 6061 T6 aircraft grade alloy with black anodised finish.

Fully CNC machined in a single operation.

For fitting alternative silencers / moderators / muzzle brakes.

M14 x 1.0 lefthand is usually for AK rifles, but please note that the wide range of AK rifle manufacturers use several different thread types: 24x1.5mm L/H, 22.5x1.5mm, 13x1mm R/H etc.


MORE THREAD INFORMATION:

M14 x 1LH (Left Hand) are 14mm CCW.

Right hand (RH) / clockwise (CW) / positive (+) tighten by turning clockwise.

Left hand (LH) / anticlockwise / counter-clockwise (CCW) / negative (-) tighten by turning anticlockwise.

This applies to the silencer (etc) rotating, when looking at the front of the muzzle.

M12x1 RH or LH MALE TO M14x1 CCW/LH MALE:

Designed specifically for WE GBBs with internally threaded barrels, to allow the use of widely available 14mm CCW threaded suppressors and other accessories.

The 12mm threaded end is made shorter than other similar adapters, so it can be fully tighten onto pistols, leaving no gap.

The 12mm threaded section also has more threads than most other similar thread adapters, giving a more secure fit and the spacing between the threads has been increased to prevent the recoil spring guide hitting the suppressor during cycling.

M12x1 CCW/LH to M14x1 CCW/LH:

For the Tokyo Marui 7MP GBB & AEP.

M12x1 CW/RH to M14x1 CCW/LH:

For the VFC / Umarex / Elite Force 7MP GBB & AEG, which are also sold under the Umarex and Elite Force brands.

This adapter also fits the KSC / KWA MP7 GBB.

Also available ~ More Airsoft Barrel Muzzle Thread Adapters.

M12x1 MALE TO M14x1 LH MALE:

Black Anodised 6061 T6 Aircraft Grade Alloy M12x1 Male Thread To M14x1 Left Hand Male Thread Muzzle Adapter

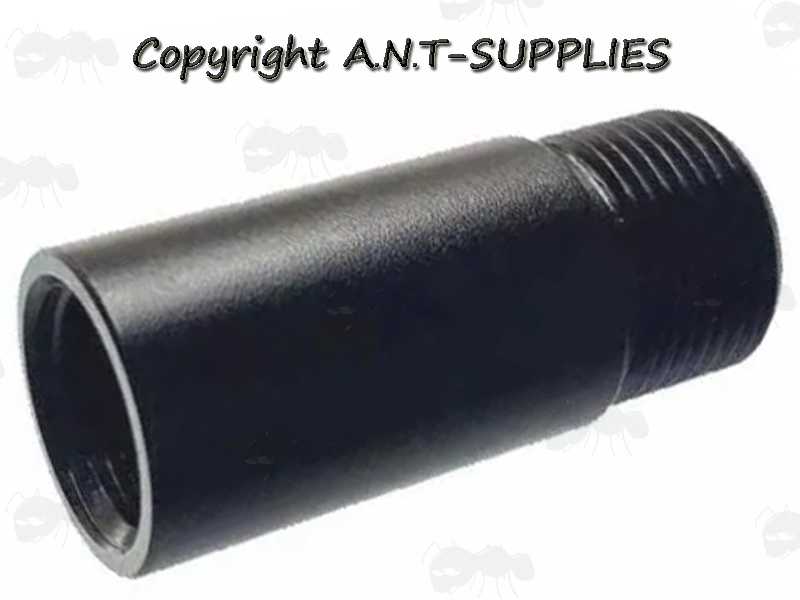

M12x1 FEMALE TO M14x1 MALE:

Black Anodised 6061 T6 Aircraft Grade Alloy M12x1 Female Thread To M14x1 Left Hand Male Thread Muzzle Adapter

M12x1 RH FEMALE TO M14x1 LH MALE:

Black Anodised 6061 T6 Aircraft Grade Alloy M12x1 Right Hand Female Thread To M14x1 Left Hand Male Thread Muzzle Adapter
