RIFLE THREADED MUZZLE ADAPTER
For 14mm rifle silencers / moderators / muzzle brakes.
LEFT HAND / RIGHT HAND THREAD ADAPTER
M14x1 LH TO M14x1 RH£18.00p each
AVAILABLE TO PRE-ORDER

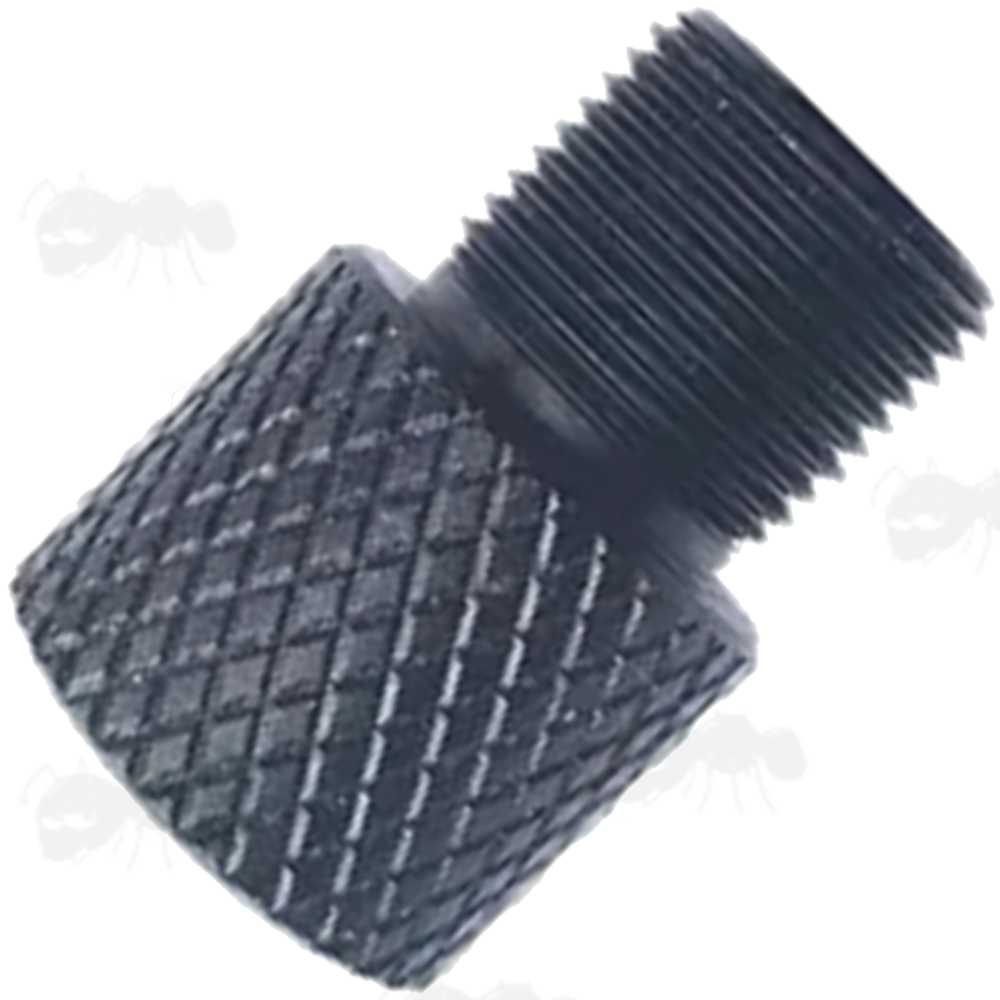

Adapter only.
External thread ~ M14x1 RH.
Internal thread ~ M14x1 LH.
Weighs ~ 7 grams.
OPTION A
M14x1 LH TO M14x1 RH£21.60p each
IN STOCK

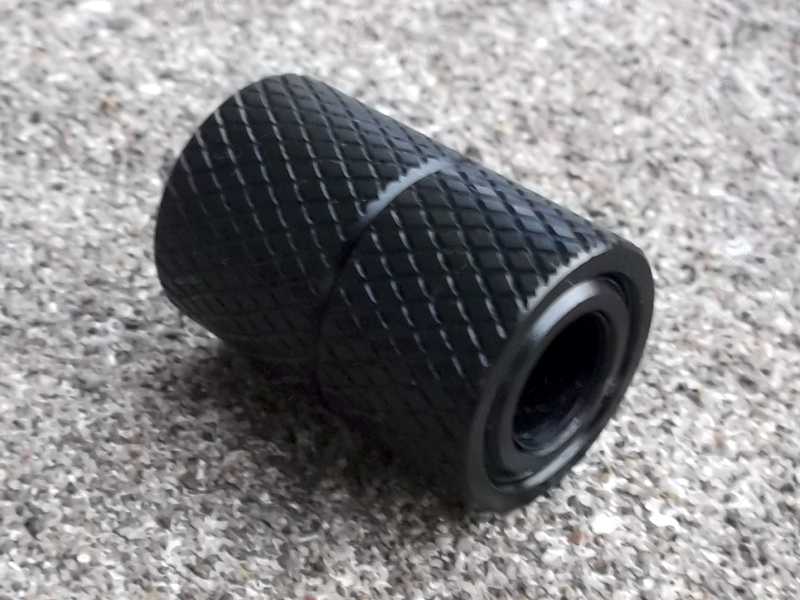

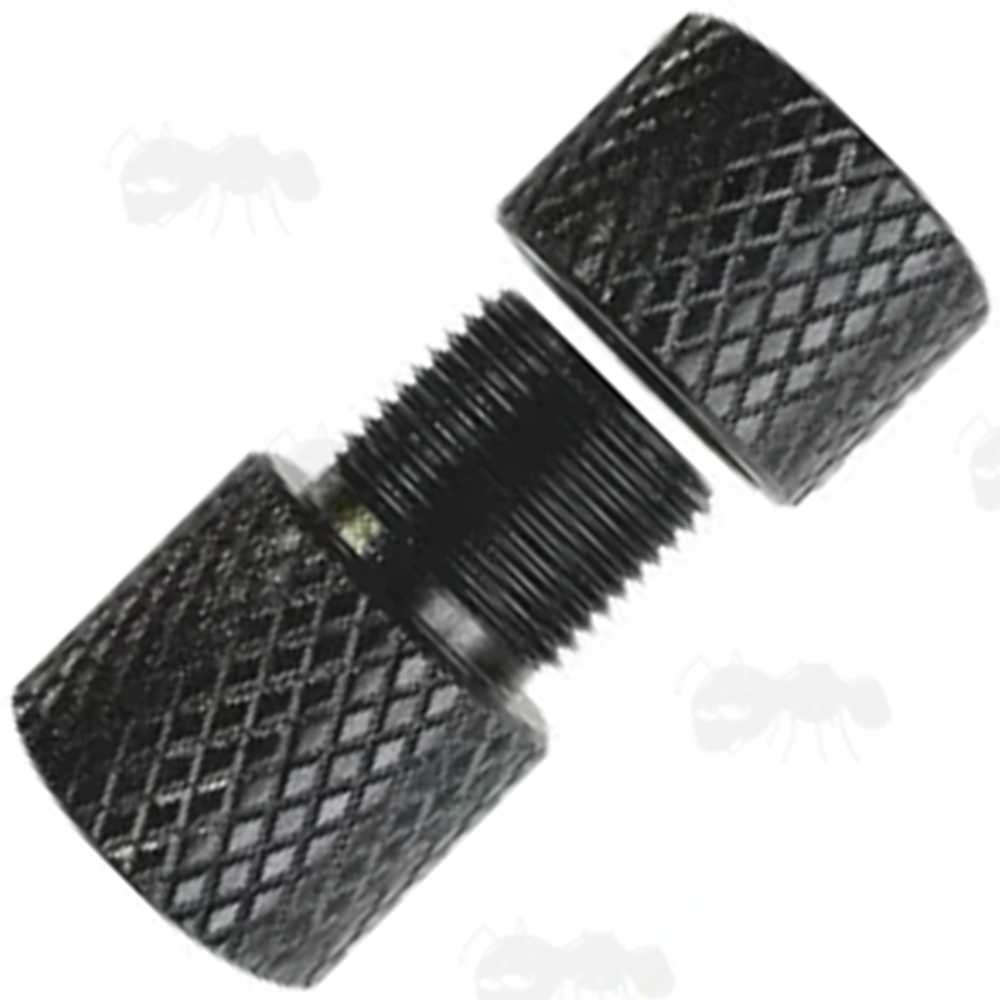

Adapter with thread guard.
External thread ~ M14x1 RH.
Internal thread ~ M14x1 LH.
Weighs ~ 10 grams.
OPTION B
M14x1 RH TO M14x1 LH£18.00p each
AVAILABLE TO PRE-ORDER

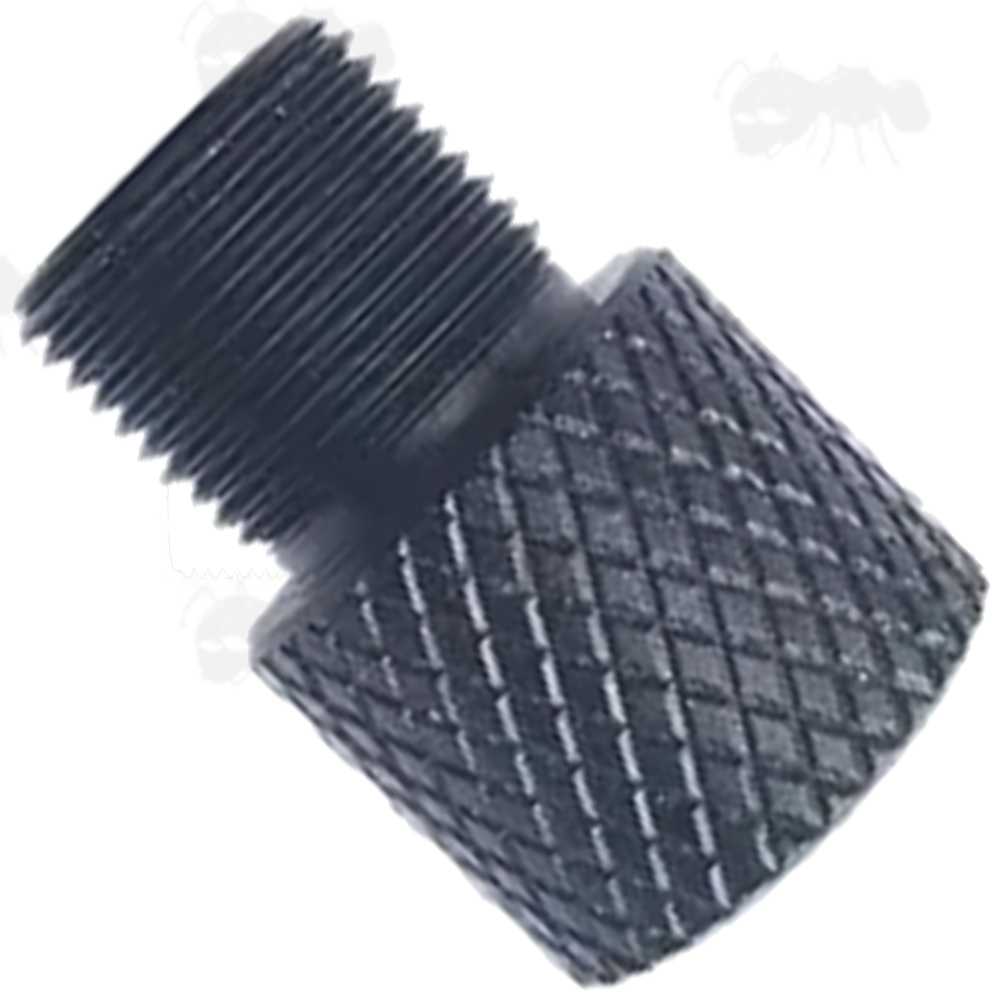

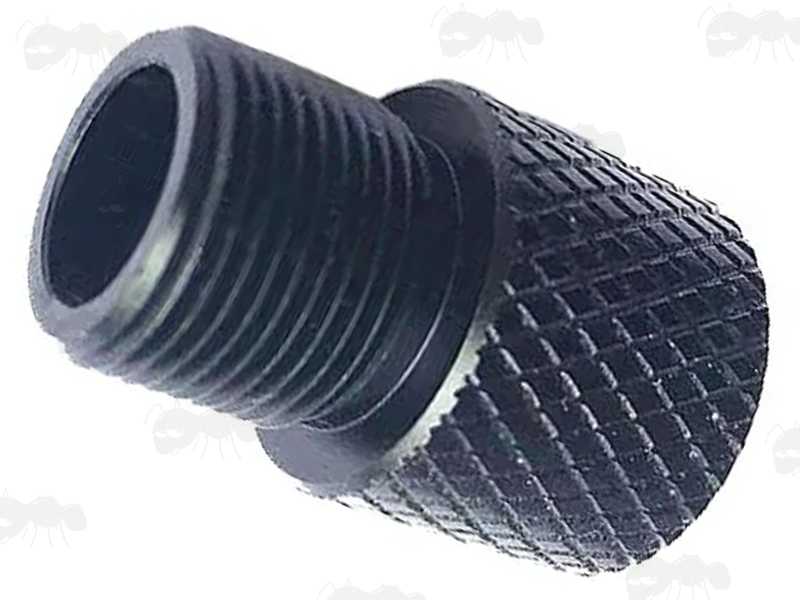

Adapter only.
External thread ~ M14x1 LH.
Internal thread ~ M14x1 RH.
Weighs ~ 7 grams.
OPTION C
M14x1 RH TO M14x1 LH£21.60p each
IN STOCK

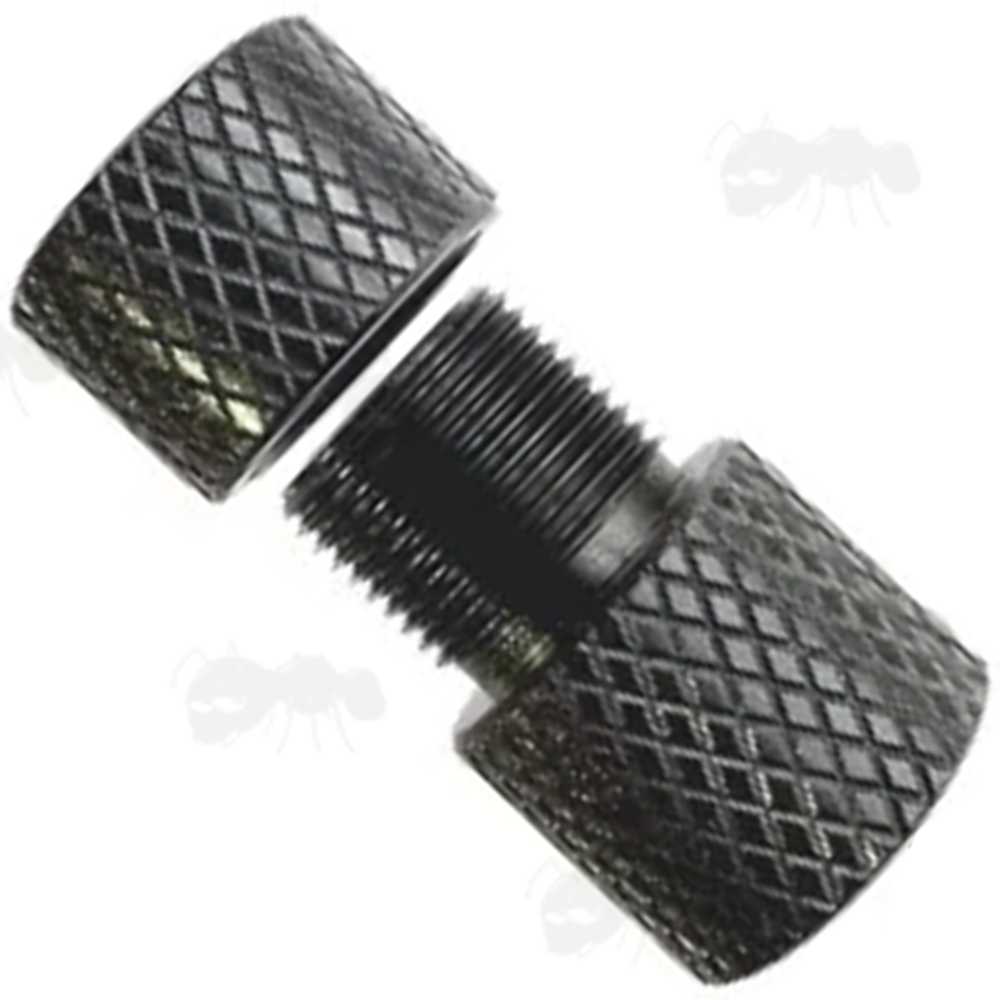

Adapter with thread guard.
External thread ~ M14x1 LH.
Internal thread ~ M14x1 RH.
Weighs ~ 10 grams.
OPTION D
Choice of adapters for changing a 14mm from left to right hand thread or vice versa.
Made of high quality hard aluminium alloy metal with black oxide finish.
With knurling for a firm grip.
For fitting alternative silencers / moderators / muzzle brakes.
The through bore is 9.4 mm / 0.37″ diameter.
The inner threads depth ~ 1/2″.
Outer threads length ~ 1/2″.
Overall diameter ~ 18mm.
Overall length ~ 27mm.
M14 x 1.0 lefthand is usually for AK rifles, but please note that the wide range of AK rifle manufacturers use several different thread types: 24x1.5mm L/H, 22.5x1.5mm, 13x1mm R/H etc.
These are also suitable for many airsoft rifles.
MORE THREAD INFORMATION:
M14 x 1LH (Left Hand) are 14mm CCW.
Right hand (RH) / clockwise (CW) / positive (+) tighten by turning clockwise.
Left hand (LH) / anticlockwise / counter-clockwise (CCW) / negative (-) tighten by turning anticlockwise.
This applies to the silencer (etc) rotating, when looking at the front of the muzzle.
1/2-20 TPI = UNF ~ Unified National Fine thread.
1/2-28 TPI = UNEF ~ Unified National Extra Fine thread.
5/8-18 TPI = UNF ~ 18 threads per inch.
5/8-24 TPI = UNEF ~ 24 threads per inch.
5/8-24 TPI = many barrel cleaning solvent traps.
3/4-16 TPI = many metal oil filters (Chrysler, Ford, Jeep, etc).
13/16-16 TPI = other metal oil filters (AMC, GM, WIX etc).
OTHER ADAPTERS AVAILABLE TO SPECIAL ORDER:
1/2″ x 20 TPI TO 5/8″ x 24 TPI
1/2″ x 28 TPI TO 5/8″ x 24 TPI
1/2″ x 28 TPI TO 3/4″ x 16 TPI
M14 x 1.5 TO 5/8″ x 24 TPI
M14 x 1.0 LEFTHAND TO 5/8″ x 24 TPI
5/8″ x 24 to 1/2″ x 28
1/2″ x 36 to 1/2″ x 28
M13.5 x 1L to 1/2″ x 28
3/4″ x 16 to 5/8″ x 24
13/16″ x 16 to 5/8″ x 24
M16 x 1 to 5/8″ x 24
M15 x 1 to 5/8″ x 24
M15 x 1 to 1/2″ x 28
M24 x 1.5 to 5/8″ x 24
M24 x 1.5 to 1/2″ x 28
1/2″ x 20 to 1/2″ x 28
Also available ~ Rifle Muzzle Thread Guards.
