Rifle Muzzle Thread Guards

Ant Hill > Barrel Muzzle Adapters > Muzzle Thread Guards

For the protection of barrel muzzle thread.

Link to our ~ Gun barrel threads guide.

RIFLE MUZZLE THREAD GUARDS

Aluminium Thread Protector for 1/2-20 American Rifle Barrel Threads

1/2-20 UNF

£9.00p each

Made from aluminium.

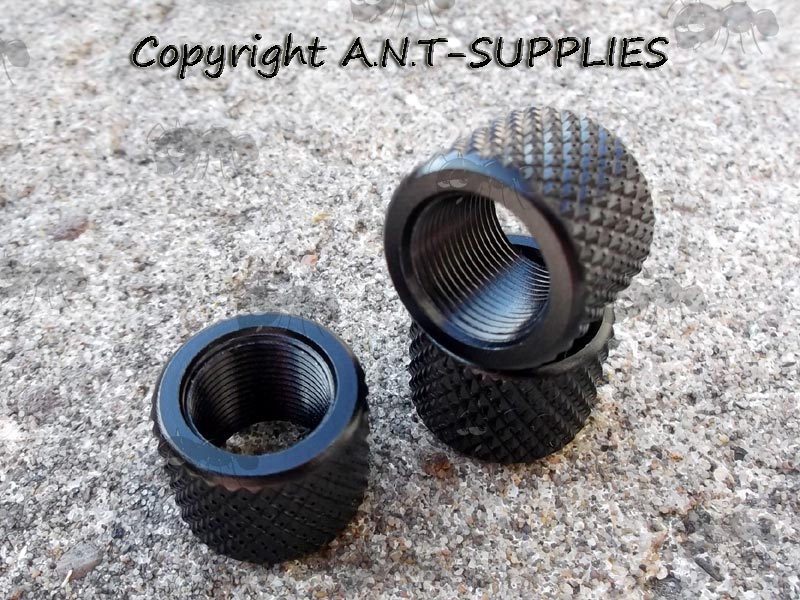

Aluminium Thread Protector for 1/2-28 American Rifle Barrel Threads

1/2-28 UNEF (.223 CAL)

£9.00p each

Made from aluminium.

Steel Thread Protector for 1/2-28 American Rifle Barrel Threads

1/2-28 UNEF (.223 CAL)

£6.00p each

Made from steel.

Steel Thread Protector for 5/8-24 American Rifle Barrel Threads

5/8-24 UNEF (.308 CAL)

£6.00p each

Made from steel.

M14 Barrel Thread Protectors for Left-Hand Threads

M14x1 CCW

£12.00p each

Made from alloy.

We have a couple of the alloy 1/2x20 UNF that have been slightly mis-threaded, possible just needing chasing with a tap to clean, available for free if added to an order.

THE PRE-ORDER OPTIONS WILL TAKE APPROX 2 TO 3 WEEKS

Condition: New

Choice of 1/2″x20 TPI, 1/2″x28 TPI or 5/8″x24 TPI thread protectors.

To protect the muzzles / adapters threads when silencer, muzzle brake, flash hiders, compensator, etc are removed.

Choice for a wide range of calibers.

Knurled grip design.

Finish ~ black anodised.

THREAD INFO:

1/2-20 TPI = UNF ~ Unified National Fine thread.

1/2-28 TPI = UNEF ~ Unified National Extra Fine thread.

5/8-18 TPI = UNF ~ 18 threads per inch.

5/8-24 TPI = UNEF ~ 24 threads per inch.

The Remington 700 in .223 is usually 1/2x28″ and then .30 cal and above is usually 5/8x24″.

The Howa 1500 should be factory threaded for 1/2″x28 UNEF on standard barrels and then 5/8″x24 UNEF threaded on heavy barrels.

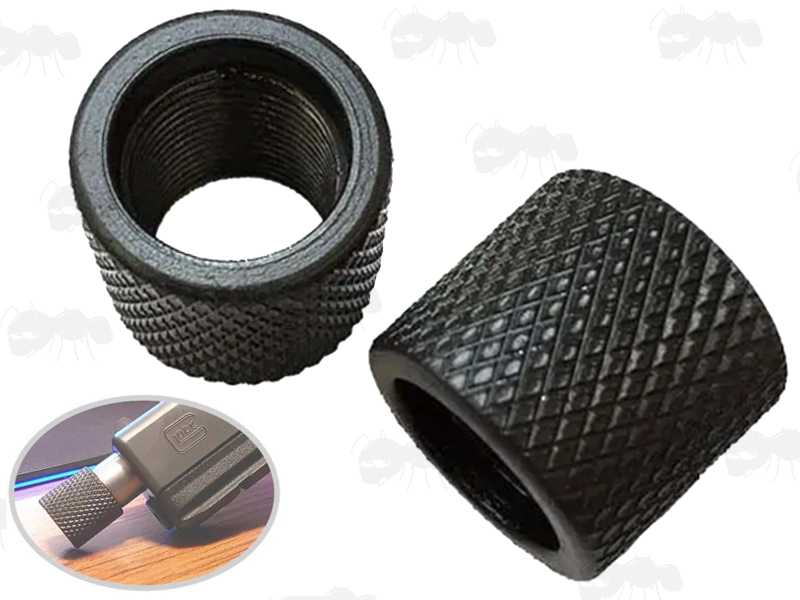

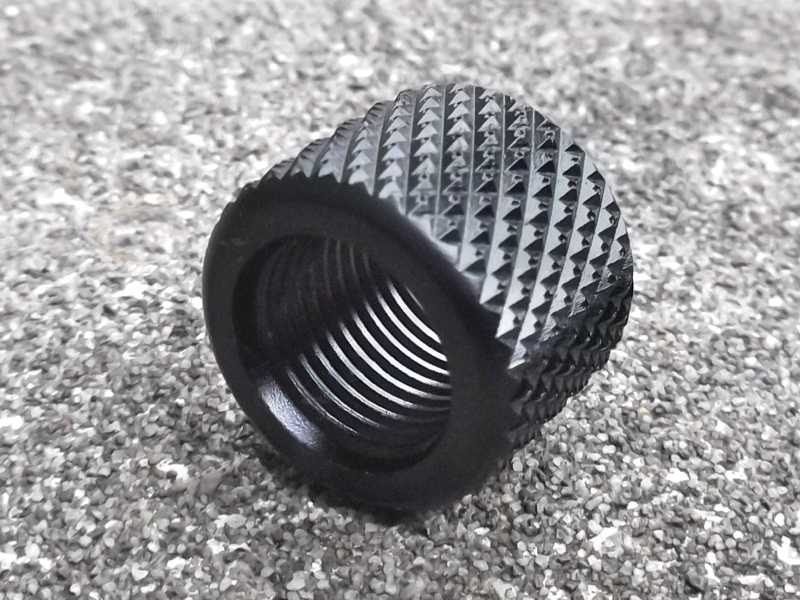

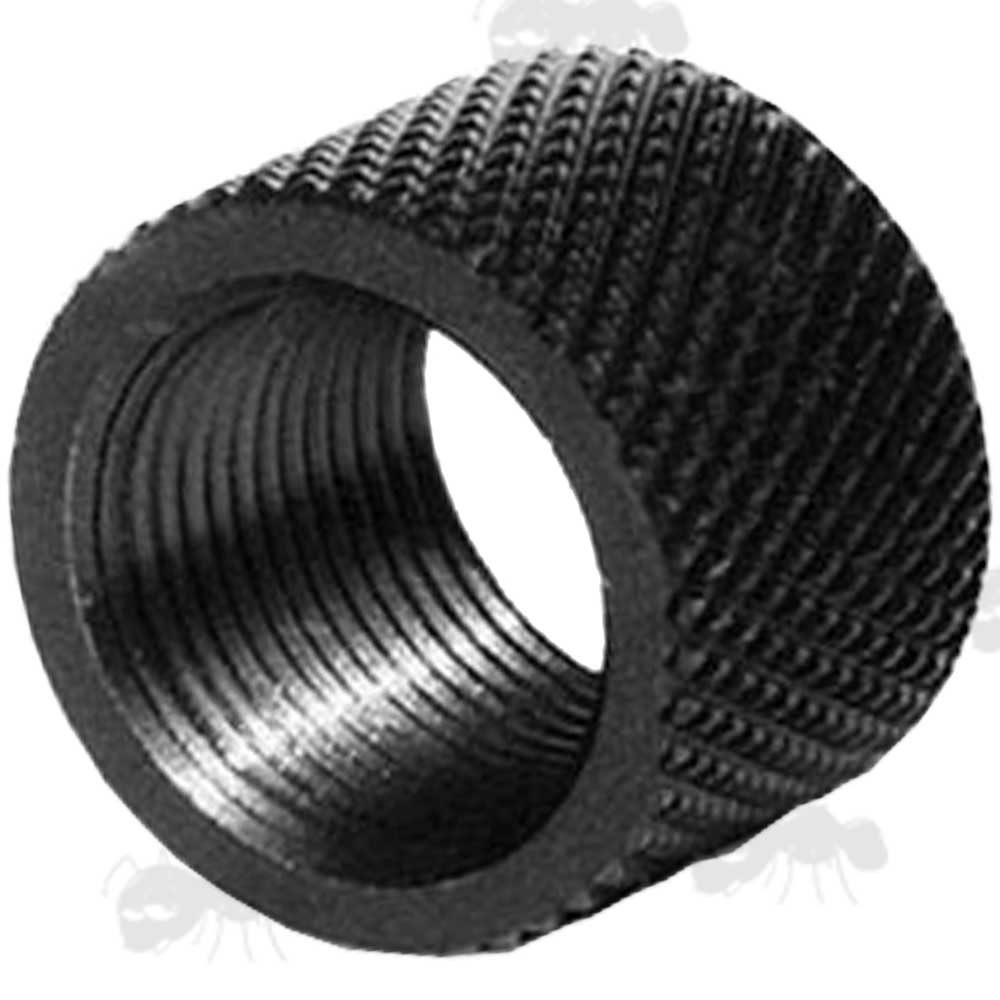

1/2-20 UNF ~ ALLOY:

This type of thread guard is often for air rifles and pistols.

Overall length ~ 15mm.

Overall diameter ~ 19mm.

Made from aluminium.

Weighs 6 grams.

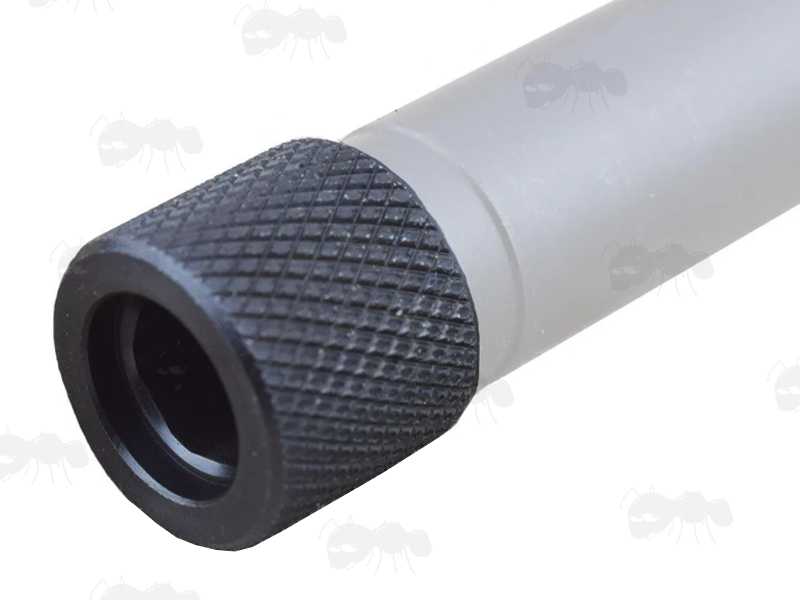

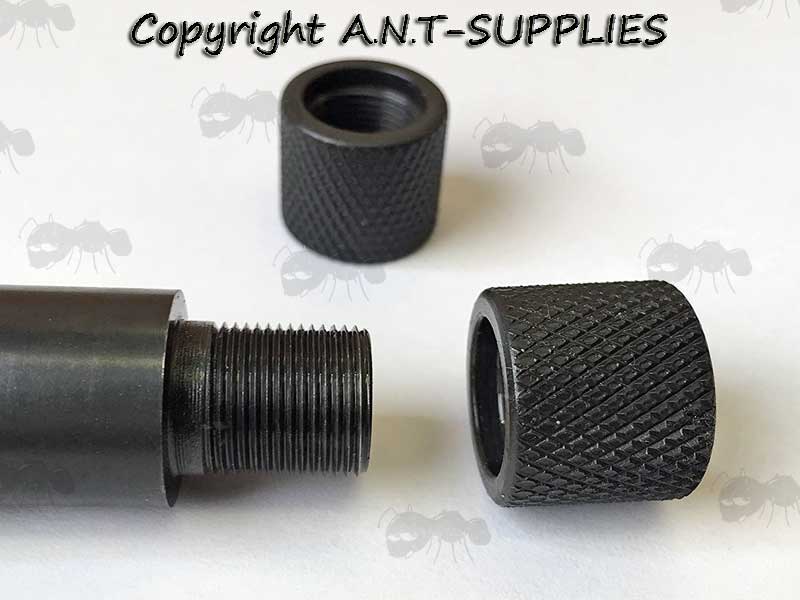

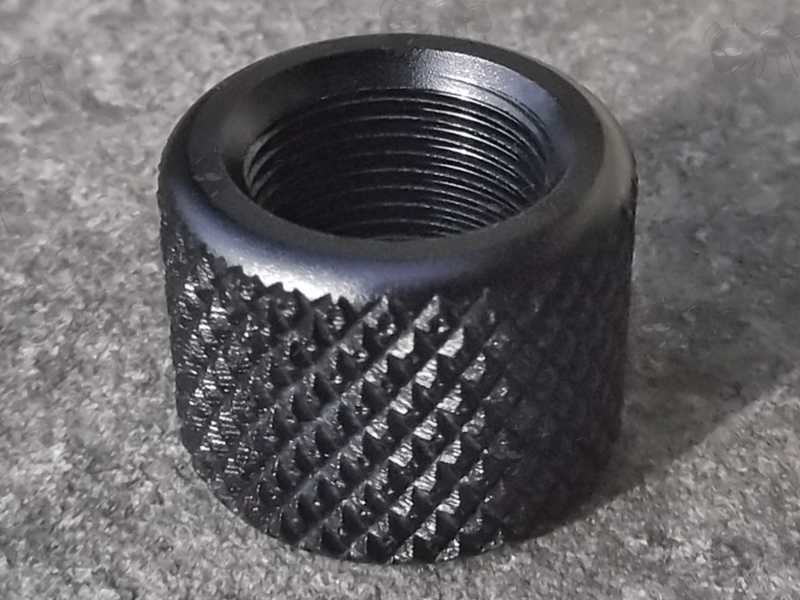

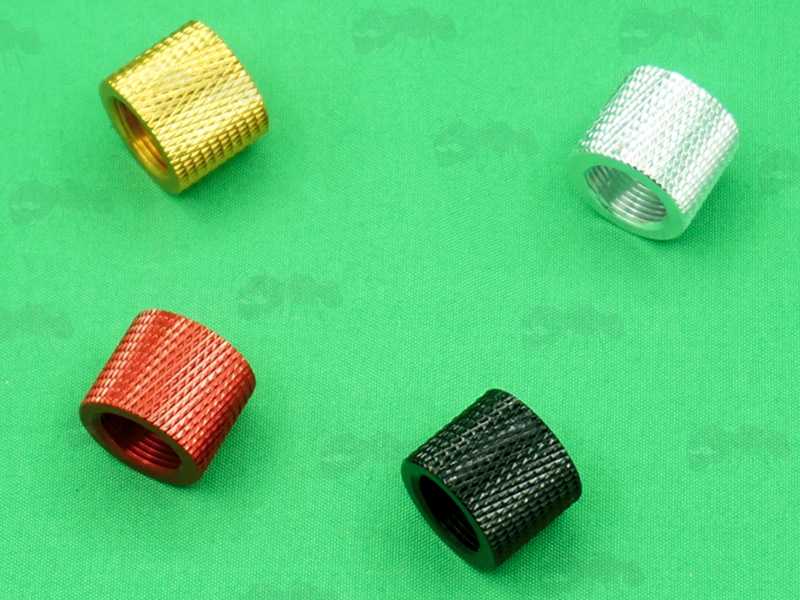

1/2-28 UNF ~ ALLOY:

Overall length ~ 15mm.

Overall diameter ~ 19mm.

Made from aluminium.

Weighs 6 grams.

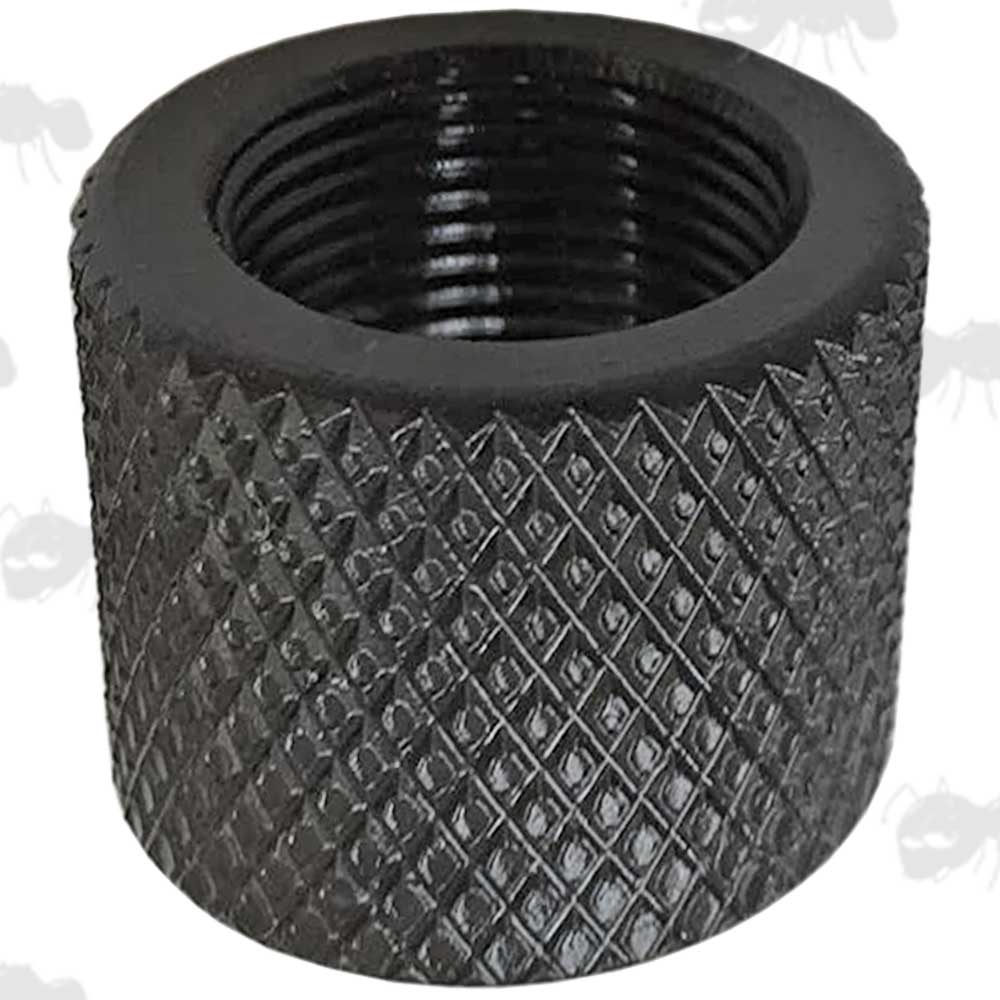

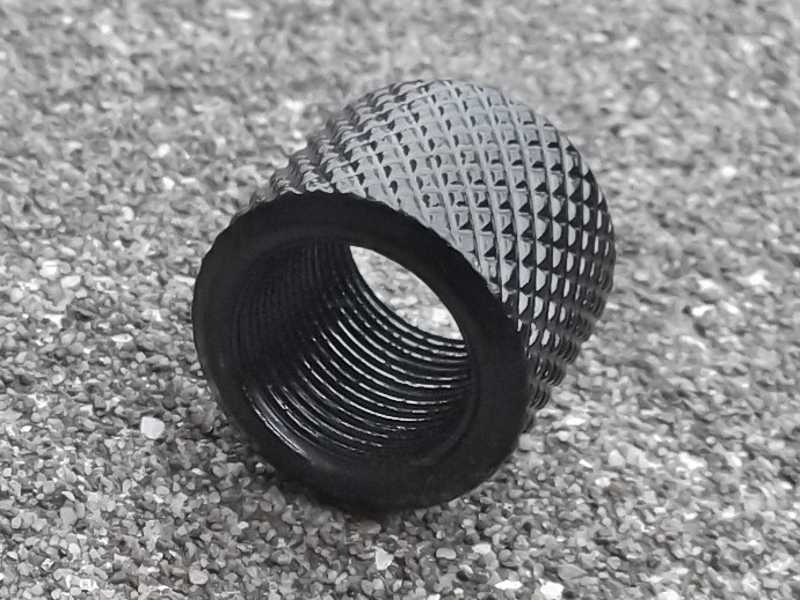

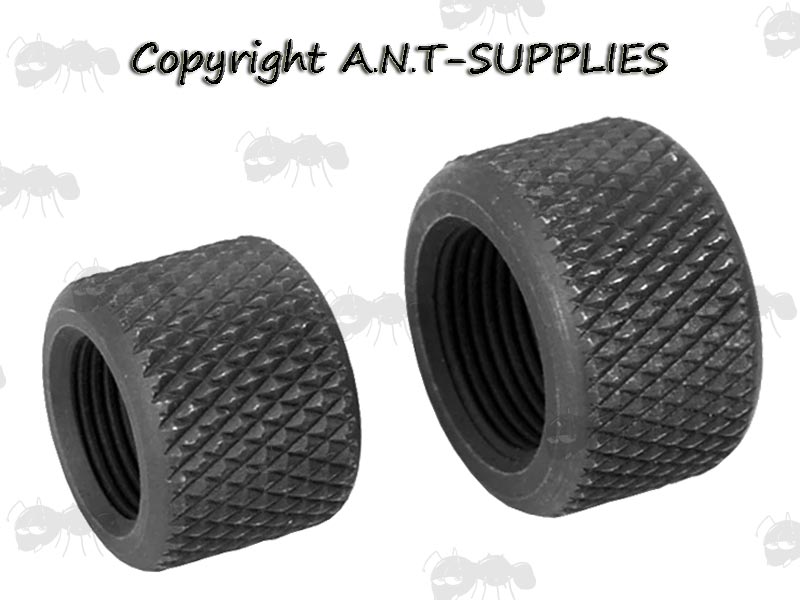

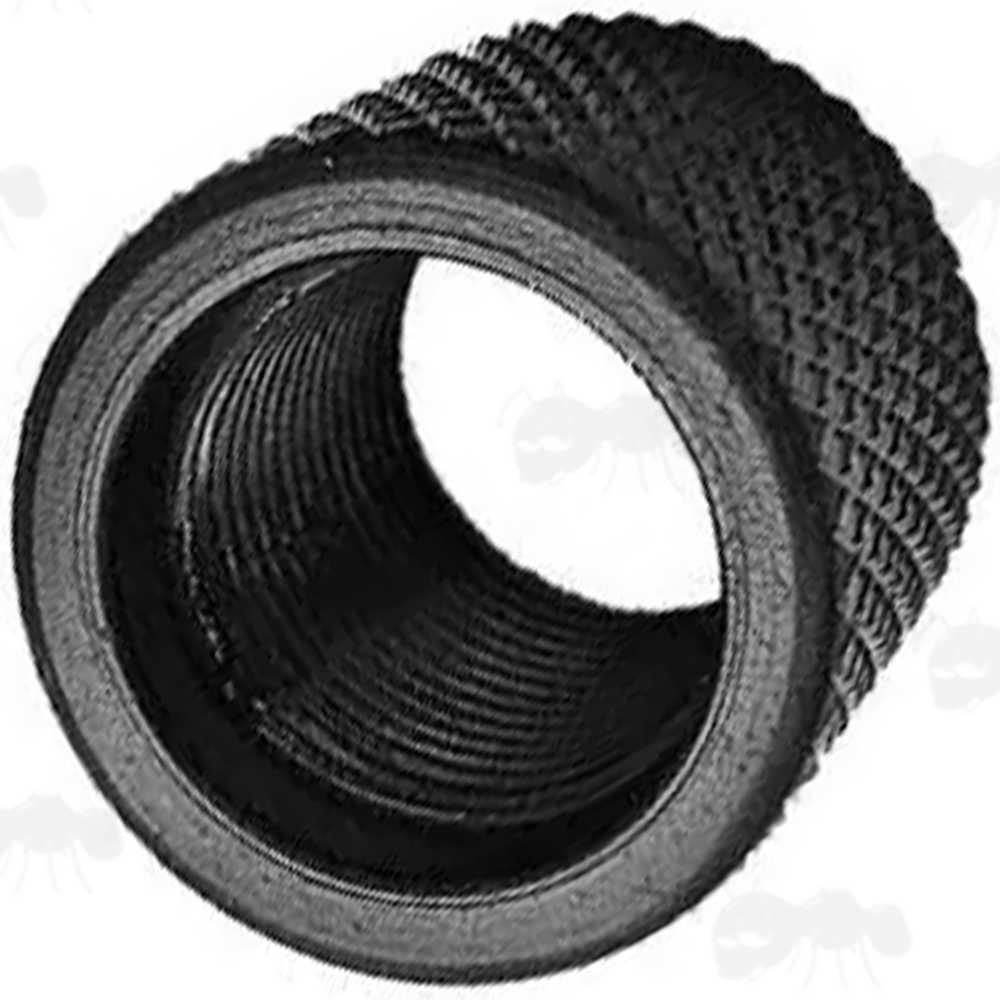

1/2-28 UNEF (.223 CAL) ~ STEEL:

Overall length ~ 15mm.

Overall diameter ~ 19.5mm.

These steel guards have a matt finish, alloy guards usually have a glossier finish.

Weighs 15 grams.

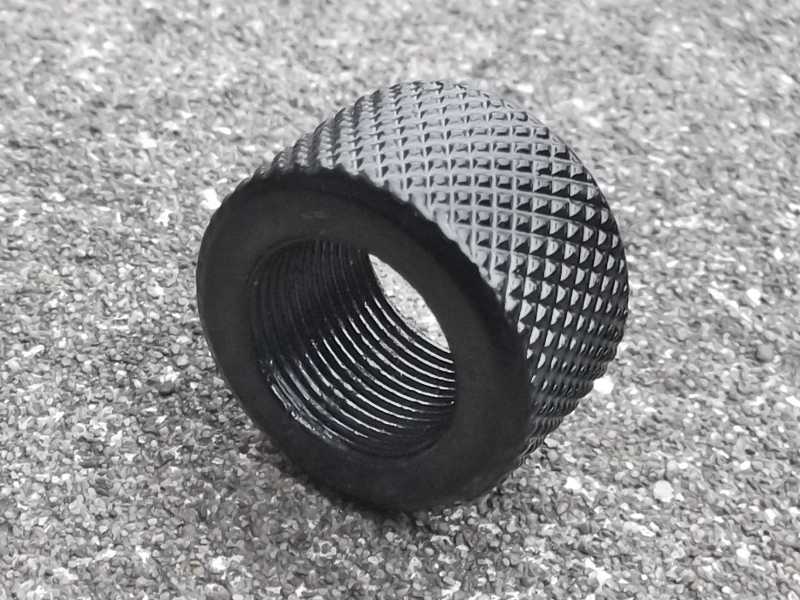

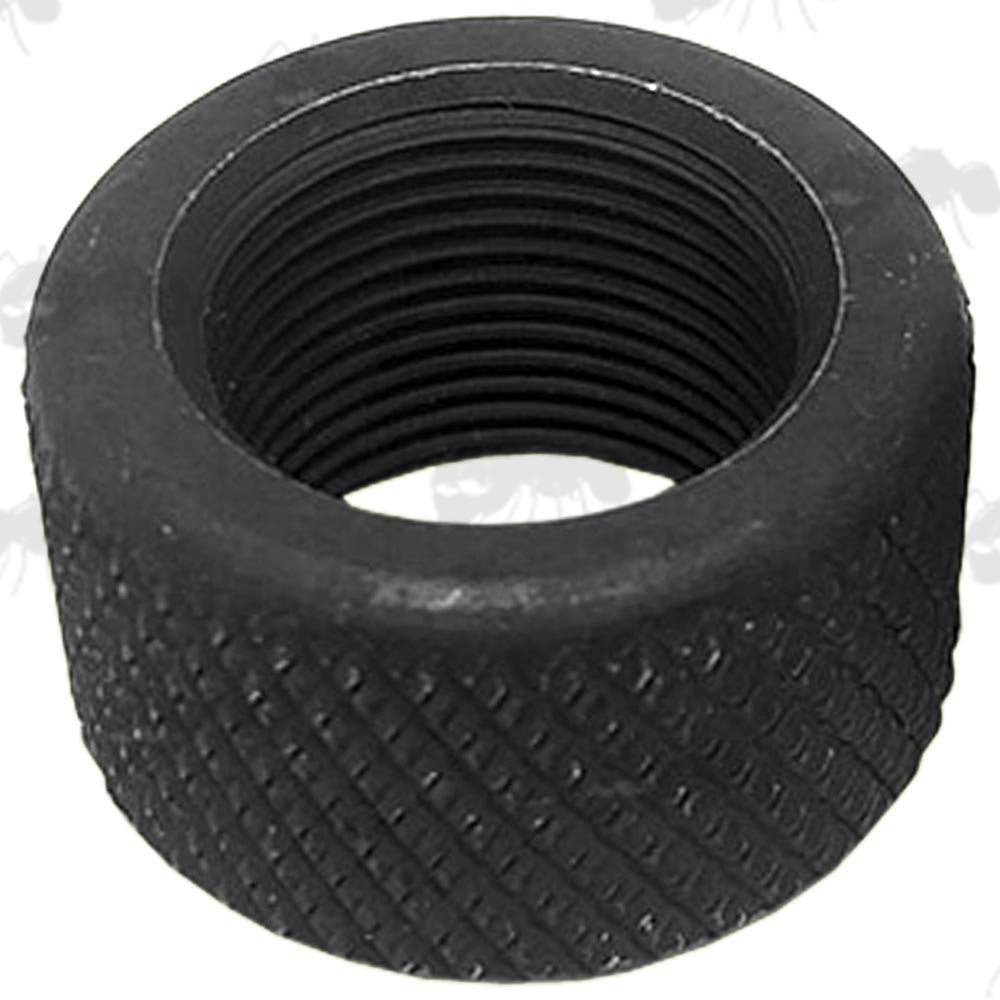

5/8-24 UNEF (.308 CAL) ~ STEEL:

Overall length ~ 20mm.

Overall diameter ~ 24mm.

Made from steel.

Weighs 33 grams.

Please Note: Although we would have expected it to, on last testing the 5/8″ x 24 UNEF guard wont fit the Ruger PRC, the guard internal diameter was slightly too narrow to fit.

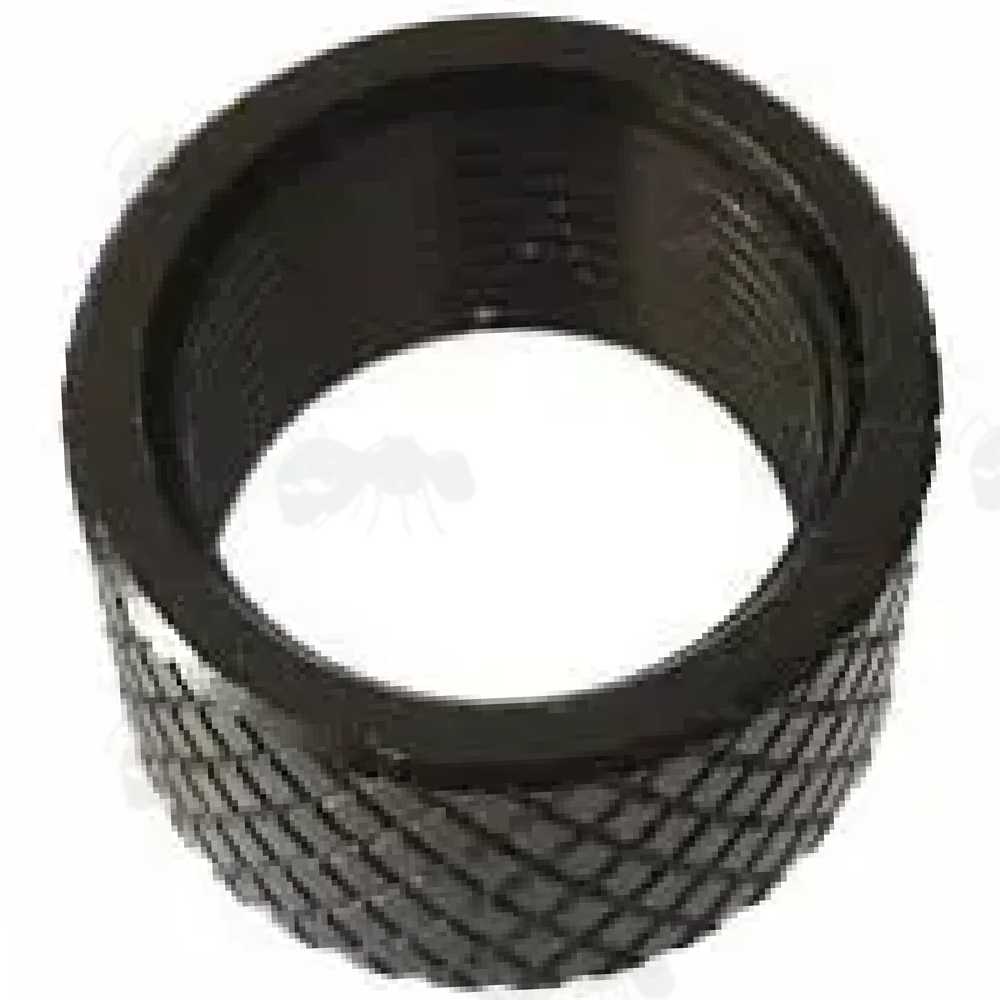

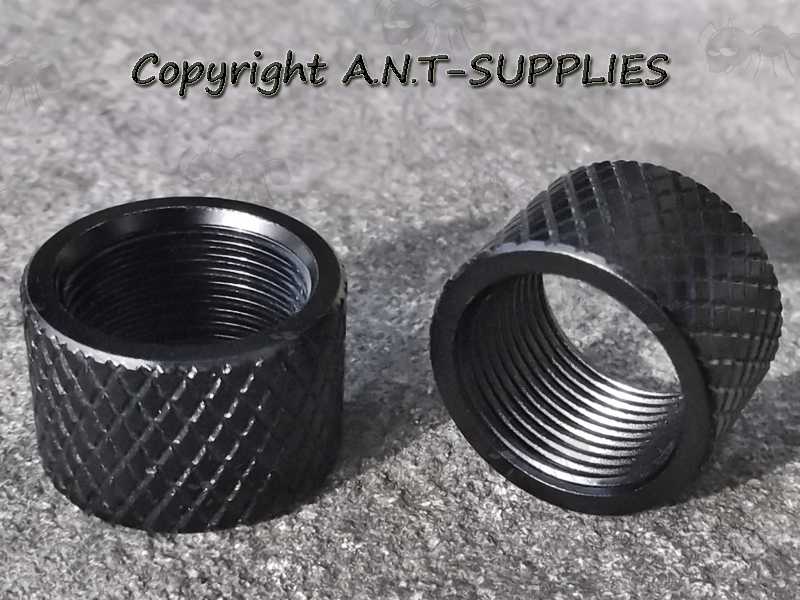

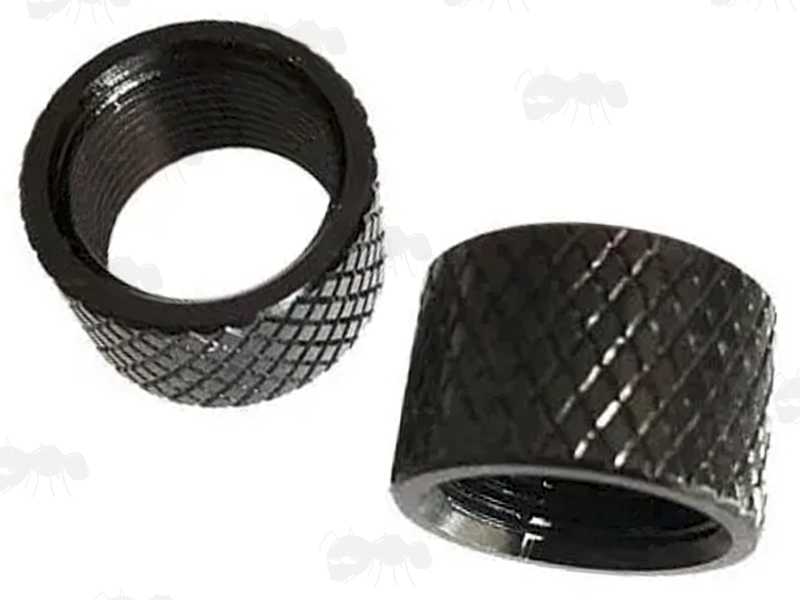

M14x1 CCW ~ ALLOY:

M14x1 threaded barrels are found on many European rifles and handguns, although please check the length required to cover the threads, as M14x1 pistols threads are usually closer to 11.1mm, and rifles 15.9mm (current stock are 11.5mm long).

Also check if a 14mm left hand thread or right hand thread, as we can supply either.

Known by a few names ~ 14mm CCW, M14x1 Left Hand, M14x100 LH.

Also a common thread on many airsoft rifles and pistols.

14mm CCW (M14x1 LH).

Overall length ~ 11.5mm.

Overall diameter ~ 18mm.

Made from alloy.

Weighs 4 grams.

Please Contact Us for other thread guards and we will see what we can do:

1/2″-28 UNEF alloy guards.

37/64″ x 28 (.578 x 28) alloy guard.

Ruger 10/22 (1/2″x28 UNEF) bull barrel end threaded protector (OD .925).

M13.5x1 CCW guard for 9mm Glock, H&K, Beretta.

M14x1 CW (RH).

M16x1 CCW or CW steel guards for .45 OEM Glock, Heckler and Koch, Beretta and more.

Also available ~ Ruger Muzzle Thread Adapters.

ALLOY ~ 1/2"-20 TPI:
