RIFLE THREADED BARREL ADAPTER
For rifle silencers / moderators / muzzle brakes.
RIFLE THREADED BARREL ADAPTER

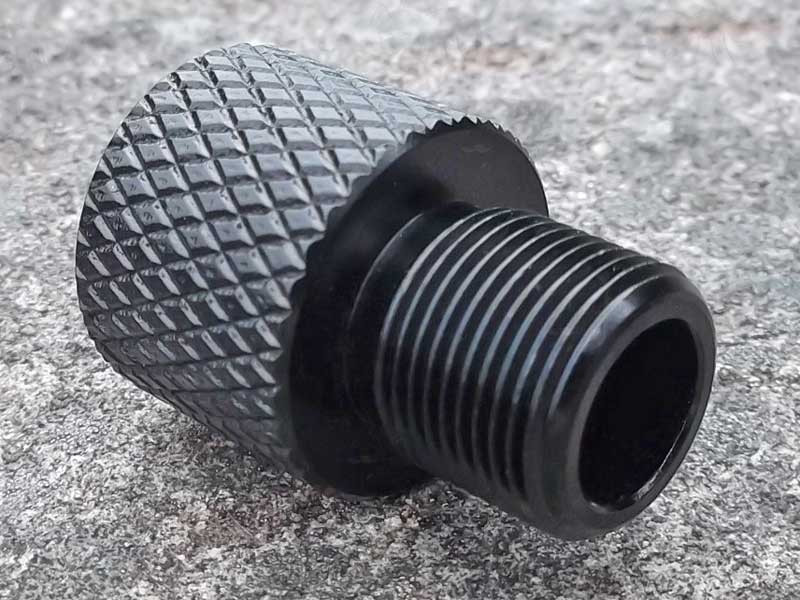

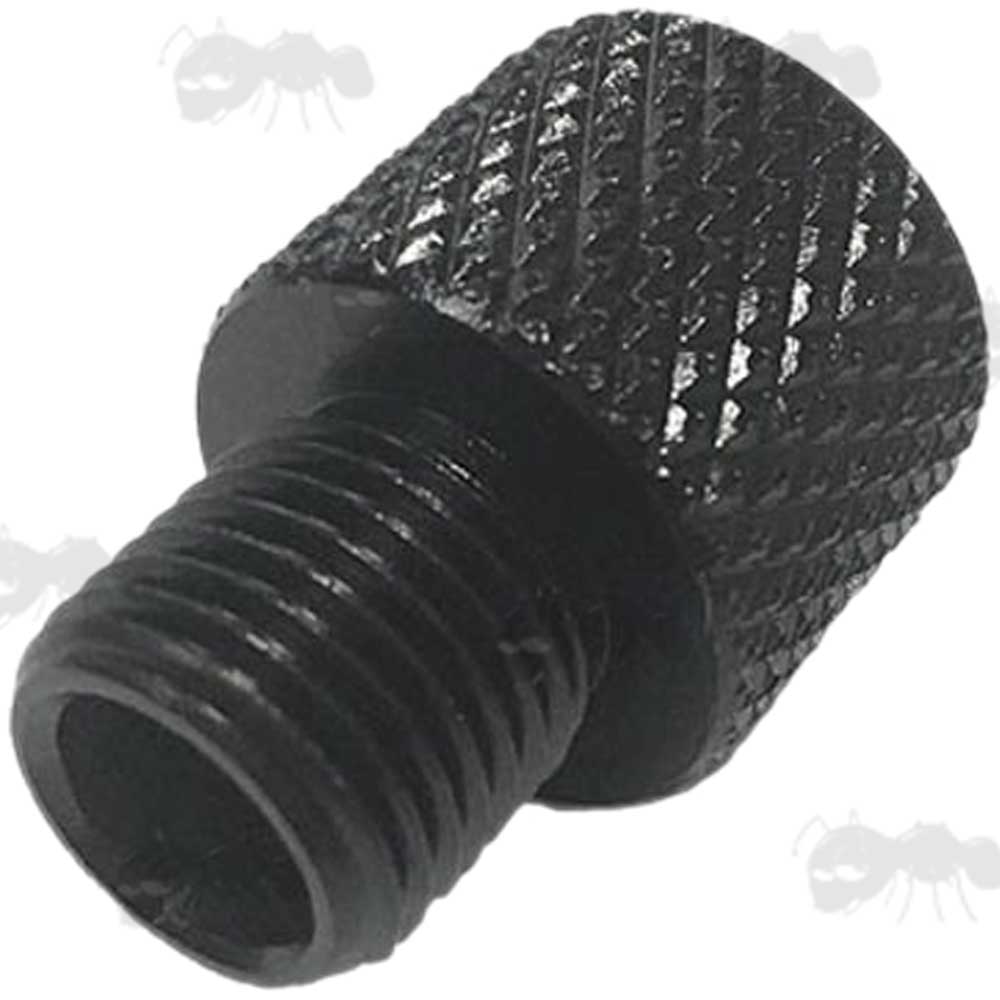

1/2″ x 28 TPI TO 1/2″ x 20 TPI£15.00p each
External thread ~ 1/2x20.
Internal thread ~ 1/2x28.
OPTION A-Ia

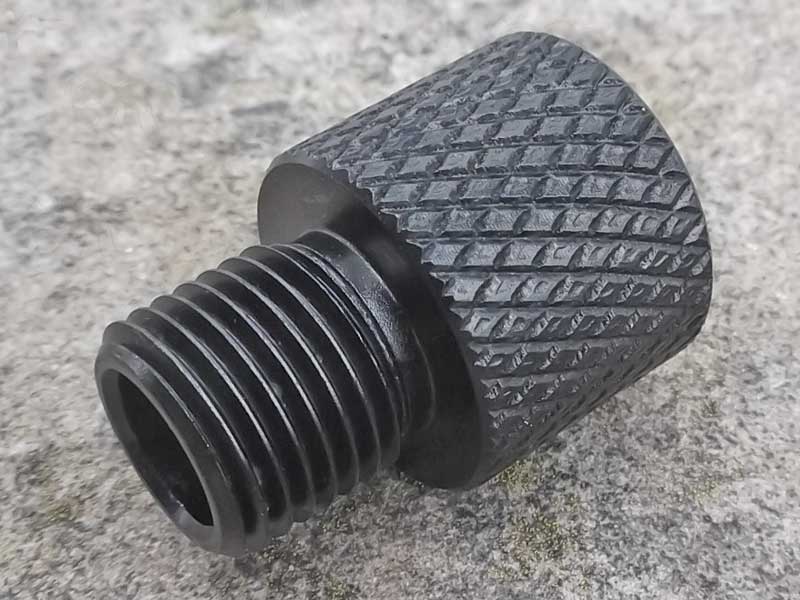

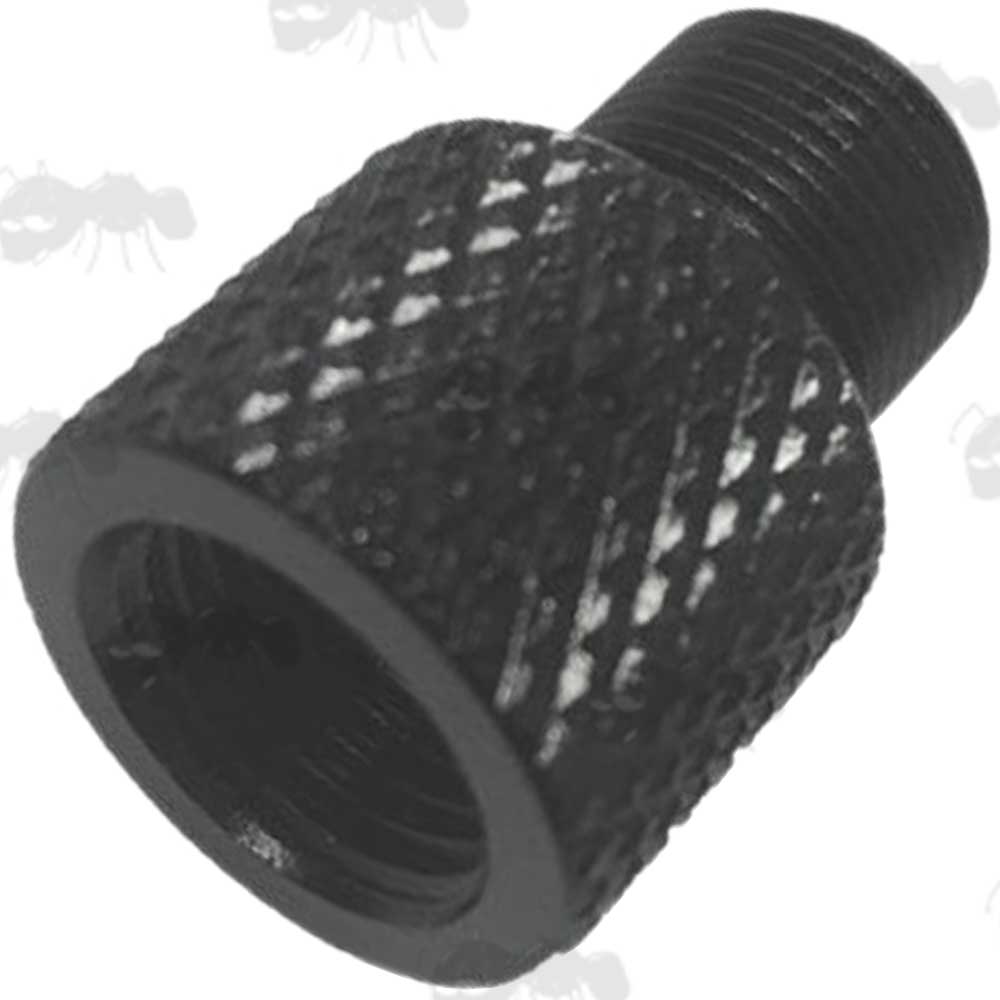

1/2″ x 20 TPI TO 1/2″ x 28 TPI£15.00p each
External thread ~ 1/2x28.
Internal thread ~ 1/2x20.
OPTION A-IIa
Choice of adapter for threaded muzzles for either 1/2″x28 to 1/2″x20 or vice verse.
Made of high quality metal with black oxide finish.
For fitting alternative silencers / moderators / muzzle brakes.
Knurling for a firm grip.
Made from aluminium.
Overall diameter ~ 19mm.
Overall length ~ 28mm.
The bore is 8 mm / 0.315″ diameter.
Weighs ~ 8 grams.
The majority of UK airguns, rimfire rifles and some smaller calibre centerfire rifles (.17, .17HMR, .22WMR, .22LR, .222Rem, .243Win) are usually 1/2 UNF (1/2x20 TPI), then larger calibers (.30>) are usually 1/2x28 UNEF or 5/8x24 as the next most common, if threaded at all, and of course if not re-threaded.
The majority of USA airguns, rimfire and smaller calibre centerfire rifles would likely be 1/2 UNEF (1/2x28).
1/2-20 TPI = UNF ~ Unified National Fine thread.
1/2-28 TPI = UNEF ~ Unified National Extra Fine thread.
5/8-18 TPI = UNF ~ 18 threads per inch.
5/8-24 TPI = UNEF ~ 24 threads per inch.
5/8-24 TPI = many barrel cleaning solvent traps.
3/4-16 TPI = many metal oil filters (Chrysler, Ford, Jeep, etc).
13/16-16 TPI = other metal oil filters (AMC, GM, WIX etc).
Please Note: Thread protectors also available but not included.
SPECIAL OFFER:
Need a thread protector at the same time?
Use Promo Code ~ SATGAddon ~ for 50% off:
Thread protectors page link ~ HERE
Also available ~ Steel Version of These Adapters and Rifle Muzzle Thread Guards.
1/2 x 28 TPI - 1/2 x 20 TPI:
The 'A-Ia' adapter was used to fit a 1/2″UNF threaded Wildcat moderator
to a Tippmann M4-22 rifle.
1/2 x 20 TPI - 1/2 x 28 TPI:

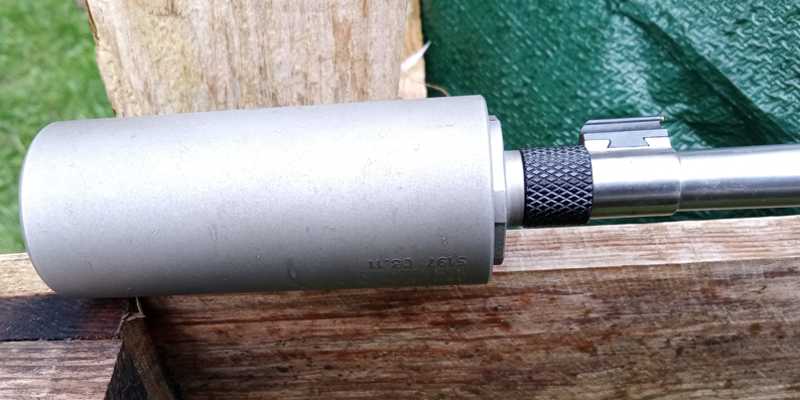

A-II adapter shown fitted to a Ruger 10/22 stainless, thread size 1/2 x 20 UNF,
to accept the ASE Utra S series SL5 Cal .25 (1/2 x 28 UNEF thread):
