RIFLE MUZZLE THREAD BARREL ADAPTER
For 1/2″x20 UNF to 5/8″x24 silencers / moderators / muzzle brakes.

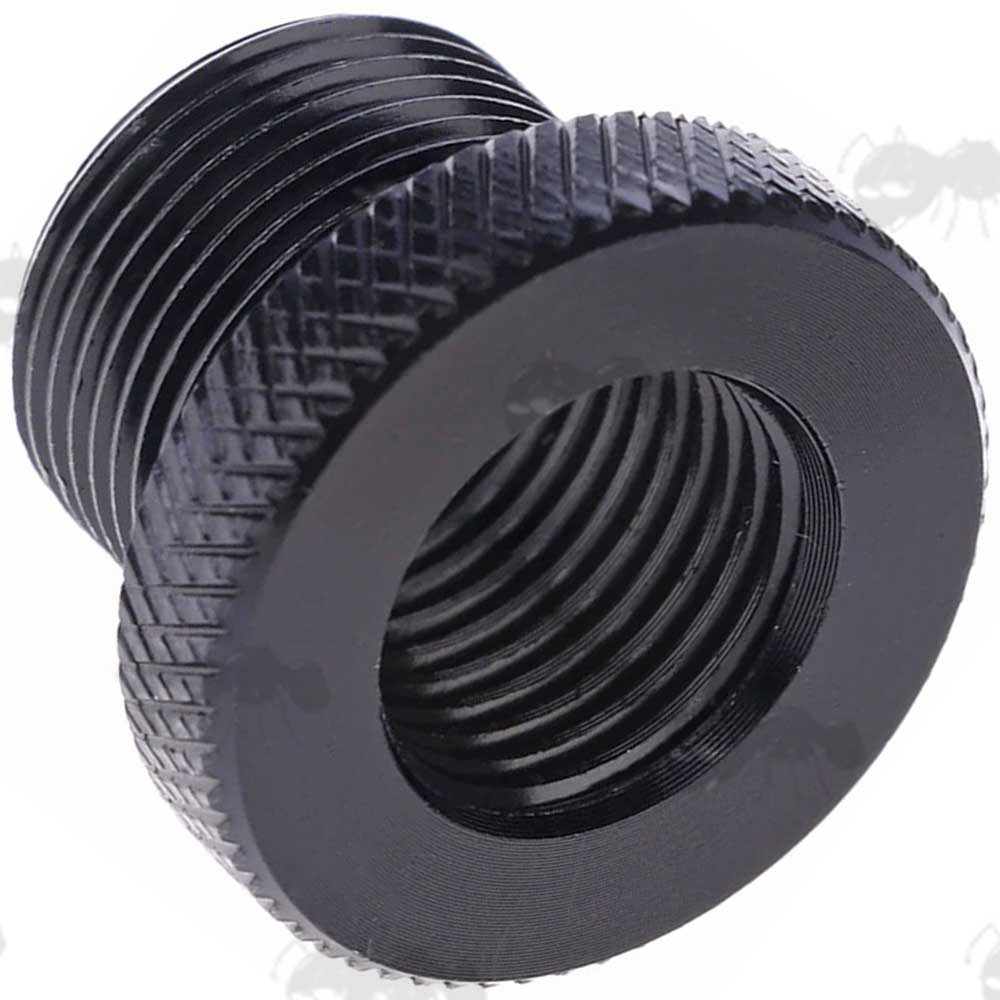

RIFLE THREADED BARREL ADAPTER
ALLOY£10.00p each
Made from aluminium.
1/2″ x 20 TPI to 5/8″ x 24 TPI.
Weighs ~ 6 grams.
OPTION B
STAINLESS STEEL£12.00p each
SOLD OUT

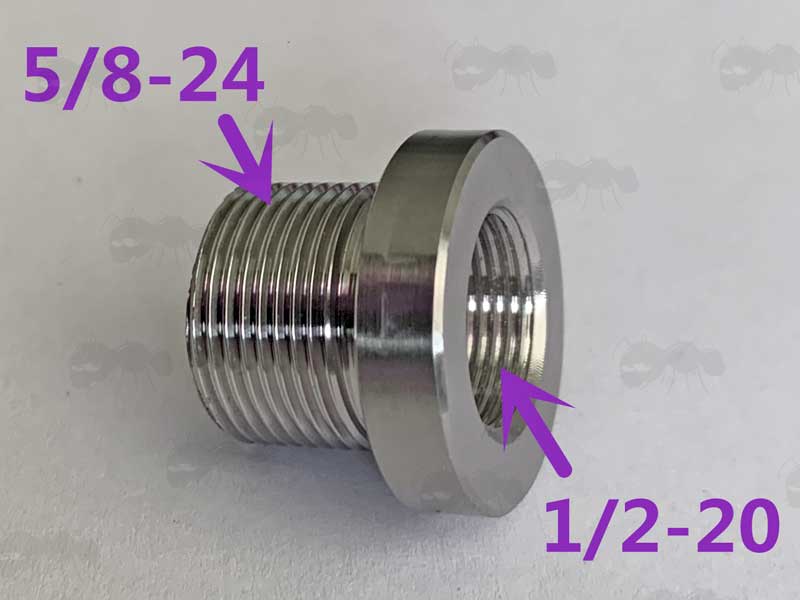

Made from stainless steel.
1/2″ x 20 TPI to 5/8″ x 24 TPI.
Weighs ~ 14 grams.
OPTION C
This thread adapter is 1/2″ x 20 TPI to 5/8″ x 24, to allow the use of .300 cal silencers etc on many airgun barrel threads.
5/8"x24 TPI is a common thread for .30 caliber rifles in the US.
Made of high quality metal.
For fitting alternative silencers / moderators / muzzle brakes.
Overall diameter ~ 22mm.
Overall length ~ 17mm.
External thread ~ 5/8x24.
Internal thread ~ 1/2x20.
The majority of UK airguns, rimfire rifles and some smaller calibre centerfire rifles (.17, .17HMR, .22WMR, .22LR, .222Rem, .243Win) are usually 1/2 UNF (1/2x20 TPI), if threaded at all, and of course if not re-threaded.
The majority of larger calibers (.30>) are usually 1/2x28 UNEF or 5/8x24 as the next most common.
1/2-20 TPI = UNF ~ Unified National Fine thread.
1/2-28 TPI = UNEF ~ Unified National Extra Fine thread.
5/8-18 TPI = UNF ~ 18 threads per inch.
5/8-24 TPI = UNEF ~ 24 threads per inch.
5/8-24 TPI = many barrel cleaning solvent traps.
3/4-16 TPI = many metal oil filters (Chrysler, Ford, Jeep, etc).
13/16-16 TPI = other metal oil filters (AMC, GM, WIX etc).
Please always verify the adapter and the muzzle device you have are compatible, and are suitable for the calibre and always insure a perfect alignment before use.
Also available ~ 1/2x28 To 5/8x24 Adapters.
