RIFLE BARREL THREAD ADAPTER
For M14 to 5/8″x24 silencers / moderators / muzzle brakes.
RIFLE BARREL THREAD ADAPTER
M14x1 CCW TO 5/8″x24£24.00p each
M14x1mm CW TO 5/8″x24£24.00p each

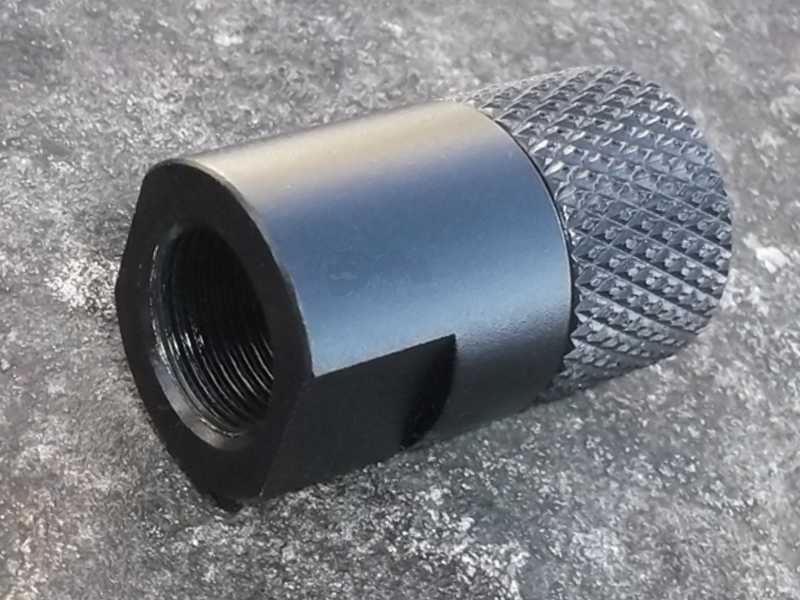

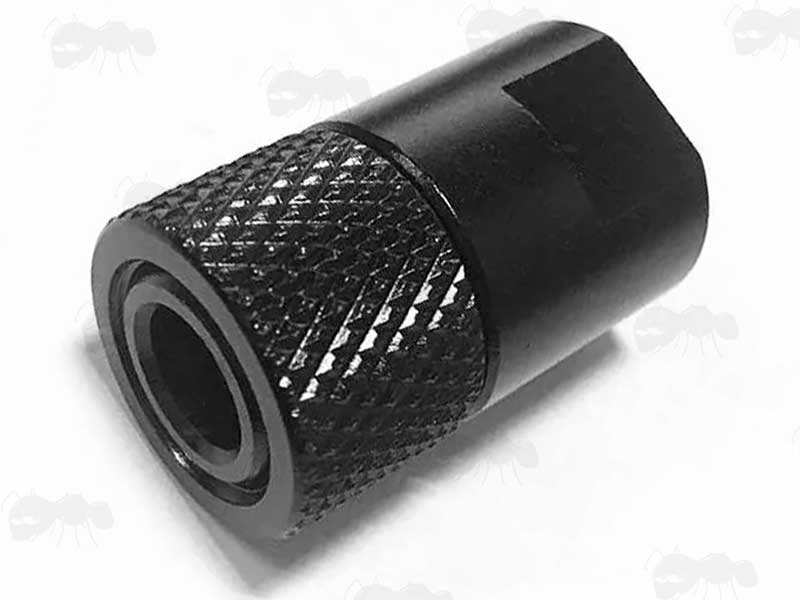

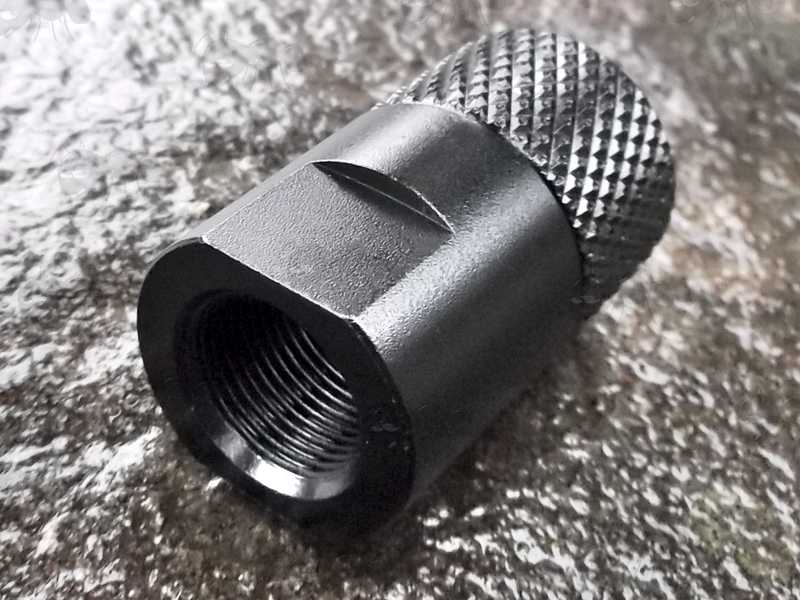

This thread adapter is M14x1mm to 5/8″ x 24, with an option for CW / Right-Hand or CCW / Left-Hand threads.
5/8"x24 TPI is a common thread for many .30 caliber USA spec rifles.
Made of high quality CNC machined alloy.
For fitting alternative silencers / moderators / muzzle brakes.
The flat edges allow for fitting with a 3/4″ wrench.

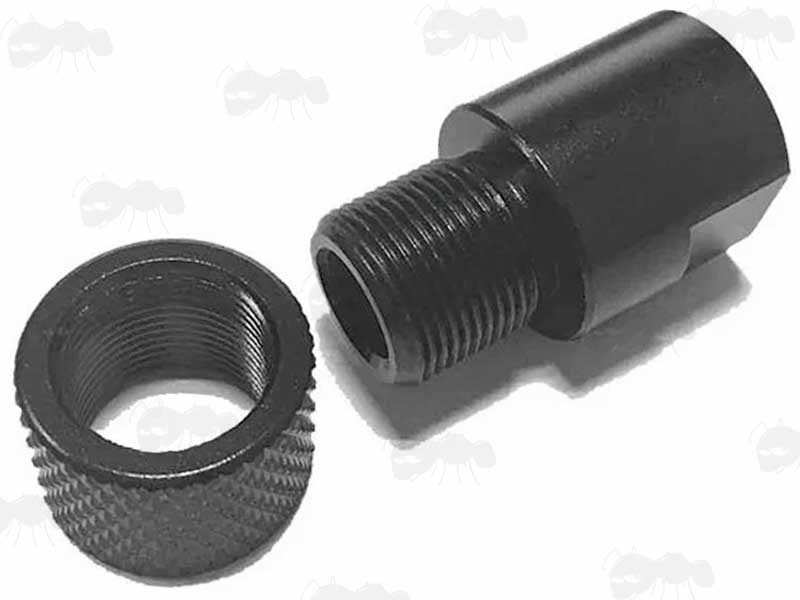

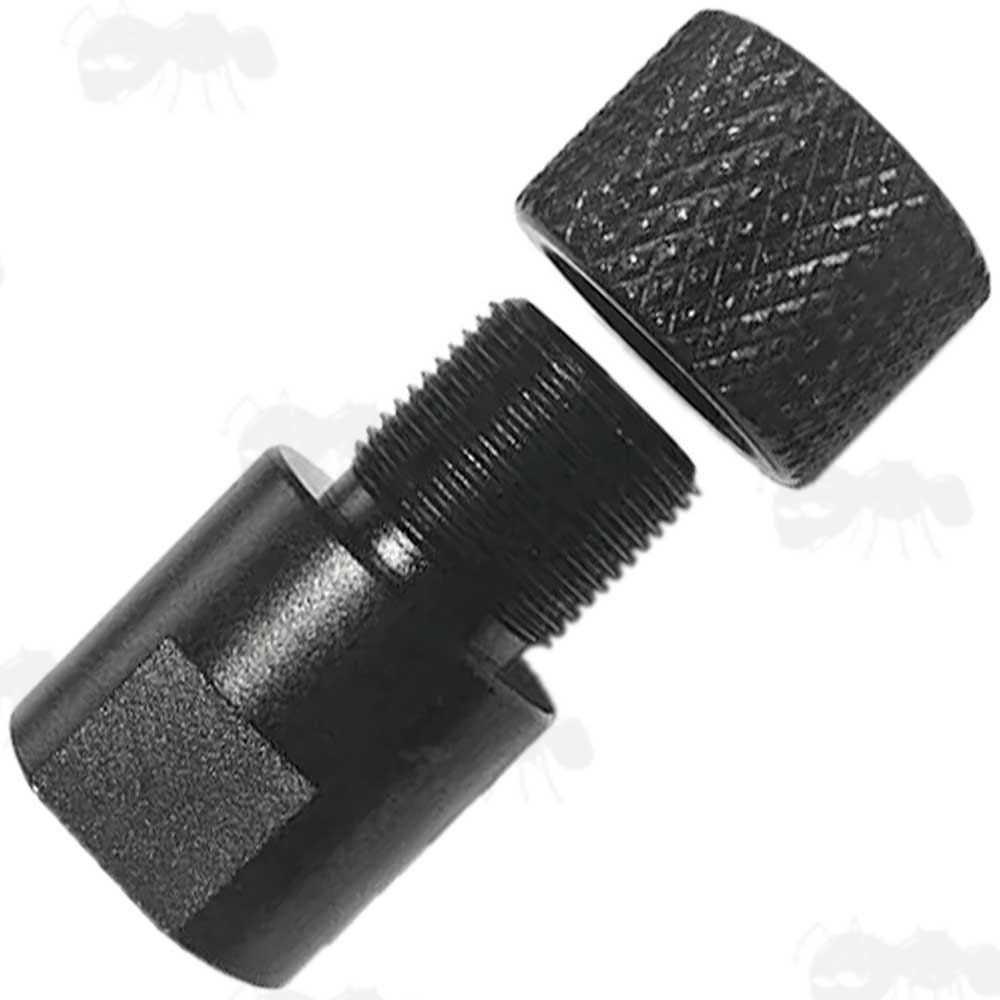

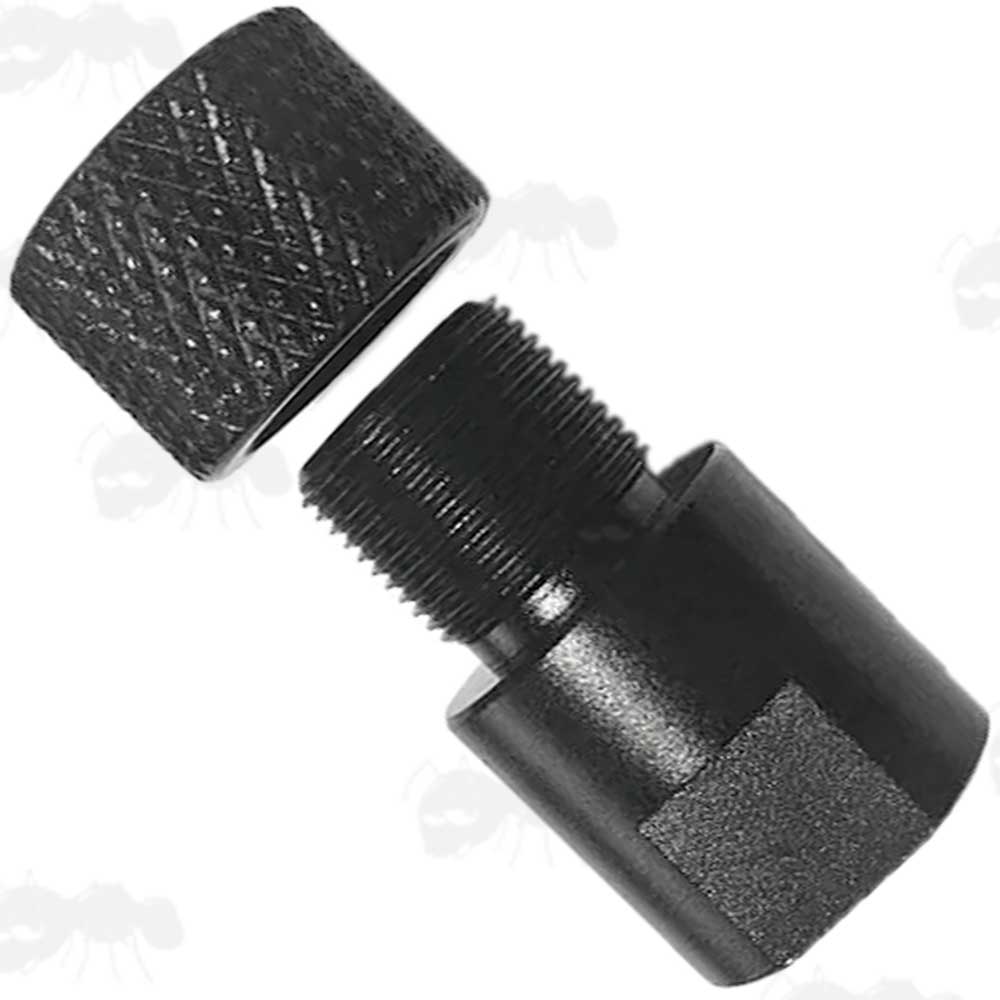

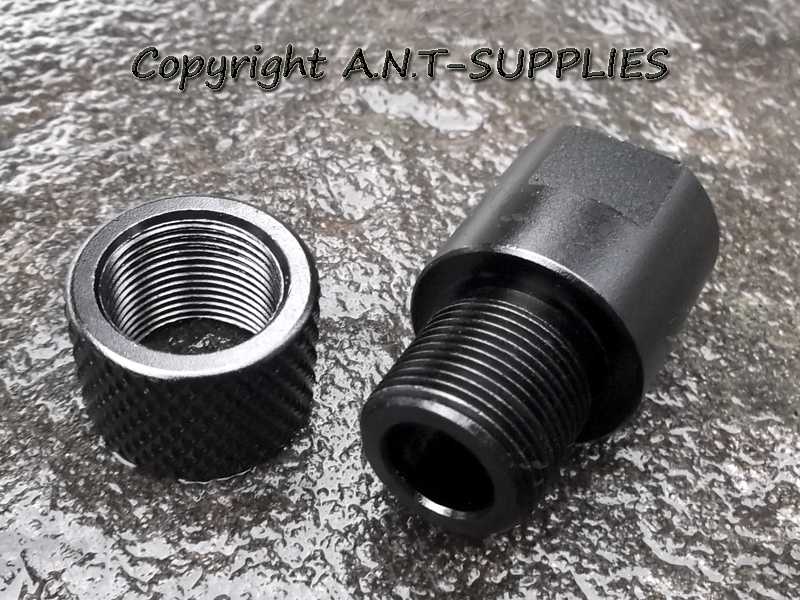

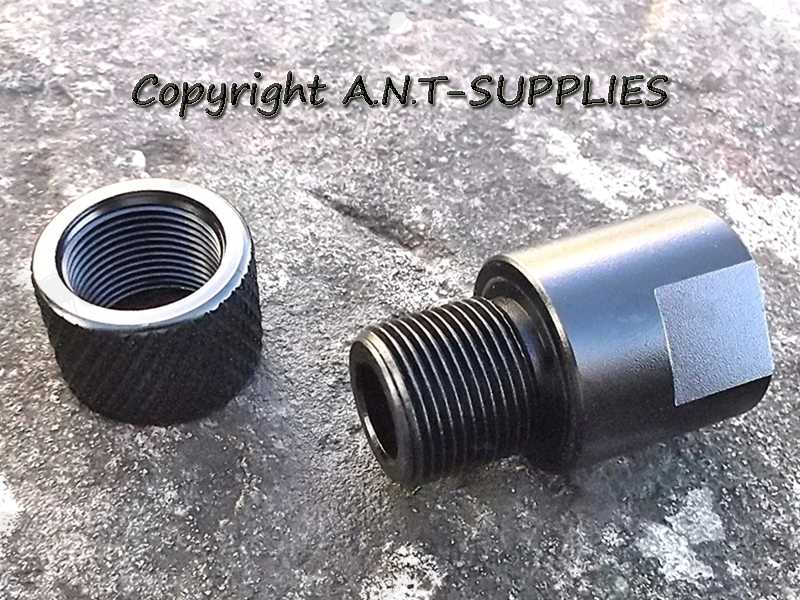

Weighs ~ 26 grams (18 gram adapter and 8 gram guard).
Metric female 14×1 left hand or right hand internal threads.
To male 5/8x24 external threads, 15mm long.
Outer diameter ~ 22mm /.850″.
Overall length ~ 35.5mm / 1.45″.
The internal thread depth is .750 (3/4) inches / (19mm).
Precision CNC manufacturing ensures a precise fit and easy installation.
Manufactured from high grade hard aluminium alloy.
Flat machined edged for easy installation and removal with either a 3/4 or 19mm wrench.
Increased outer thread length ensures secure attachment to your accessory.
The M14x1 CW was a perfect fit for Jakele J1 straight-pull bolt-action hunting rifle in .30-06.
The majority of UK airguns, rimfire rifles and some smaller calibre centerfire rifles (.17, .17HMR, .22WMR, .22LR, .222Rem, .243Win) are usually 1/2 UNF (1/2x20 TPI), if threaded at all, and of course if not re-threaded.
The majority of larger calibers (.30>) are usually 1/2x28 UNEF or 5/8x24 as the next most common.
1/2-20 TPI = UNF ~ Unified National Fine thread.
1/2-28 TPI = UNEF ~ Unified National Extra Fine thread.
5/8-18 TPI = UNF ~ 18 threads per inch.
5/8-24 TPI = UNEF ~ 24 threads per inch.
5/8-24 TPI = many barrel cleaning solvent traps.
3/4-16 TPI = many metal oil filters (Chrysler, Ford, Jeep, etc).
13/16-16 TPI = other metal oil filters (AMC, GM, WIX etc).
Please always verify the adapter and the muzzle device you have are compatible, and are suitable for the calibre and always insure a perfect alignment before use.
Also available ~ Rifle Muzzle Thread Guards.
M14x1mm CW TO 5/8″x24:
M14x1mm CCW TO 5/8″x24:
