RIFLE THREADED MUZZLE ADAPTER
For rifle silencers / moderators / muzzle brakes.

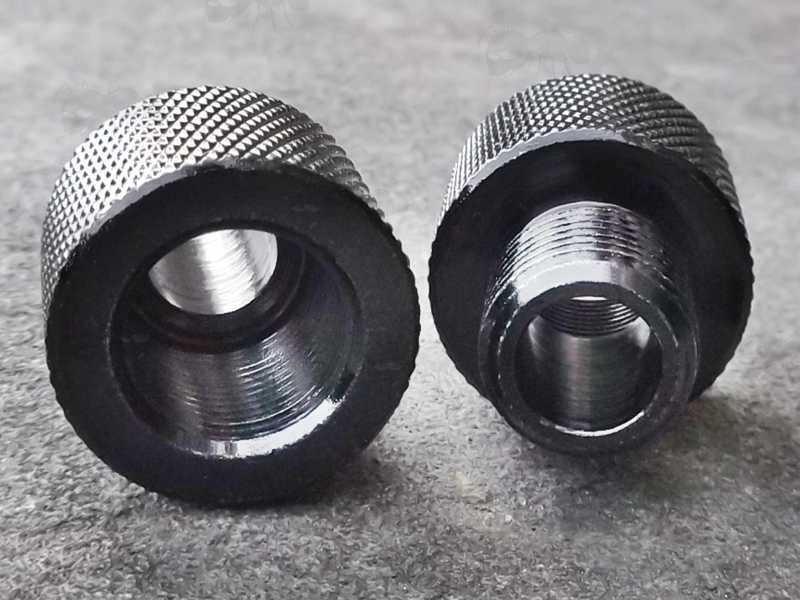

RIFLE THREADED MUZZLE ADAPTER

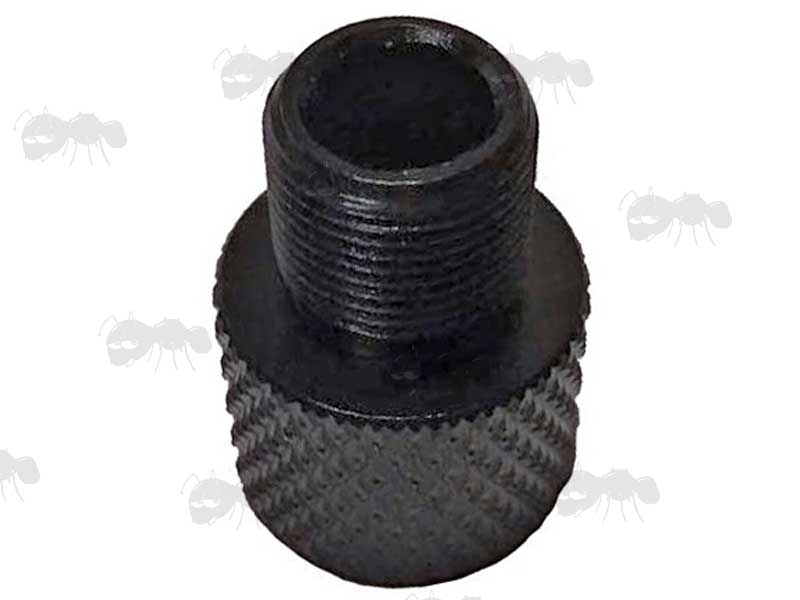

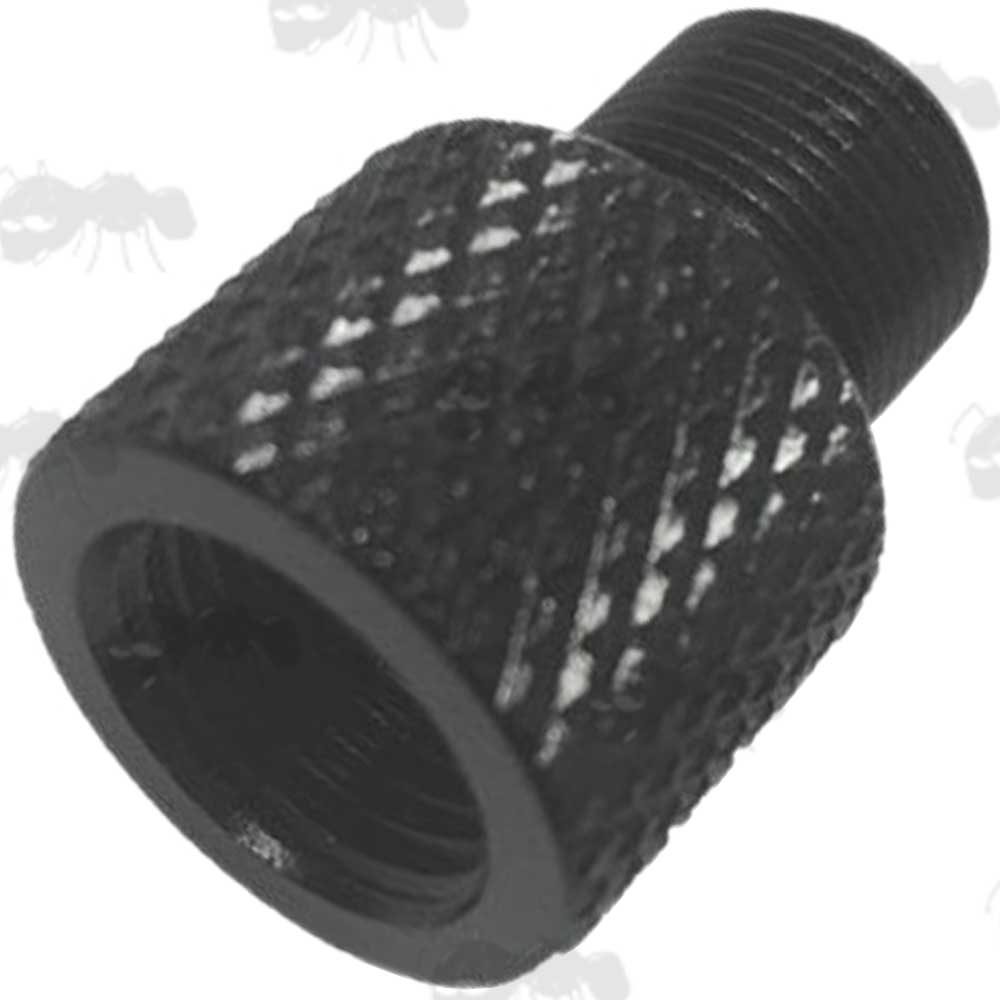

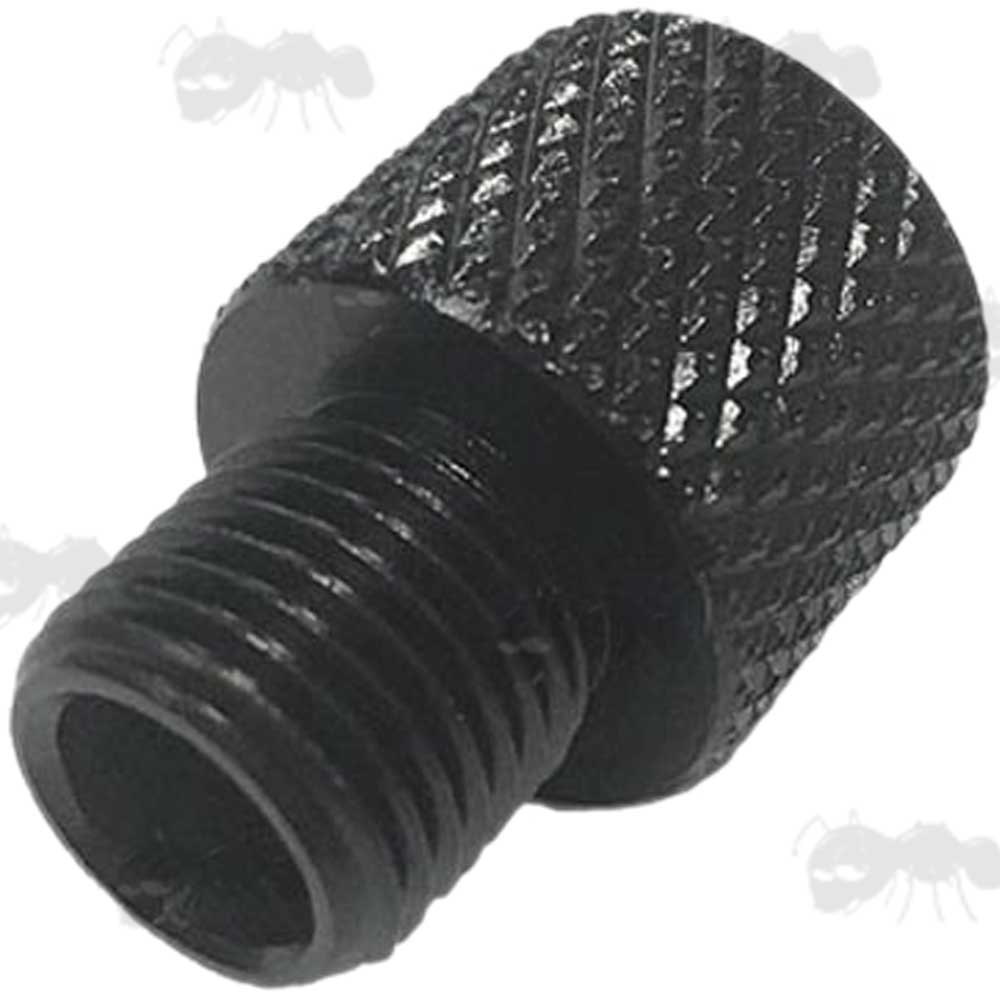

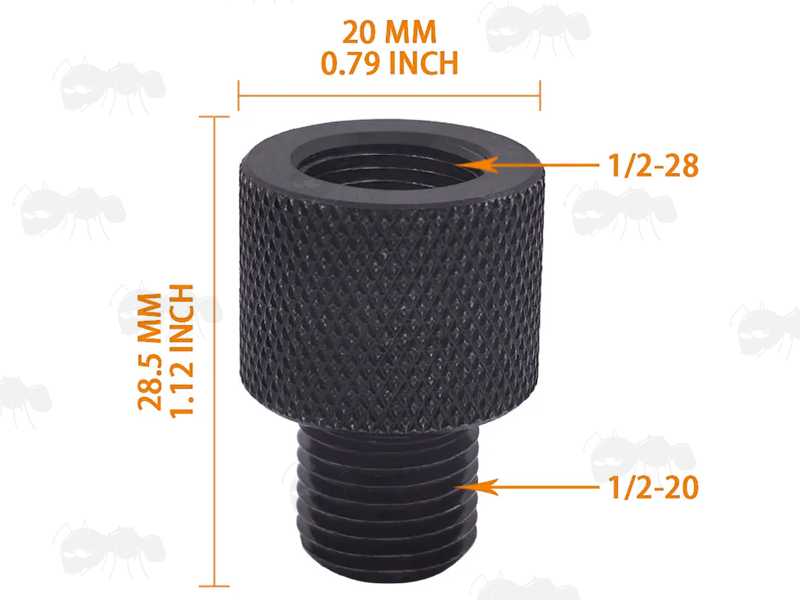

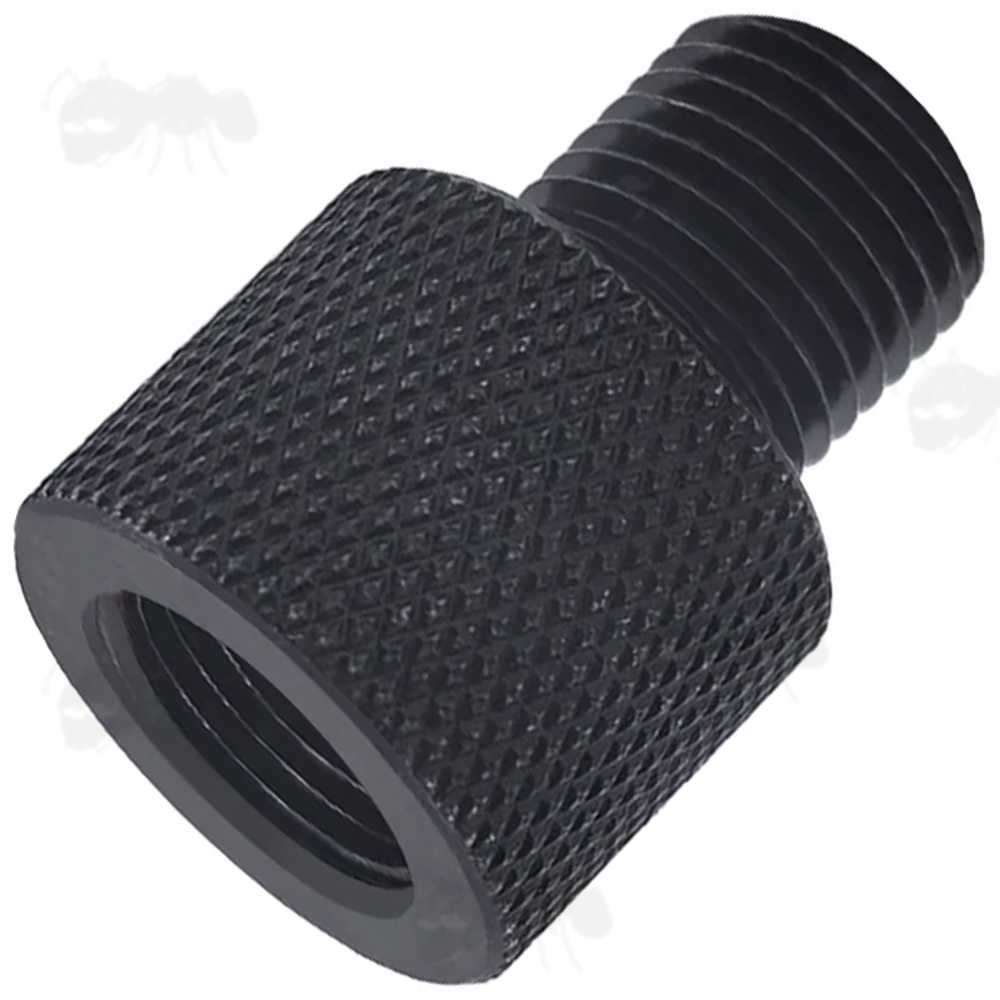

1/2″ x 28 TPI TO 1/2″ x 20 TPI£15.00p each
Overall diameter ~ 19mm.
Overall length ~ 27mm.
External thread ~ 1/2x20.
Internal thread ~ 1/2x28.
Knurling for a firm grip.
Made from steel.
Weighs ~ 26 grams.
OPTION A-I

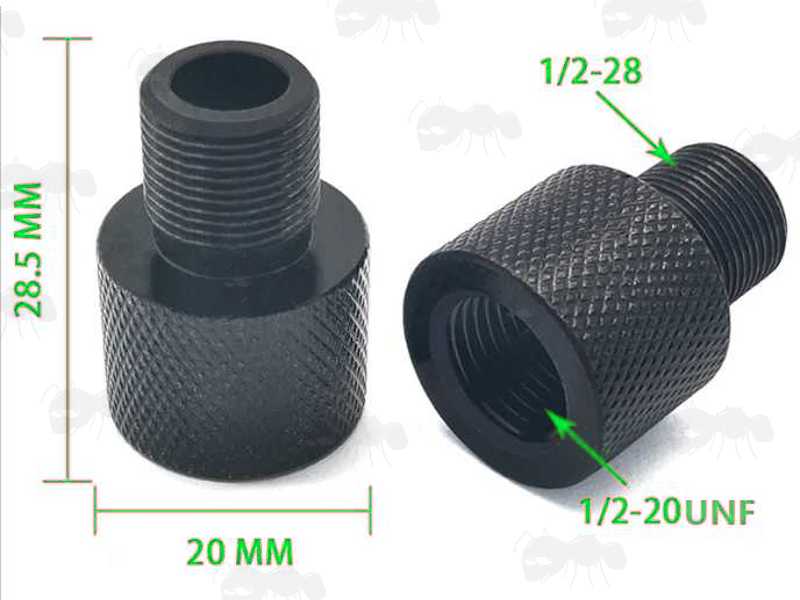

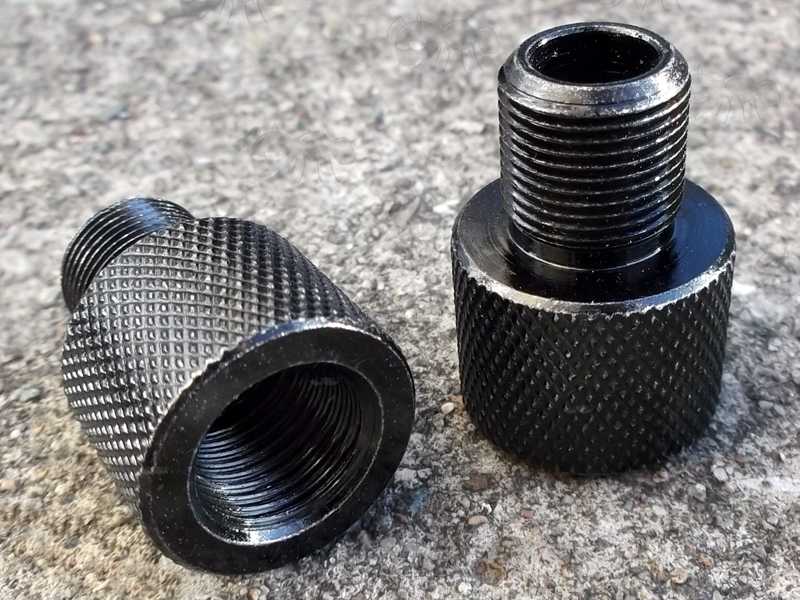

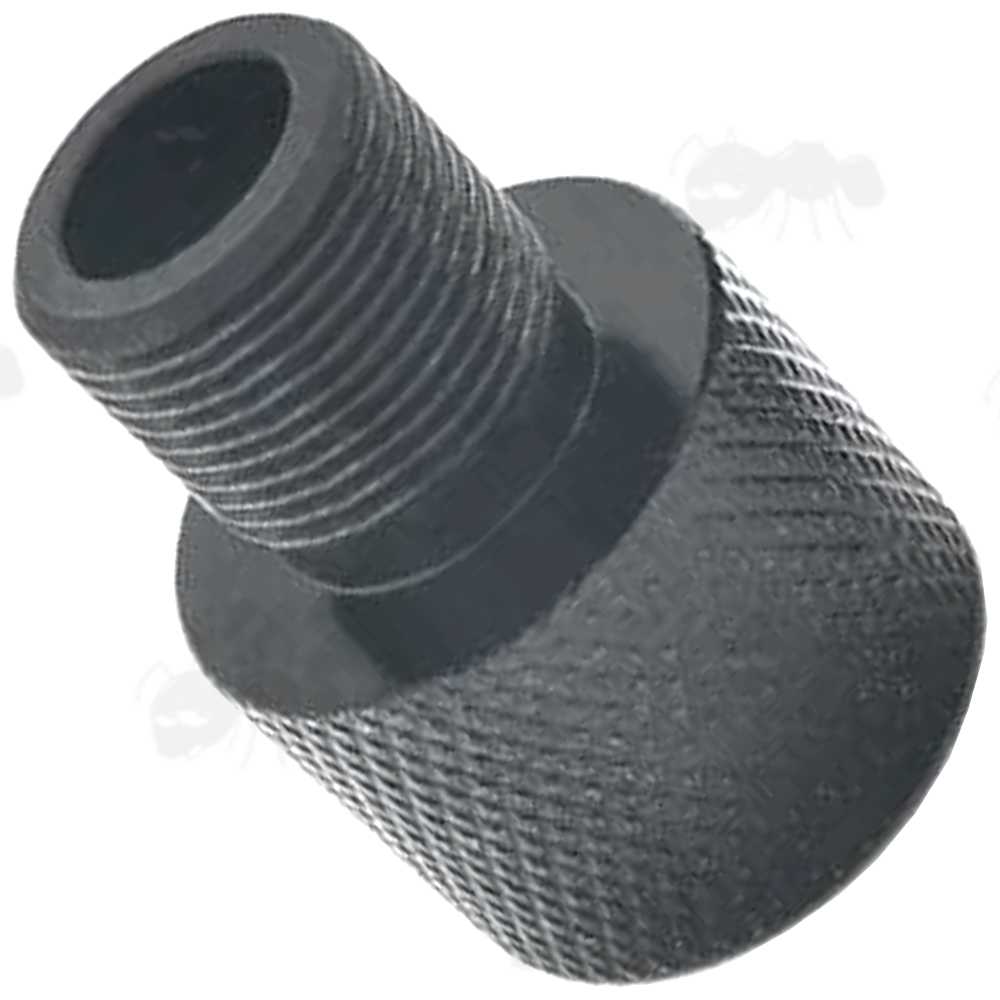

1/2″ x 20 TPI TO 1/2″ x 28 TPI£15.00p each
Overall diameter ~ 19mm.
Overall length ~ 28mm.
External thread ~ 1/2x28.
Internal thread ~ 1/2x20.
Knurling for a firm grip.
Made from steel.
Weighs ~ 26 grams.
OPTION A-II
Choice of adapters for threaded muzzles.
Made of high quality metal with black oxide finish (or natural on the stainless steel options).
For fitting alternative silencers / moderators / muzzle brakes.
The adapters with flat edges can be fitted with a wrench.
The majority of UK air rifles are 1/2 UNF (1/2x20 TPI), UK firearms are usually either 1/2x20 or 1/2x28.
The majority of USA .223 rifles are 1/2 UNEF (1/2x28 TPI),
the closest European equivalent is M14x1 (M14x100 RH).
The 5/8x24 TPI also known as 5/8 UNEF is the most common thread for .30 and larger calibre firearms.
M14 x 1.0 lefthand is usually for AK rifles, but please note that the wide range of AK rifle manufacturers use several different thread types: 24x1.5mm L/H, 22.5x1.5mm, 13x1mm R/H etc.
1/2-20 TPI = UNF ~ Unified National Fine thread.
1/2-28 TPI = UNEF ~ Unified National Extra Fine thread.
5/8-18 TPI = UNF ~ 18 threads per inch.
5/8-24 TPI = UNEF ~ 24 threads per inch.
5/8-24 TPI = many barrel cleaning solvent traps.
3/4-16 TPI = many metal oil filters (Chrysler, Ford, Jeep, etc).
13/16-16 TPI = other metal oil filters (AMC, GM, WIX etc).
Please Note: Thread protectors also available but not included.
SPECIAL OFFER:
Need a thread protector at the same time?
Use Promo Code ~ SATGAddon ~ for 50% off:
Thread protectors page link ~ HERE
OTHER ADAPTERS AVAILABLE TO SPECIAL ORDER:
1/2″ x 20 TPI TO 5/8″ x 24 TPI
1/2″ x 28 TPI TO 5/8″ x 24 TPI
1/2″ x 28 TPI TO 3/4″ x 16 TPI
M14 x 1.5 TO 5/8″ x 24 TPI
M14 x 1.0 LEFTHAND TO 5/8″ x 24 TPI
5/8″ x 24 to 1/2″ x 28
1/2″ x 36 to 1/2″ x 28
M13.5 x 1L to 1/2″ x 28
3/4″ x 16 to 5/8″ x 24
13/16″ x 16 to 5/8″ x 24
M16 x 1 to 5/8″ x 24
M15 x 1 to 5/8″ x 24
M15 x 1 to 1/2″ x 28
M24 x 1.5 to 5/8″ x 24
M24 x 1.5 to 1/2″ x 28
M14 x 1L to 1/2″ x 28
M14 x 1 to 1/2″ x 28
1/2″ x 20 to 1/2″ x 28
Also available ~ Rifle Muzzle Thread Guards.
1/2 x 28 TPI - 1/2 x 20 TPI:
The 'A-I' adapter was used to fit a 1/2″UNF threaded Wildcat moderator
to a Tippmann M4-22 rifle.
1/2″ x 28 TPI TO 5/8″ x 24 TPI (5.56mm to .308 cal):
1/2″ x 20 TPI TO 5/8″ x 24 TPI (available by request):
