RIFLE MUZZLE THREAD BARREL ADAPTER

For 1/2″x28 UNEF to 5/8″x24 silencers / moderators / muzzle brakes.

RIFLE THREADED BARREL ADAPTER

Aluminium 1/2x28 TPI To 5/8x24 TPI Threaded Muzzle Adapter with Knurled GripALLOY ~ KNURLED

£10.00p each

Made from aluminium.

1/2″ x 28 TPI to 5/8″ x 24 TPI.

Overall diameter ~ 22mm.

Overall length ~ 17mm.

Weighs ~ 6 grams.


OPTION B

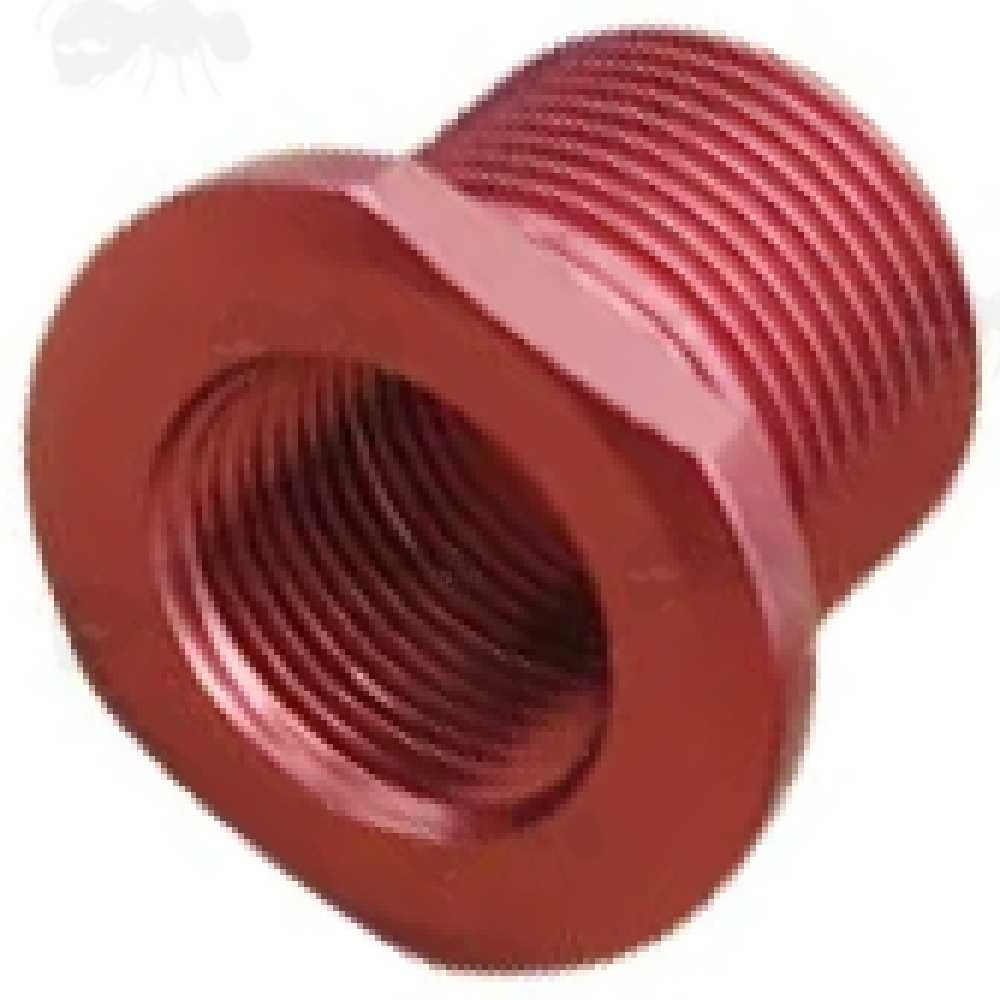

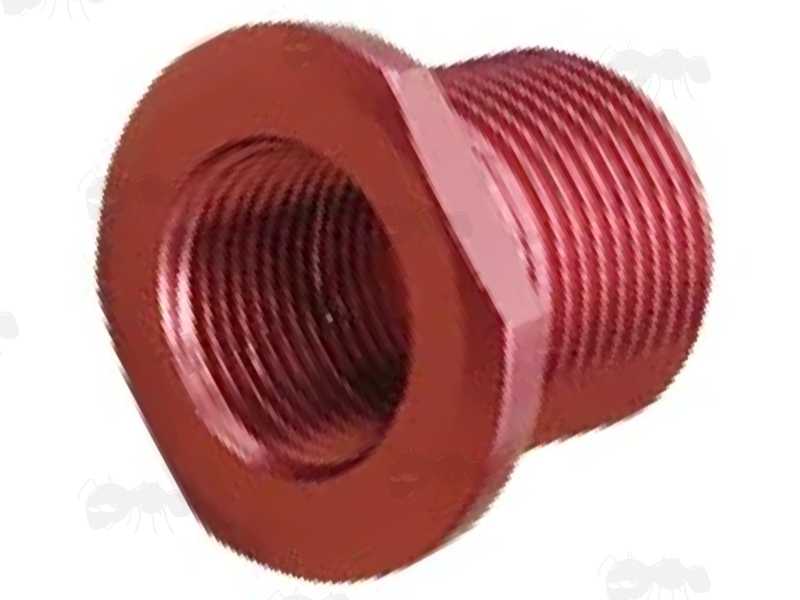

Aluminium 1/2x28 TPI To 5/8x24 TPI Threaded Muzzle AdapterALLOY ~ FLAT EDGES

£12.00p each

Made from aluminium.

1/2″ x 28 TPI to 5/8″ x 24 TPI.

Overall diameter ~ 21mm.

Overall length ~ 16mm.

Weighs ~ 10 grams.


OPTION D
Stainless Steel 1/2x28 TPI To 5/8x24 TPI Threaded Muzzle AdapterSTAINLESS STEEL

£15.00p each

Made from stainless steel.

1/2″ x 28 TPI to 5/8″ x 24 TPI.

Overall diameter ~ 21mm.

Overall length ~ 16mm.

Weighs ~ 14 grams.


OPTION E
Options
Condition: New

This thread adapter is 1/2″ x 28 TPI to 5/8″ x 24, to allow the use of .300 cal silencers etc on many .223/5.56mm barrel threads.

5/8"x24 TPI is a common thread for .30 caliber rifles in the US.

Made of high quality metal.

For fitting alternative silencers / moderators / muzzle brakes.

The options with the flat edges allow for fitting with a 3/4″ wrench.

External thread ~ 5/8x24.

Internal thread ~ 1/2x28.

The options with the flat edges have a width of 19mm.

The majority of UK airguns, rimfire rifles and some smaller calibre centerfire rifles (.17, .17HMR, .22WMR, .22LR, .222Rem, .243Win) are usually 1/2 UNF (1/2x20 TPI), if threaded at all, and of course if not re-threaded.

The majority of larger calibers (.30>) are usually 1/2x28 UNEF or 5/8x24 as the next most common.

1/2-20 TPI = UNF ~ Unified National Fine thread.

1/2-28 TPI = UNEF ~ Unified National Extra Fine thread.

5/8-18 TPI = UNF ~ 18 threads per inch.

5/8-24 TPI = UNEF ~ 24 threads per inch.


5/8-24 TPI = many barrel cleaning solvent traps.

3/4-16 TPI = many metal oil filters (Chrysler, Ford, Jeep, etc).

13/16-16 TPI = other metal oil filters (AMC, GM, WIX etc).

Please always verify the adapter and the muzzle device you have are compatible, and are suitable for the calibre and always insure a perfect alignment before use.

Also available ~ 1/2x20 To 5/8x24 Adapters.

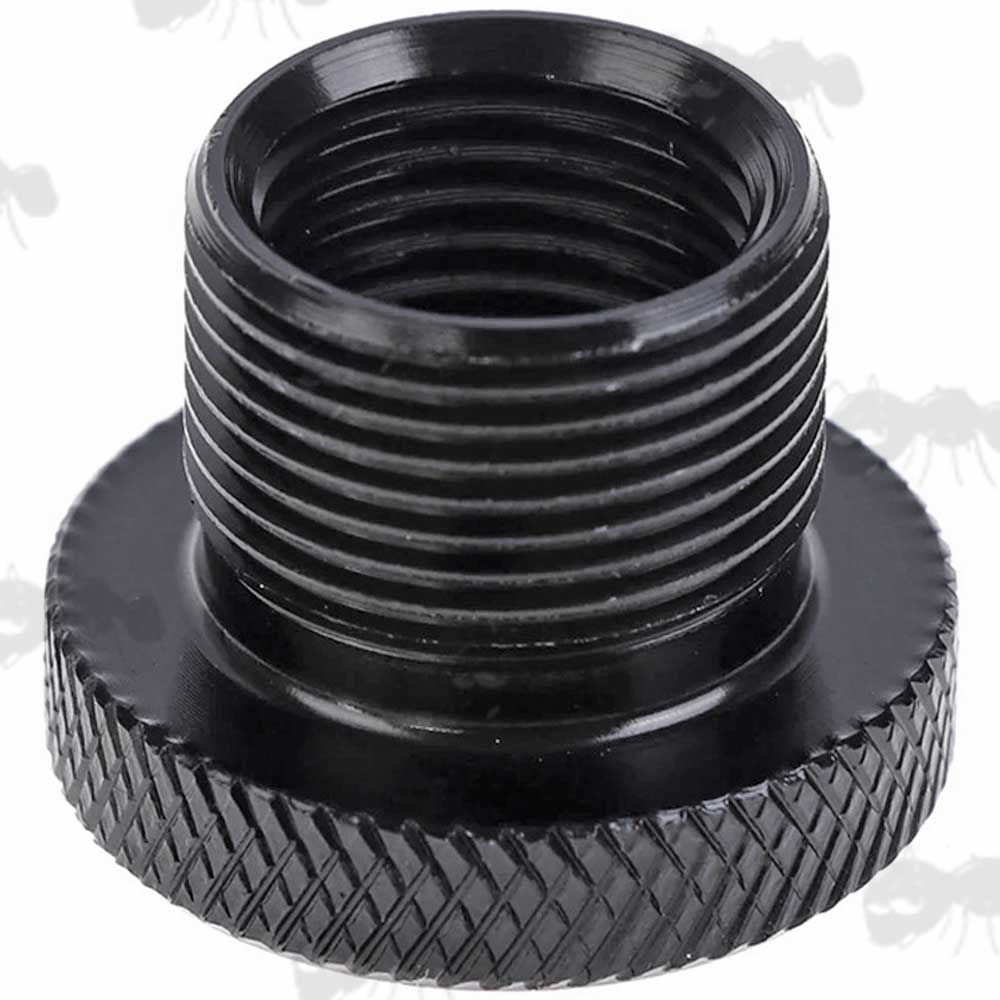

ALLOY ~ ROUND KNURLED GRIP:

Aluminium 1/2x28 TPI To 5/8x24 TPI Threaded Muzzle Adapter with Knurled Grip

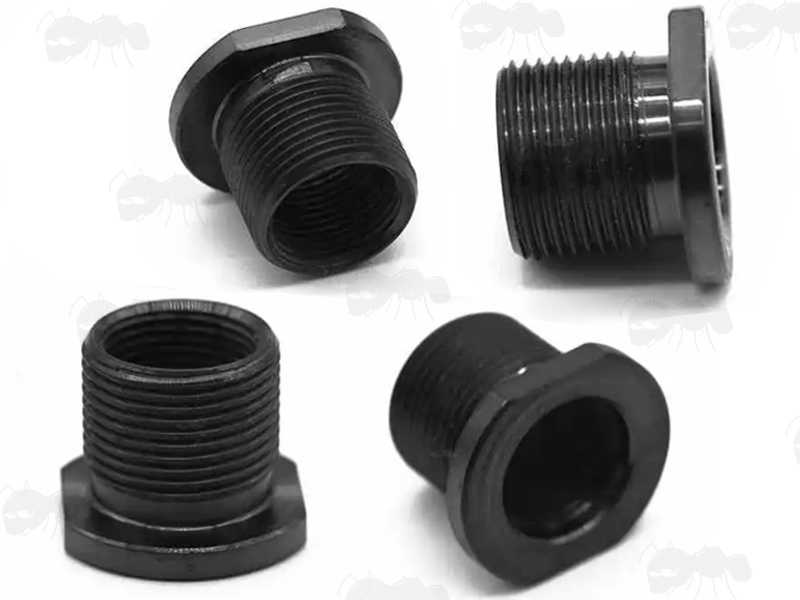

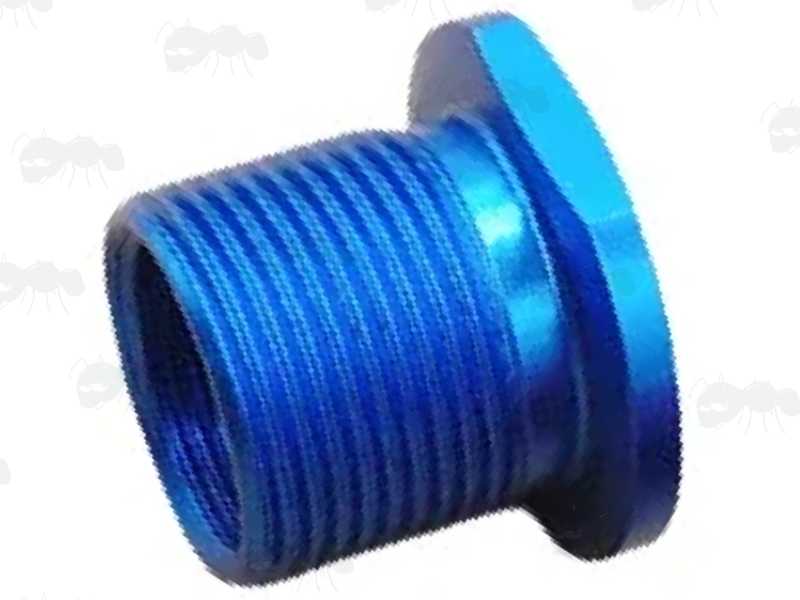

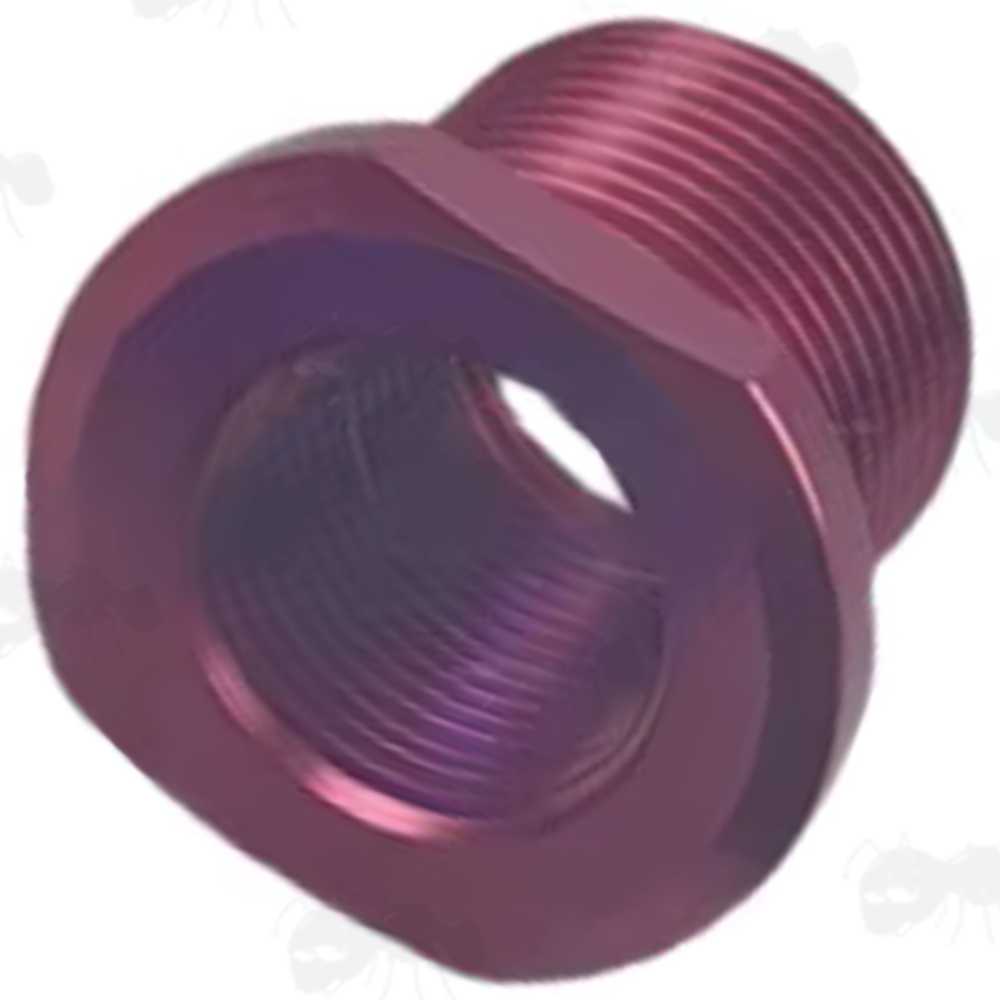

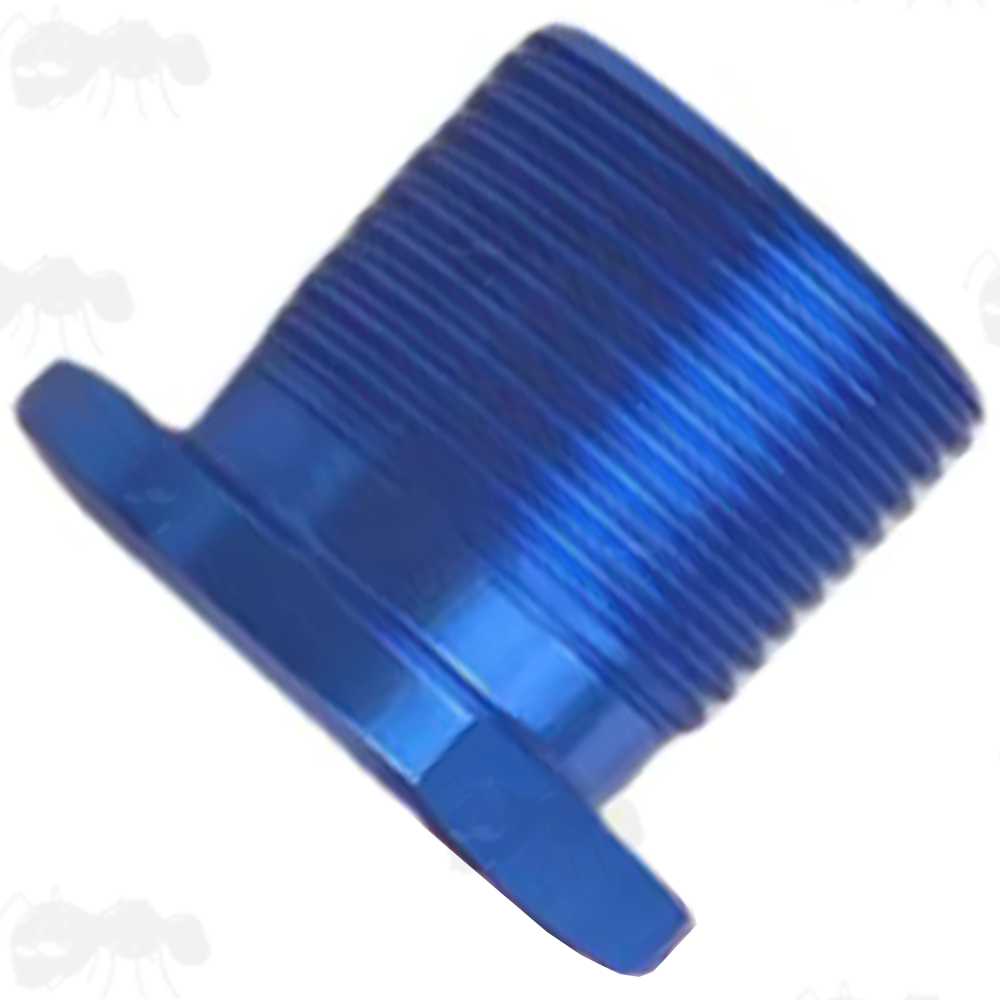

ALLOY ~ FLAT EDGES:

Aluminium 1/2x28 TPI To 5/8x24 TPI Threaded Muzzle Adapter

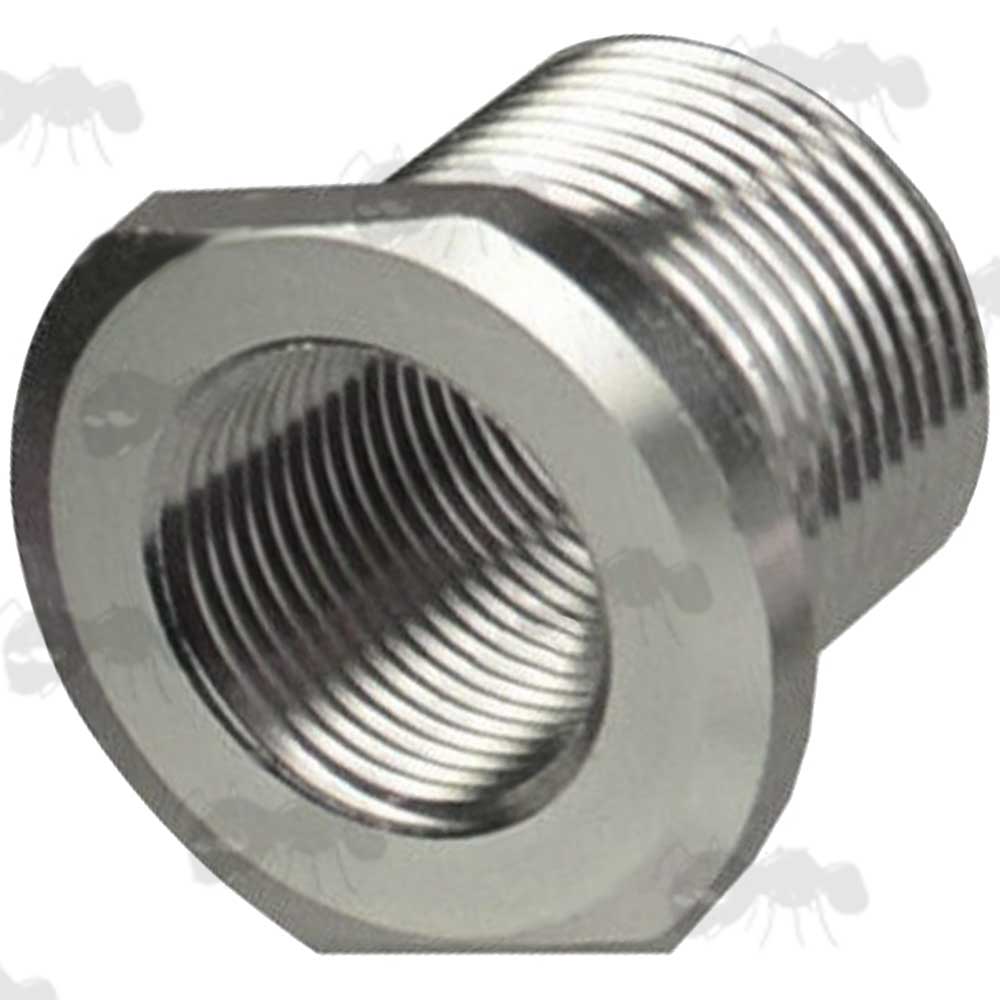

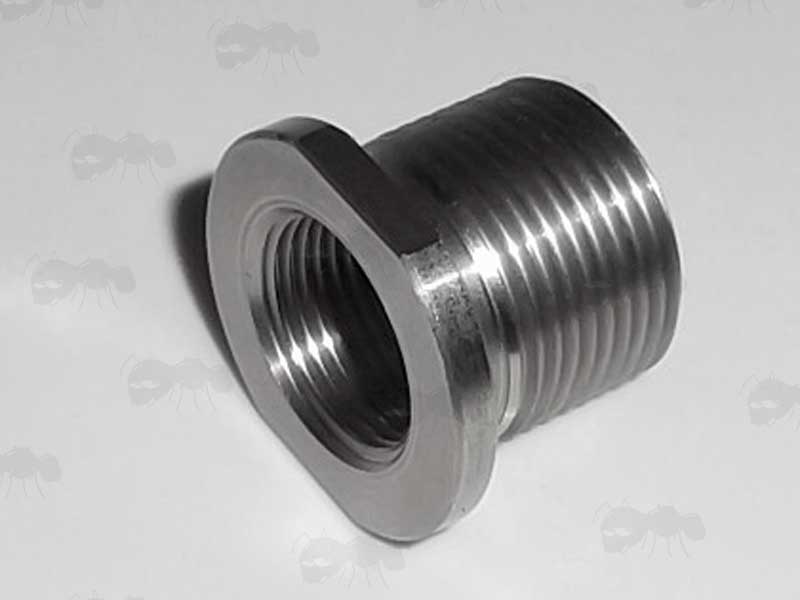

STAINLESS STEEL:

Stainless Steel 1/2x28 TPI To 5/8x24 TPI Threaded Muzzle Adapter

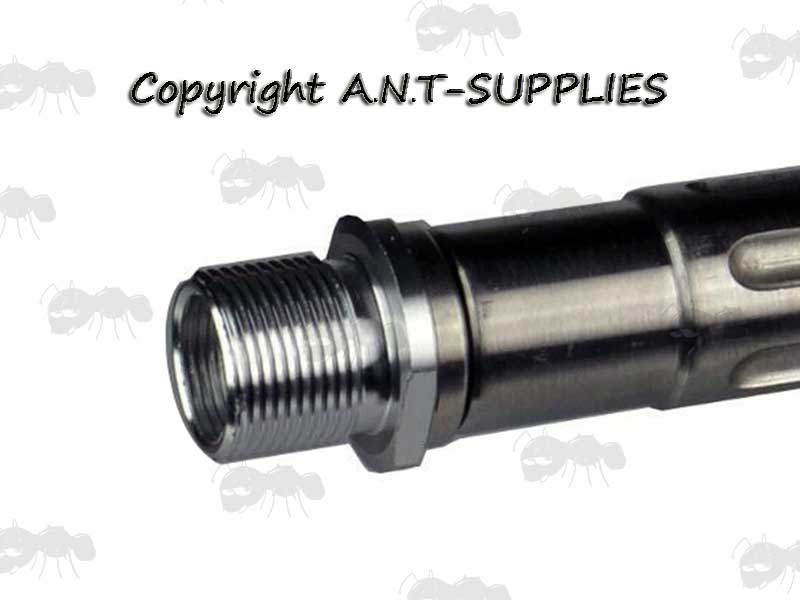

Stainless Steel 1/2x28 TPI To 5/8x24 TPI Threaded Muzzle Adapter Shown Fitted to a Barrel
