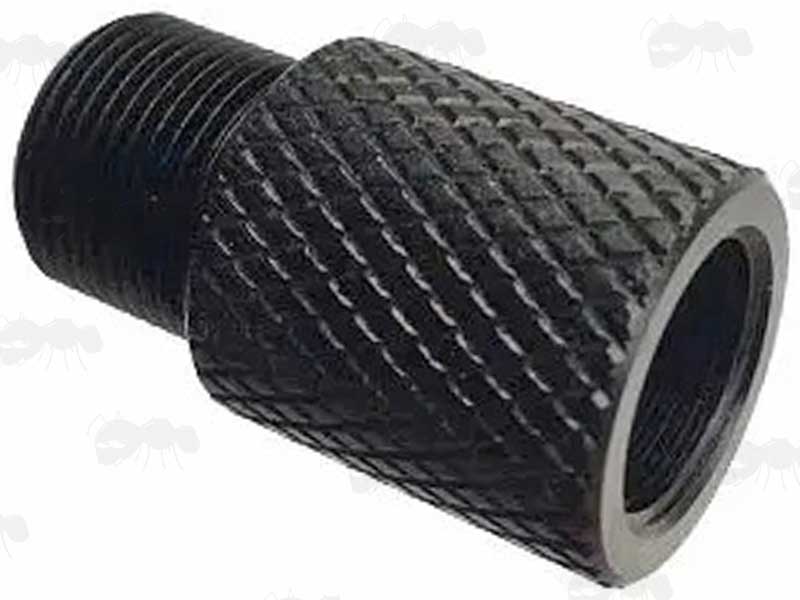

RIFLE THREADED MUZZLE ADAPTER

For 14mm rifle silencers / moderators / muzzle brakes.

Link to our ~ Gun barrel threads guide.

THREADED MUZZLE ADAPTER

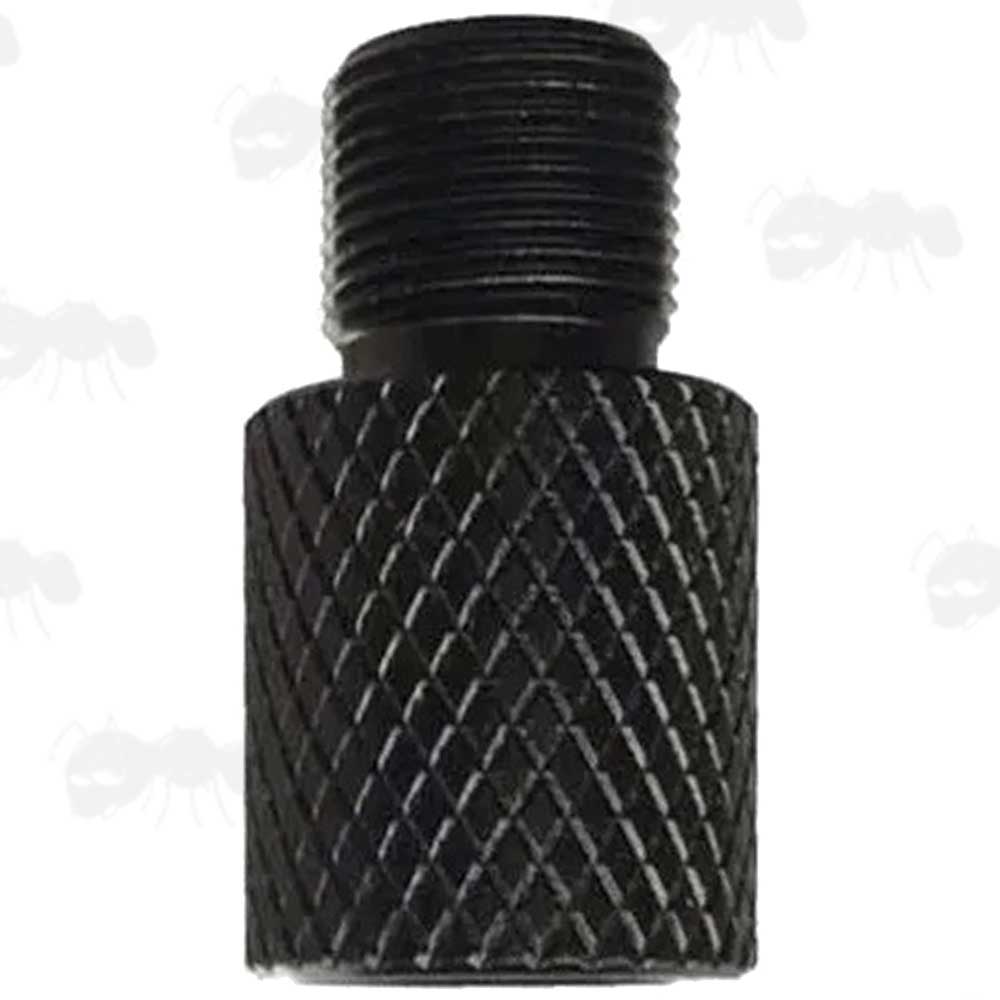

Black Anodised Alloy 1/2x28 TPI To M14x1 Right Hand Thread Muzzle Adapter

1/2″ x 28 TPI TO M14x1 RH

£18.00p each

External thread ~ M14x1 RH.
Internal thread ~ 1/2x28.

OPTION A

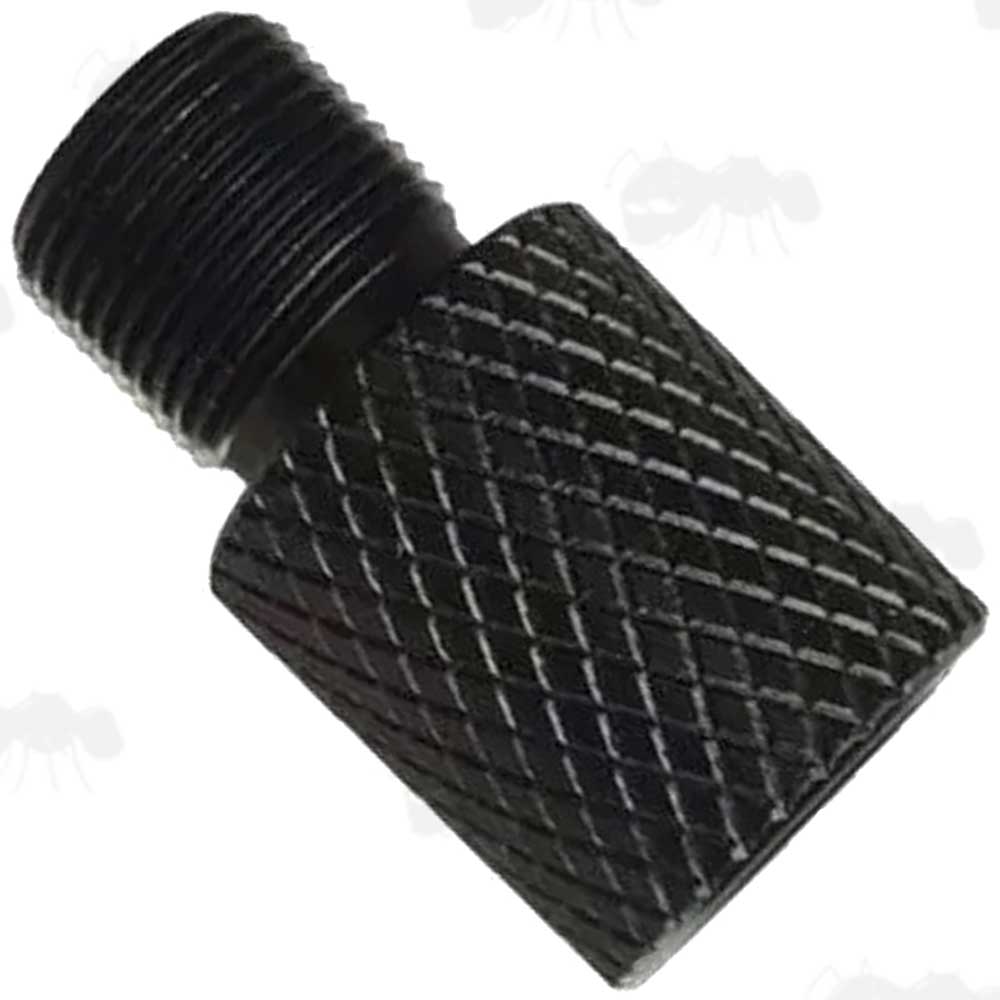

Black Anodised Alloy 1/2x28 TPI To M14x1 Left Hand Thread Muzzle Adapter

1/2″ x 28 TPI TO M14x1 LH

£18.00p each

External thread ~ M14x1 LH.
Internal thread ~ 1/2x28.

OPTION B

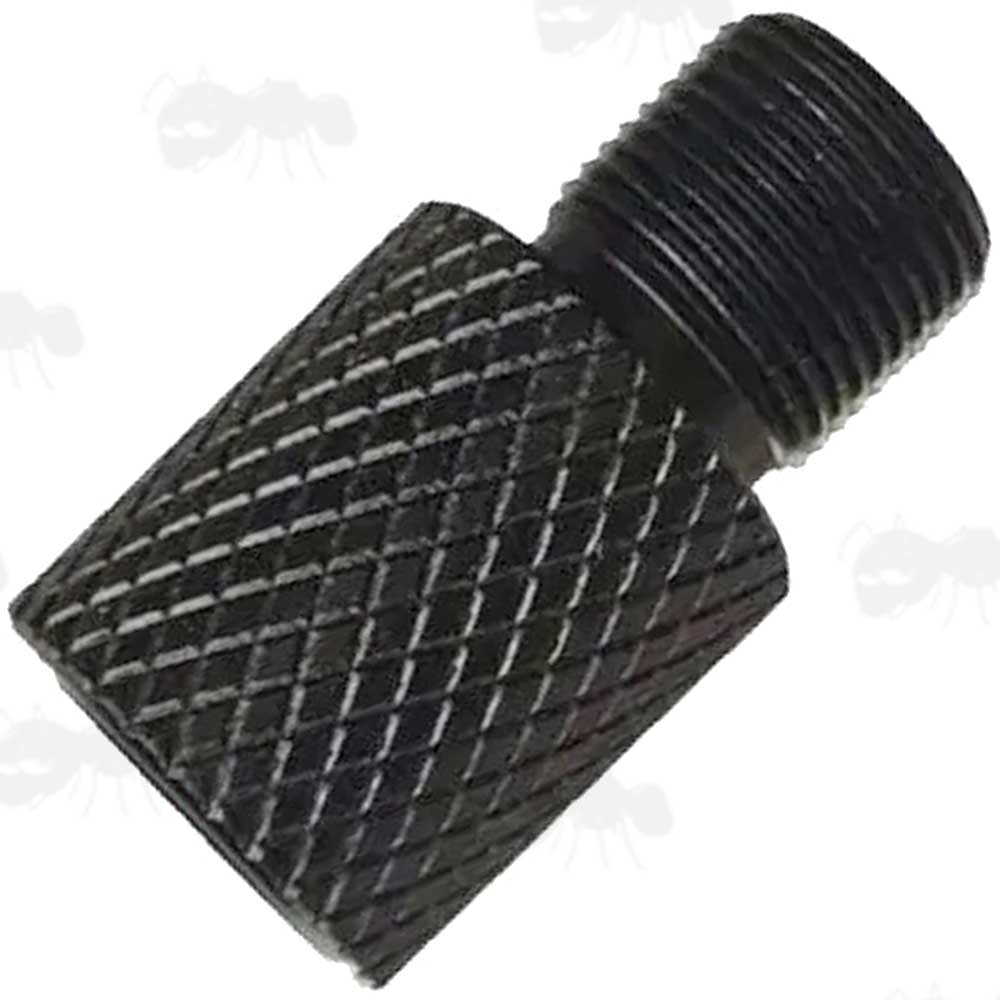

Black Anodised Alloy M14x1 Left Hand Thread To 1/2x28 TPI Threaded Muzzle Adapter

M14 LH TO 1/2″ x 28 TPI

£18.00p each

External thread ~ 1/2x28.
Internal thread ~ M14x1 LH.

OPTION C

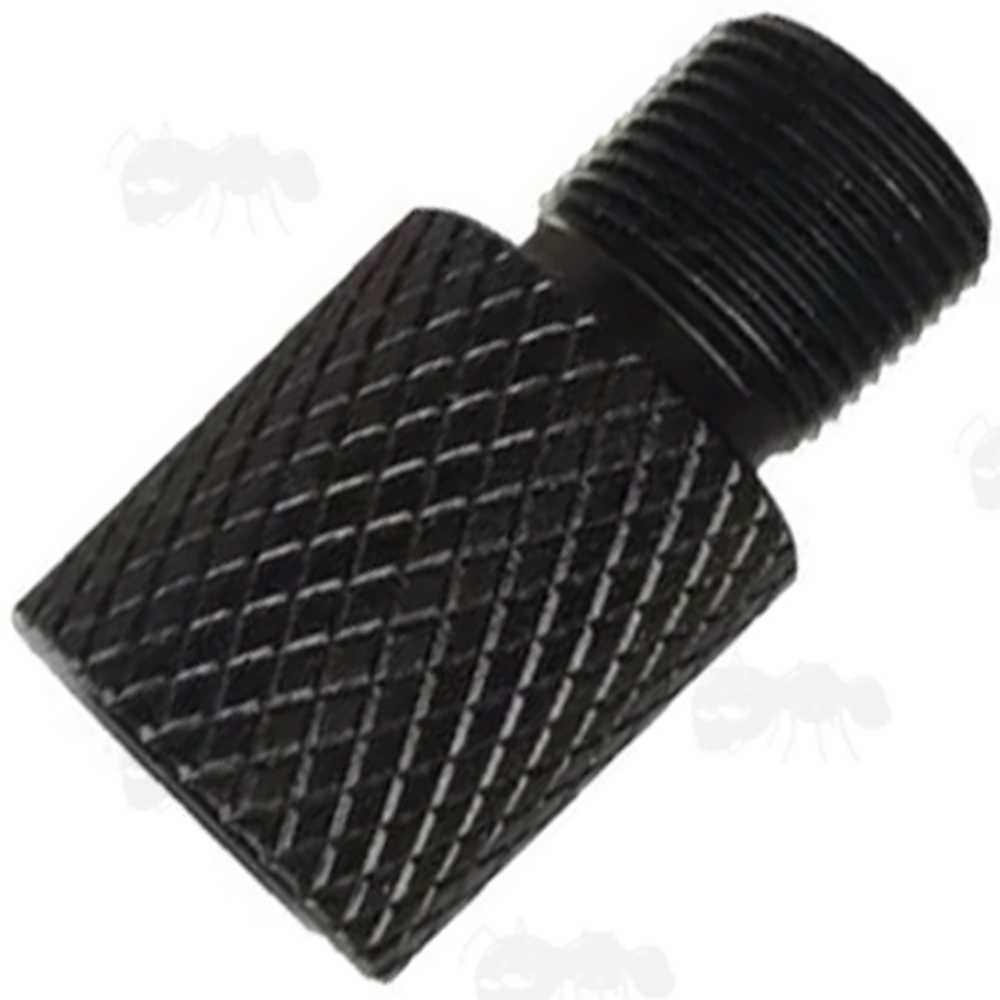

Black Anodised Alloy 1/2x20 TPI To M14x1 Left Hand Thread Muzzle Adapter

1/2″ x 20 TPI TO M14x1 LH

£18.00p each
SOLD OUT
External thread ~ M14x1 LH.
Internal thread ~ 1/2x20.

OPTION D

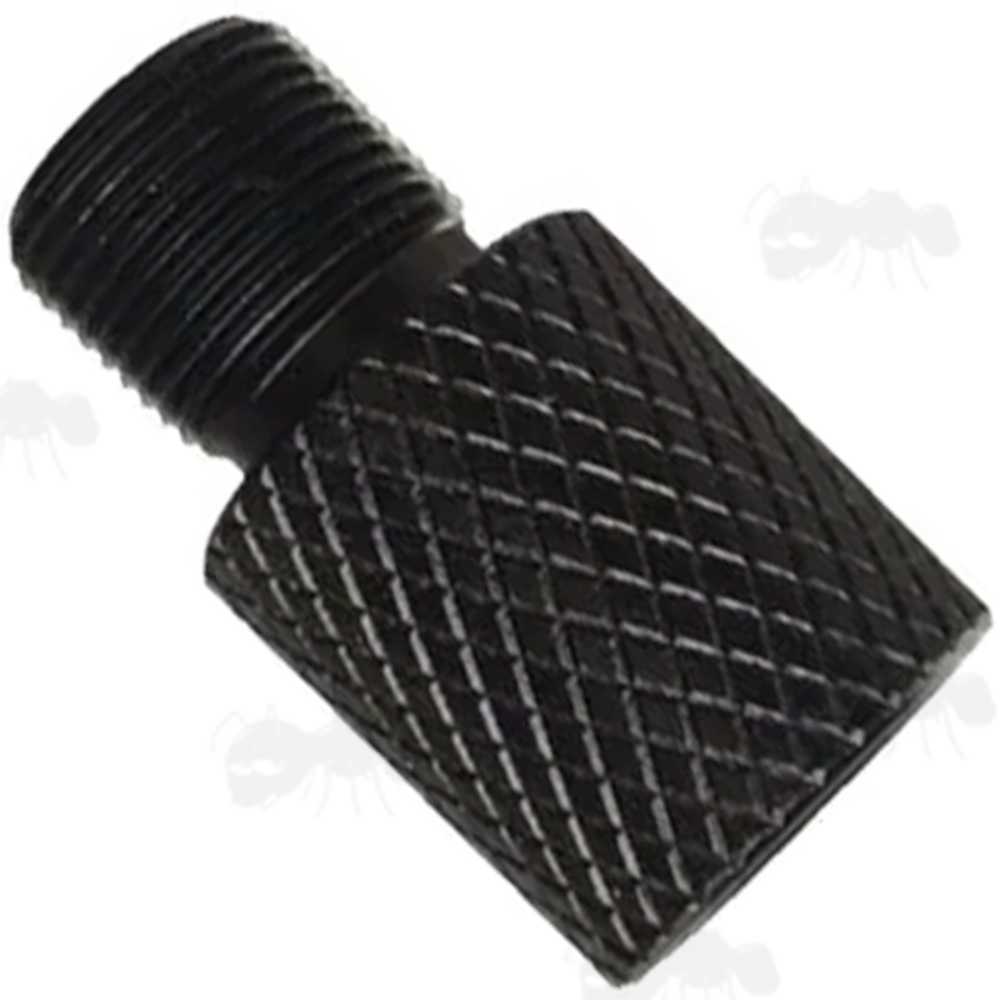

Black Anodised Alloy M14x1 Left Hand Thread To 1/2x20 TPI Threaded Muzzle Adapter

M14 LH TO 1/2″ x 20 TPI

£18.00p each

External thread ~ 1/2x20.
Internal thread ~ M14x1 LH.

OPTION E

Condition: New

Choice of adapters for threaded muzzles.

Made of high quality hard aluminium alloy metal with black oxide finish.

With knurling for a firm grip.

For fitting alternative silencers / moderators / muzzle brakes.

The through bore is 9.4 mm / 0.37″ diameter.

Overall diameter ~ 18.5mm.

Overall length ~ 31mm.

Inner threads depth and the outer threads length is 1/2″.

Weighs ~ 10 grams.

M14 x 1.0 lefthand is usually for AK rifles, but please note that the wide range of AK rifle manufacturers use several different thread types: 24x1.5mm L/H, 22.5x1.5mm, 13x1mm R/H etc.

The Brocock BRK Ghost has a barrel shroud with a standard 1/2x20 UNF thread, the barrel itself has a M14x1 RH thread, at the time of writing we only have a M14x1 LH adapter, so you would also need one of our M14x1 RH to M14x1 LH thread adapters.

MORE THREAD INFORMATION:

M14 x 1LH (Left Hand) are 14mm CCW.

Right hand (RH) / clockwise (CW) / positive (+) tighten by turning clockwise.

Left hand (LH) / anticlockwise / counter-clockwise (CCW) / negative (-) tighten by turning anticlockwise.

This applies to the silencer (etc) rotating, when looking at the front of the muzzle.

1/2-20 TPI = UNF ~ Unified National Fine thread.

1/2-28 TPI = UNEF ~ Unified National Extra Fine thread.

5/8-18 TPI = UNF ~ 18 threads per inch.

5/8-24 TPI = UNEF ~ 24 threads per inch.

5/8-24 TPI = many barrel cleaning solvent traps.

3/4-16 TPI = many metal oil filters (Chrysler, Ford, Jeep, etc).

13/16-16 TPI = other metal oil filters (AMC, GM, WIX etc).

OTHER ADAPTERS AVAILABLE TO SPECIAL ORDER:

1/2″ x 20 TPI TO 5/8″ x 24 TPI

1/2″ x 28 TPI TO 5/8″ x 24 TPI

1/2″ x 28 TPI TO 3/4″ x 16 TPI

M14 x 1.5 TO 5/8″ x 24 TPI

M14 x 1.0 LEFTHAND TO 5/8″ x 24 TPI

5/8″ x 24 to 1/2″ x 28

1/2″ x 36 to 1/2″ x 28

M13.5 x 1L to 1/2″ x 28

3/4″ x 16 to 5/8″ x 24

13/16″ x 16 to 5/8″ x 24

M16 x 1 to 5/8″ x 24

M15 x 1 to 5/8″ x 24

M15 x 1 to 1/2″ x 28

M24 x 1.5 to 5/8″ x 24

M24 x 1.5 to 1/2″ x 28

1/2″ x 20 to 1/2″ x 28

Also available ~ Rifle Muzzle Thread Guards.

End View of The Black Anodised Alloy M14x1 Left Hand Thread To 1/2x28 TPI Threaded Muzzle Adapter

1/2″ x 28 TPI TO M14x1 LH

OPTION B

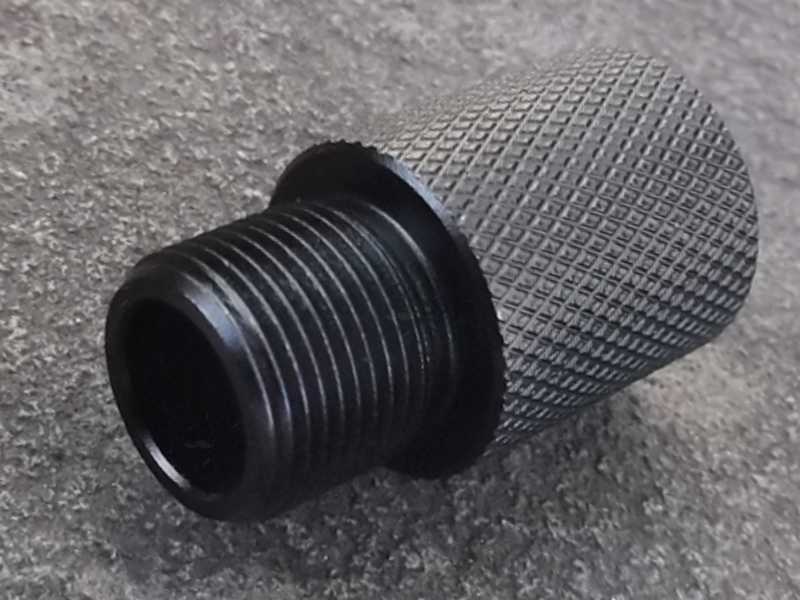

M14x1 Left Handed Male Threaded End View of The Black Anodised Alloy 1/2x28 TPI To M14x1 Left Hand Thread Muzzle Adapter

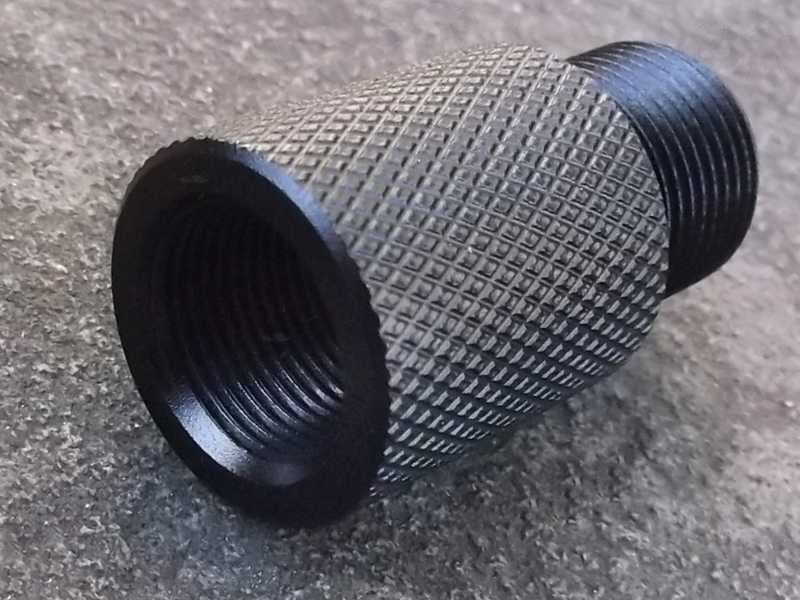

1/2x28 UNEF Female Threaded End View of The Black Anodised Alloy 1/2x28 TPI To M14x1 Left Hand Thread Muzzle Adapter
