RIFLE BARREL THREAD ADAPTER
For some European 15mm threaded barrels.
RIFLE BARREL THREAD ADAPTER
M15x1 CW TO 5/8x24£12.00p each
SPECIAL REQUEST
Each weighs ** grams.
M15x1 CCW TO 5/8x24£12.00p each
SPECIAL REQUEST
Each weighs ** grams.
M15x1 CW TO 1/2x28£18.00p each
SPECIAL REQUEST
Each weighs ** grams.
M15x1 CCW TO 1/2x28£18.00p each
SPECIAL REQUEST
Each weighs ** grams.

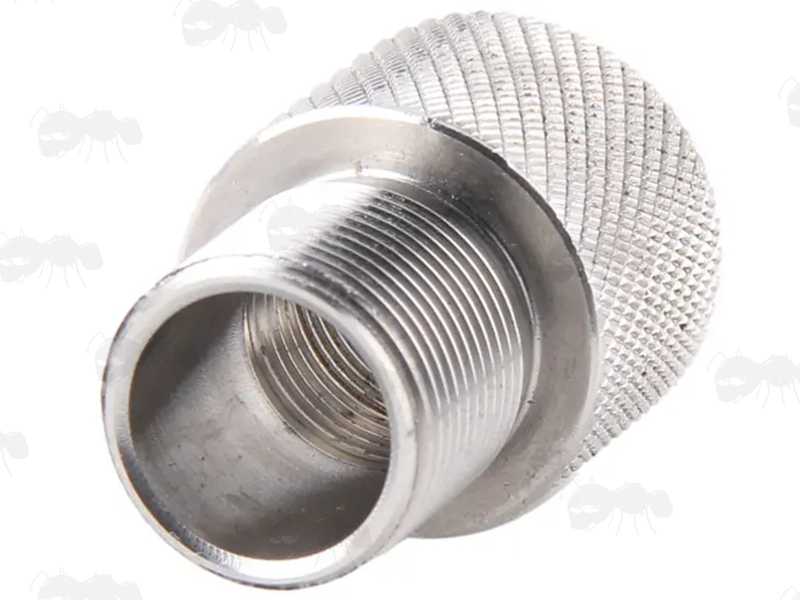

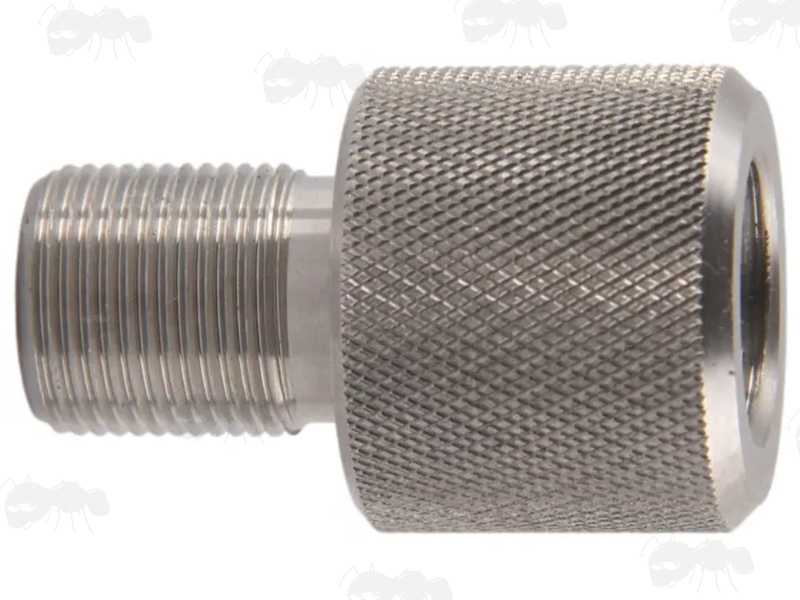

15mm thread adapter for some European rifles, mostly of German origin.
With options for M15x1mm right hand (CW) or left hand (CCW) thread, to 5/8x24 or 1/2x28 UNEF threads.
Please Note: ensure the adapters through bore diameter is adequate for the projectile diameter.
Made of high quality stainless steel.
For fitting alternative silencers / moderators / muzzle brakes.
Knurled grip.
Metric female 15x1 internal threads, also known as M15x100.

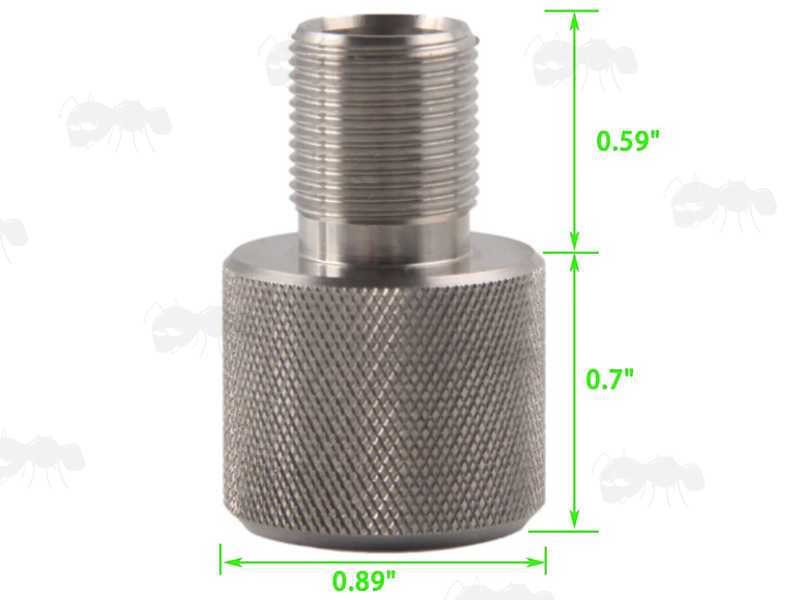

Outer diameter ~ 22.6mm /.89″.
Overall length ~ 32.8mm / 1.29″.
The internal thread depth is .5 (1/2) inches / (12.5mm).
The M15x1 RH should fit the following guns:
Blaser (with standard barrel): R93, R8.
Haenel Jaeger 10 Pro.
Heckler & Koch models: MR223 and MR308.
Sako (depending on barrel): A7, 85.
Tikka (depending on barrel): T3 (M14 up to .308, M15 for 9.3mm, and M18 for varmint barrels).
MORE THREAD INFORMATION:
Right hand (RH) / clockwise (CW) / positive (+) tighten by turning clockwise.
Left hand (LH) / anticlockwise / counter-clockwise (CCW) / negative (-) tighten by turning anticlockwise.
This applies to the silencer (etc) rotating, when looking at the front of the muzzle.
Please always verify the adapter and muzzle device you have and intend to use is suitable for the calibre and always insure perfect alignment before use.
Also available ~ M14 To 5/8x24 Thread Adapters.
